Flink1.11 intervalJoin watermark生成，状态清理机制源码理解Demo分析

参考博客 https://cloud.tencent.com/developer/article/1738836

数据类型为左流 FlinkClick(userid=gk01, click=Pay, ctime=2020-12-14 09:55:00.000) ; 右流为 FlinkPay(userid=gk01, payway=alipy, ptime=2020-12-14 09:58:00.000)

join的这段代码如下

  clickOut.keyBy(t->t.getUserid()).intervalJoin(payOunt.keyBy(t->t.getUserid())).between(Time.minutes(1),Time.minutes(5)).lowerBoundExclusive()    //默认是闭区间，这样就变成了开区间.upperBoundExclusive().process(new ProcessJoinFunction<FlinkClick, FlinkPay, String>() {@Overridepublic void processElement(FlinkClick left, FlinkPay right, Context ctx, Collector<String> out) throws Exception {out.collect(StringUtils.join(Arrays.asList(left.getUserid(),left.getClick(),right.getPayway()),'\t'));}}).print().setParallelism(1);

一：watermark生成规则：

     watermark的计算为 min(ctime,ptime)-watermark (watermark为左右流定义的乱序时间，我这里设置的0)，贴出其中一个流的demo，注意watermark

env.addSource(payConsumer).map(new MapFunction<String, FlinkPay>() {@Overridepublic FlinkPay map(String pv) throws Exception {JSONObject clickObject = JSONObject.parseObject(pv);String userid = clickObject.getString("userid");String payway = clickObject.getString("payway");String ptime = clickObject.getString("ptime");FlinkPay payO = new FlinkPay(userid, payway, ptime);return payO;}}).assignTimestampsAndWatermarks(WatermarkStrategy.<FlinkPay>forBoundedOutOfOrderness(Duration.ZERO)   //watermark时间.withTimestampAssigner(new SerializableTimestampAssigner<FlinkPay>() {@Overridepublic long extractTimestamp(FlinkPay element, long recordTimestamp) {Date dateP = new Date();try {System.out.println(element);dateP = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss.SSS").parse(element.getPtime());} catch (ParseException e) {e.printStackTrace();}
//                                                        System.out.println(dateP.getTime());return dateP.getTime();}}));

二：状态清理机制

贴上几段源码，均在  IntervalJoinOperator 类中

private transient MapState<Long, List<BufferEntry<T1>>> leftBuffer;
private transient MapState<Long, List<BufferEntry<T2>>> rightBuffer;@Override
public void initializeState(StateInitializationContext context) throws Exception {super.initializeState(context);this.leftBuffer = context.getKeyedStateStore().getMapState(new MapStateDescriptor<>(LEFT_BUFFER,LongSerializer.INSTANCE,new ListSerializer<>(new BufferEntrySerializer<>(leftTypeSerializer))));this.rightBuffer = context.getKeyedStateStore().getMapState(new MapStateDescriptor<>(RIGHT_BUFFER,LongSerializer.INSTANCE,new ListSerializer<>(new BufferEntrySerializer<>(rightTypeSerializer))));
}

在IntervalJoinOperator中，会利用两个MapState分别缓存左流和右流的数据。其中，Long表示时间时间戳，List<BufferEntry<T>>表示该时刻到来的数据记录，当左流和右流有数据到达时，会分别调用processElement1()和processElement2()方法，它们都调用了processElement()方法

@Overridepublic void processElement1(StreamRecord<T1> record) throws Exception {processElement(record, leftBuffer, rightBuffer, lowerBound, upperBound, true);} @Overridepublic void processElement2(StreamRecord<T2> record) throws Exception {processElement(record, rightBuffer, leftBuffer, -upperBound, -lowerBound, false);}private <THIS, OTHER> void processElement(final StreamRecord<THIS> record,final MapState<Long, List<IntervalJoinOperator.BufferEntry<THIS>>> ourBuffer,final MapState<Long, List<IntervalJoinOperator.BufferEntry<OTHER>>> otherBuffer,final long relativeLowerBound,final long relativeUpperBound,final boolean isLeft) throws Exception {final THIS ourValue = record.getValue();final long ourTimestamp = record.getTimestamp();if (ourTimestamp == Long.MIN_VALUE) {throw new FlinkException("Long.MIN_VALUE timestamp: Elements used in " +"interval stream joins need to have timestamps meaningful timestamps.");}if (isLate(ourTimestamp)) {return;}addToBuffer(ourBuffer, ourValue, ourTimestamp);for (Map.Entry<Long, List<BufferEntry<OTHER>>> bucket: otherBuffer.entries()) {final long timestamp  = bucket.getKey();if (timestamp < ourTimestamp + relativeLowerBound ||timestamp > ourTimestamp + relativeUpperBound) {continue;}for (BufferEntry<OTHER> entry: bucket.getValue()) {if (isLeft) {collect((T1) ourValue, (T2) entry.element, ourTimestamp, timestamp);} else {collect((T1) entry.element, (T2) ourValue, timestamp, ourTimestamp);}}}long cleanupTime = (relativeUpperBound > 0L) ? ourTimestamp + relativeUpperBound : ourTimestamp;if (isLeft) {internalTimerService.registerEventTimeTimer(CLEANUP_NAMESPACE_LEFT, cleanupTime);} else {internalTimerService.registerEventTimeTimer(CLEANUP_NAMESPACE_RIGHT, cleanupTime);}}

代码最后调用TimerService.registerEventTimeTimer()，注册时间戳为timestamp+relativeUpperBound的定时器，该定时器负责在水印超过区间的上界时执行状态的清理逻辑，防止数据堆积。注意左右流的定时器所属的namespace是不同的，具体逻辑位于onEventTime()方法中

	@Overridepublic void onEventTime(InternalTimer<K, String> timer) throws Exception {long timerTimestamp = timer.getTimestamp();String namespace = timer.getNamespace();logger.trace("onEventTime @ {}", timerTimestamp);switch (namespace) {case CLEANUP_NAMESPACE_LEFT: {long timestamp = (upperBound <= 0L) ? timerTimestamp : timerTimestamp - upperBound;logger.trace("Removing from left buffer @ {}", timestamp);leftBuffer.remove(timestamp);break;}case CLEANUP_NAMESPACE_RIGHT: {long timestamp = (lowerBound <= 0L) ? timerTimestamp + lowerBound : timerTimestamp;logger.trace("Removing from right buffer @ {}", timestamp);rightBuffer.remove(timestamp);break;}default:throw new RuntimeException("Invalid namespace " + namespace);}}

先把测试数据及结果贴在这里

对这个结果说明一下：

我们在自己的代码里设置了：.between(Time.minutes(1),Time.minutes(5))

上述源码中有这一行

long cleanupTime = (relativeUpperBound > 0L) ? ourTimestamp + relativeUpperBound : ourTimestamp;

从这里我们就可以计算左右流的清理时间了:

当左流数据进来时，(lowerBound, upperBound) 为 (1 ,5) ，当右流数据进来时，(lowerBound, upperBound) 为 (-5 ,-1)，其实就是   left+1min <  right  <left+5min ，反过来就是 right  -5min <  left <right -1min

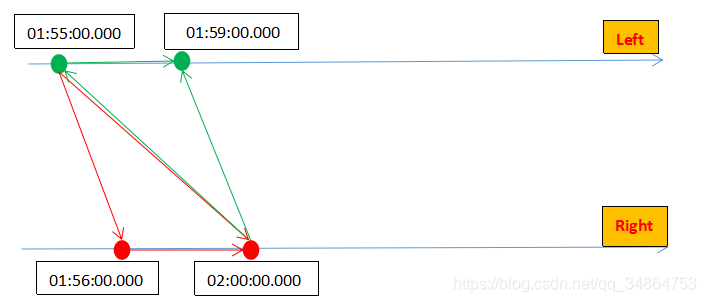

2020-12-14 01:55:00.000 的左侧数据进来，upperBound大于0，cleanupTime = 时间戳+5min 即等于2020-12-14 02:00:00.000；这是因为，当右侧流在2020-12-14 02:00:00.000需要查找左侧流的数据时间为 [2020-12-14 01:55:00.000,2020-12-14 01:59:00.000]，所以watermark> 2020-12-14 02:00:00.000 时可以清除2020-12-14 01:55:00.000的数据

2020-12-14 01:55:00.000的右侧数据进来，upperBound小于0，clearnupTime = 时间戳，即等于 2020-12-14 01:55:00.000；这是因为，左侧数据流在 2020-12-14 01:55:00.000时，需要查找的右侧流时间戳范围 [2020-12-14 01:56:00.000, 2020-12-14 02:00:00.000]，所以当watermark达到2020-12-14 01:55:00.000时 可以清除 2020-12-14 01:55:00.000 的数据

在 https://cloud.tencent.com/developer/article/1417447 这篇博客中，博主说watermark讲到 WaterMark是根据实际最小值减去UpperBound生成，即：Min(左,右)-upperBound，个人觉得不太对，如果有小伙伴对我这篇博客有疑问，欢迎留言，会积极改正！！
