Jenkins 进阶04 Generic Webhook GitLab 触发器与提交流水线

 GitLab WebHook 配置

---

前面使用插件模拟了Jenkins如何触发流水线，现在使用Gitlab去触发Jenkins。

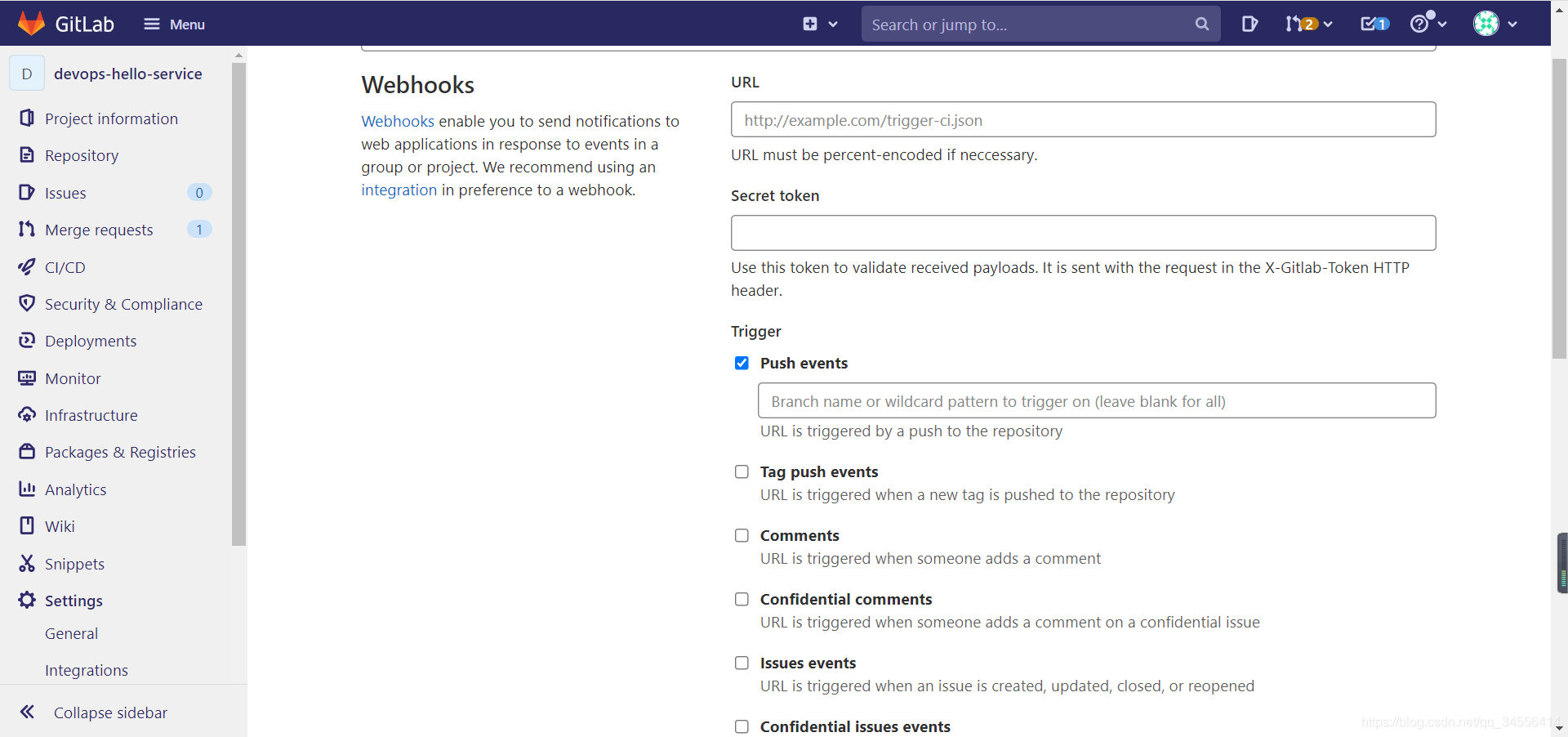

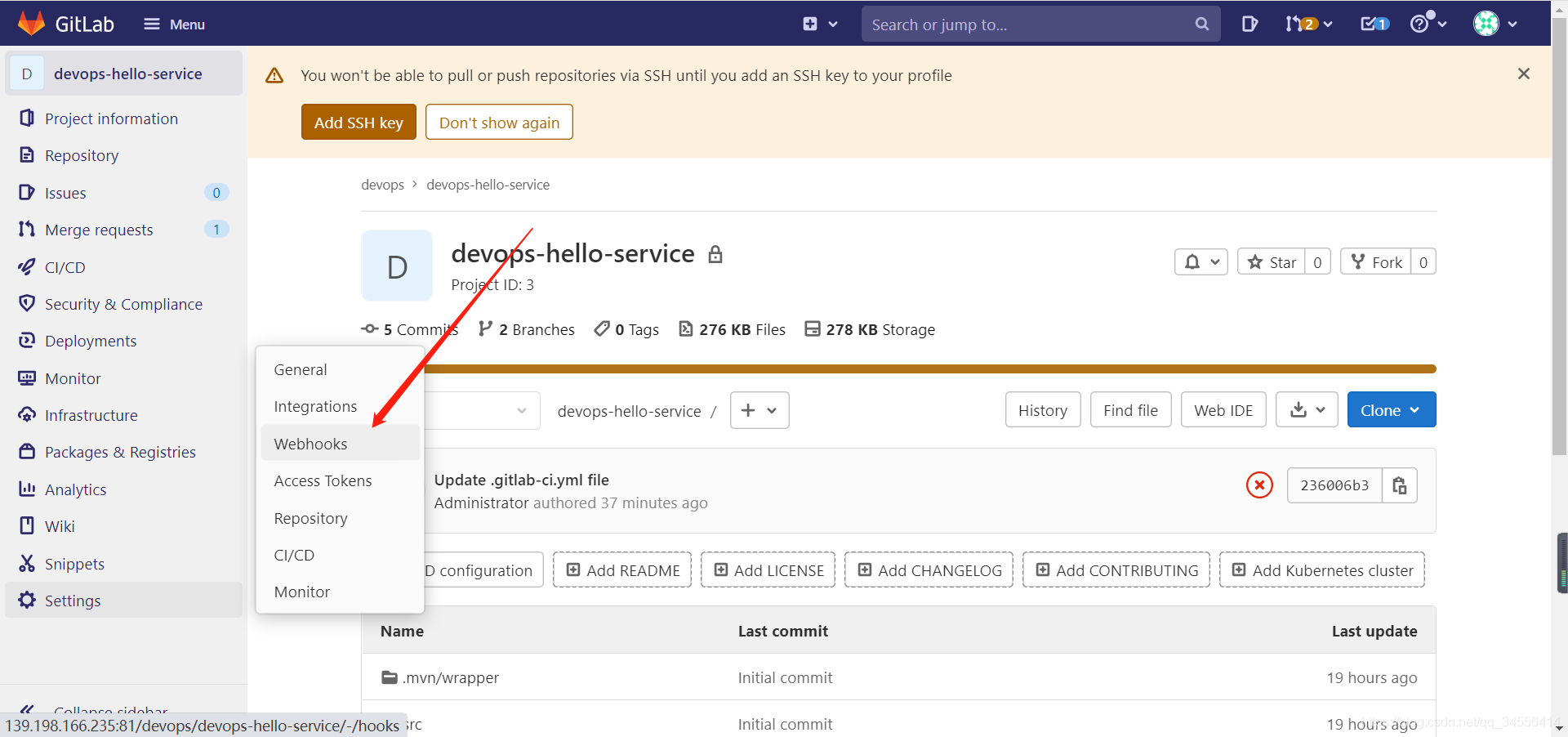

进入项目设置， gitlab webhook的配置页面：（为你的项目创建webhook）

trigger下面是很多事件，push events就是提交之后的构建 。（基于事件去触发）

事件：

• Push 提交事件
• Tag Push 创建事件
• MergeRequest 合并事件
• Issue 问题创建更新事件

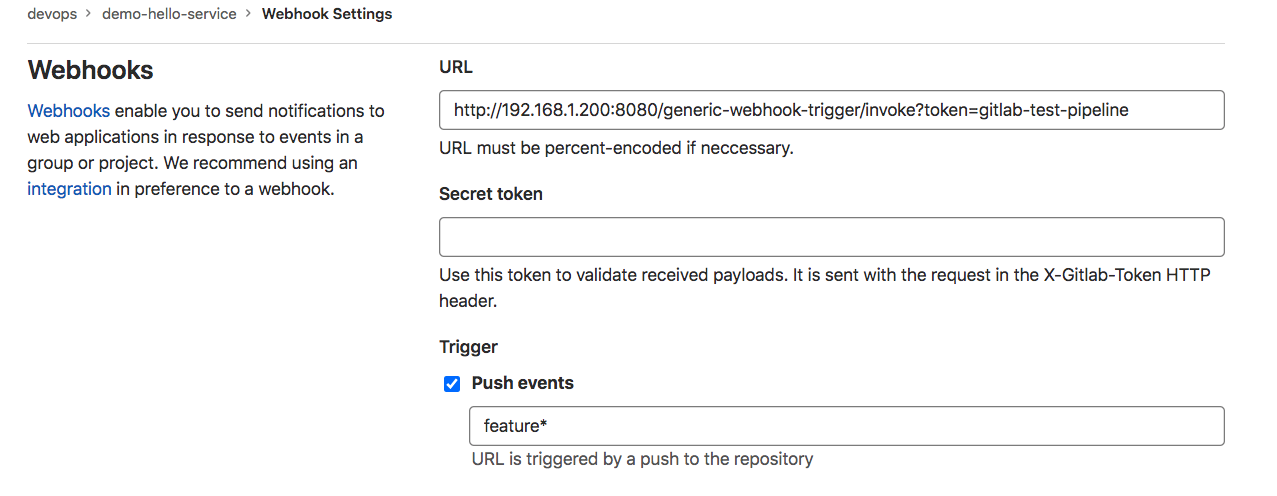

 这里选择的是代码提交事件， 过滤的分支是以feature开头的所有分支

 当事件触发了，就会去使用URL去触发Jenkins。

Jenkins WebHook配置

---

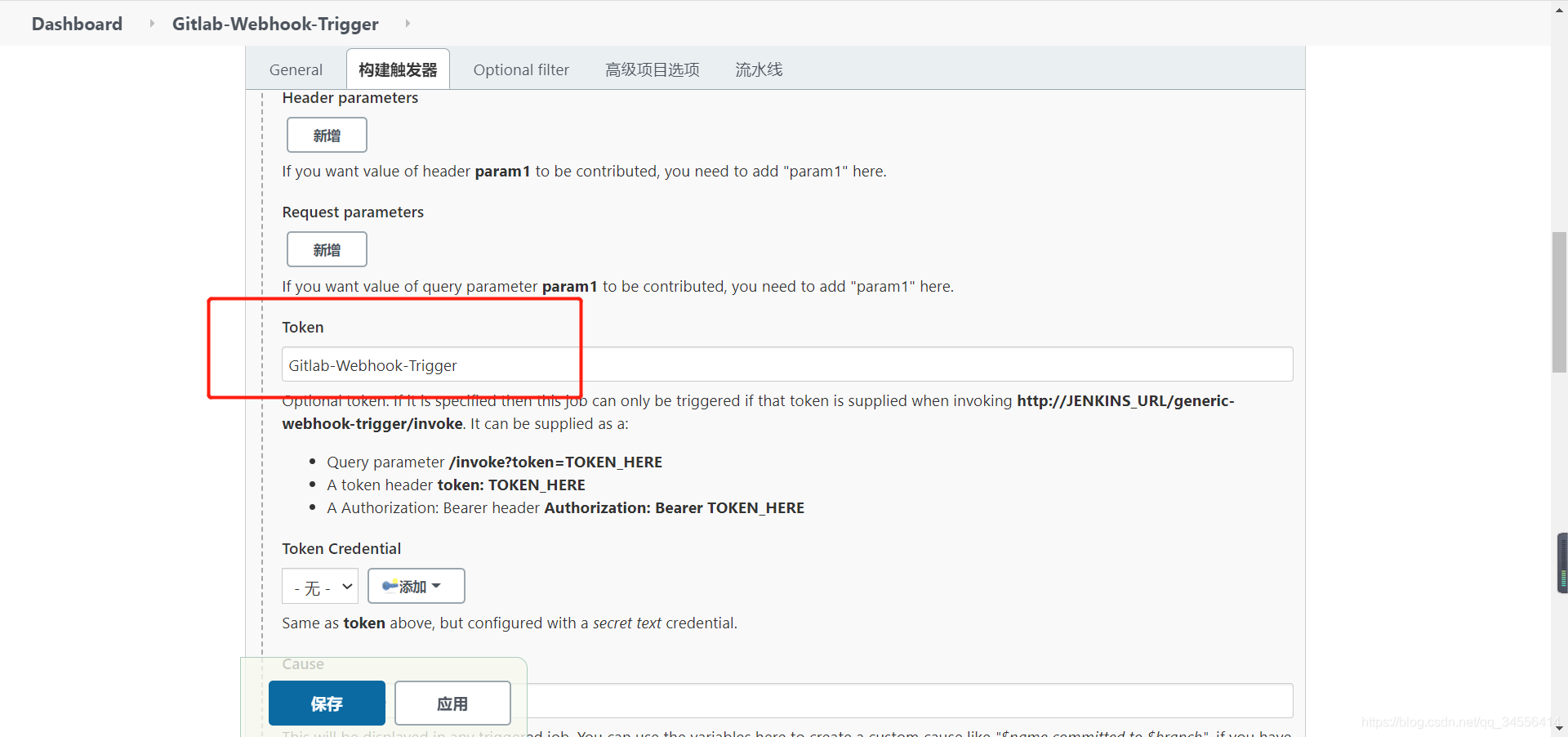

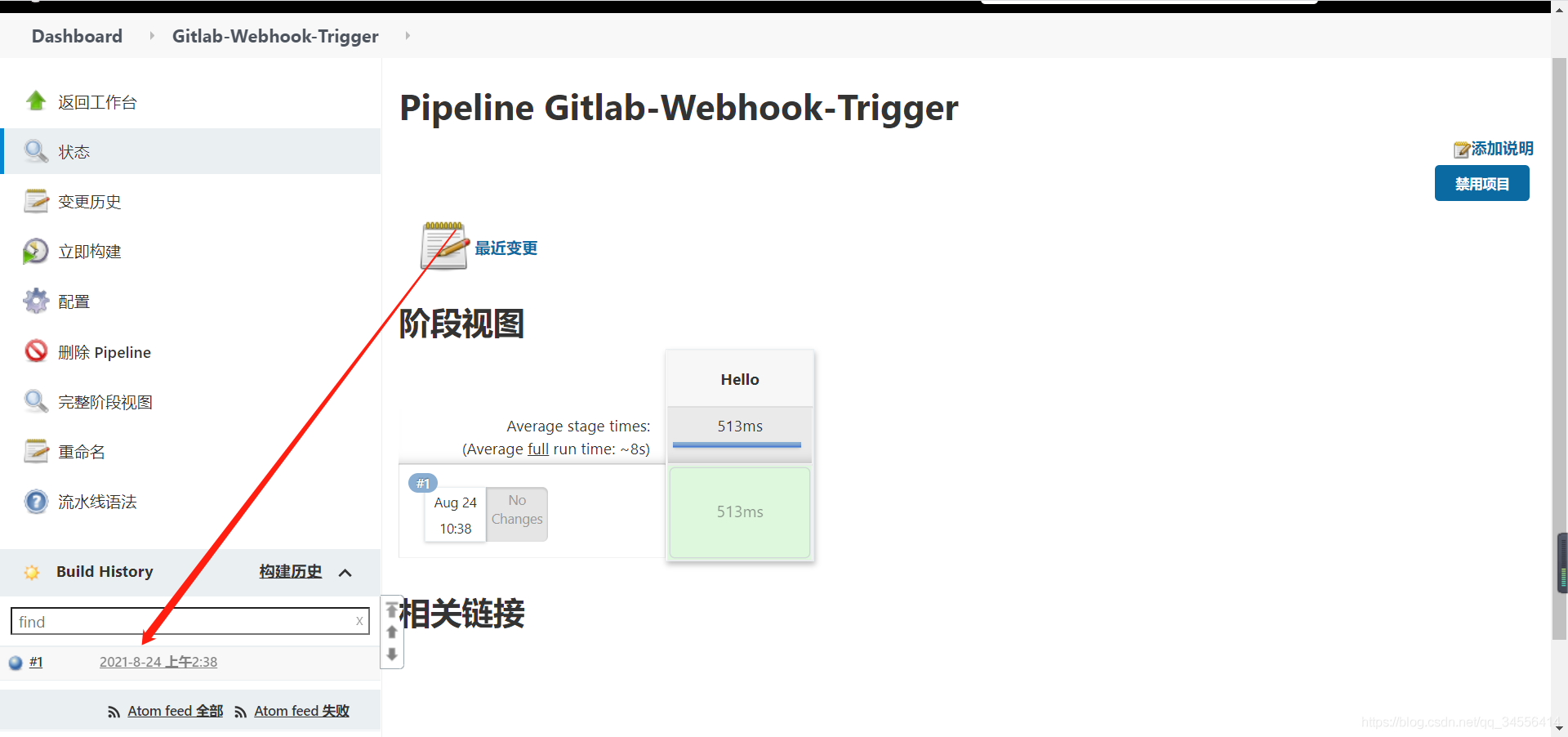

新建一个“Gitlab-Webhook-Trigger”项目， 开启Generic webhook。 配置触发token 为作业名称gitlab-test-pipeline。

现在在Jenkins启用触发器，并且填入token，token值为项目名字

生成的触发URL

http://139.198.166.235:8080/generic-webhook-trigger/invoke?token=Gitlab-Webhook-Trigger

GitLab WebHook 配置

---

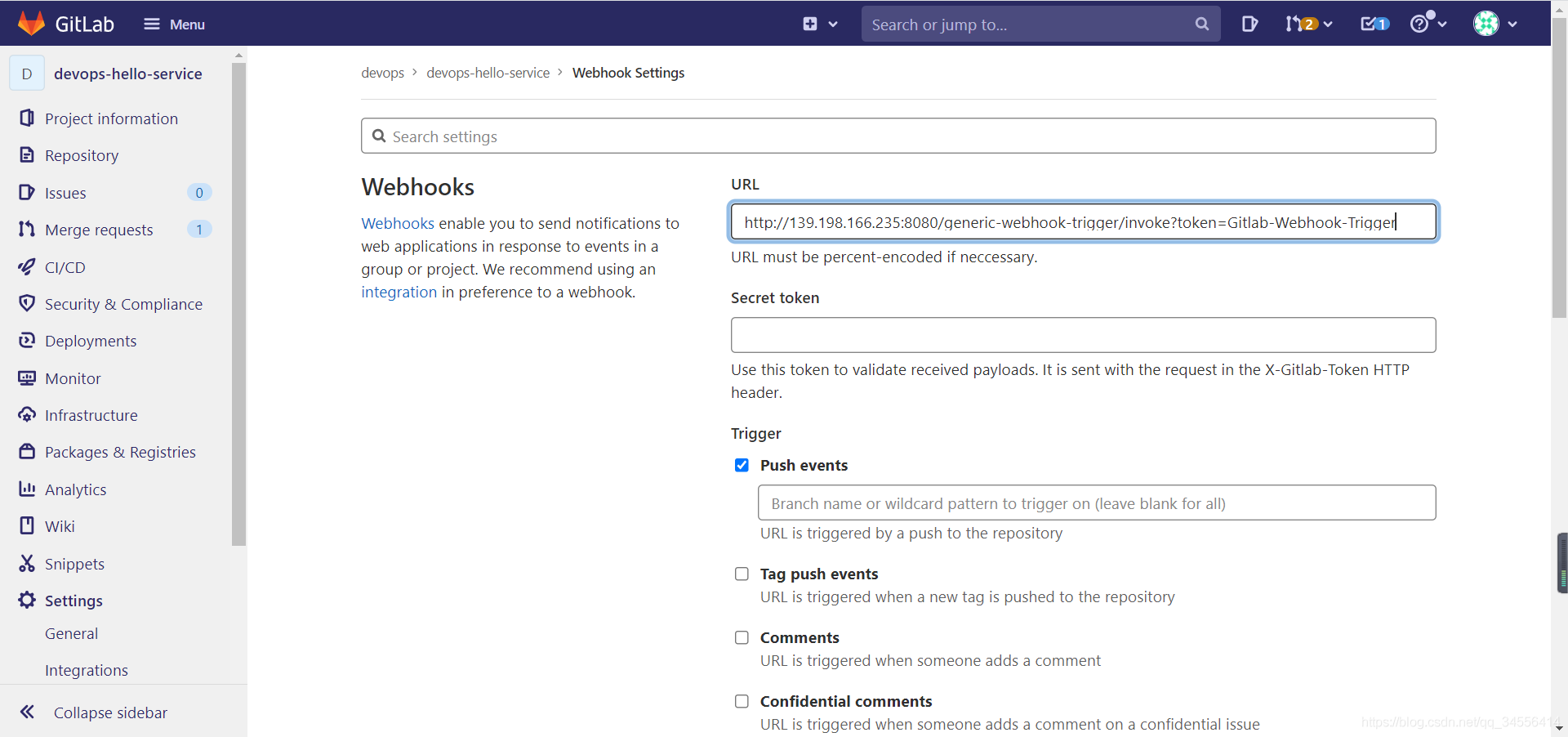

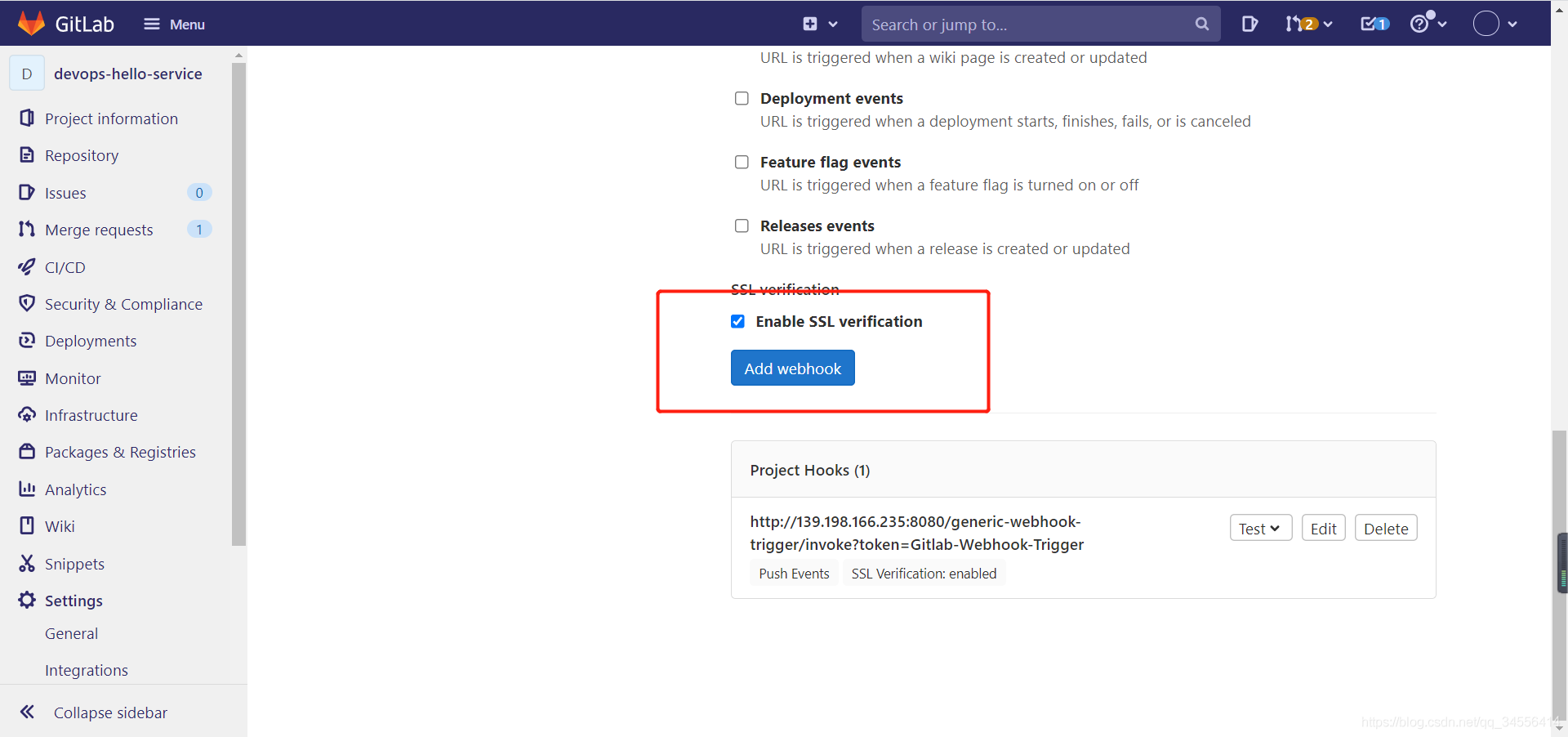

进入项目设置， gitlab webhook的配置页面：

当修改代码，提交之后，基于所有分支。那么gitlab会向上面配置的url里面发送一个post请求，然后触发Jenkins。

出现此FAQ：Url is blocked: Requests to the local network are not allowed

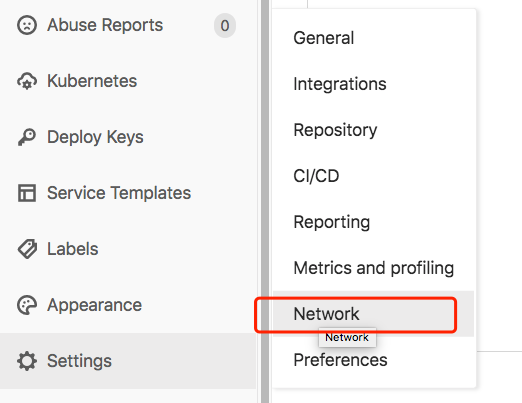

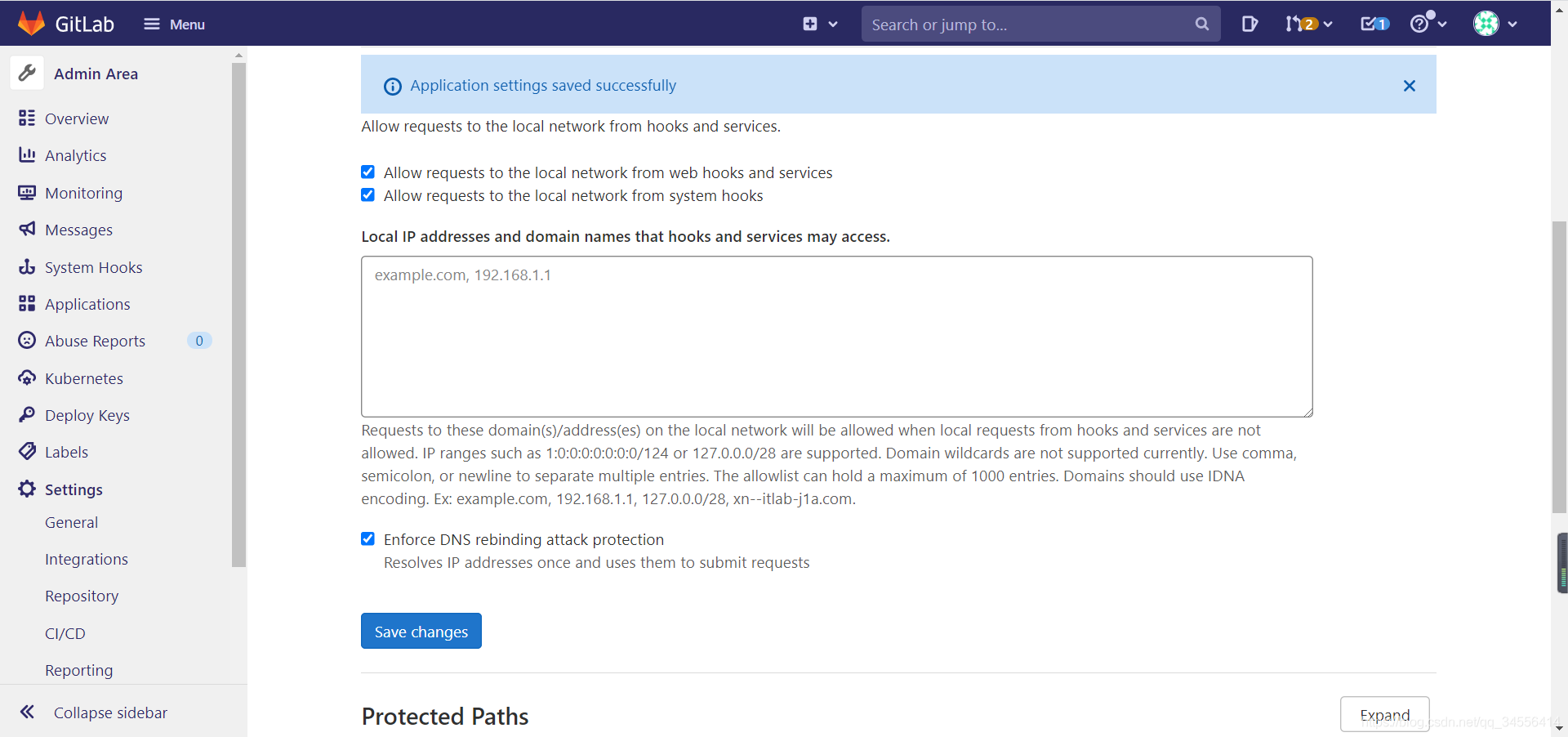

解决方法：进入admin管理页面设置 > network

 找到"Outbound requests"勾选允许请求webhooks和服务。（更改后，重启触发即可）

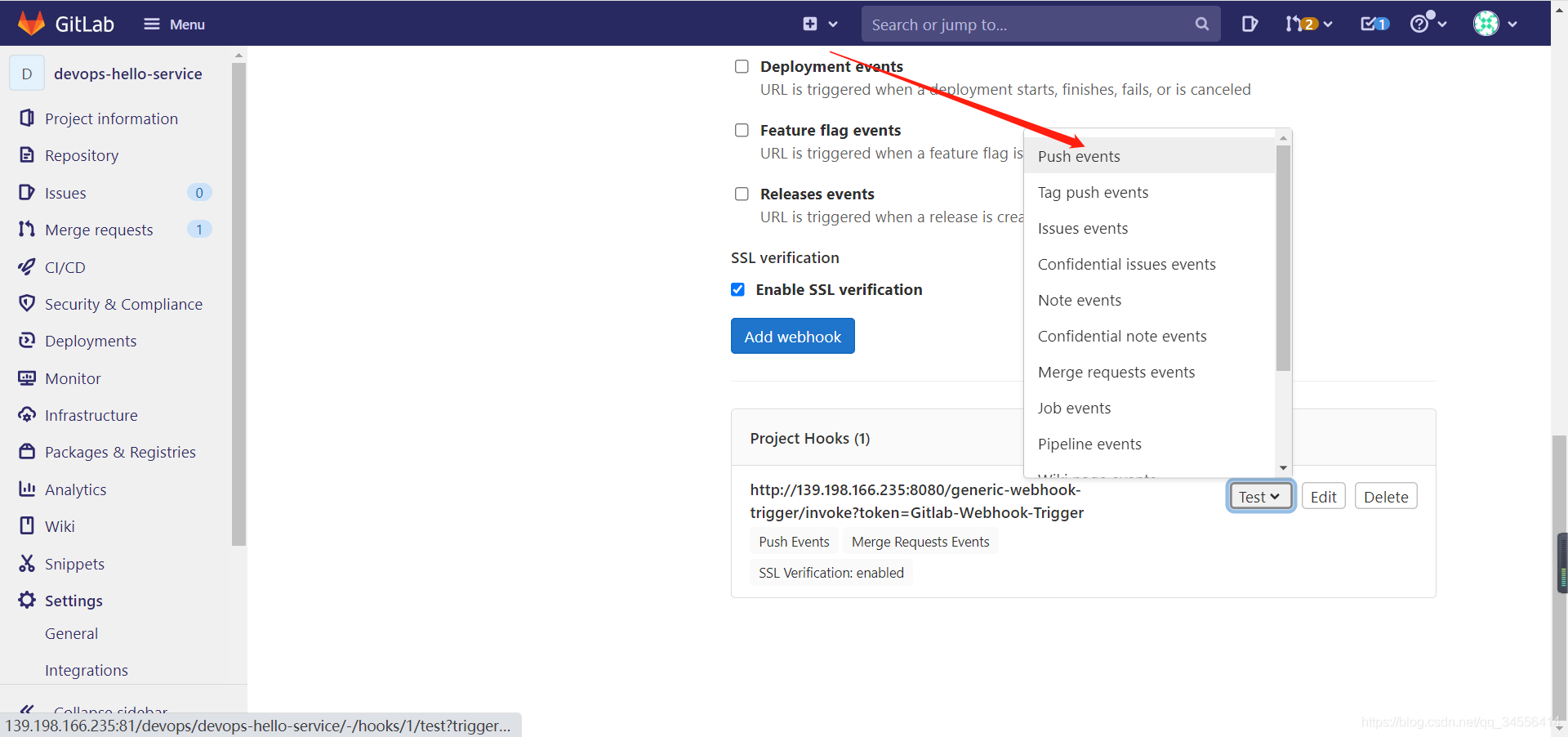

模拟事件触发，点击test按钮选择push事件，此时去看下Jenkins是否成功被触发。

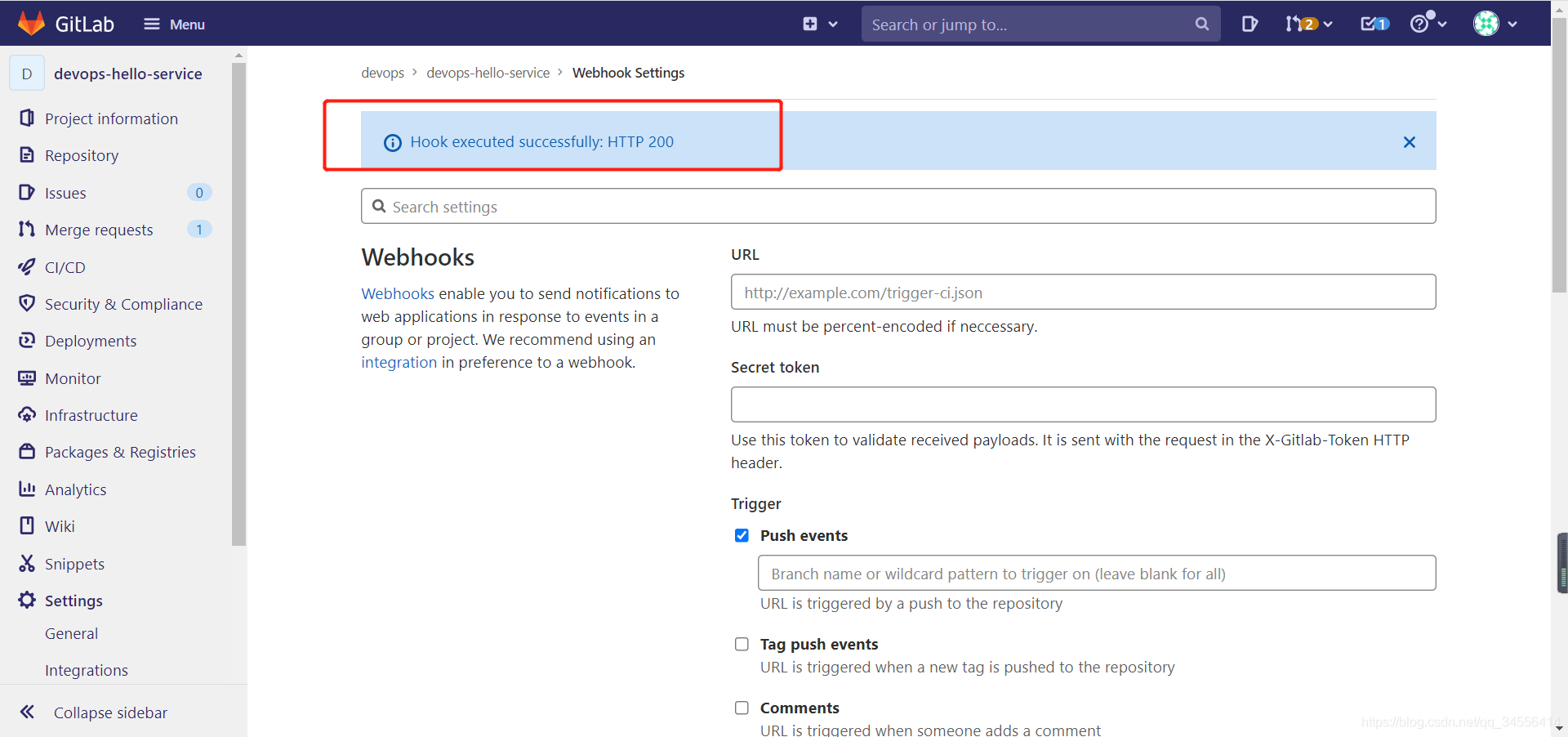

 触发成功提示： Hook executed successfully: HTTP 200

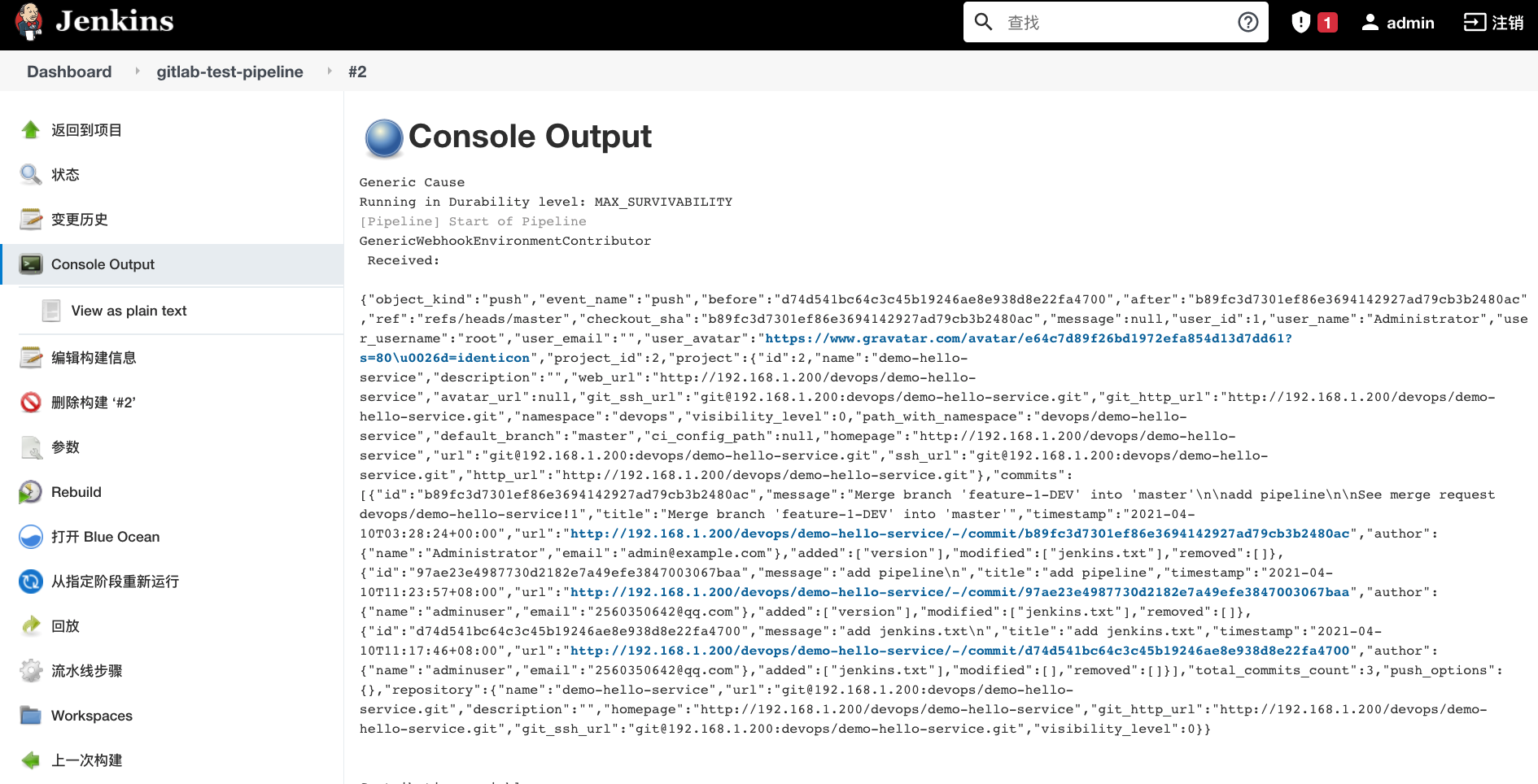

触发之后，Jenkins拿到如下的数据，gitlab将数据发送给Jenkins了，后面需要什么信息在里面过滤就可以。

Generic Cause
Running in Durability level: MAX_SURVIVABILITY
[Pipeline] Start of Pipeline (hide)
GenericWebhookEnvironmentContributorReceived:{"object_kind":"push","event_name":"push","before":"0d9212b05a167d8c6e53f225402894456894ef1e","after":"236006b394466b614ca84fcd6a767329d3b9eea4","ref":"refs/heads/master","checkout_sha":"236006b394466b614ca84fcd6a767329d3b9eea4","message":null,"user_id":1,"user_name":"Administrator","user_username":"root","user_email":"","user_avatar":"https://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=80\u0026d=identicon","project_id":3,"project":{"id":3,"name":"devops-hello-service","description":"","web_url":"http://76c03cb0fea1/devops/devops-hello-service","avatar_url":null,"git_ssh_url":"git@76c03cb0fea1:devops/devops-hello-service.git","git_http_url":"http://76c03cb0fea1/devops/devops-hello-service.git","namespace":"devops","visibility_level":0,"path_with_namespace":"devops/devops-hello-service","default_branch":"master","ci_config_path":null,"homepage":"http://76c03cb0fea1/devops/devops-hello-service","url":"git@76c03cb0fea1:devops/devops-hello-service.git","ssh_url":"git@76c03cb0fea1:devops/devops-hello-service.git","http_url":"http://76c03cb0fea1/devops/devops-hello-service.git"},"commits":[{"id":"236006b394466b614ca84fcd6a767329d3b9eea4","message":"Update .gitlab-ci.yml file","title":"Update .gitlab-ci.yml file","timestamp":"2021-08-24T01:39:35+00:00","url":"http://76c03cb0fea1/devops/devops-hello-service/-/commit/236006b394466b614ca84fcd6a767329d3b9eea4","author":{"name":"Administrator","email":"admin@example.com"},"added":[],"modified":[],"removed":[]},{"id":"56cf4744926b013ac7ca1302e1214e44e90a8950","message":"Update .gitlab-ci.yml file","title":"Update .gitlab-ci.yml file","timestamp":"2021-08-24T01:37:29+00:00","url":"http://76c03cb0fea1/devops/devops-hello-service/-/commit/56cf4744926b013ac7ca1302e1214e44e90a8950","author":{"name":"Administrator","email":"admin@example.com"},"added":[],"modified":[".gitlab-ci.yml"],"removed":[]},{"id":"0d9212b05a167d8c6e53f225402894456894ef1e","message":"Add new file","title":"Add new file","timestamp":"2021-08-24T01:36:04+00:00","url":"http://76c03cb0fea1/devops/devops-hello-service/-/commit/0d9212b05a167d8c6e53f225402894456894ef1e","author":{"name":"Administrator","email":"admin@example.com"},"added":[".gitlab-ci.yml"],"modified":[],"removed":[]}],"total_commits_count":3,"push_options":{},"repository":{"name":"devops-hello-service","url":"git@76c03cb0fea1:devops/devops-hello-service.git","description":"","homepage":"http://76c03cb0fea1/devops/devops-hello-service","git_http_url":"http://76c03cb0fea1/devops/devops-hello-service.git","git_ssh_url":"git@76c03cb0fea1:devops/devops-hello-service.git","visibility_level":0}}

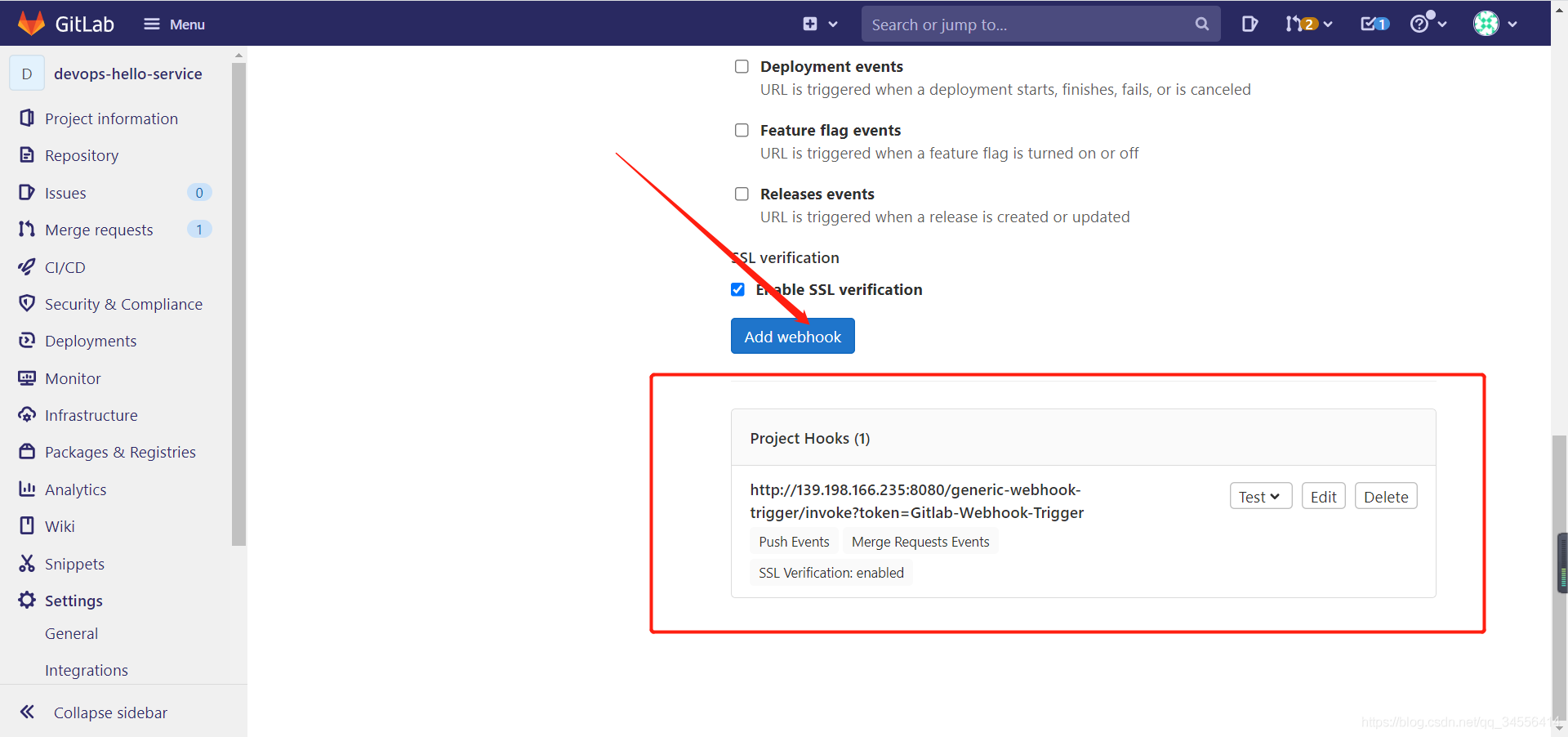

最后，如果你需要其他条件触发，还可以进行添加webhook（遇到多个分支去触发，多加一个webhook）

Webhook问题排查调试

---

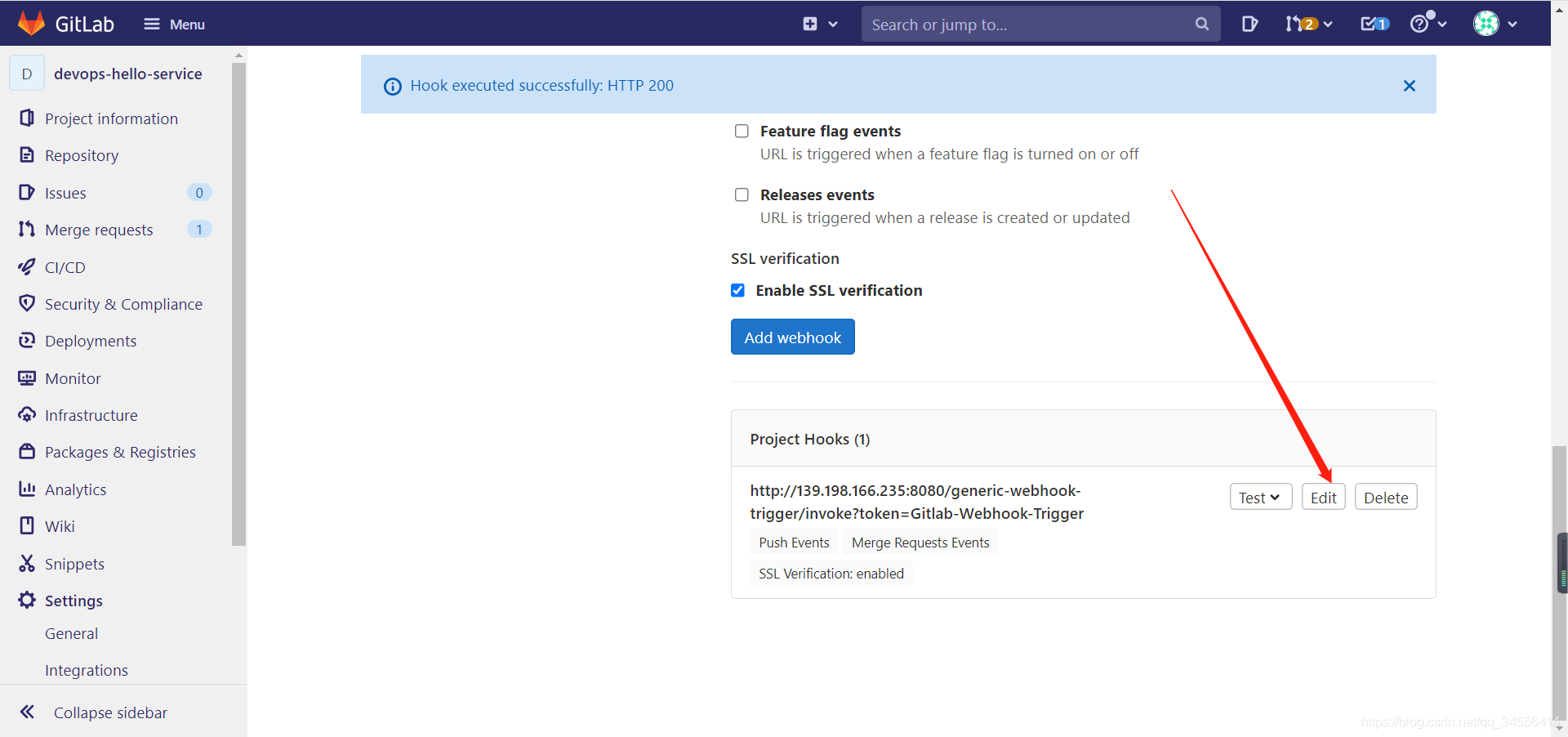

进入webhook添加页面的最下方，点击你所创建的webhook的 Edit按钮

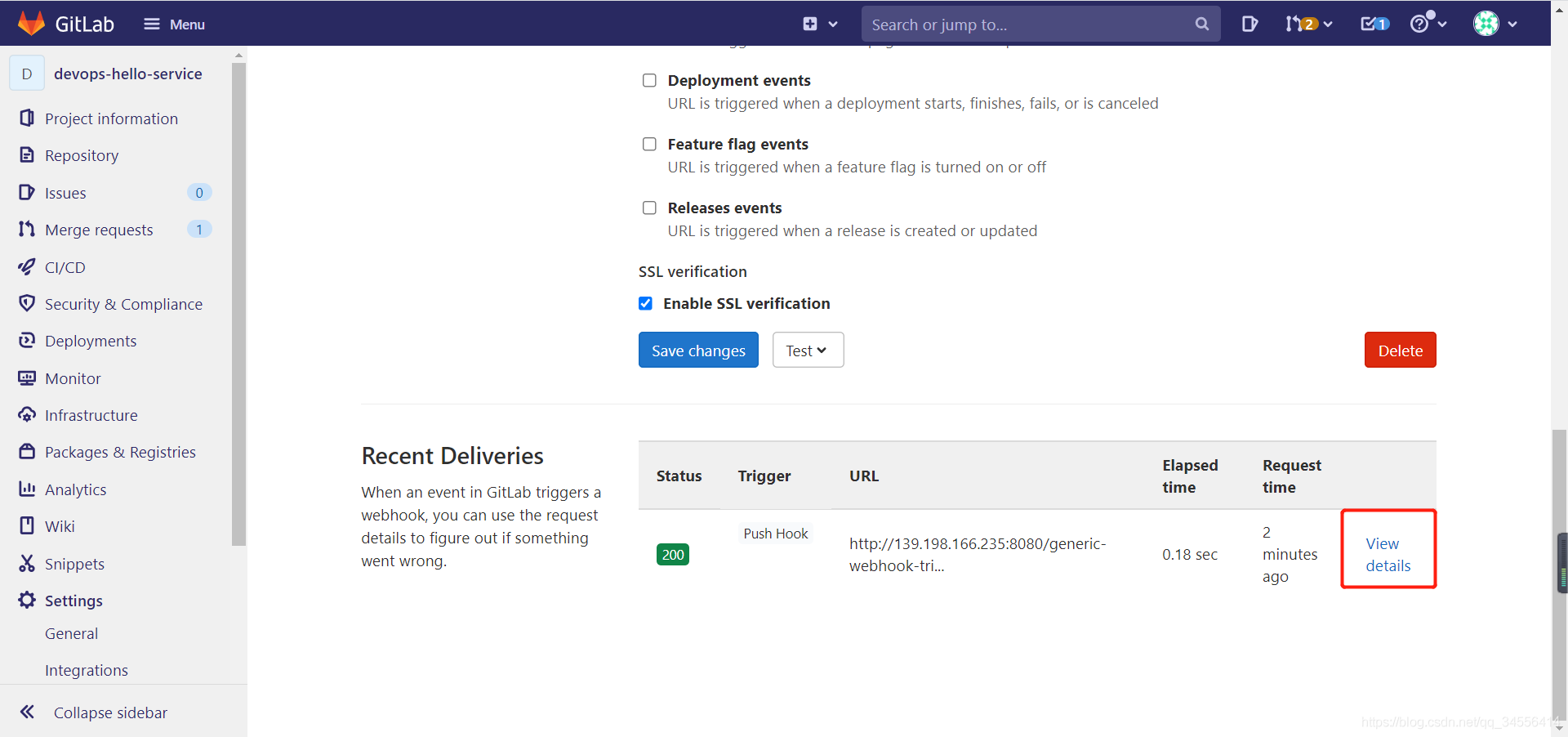

可以查看到webhook的历史记录， 可以看到本次提交是否正常产生了webhook事件。

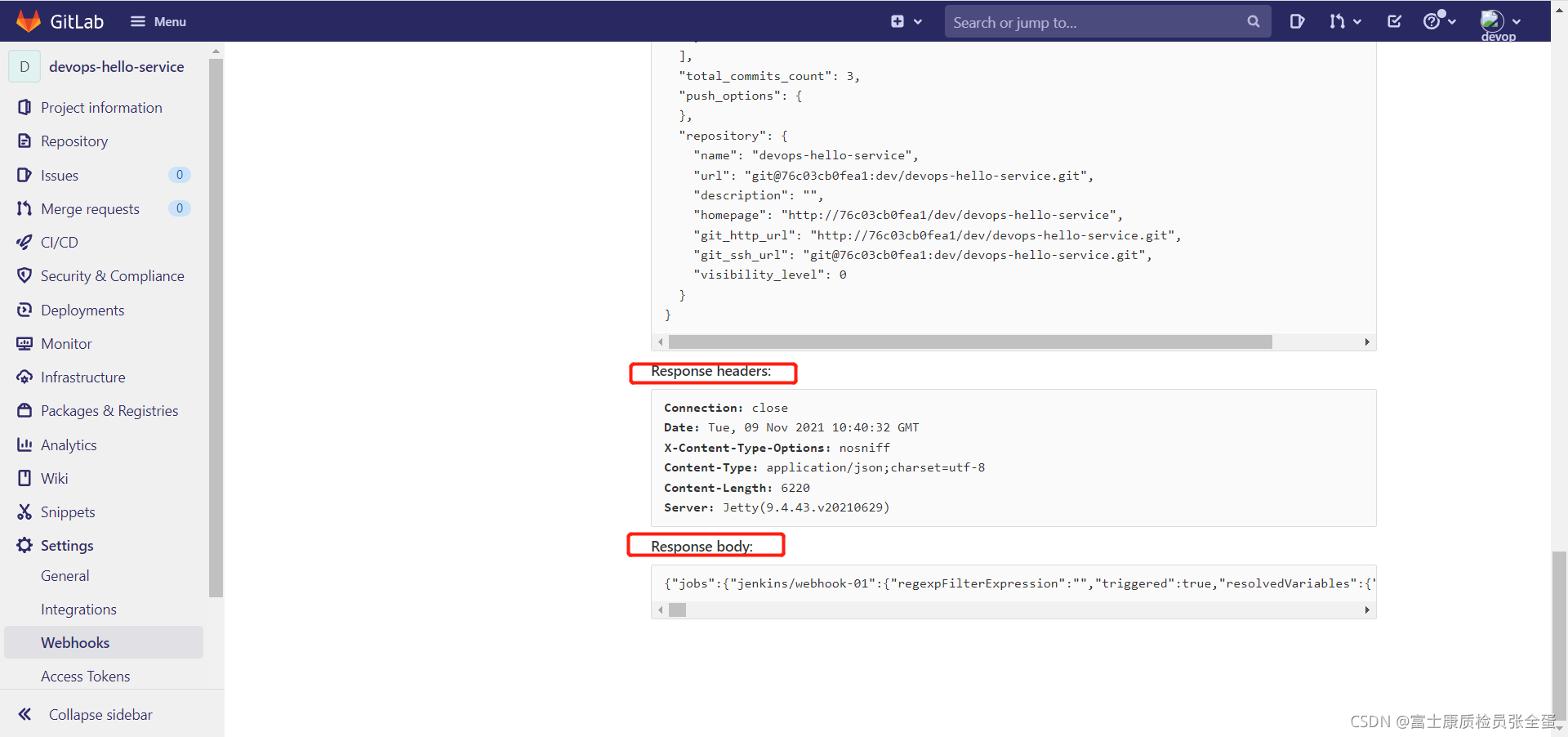

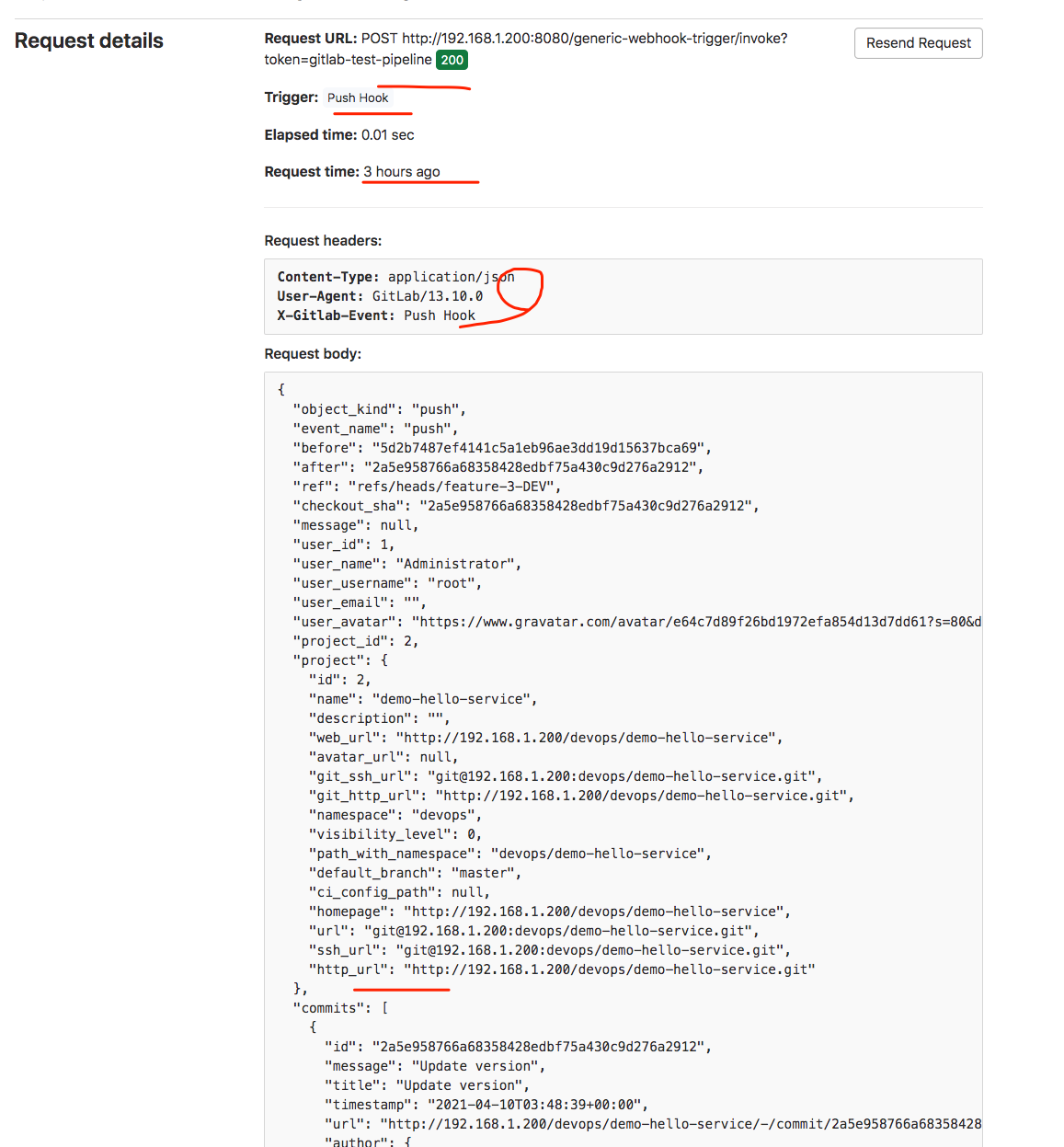

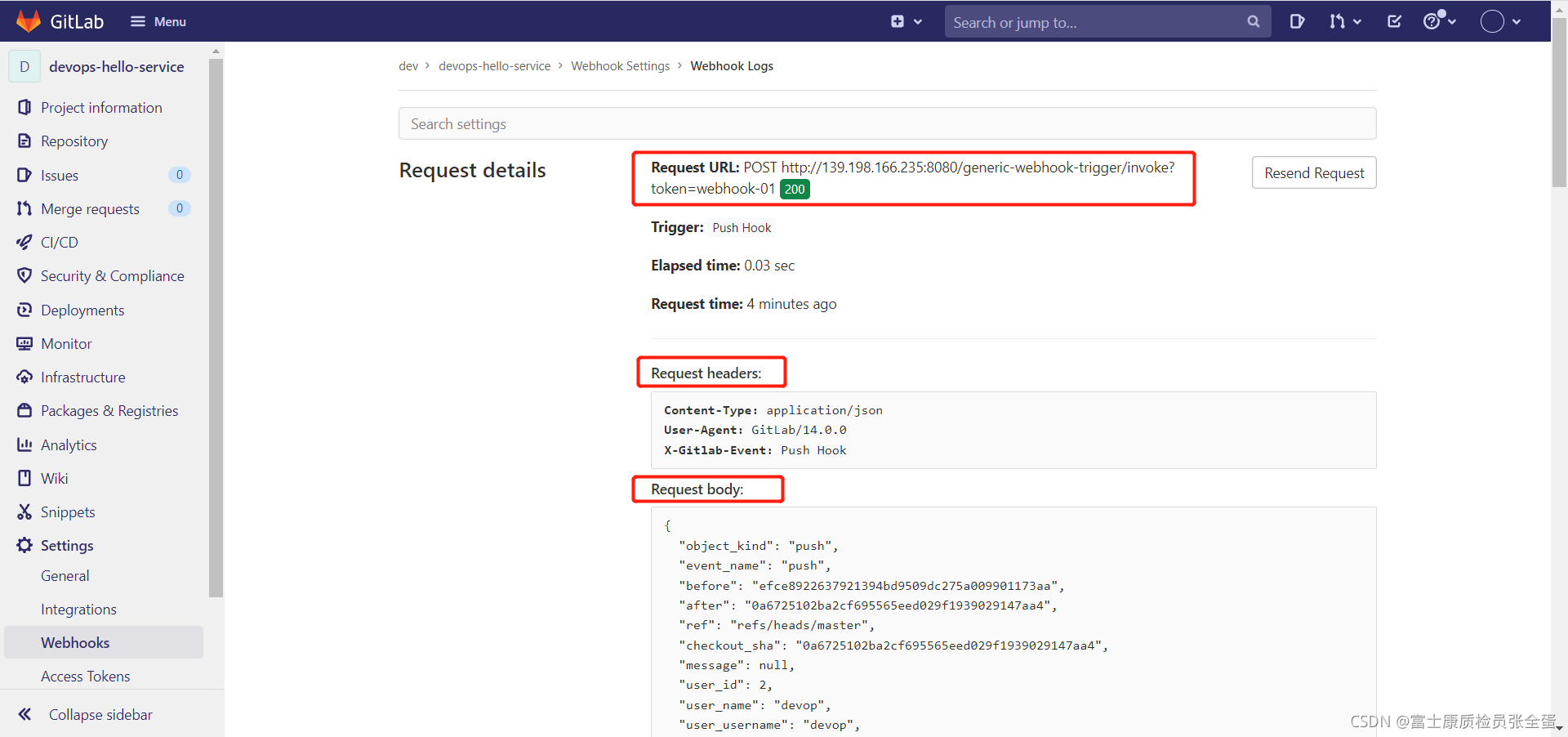

 点击 View details 可以看到此webhook发送给对端Jenkins的数据信息，和请求状态。

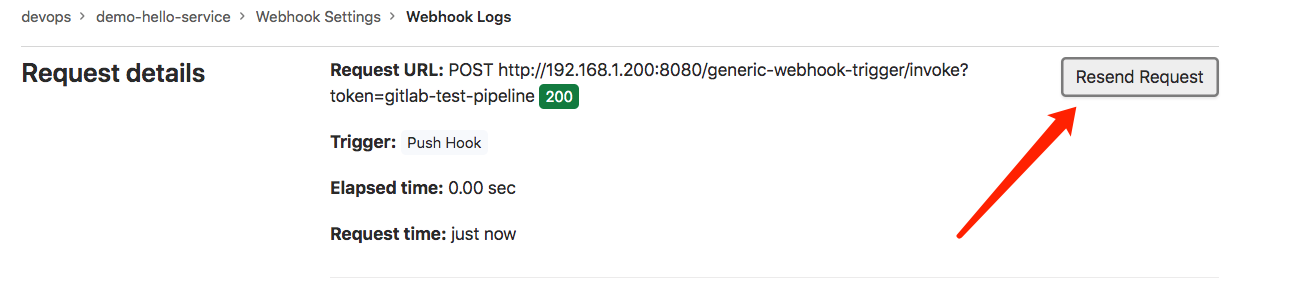

如果此次请求由于xxx原因导致没有触发jenkins构建， 可以在这里点击 Resend Request 按钮进行重新发送请求，而不是再次提交代码。

如果Jenkins触发成功了之后，我们可以在Jenkins的构建日志中查看效果。 这些数据就是gitlab post传递过来的。

到此：你基本上已经知道了Gitlab如何触发Jenkins的了。（多看几遍，多练习几遍）

补充

---

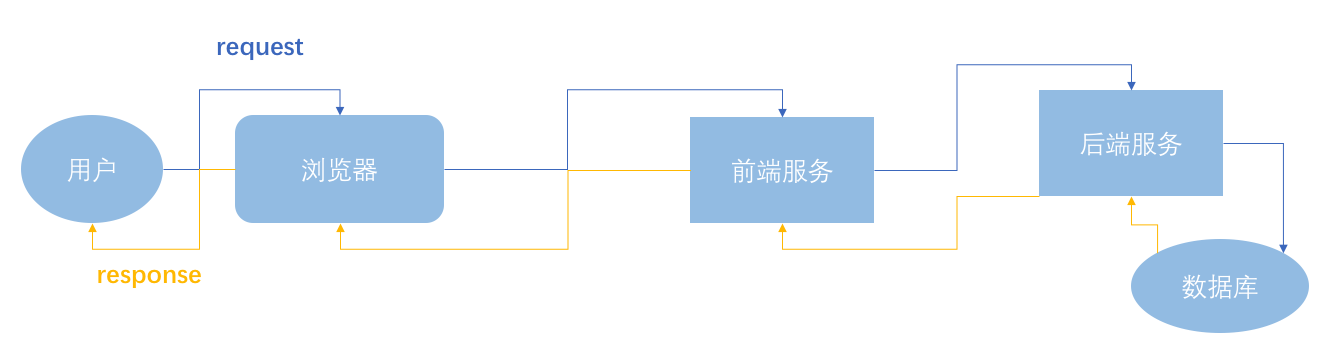

 一个请求和响应的过程：

• Request 用户通过浏览器向我们的服务端发起请求。
• Response服务端将客户端请求的资源数据进行响应。

调用接口的方法

请求类型：

• GET 向指定的URL请求资源，可携带参数（明文）。
• POST 向指定的URL提交资源，表单数据提交，数据进行封装（比Get方法安全）。
• PUT 与POST类似，通常用于对资源数据的更新修改。
• DELETE 删除指定的资源。

def webHookData = readJSON text: "${allData}"
String userName = webHookData.user_name
String userEmail = webHookData.user_emailpipeline {agent anystages {stage('Hello') {steps {println("${webHookData}")println(userName)println(userEmail)}}}
}

[Pipeline] readJSON
[Pipeline] node
Running on build-01 in /data/cicd/jenkinsagent/workspace/jenkins/webhook-01
[Pipeline] {
[Pipeline] stage
[Pipeline] { (Hello)
[Pipeline] echo
[object_kind:push, event_name:push, before:efce8922637921394bd9509dc275a009901173aa, after:0a6725102ba2cf695565eed029f1939029147aa4, ref:refs/heads/master, checkout_sha:0a6725102ba2cf695565eed029f1939029147aa4, message:null, user_id:2, user_name:devop, user_username:devop, user_email:1239683670@qq.com, user_avatar:https://www.gravatar.com/avatar/dde905e7f79c53e01eadfc040c720816?s=80&d=identicon, project_id:4, project:[id:4, name:devops-hello-service, description:, web_url:http://76c03cb0fea1/dev/devops-hello-service, avatar_url:null, git_ssh_url:git@76c03cb0fea1:dev/devops-hello-service.git, git_http_url:http://76c03cb0fea1/dev/devops-hello-service.git, namespace:dev, visibility_level:0, path_with_namespace:dev/devops-hello-service, default_branch:master, ci_config_path:null, homepage:http://76c03cb0fea1/dev/devops-hello-service, url:git@76c03cb0fea1:dev/devops-hello-service.git, ssh_url:git@76c03cb0fea1:dev/devops-hello-service.git, http_url:http://76c03cb0fea1/dev/devops-hello-service.git], commits:[[id:0a6725102ba2cf695565eed029f1939029147aa4, message:Update Jenkinsfile, title:Update Jenkinsfile, timestamp:2021-08-30T00:37:27+00:00, url:http://76c03cb0fea1/dev/devops-hello-service/-/commit/0a6725102ba2cf695565eed029f1939029147aa4, author:[name:devop, email:1239683670@qq.com], added:[], modified:[Jenkinsfile], removed:[]], [id:0cbf76185c4b87558dbfcaa836c5ac8eb1e180f3, message:Update Jenkinsfile, title:Update Jenkinsfile, timestamp:2021-08-28T07:38:26+00:00, url:http://76c03cb0fea1/dev/devops-hello-service/-/commit/0cbf76185c4b87558dbfcaa836c5ac8eb1e180f3, author:[name:devop, email:1239683670@qq.com], added:[], modified:[Jenkinsfile], removed:[]], [id:efce8922637921394bd9509dc275a009901173aa, message:Update Jenkinsfile, title:Update Jenkinsfile, timestamp:2021-08-28T06:35:33+00:00, url:http://76c03cb0fea1/dev/devops-hello-service/-/commit/efce8922637921394bd9509dc275a009901173aa, author:[name:devop, email:1239683670@qq.com], added:[], modified:[Jenkinsfile], removed:[]]], total_commits_count:3, push_options:[:], repository:[name:devops-hello-service, url:git@76c03cb0fea1:dev/devops-hello-service.git, description:, homepage:http://76c03cb0fea1/dev/devops-hello-service, git_http_url:http://76c03cb0fea1/dev/devops-hello-service.git, git_ssh_url:git@76c03cb0fea1:dev/devops-hello-service.git, visibility_level:0]]
[Pipeline] echo
devop
[Pipeline] echo
1239683670@qq.com
[Pipeline] }
[Pipeline] // stage
[Pipeline] }
[Pipeline] // node
[Pipeline] End of Pipeline
Finished: SUCCESS

Request body:

{"object_kind": "push","event_name": "push","before": "efce8922637921394bd9509dc275a009901173aa","after": "0a6725102ba2cf695565eed029f1939029147aa4","ref": "refs/heads/master","checkout_sha": "0a6725102ba2cf695565eed029f1939029147aa4","message": null,"user_id": 2,"user_name": "devop","user_username": "devop","user_email": "1239683670@qq.com","user_avatar": "https://www.gravatar.com/avatar/dde905e7f79c53e01eadfc040c720816?s=80&d=identicon","project_id": 4,"project": {"id": 4,"name": "devops-hello-service","description": "","web_url": "http://76c03cb0fea1/dev/devops-hello-service","avatar_url": null,"git_ssh_url": "git@76c03cb0fea1:dev/devops-hello-service.git","git_http_url": "http://76c03cb0fea1/dev/devops-hello-service.git","namespace": "dev","visibility_level": 0,"path_with_namespace": "dev/devops-hello-service","default_branch": "master","ci_config_path": null,"homepage": "http://76c03cb0fea1/dev/devops-hello-service","url": "git@76c03cb0fea1:dev/devops-hello-service.git","ssh_url": "git@76c03cb0fea1:dev/devops-hello-service.git","http_url": "http://76c03cb0fea1/dev/devops-hello-service.git"},"commits": [{"id": "0a6725102ba2cf695565eed029f1939029147aa4","message": "Update Jenkinsfile","title": "Update Jenkinsfile","timestamp": "2021-08-30T00:37:27+00:00","url": "http://76c03cb0fea1/dev/devops-hello-service/-/commit/0a6725102ba2cf695565eed029f1939029147aa4","author": {"name": "devop","email": "1239683670@qq.com"},"added": [],"modified": ["Jenkinsfile"],"removed": []},{"id": "0cbf76185c4b87558dbfcaa836c5ac8eb1e180f3","message": "Update Jenkinsfile","title": "Update Jenkinsfile","timestamp": "2021-08-28T07:38:26+00:00","url": "http://76c03cb0fea1/dev/devops-hello-service/-/commit/0cbf76185c4b87558dbfcaa836c5ac8eb1e180f3","author": {"name": "devop","email": "1239683670@qq.com"},"added": [],"modified": ["Jenkinsfile"],"removed": []},{"id": "efce8922637921394bd9509dc275a009901173aa","message": "Update Jenkinsfile","title": "Update Jenkinsfile","timestamp": "2021-08-28T06:35:33+00:00","url": "http://76c03cb0fea1/dev/devops-hello-service/-/commit/efce8922637921394bd9509dc275a009901173aa","author": {"name": "devop","email": "1239683670@qq.com"},"added": [],"modified": ["Jenkinsfile"],"removed": []}],"total_commits_count": 3,"push_options": {},"repository": {"name": "devops-hello-service","url": "git@76c03cb0fea1:dev/devops-hello-service.git","description": "","homepage": "http://76c03cb0fea1/dev/devops-hello-service","git_http_url": "http://76c03cb0fea1/dev/devops-hello-service.git","git_ssh_url": "git@76c03cb0fea1:dev/devops-hello-service.git","visibility_level": 0}
}
