黑猴子的家：华为 OpenEuler(欧拉) Linux 系统之配置图形化界面openEuler-20.03-LTS

1、安装yum依赖

[root@openeuler100 ~]# yum install -y gnome-shell gdm gnome-session gnome-terminal

2、设置图形化启动

[root@openeuler100 ~]# systemctl enable gdm.service
[root@openeuler100 ~]# systemctl set-default graphical.target

3、避免中文乱码

[root@openeuler100 ~]# yum -y groupinstall fonts

4、复制Xsession文件

Xsession 默认没有这个文件，需要自己创建一下，是一个小Bug

[root@openeuler100 ~]# cp -R Xsession /etc/X11/xinit/
[root@openeuler100 ~]# cd /etc/X11/xinit
[root@openeuler100 xinit]# chmod 755 Xsession

5、查看Xsession文件内容

[root@openeuler100 ~]# cd /etc/X11/xinit/
[root@openeuler100 xinit]# pwd
/etc/X11/xinit
[root@openeuler100 xinit]# vim Xsession
#!/bin/bash
# Copyright (C) 1999 - 2004 Red Hat, Inc. All rights reserved. This
# copyrighted material is made available to anyone wishing to use, modify,
# copy, or redistribute it subject to the terms and conditions of the
# GNU General Public License version 2.
#
# You should have received a copy of the GNU General Public License
# along with this program; if not, write to the Free Software
# Foundation, Inc., 675 Mass Ave, Cambridge, MA 02139, USA.# redirect errors to a file in user's home directory if we can
if [ -z "$GDMSESSION" ]; then# GDM redirect output itself in a smarter fashionerrfile="$HOME/.xsession-errors"if ( umask 077 && cp /dev/null "$errfile" 2> /dev/null ); thenchmod 600 "$errfile"[ -x /sbin/restorecon ] && /sbin/restorecon $errfileexec > "$errfile" 2>&1elseerrfile=$(mktemp -q /tmp/xses-$USER.XXXXXX)if [ $? -eq 0 ]; thenexec > "$errfile" 2>&1fifi
fiSWITCHDESKPATH=/usr/share/switchdesk# Mandatorily source xinitrc-common, which is common code shared between the
# Xsession and xinitrc scripts which has been factored out to avoid duplication
. /etc/X11/xinit/xinitrc-common# This Xsession.d implementation, is intended to obsolte and replace the
# various mechanisms present in the 'case' statement which follows, and to
# eventually be able to easily remove all hard coded window manager specific
# content from this script.  See bug #142260 for additional explanation and
# details.  All window manager rpm packages and desktop environment
# packages should be modified to provide the Xsession.d/Xsession.$wm scripts
# to start themselves up.  In the future, the legacy switchdesk mechanisms
# and hard coded window managers and desktop environments will be removed from
# this script.
XCLIENTS_D=/etc/X11/xinit/Xclients.d
if [ "$#" -eq 1 ] && [ -x "$XCLIENTS_D/Xclients.$1.sh" ]; thenexec -l $SHELL -c "$CK_XINIT_SESSION $SSH_AGENT $XCLIENTS_D/Xclients.$1.sh"
else
# now, we see if xdm/gdm/kdm has asked for a specific environment
case $# in
1)if [ -x "$SWITCHDESKPATH/Xclients.$1" ]; thenexec -l $SHELL -c "$SWITCHDESKPATH/Xclients.$1";fi;case "$1" infailsafe)exec -l $SHELL -c "xterm -geometry 80x24-0-0";;gnome|gnome-session)# lack of SSH_AGENT is intentional, see #441123.  though# the whole thing should really happen in xinitrc.d anyway.exec -l $SHELL -c gnome-sessionexec /bin/sh -c "exec -l $SHELL -c \"gnome-session\"" ;;kde|kde1|kde2)exec $CK_XINIT_SESSION $SSH_AGENT /bin/sh -c "exec -l $SHELL -c \"startkde\"";;twm)# fall back to twmexec $CK_XINIT_SESSION $SSH_AGENT /bin/sh -c "exec -l $SHELL -c \"twm\"";;*)# GDM provies either a command line as the first argument or# provides 'failsafe', 'default' or 'custom'.  KDM will do the# same at some pointif [ "$1" != "default" -a "$1" != "custom" ]; thenexec $CK_XINIT_SESSION $SSH_AGENT /bin/sh -c "exec -l $SHELL -c \"$1\""fi;;esac
esac
fi# otherwise, take default action
if [ -x "$HOME/.xsession" ]; thenexec -l $SHELL -c "$CK_XINIT_SESSION $SSH_AGENT $HOME/.xsession"
elif [ -x "$HOME/.Xclients" ]; thenexec -l $SHELL -c "$CK_XINIT_SESSION $SSH_AGENT $HOME/.Xclients"
elif [ -x /etc/X11/xinit/Xclients ]; thenexec -l $SHELL -c "$CK_XINIT_SESSION $SSH_AGENT /etc/X11/xinit/Xclients"
else# should never get here; failsafe fallbackexec -l $SHELL -c "xsm"
fi

6、重启

[root@openeuler100 ~]# reboot

7、桌面

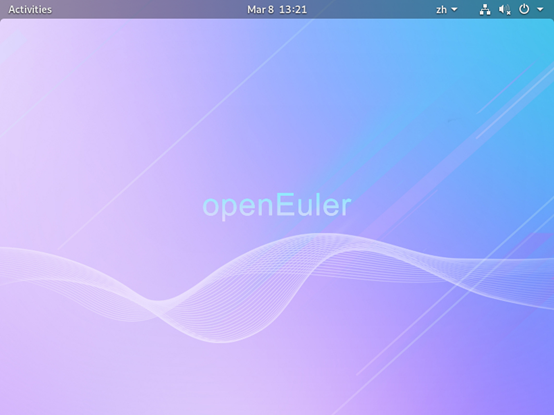

桌面

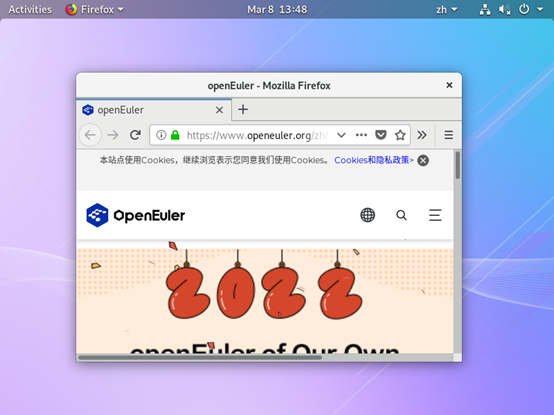

浏览器
