cocos creator实例--CocosCreator实现左右跳游戏



1玩法说明



游戏开始后，点击屏幕左右两侧，机器人朝左上方或右上方跳一步，如果下一步有石块，成功得1分，否则游戏结束。



2模块介绍



游戏场景分为2个：主页场景（home）、游戏场景（game）。

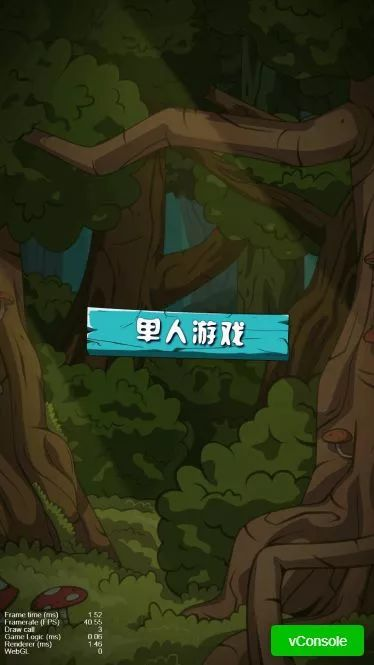

主页场景（home）作为游戏入口，没有其他功能，单纯提供游戏入口。

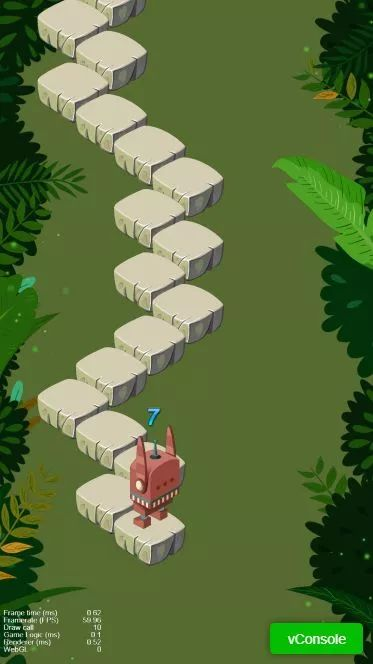

游戏场景（game）实现游戏玩法以及游戏逻辑控制，界面如下：

游戏的主体功能，都在游戏场景内，游戏场景的主要功能结构如下图：



3开发说明

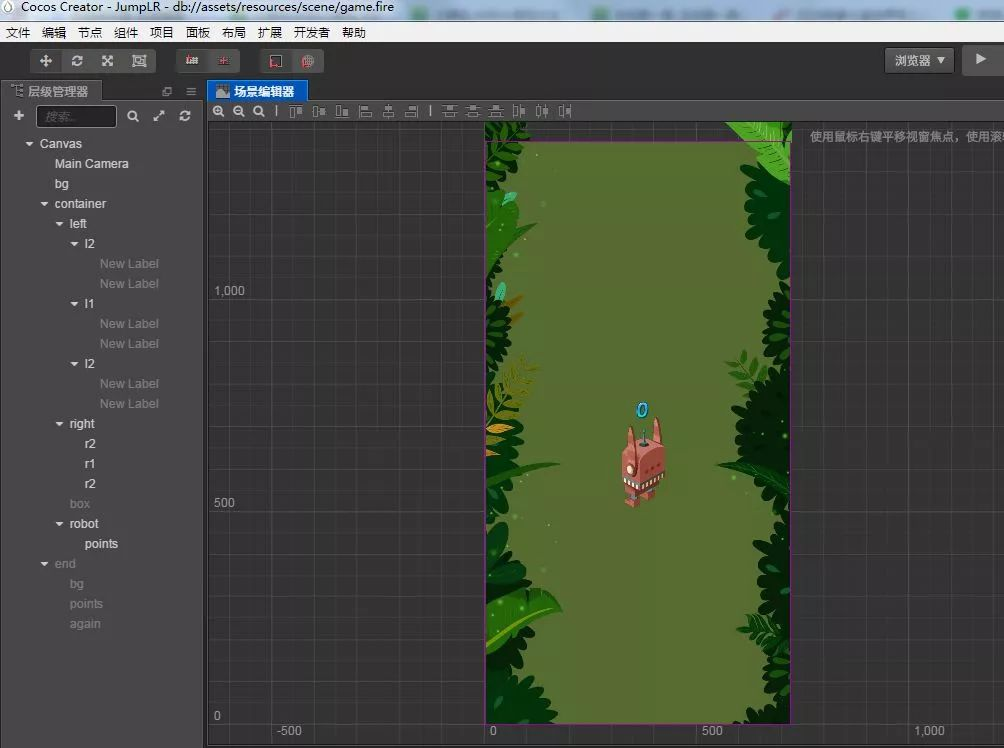

这里主要介绍游戏场景的逻辑，按照上面功能结构进行介绍，先看一下游戏场景内的所有课件UI组件：

下面分模块介绍：

1石块逻辑（Box）



脚本挂载在石块预制上，实现石块相关逻辑，主要有2个：

1. 石块往下运动

根据机器人当前屏幕位置，机器人跳动后，无论成功还是失败，让石块往下方运动，运动到屏幕外，对应代码如下：

down(y: number){    this.node.runAction(cc.sequence(        cc.moveBy(0.4, 0, y),        cc.callFunc( () => {            NodeMgr.putBox(this.node);        })    ));}



2. 记录数据

private mPrevBox: cc.Node = null; // 上一个石块private mNextBox: cc.Node = null; // 下一个石块private mOffset: number = 0; // 左右偏移量 [-4,4]

上下石块主要是为了提供给机器人使用，让机器知道下一个跳过去的位置在哪里，而偏移量则记录石块在屏幕水平方向上的位置，从左到右，取值[-4,4]整数。



2节点管理逻辑（NodeMgr）



游戏中的石块，最多的时候，只铺满3个屏幕高度，超出了以后，幕布会移动到最下，石块重绘，如此循环，以达到一直玩下去的目的，所以石块是反复的移除和添加的，使用节电池，能让游戏有更好的表现。

1. 获取石块节点

判断节电池中是否已经有，有就去现成的，没有则返回空，让游戏逻辑自己生成一个新的节点，代码如下：

???????

public static putBox(box: cc.Node){    if(this.mBoxNodePool == null){        this.mBoxNodePool = new cc.NodePool('boxs');    }
    if(box != null){        this.mBoxNodePool.put(box);    } }



2. 回收石块节点

移除节点时，直接把节点放入节点池，提供下次需要时使用，代码如下：

???????

public static getBox(){    if(this.mBoxNodePool != null && this.mBoxNodePool.size() > 0){        let box = this.mBoxNodePool.get();        box.stopAllActions();        return box;    }else{        return null;    }}





3游戏逻辑（Game）

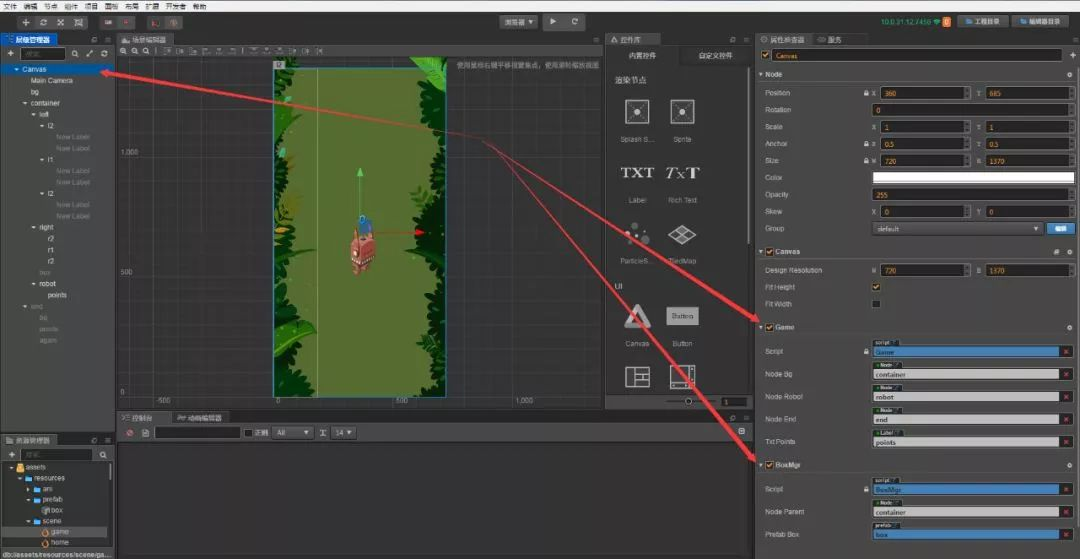

Game脚本组件挂载在游戏场景的根节点上，石块管理脚本组件也一样，如下图：



主要功能有3个：

1. 点击事件逻辑

根据点击位置的x坐标判断，在屏幕左边往左跳，在屏幕右边往右跳。能不能跳之前，需要判断机器人现在是否正在跳，需要注意，代码如下：???????

onTouchCallback(event: any){    if(!this.mIsPlaying){        return;    }
    if(this.nodeRobot.getComponent('Robot').isJumping()){        return;    }
    this.bgDown();
    this.mIsPlaying = true;    let location = event.getLocation();    if(location.x < cc.winSize.width / 2){        this.robotJumpLeft();    }else{        this.robotJumpRight();    }       }



2.游戏背景运动控制

游戏开始时，计算背景运动的最大y坐标，运动前，判定跳以后是否超过最大坐标，移动到第一屏位置，类似石块摆放逻辑，主要代码如下：???????

bgDown(){    let maxY = -cc.winSize.height / 2 - 2 * cc.winSize.height;    let interval = this.node.getComponent('BoxMgr').getIntervalY();        // 超出了，刷屏    if(this.nodeBg.y - interval <= maxY){        this.nodeBg.y += 2 * cc.winSize.height;        this.reloadBoxs();    }
    // 下移    this.nodeBg.runAction(cc.sequence(        cc.moveBy(0.2, 0, -interval),        cc.callFunc( () => {                    })    ));}



3.控制石块重绘

结合游戏背景控制逻辑，判断所有石块是否需要重绘制。



4石块管理逻辑（BoxMgr）



挂载在游戏场景根节点，主要完成以下3项功能：

1. 生成新的石块

对应代码中的 reloadNew函数，代码太多，就不贴代码了，需要的话，下载工程代码看。

2. 加载所有石块

先判断有没有上一屏保留的，有的话，先绘制上一屏，再绘制新的，新的在第三屏能显示的，需要保留，用来下次切屏的时候绘制。

3. 清理石块

清理所有石块，保留在NodeMgr中，代码如下：???????

clearAll(){    if(this.mMemBoxs != null){        for(let i = 0; i < this.mMemBoxs.length; i++){            this.putBox(this.mMemBoxs[i]);        }        this.mMemBoxs = [];    }
    if(this.mNewBoxs != null){        for(let i = 0; i < this.mNewBoxs.length; i++){            this.putBox(this.mNewBoxs[i]);        }        this.mNewBoxs = [];    }}



5机器人逻辑（Robot）



主要功能

根据下一跳方向，判断机器人能否跳过去，对应代码中的jump函数。







//------------Box.ts--------------------import NodeMgr from "./NodeMgr";/** @Copyright: Copyright (c) 2019* @Author: * @Version: 1.0* @Date: 2019-11-22 19:05:49*/
// Learn TypeScript:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/typescript.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/typescript.html
// Learn Attribute:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/reference/attributes.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/reference/attributes.html
// Learn life-cycle callbacks:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/life-cycle-callbacks.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/life-cycle-callbacks.htmlconst {ccclass, property} = cc._decorator;@ccclass
export default class Box extends cc.Component {@property(cc.Label)txtNum: cc.Label = null;private mPrevBox: cc.Node = null;private mNextBox: cc.Node = null;private mOffset: number = 0; // [-4,4]// LIFE-CYCLE CALLBACKS:// onLoad () {}start () {}// update (dt) {}setOffset(offset: number){this.mOffset = offset;}getOffset(){return this.mOffset;}setPrev(prev: cc.Node){this.mPrevBox = prev;}getPrev(){return this.mPrevBox;}setNext(next: cc.Node){this.mNextBox = next;}getNext(){return this.mNextBox;}setNum(num: number){this.txtNum.string = `${num}`;}down(y: number){this.node.runAction(cc.sequence(cc.moveBy(0.4, 0, y),cc.callFunc( () => {NodeMgr.putBox(this.node);})));}
}//-------------BoxMgr.ts-------------------import NodeMgr from "./NodeMgr";/** @Copyright: Copyright (c) 2019* @Author: * @Version: 1.0* @Date: */
// Learn TypeScript:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/typescript.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/typescript.html
// Learn Attribute:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/reference/attributes.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/reference/attributes.html
// Learn life-cycle callbacks:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/life-cycle-callbacks.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/life-cycle-callbacks.htmlconst {ccclass, property} = cc._decorator;@ccclass
export default class BoxMgr extends cc.Component {// 障碍物父节点@property(cc.Node)nodeParent: cc.Node = null;// 障碍物预制@property(cc.Prefab)prefabBox: cc.Prefab = null;private mMaxY: number = 0; // 最大Y坐标private mMemMinY: number = 0; // 需要保留的最小Y值private mStartY: number = 200; // 起始位置private mNewBoxs: cc.Node[] = []; // 所有的障碍物private mMemBoxs: cc.Node[] = []; // 需要保存的障碍物private mMaxOffset: number = 3; // 最大偏移量private mCurrOffset: number = 0; // 当前偏移量private mMaxZIndex:number = 10000; // 最大层级private mCurrZIndex: number = 0; // 当前层级private mIntervalX: number = 0; // X间距private mIntervalY: number = 0; // Y间距private mStandBox: cc.Node = null; // 障碍物链头private mIsNew: boolean = true;// LIFE-CYCLE CALLBACKS:onLoad () {this.mMaxY = 3 * cc.winSize.height + this.prefabBox.data.height / 2;this.mMemMinY = 2* cc.winSize.height - this.prefabBox.data.height / 2;this.mIntervalX = this.prefabBox.data.width * 0.5;this.mIntervalY = this.prefabBox.data.height * 0.5;}start () {// this.reloadAll();}/*** @description: 生成一个障碍物* @param {type} * @return: */getBox(){let box = NodeMgr.getBox();if(box == null){box = cc.instantiate(this.prefabBox);}return box;}/*** @description: 回收一个障碍物* @param {type} * @return: */putBox(box: cc.Node){if(box != null){NodeMgr.putBox(box);}        }clearAll(){if(this.mMemBoxs != null){for(let i = 0; i < this.mMemBoxs.length; i++){this.putBox(this.mMemBoxs[i]);}this.mMemBoxs = [];}if(this.mNewBoxs != null){for(let i = 0; i < this.mNewBoxs.length; i++){this.putBox(this.mNewBoxs[i]);}this.mNewBoxs = [];}}/*** @description: 重新加载所有障碍物* @param {type} * @return: */reloadAll(){for(let i = 0; i < this.mNewBoxs.length; i++){this.putBox(this.mNewBoxs[i]);}this.mNewBoxs = [];this.mCurrZIndex = this.mMaxZIndex;if(this.mMemBoxs.length <= 0){this.mIsNew = true;this.mCurrOffset = 0;this.reloadNew(this.mStartY);}else{this.mIsNew = false;let i = 0;while(i < this.mMemBoxs.length){                this.mMemBoxs[i].y -= (2 * cc.winSize.height);this.mMemBoxs[i].zIndex = this.mCurrZIndex;this.mMemBoxs[i].getComponent('Box').setNum(this.mCurrZIndex);this.mCurrZIndex--;this.mNewBoxs.push(this.mMemBoxs[i]);i++;}let last = this.mMemBoxs[this.mMemBoxs.length - 1];this.mMemBoxs = [];this.mCurrOffset = last.getComponent('Box').getOffset();cc.log('CurrOffset', this.mCurrOffset);this.reloadNew(last.y);}}/*** @description: 重新加载新的障碍物（不包含换屏的）* @param {type} * @return: */reloadNew(startY: number){let y = startY + this.mIntervalY;while(y < this.mMaxY){            let box = this.getBox();// 障碍物链if(this.mStandBox == null){this.mStandBox = box;}let random = this.getRandom();// 第一个居中if(!this.mIsNew){// 最右if(this.mCurrOffset + random > this.mMaxOffset){this.mCurrOffset -= random;}// 最左else if(this.mCurrOffset + random < -this.mMaxOffset){this.mCurrOffset -= random;}// 合法else{this.mCurrOffset += random;}}                this.mIsNew = false;let js = box.getComponent('Box');            box.x = this.mCurrOffset * this.mIntervalX;box.y = y;box.zIndex = this.mCurrZIndex;js.setNum(this.mCurrZIndex);this.mCurrZIndex--;box.parent = this.nodeParent;            // 切屏保留           if(y >= this.mMemMinY){if(this.mMemBoxs.length > 0){this.mMemBoxs[this.mMemBoxs.length - 1].getComponent('Box').setNext(box);                js.setPrev(this.mMemBoxs[this.mMemBoxs.length - 1]);}else{this.mNewBoxs[this.mNewBoxs.length - 1].getComponent('Box').setNext(box);                js.setPrev(this.mNewBoxs[this.mNewBoxs.length - 1]);}this.mMemBoxs.push(box);}else{if(this.mNewBoxs.length > 0){this.mNewBoxs[this.mNewBoxs.length - 1].getComponent('Box').setNext(box);                js.setPrev(this.mNewBoxs[this.mNewBoxs.length - 1]);}else{js.setPrev(null);}this.mNewBoxs.push(box);}y += this.mIntervalY;}}/*** @description: 获取随机数* @param {type} * @return: */getRandom(){let ran = Math.random(); //[0,1)return (ran < 0.5)? -1: 1;}getIntervalX(){return this.mIntervalX;}getIntervalY(){return this.mIntervalY;}getStandBox(){return this.mStandBox;}// update (dt) {}
}//-----------Game.ts---------------------// Learn TypeScript:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/typescript.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/typescript.html
// Learn Attribute:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/reference/attributes.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/reference/attributes.html
// Learn life-cycle callbacks:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/life-cycle-callbacks.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/life-cycle-callbacks.htmlconst {ccclass, property} = cc._decorator;@ccclass
export default class Game extends cc.Component {@property(cc.Node)nodeBg: cc.Node = null;@property(cc.Node)nodeRobot: cc.Node = null;@property(cc.Node)nodeEnd: cc.Node = null;@property(cc.Label)txtPoints: cc.Label = null;// 是否正在移动private mIsPlaying: boolean = false;private mPoints: number = 0;// LIFE-CYCLE CALLBACKS:onLoad () {this.node.on(cc.Node.EventType.TOUCH_START, (event: any) => {event.stopPropagation();this.onTouchCallback(event);});this.mPoints = 0;}start () {this.reloadBoxs();let robot = this.nodeRobot.getComponent('Robot');robot.setAddCallback( () => {this.onAddPoints();});robot.setFailedCallback( () => {this.onGameEnd();});this.mIsPlaying = true;}onAddPoints(){this.mPoints++;}onGameEnd(){this.mIsPlaying = false;this.txtPoints.string = `得分：${this.mPoints}`;this.nodeEnd.active = true;}reloadBoxs(){let boxMgr = this.getComponent('BoxMgr');boxMgr.reloadAll();let robot = this.nodeRobot.getComponent('Robot');if(robot.getCurrent() == null){let standBox = boxMgr.getStandBox();let nextBox = standBox.getComponent('Box').getNext();robot.setCurrent(standBox);robot.setNext(nextBox);if(nextBox.x > standBox.x){robot.turnRight();}else{robot.turnLeft();}}else{robot.setCurrent(robot.getCurrent());}}robotJumpLeft(){let js = this.nodeRobot.getComponent('Robot');js.turnLeft();js.jump();}robotJumpRight(){let js = this.nodeRobot.getComponent('Robot');js.turnRight();js.jump();}// update (dt) {}/*** @description: 背景下移* @param {type} * @return: */bgDown(){let maxY = -cc.winSize.height / 2 - 2 * cc.winSize.height;let interval = this.node.getComponent('BoxMgr').getIntervalY();// 超出了，刷屏if(this.nodeBg.y - interval <= maxY){this.nodeBg.y += 2 * cc.winSize.height;this.reloadBoxs();}// 下移this.nodeBg.runAction(cc.sequence(cc.moveBy(0.2, 0, -interval),cc.callFunc( () => {})));}/*** @description: 点击屏幕* @param {type} * @return: */onTouchCallback(event: any){if(!this.mIsPlaying){return;}if(this.nodeRobot.getComponent('Robot').isJumping()){return;}this.bgDown();this.mIsPlaying = true;let location = event.getLocation();if(location.x < cc.winSize.width / 2){this.robotJumpLeft();}else{this.robotJumpRight();}       }onClick(){this.nodeEnd.active = false;cc.director.loadScene('game');}
}//------------Home.ts--------------------// Learn TypeScript:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/typescript.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/typescript.html
// Learn Attribute:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/reference/attributes.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/reference/attributes.html
// Learn life-cycle callbacks:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/life-cycle-callbacks.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/life-cycle-callbacks.htmlconst {ccclass, property} = cc._decorator;@ccclass
export default class NewClass extends cc.Component {@property(cc.Label)label: cc.Label = null;@propertytext: string = 'hello';// LIFE-CYCLE CALLBACKS:// onLoad () {}start () {}// update (dt) {}onClick(event, data){switch(data){case 'start':{cc.director.loadScene('game');break;}}}
}//-------------NodeMgr.ts-------------------// Learn TypeScript:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/typescript.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/typescript.html
// Learn Attribute:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/reference/attributes.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/reference/attributes.html
// Learn life-cycle callbacks:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/life-cycle-callbacks.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/life-cycle-callbacks.htmlconst {ccclass, property} = cc._decorator;@ccclass
export default class NodeMgr {private static mBoxNodePool: cc.NodePool = null;public static putBox(box: cc.Node){if(this.mBoxNodePool == null){this.mBoxNodePool = new cc.NodePool('boxs');}if(box != null){this.mBoxNodePool.put(box);} }public static getBox(){if(this.mBoxNodePool != null && this.mBoxNodePool.size() > 0){let box = this.mBoxNodePool.get();box.stopAllActions();return box;}else{return null;}}
}//--------------Robot.ts------------------// Learn TypeScript:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/typescript.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/typescript.html
// Learn Attribute:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/reference/attributes.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/reference/attributes.html
// Learn life-cycle callbacks:
//  - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/life-cycle-callbacks.html
//  - [English] http://www.cocos2d-x.org/docs/creator/manual/en/scripting/life-cycle-callbacks.htmlconst {ccclass, property} = cc._decorator;enum RobotFace{Left,Right
}@ccclass
export default class Robot extends cc.Component {@property(cc.SpriteFrame)spfLeft: cc.SpriteFrame = null;@property(cc.SpriteFrame)spfRight: cc.SpriteFrame = null;@property(cc.Label)txtPoints: cc.Label = null;private mPrevNode: cc.Node = null; // 上一次站着的节点private mCurrNode: cc.Node = null; // 当前站着的节点private mNextNode: cc.Node = null; // 下一个节点private mOffset: cc.Vec2 = cc.v2(11, 120); // 机器人与障碍物中心间隔private mRobotFace:number = -1; // -1朝左，1朝右private mAddCallback: any = null;private mFailedCallback: any = null;private mJumping: boolean = false;private mPoints: number = 0;// LIFE-CYCLE CALLBACKS:// onLoad () {}start () {this.node.zIndex = 20000;this.txtPoints.string = `${this.mPoints}`;}// update (dt) {}/*** @description: 向左转* @param {type} * @return: */turnLeft(){this.mRobotFace = RobotFace.Left;this.node.getComponent(cc.Sprite).spriteFrame = this.spfLeft;}/*** @description: 向右转* @param {type} * @return: */turnRight(){this.mRobotFace = RobotFace.Right;this.node.getComponent(cc.Sprite).spriteFrame = this.spfRight;}/*** @description: 设置下一个节点* @param {type} * @return: */setNext(node: cc.Node){this.mNextNode = node;}/*** @description: 设置当前节点* @param {type} * @return: */setCurrent(node: cc.Node){this.mCurrNode = node;this.node.position = this.mCurrNode.position.add(this.mOffset);}getCurrent(){return this.mCurrNode;}setAddCallback(callback: any){this.mAddCallback = callback;}setFailedCallback(callback: any){this.mFailedCallback = callback;}/*** @description: 跳* @param {type} * @return: */jump(){if(this.mNextNode == null){return;}this.mJumping = true;let curPos = this.node.position;       let nextPos = this.mNextNode.position;nextPos = nextPos.add(this.mOffset);// 能跳上去if((this.mRobotFace == RobotFace.Left && nextPos.x < curPos.x) || (this.mRobotFace == RobotFace.Right && nextPos.x > curPos.x)){this.node.runAction(cc.sequence(cc.jumpTo(0.2, nextPos, 30, 1),cc.callFunc( () => {this.mPrevNode = this.mCurrNode;this.mCurrNode = this.mNextNode;this.mNextNode = this.mCurrNode.getComponent('Box').getNext();this.mJumping = false;}),cc.callFunc( () => {if(this.mPrevNode != null){this.mPrevNode.getComponent('Box').down(-this.getDownY(this.mPrevNode));this.mPrevNode = null;}if(this.mAddCallback != null){this.mAddCallback();}this.mPoints++;this.txtPoints.string = `${this.mPoints}`;}))); }// 跳不上去else{let targetPos = curPos;if(nextPos.x > curPos.x){targetPos.x -= 130;}else{targetPos.x += 130;}targetPos.y += 65;this.node.runAction(cc.sequence(cc.jumpTo(0.2, targetPos, 30, 1),cc.callFunc( () => {this.mJumping = false;if(this.mPrevNode != null){this.mPrevNode.getComponent('Box').down(-this.getDownY(this.mPrevNode));this.mPrevNode = null;}                   this.node.runAction(cc.sequence(cc.moveBy(0.5, 0, -this.getDownY(this.node)),cc.callFunc( () => {if(this.mFailedCallback != null){this.mFailedCallback();}})));}),));}        }getDownY(node: cc.Node){        let pos = node.parent.convertToWorldSpace(node.position);let y = pos.y + node.height;return y;}isJumping(){return this.mJumping;}
}











---

感谢：

本文参考自https://mp.weixin.qq.com/s/34vJUZR7XIfkZDsBATqJGQ这篇文章，这里感谢原作者对于技术的分享。

下载：

本文章源码和资源下载地址
