Flutter实现底部导航栏样式

热度:66   发布时间:2023-09-05 17:58:57.0

一、Flutter实现底部导航栏

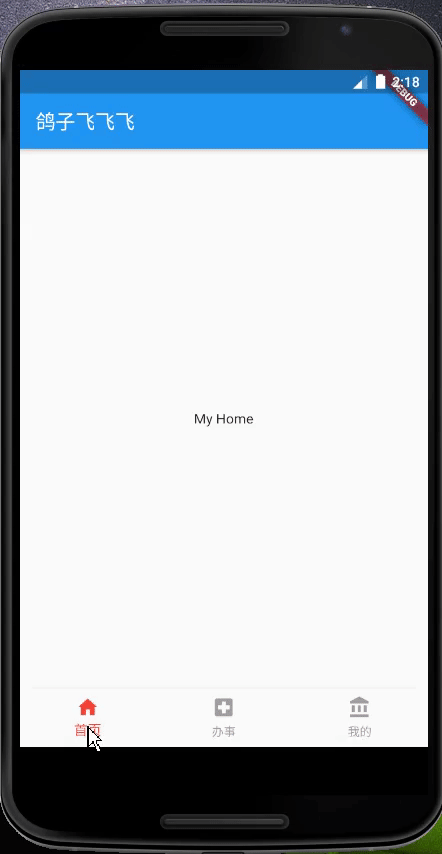

在手机端App主界面中,我们经常看到下面有多个按钮Tab,点击下面的Tab,切换上面的页面。类似与如下效果

                                      Flutter实现底部导航栏样式

在实现Flutter实现底部导航栏的时候,我们先学习连个widget.

1、BottomNavigationBar

BottomNavigationBar({Key key,@required this.items, //子选项this.onTap,           //点击事件this.currentIndex = 0,//选中第几个BottomNavigationBarType type, //底部导航栏样式this.fixedColor,//文字颜色this.iconSize = 24.0,//icon图片大小Color selectedItemColor, //选中item的颜色this.unselectedItemColor,//未选中的item颜色this.selectedIconTheme = const IconThemeData(), //选中图标样式this.unselectedIconTheme = const IconThemeData(),//未选中图标样式this.selectedFontSize = 14.0, //选中字体大小this.unselectedFontSize = 12.0,//为选中字体大小this.selectedLabelStyle,//选中标签的样式this.unselectedLabelStyle,//未选中标签样式this.showSelectedLabels = true,//是否显示选中对象的标签bool showUnselectedLabels,//是否显示未选中对象的标签})const BottomNavigationBarItem({@required this.icon,//未选中图标this.title,//文字Widget activeIcon,//选中图标this.backgroundColor,// 测试发现type设置为shifting时,backgroundColor才有效})

BottomNavigationBar的使用用方法如下:

bottomNavigationBar: new BottomNavigationBar(currentIndex: _currentIndex,selectedLabelStyle: TextStyle(color: selectColor,fontSize: 14),unselectedLabelStyle: TextStyle(color: unSelectColor,fontSize: 12),unselectedIconTheme: IconThemeData(color: unSelectColor),selectedIconTheme: IconThemeData(color: selectColor),onTap: (index) {mPageController.jumpToPage(index);setState(() {_currentIndex = index;});},items: [createBottomTab(Icons.home, mTabs[0]),createBottomTab(Icons.local_hospital,mTabs[1]),createBottomTab(Icons.account_balance, mTabs[2]),],),

因为item中标签除图标和文本之外基本不一致,所以我们创建一个方法,嗲用即可:

createBottomTab1(IconData icon, String title) {return new BottomNavigationBarItem(icon: Icon(icon,),title: new Text(title,));}

2、PageView

PageView({Key key,this.scrollDirection = Axis.horizontal, //滑动在轴上的方向this.reverse = false,         //在轴方向上方向是否颠倒PageController controller,    //Page控制器this.physics,  //页面响应用户交互方式this.pageSnapping = true,//设置为false可禁用页面捕捉,这对于自定义滚动行为很有用。this.onPageChanged,//页面发生改变时出发List<Widget> children = const <Widget>[],//页面widgetthis.dragStartBehavior = DragStartBehavior.start,//设置拖拽方式})PageController({this.initialPage = 0,   //初始显示页面this.keepPage = true,   //页面加载后是否保留页面this.viewportFraction = 1.0,//页面占据空间的大小})
PageView使用如下
PageView(controller: mPageController,children: widget.mViews,onPageChanged: (index){mTabController.animateTo(index);setState(() {_currentIndex = index;});},),

完整代码如下:

class MainApp extends StatelessWidget {@overrideWidget build(BuildContext context) {// TODO: implement buildreturn new MaterialApp(home: new Scaffold(body: new MainWidget(),),);}
}class MainWidget extends StatelessWidget {@overrideWidget build(BuildContext context) {// TODO: implement buildList<Widget> mViews = [new Home(),new Work(),new Mine(),];List<String> mTabs = ["首页", "办事", "我的"];return new WillPopScope(child: new TabNavigator('鸽子飞飞飞', mTabs, mViews,Colors.red,Colors.grey), onWillPop: null);}
}class TabNavigator extends StatefulWidget {/*定义标题*/final String title;/*底部标题文本*/final List<String> mTabs;/*根视图,相当于Fragment视图*/final List<Widget> mViews;/*设置选中空间的颜色值*/final Color selectColor;final Color unSelectColor;TabNavigator(this.title, this.mTabs, this.mViews, this.selectColor,this.unSelectColor);@overrideState<StatefulWidget> createState() {// TODO: implement createStatereturn new _TabNavigatorState(title, mTabs,selectColor, unSelectColor);}
}class _TabNavigatorState extends State<TabNavigator>with SingleTickerProviderStateMixin {final String title;final List<String> mTabs;final Color selectColor;final Color unSelectColor;_TabNavigatorState(this.title, this.mTabs,this.selectColor, this.unSelectColor);int _currentIndex = 0;PageController mPageController;TabController mTabController;@overridevoid initState() {// TODO: implement initStatesuper.initState();mPageController = new PageController(initialPage: 0, keepPage: true);mTabController =new TabController(length: widget.mViews.length, vsync: this);}@overridevoid dispose() {// TODO: implement disposesuper.dispose();mPageController.dispose();mTabController.dispose();}@overrideWidget build(BuildContext context) {// TODO: implement buildreturn new Scaffold(appBar: new AppBar(title: new Text('$title'),),bottomNavigationBar: new BottomNavigationBar(currentIndex: _currentIndex,selectedLabelStyle: TextStyle(color: selectColor,fontSize: 14),unselectedLabelStyle: TextStyle(color: unSelectColor,fontSize: 12),unselectedIconTheme: IconThemeData(color: unSelectColor),selectedIconTheme: IconThemeData(color: selectColor),onTap: (index) {mPageController.jumpToPage(index);setState(() {_currentIndex = index;});},items: [// createBottomTab(Icons.home, mTabs[0],0),createBottomTab1(Icons.home, mTabs[0]),//createBottomTab(Icons.local_hospital,mTabs[1],1),createBottomTab1(Icons.local_hospital,mTabs[1]),//createBottomTab(Icons.account_balance, mTabs[2],2),createBottomTab1(Icons.account_balance, mTabs[2]),],),body: PageView(controller: mPageController,children: widget.mViews,onPageChanged: (index){mTabController.animateTo(index);setState(() {_currentIndex = index;});},),);}createBottomTab1(IconData icon, String title) {return new BottomNavigationBarItem(icon: Icon(icon,),title: new Text(title,));}
}

运行的时候,只需要在main方法中执行runApp即可

void main() {runApp(MainApp());
}
