【OpenSSH】CentOS7.x 上升级OpenSSH到最新版本

热度：99   发布时间：2024-02-13 07:55:58.0

一、实验背景



客户请第三方安全公司扫描了下他们的服务器，发现 SSH 存在许多安全漏洞，原因是 CentOS 7.2 使用了一个比较旧的 OpenSSH 版本 v6.6.1，而这些漏洞在新版的 OpenSSH 中均已被修复，所以出于安全考虑，需要升级。





yum 仓库中并没有最新版的 OpenSSH，我们需要自己从官方下载最新的opeenSSh源码包编译制作 rpm 安装包。

因为客户服务器不能连外网，所以还需要将其做成离线升级包。





二、实验环境



操作系统： CentOS7.2 Mininal

serverA  192.168.1.104  模拟开发机，能联网，用于制作离线升级包

serverB  192.168.1.106  模拟客户服务器，不能联网，openSSH相关包及其依赖版本较低





三、实验预期

在severA上完成openSSH相关编译及依赖下载，写成一键升级脚本，拖到serverB上完成openSSH的升级。

当前最新openSSh源码包版本为 openssh-7.9p1.tar.gz





四、实验操作



在serverA



# yum -y install  vim  wget epel-release

# yum  -y  install  rpm-build  gcc make

# yum -y install  openssl  openssl-devel krb5-devel pam-devel libX11-devel xmkmf libXt-devel

# wget  http://ftp.openbsd.org/pub/OpenBSD/OpenSSH/portable/openssh-7.9p1.tar.gz

# tar -zxf openssh-7.9p1.tar.gz

# mkdir -p  /root/rpmbuild/{SOURCES,SPECS}

# cp ./openssh-7.9p1/contrib/redhat/openssh.spec    /root/rpmbuild/SPECS/

# cp openssh-7.9p1.tar.gz    /root/rpmbuild/SOURCES/

# cd  /root/rpmbuild/SPECS/

# sed  -i  -e  "s/%define no_gnome_askpass 0/%define no_gnome_askpass 1/g"    openssh.spec

# sed  -i  -e  "s/%define no_x11_askpass 0/%define no_x11_askpass 1/g"    openssh.spec

# sed  -i  -e  "s/BuildPreReq/BuildRequires/g"    openssh.spec

# sed -i  -e  "s/BuildRequires: openssl-devel < 1.1/#BuildRequires: openssl-devel < 1.1/g" openssh.spec

# rpmbuild  -bb  openssh.spec

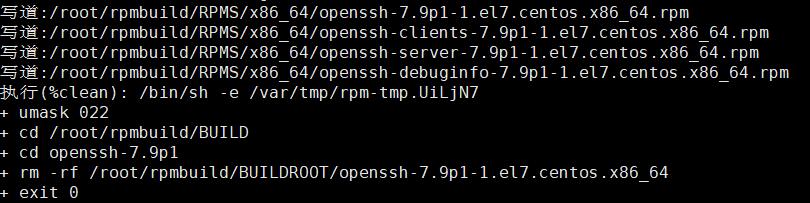

编译好后的文件被放在 /root/rpmbuild/RPMS/x86_64/ 目录下：

# ll  /root/rpmbuild/RPMS/x86_64



将上述操作脚本化：

# cat build.sh

#####################################################

#!/bin/bash

OPENSSH_VERSION=7.9p1

yum -y install  vim  wget epel-release

yum -y install  rpm-build  gcc make

yum -y install  openssl  openssl-devel krb5-devel pam-devel libX11-devel xmkmf libXt-devel

# cd /root

wget http://ftp.openbsd.org/pub/OpenBSD/OpenSSH/portable/openssh-${OPENSSH_VERSION}.tar.gz

tar -zxf  openssh-${OPENSSH_VERSION}.tar.gz

mkdir -p /root/rpmbuild/{SOURCES,SPECS}

cp ./openssh-${OPENSSH_VERSION}/contrib/redhat/openssh.spec /root/rpmbuild/SPECS/

cp openssh-${OPENSSH_VERSION}.tar.gz /root/rpmbuild/SOURCES/

cd /root/rpmbuild/SPECS/

sed -i -e "s/%define no_gnome_askpass 0/%define no_gnome_askpass 1/g" openssh.spec

sed -i -e "s/%define no_x11_askpass 0/%define no_x11_askpass 1/g" openssh.spec

sed -i -e "s/BuildPreReq/BuildRequires/g" openssh.spec

sed -i -e  "s/BuildRequires: openssl-devel < 1.1/#BuildRequires: openssl-devel < 1.1/g" openssh.spec

rpmbuild -bb openssh.spec

ls -l /root/rpmbuild/RPMS/x86_64

########################################################





五、在开发机上做openSSH升级测试



在serverA



# cd  /root/rpmbuild/RPMS/x86_64

# rpm -Uvh *.rpm



# rpm -qa | grep openssh

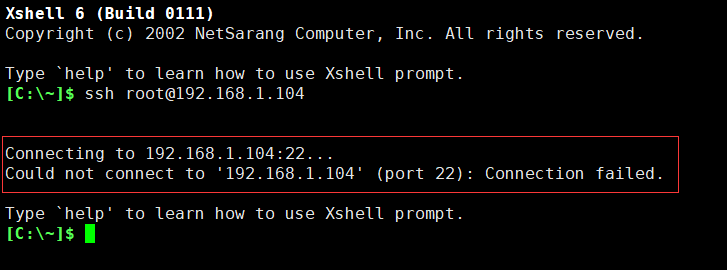

本来到此，我们升级就完成了，但是从客户端登陆的时候却失败了！



开始我们以为自己制作的 rpm 包有问题，几经折腾，最后发现还是默认的配置不正确导致的结果。

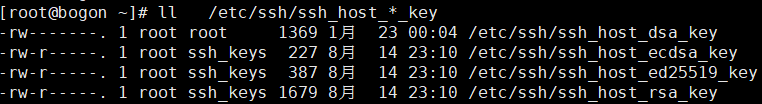

无法用 ssh key 方式登录，默认的 host key 文件授权太大，需要修改 key 文件的权限

# ll  /etc/ssh/ssh_host_*_key

# chmod 600  /etc/ssh/ssh_host_*_key

# ll /etc/ssh/ssh_host_*_key



升级完后的openSSH默认不允许用密码方式登录，我们需要更改配置文件：



# cp /etc/ssh/sshd_config /etc/ssh/sshd_config.bak

# sed -i -e  "s/#PasswordAuthentication yes/PasswordAuthentication yes/g"  /etc/ssh/sshd_config

# sed -i -e  "s/#PermitRootLogin prohibit-password/PermitRootLogin yes/g"    /etc/ssh/sshd_config

# sed -i -e  "s/#PermitEmptyPasswords no/PermitEmptyPasswords no/g"  /etc/ssh/sshd_config

# sed -i  -e  "s/#UsePAM no/UsePAM yes/g"  /etc/ssh/sshd_config

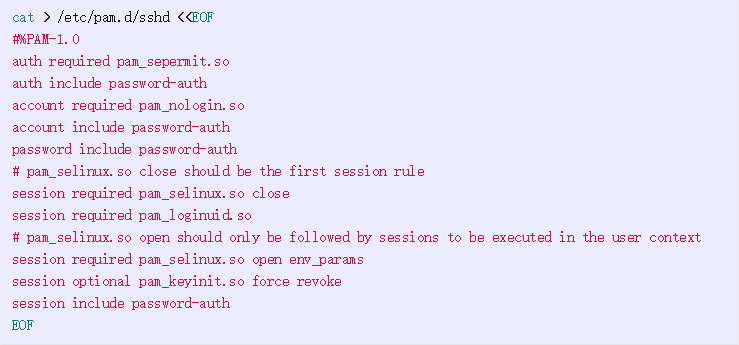

默认的 /etc/pam.d/sshd 中使用了过时的 pam_stack.so 动态库，需要更新：

# cp /etc/pam.d/sshd /etc/pam.d/sshd.bak

# cat >  /etc/pam.d/sshd  <<EOF

#%PAM-1.0

auth required pam_sepermit.so

auth include password-auth

account required pam_nologin.so

account include password-auth

password include password-auth

# pam_selinux.so close should be the first session rule

session required pam_selinux.so close

session required pam_loginuid.so

# pam_selinux.so open should only be followed by sessions to be executed in the user context

session required pam_selinux.so open env_params

session optional pam_keyinit.so force revoke

session include password-auth

EOF



重启ssh服务，查看服务状态：

# systemctl restart sshd

# systemctl enable  sshd

# systemctl status sshd

你会发现，升级后的sshd服务，是用的启动脚本，不是/usr/lib/systemd/system/sshd.service文件了。

实际上升级过程中，程序已经将 /usr/lib/systemd/system/sshd.service 删除了，并且添加了服务启动脚本 /etc/init.d/sshd

细心的你还会发现，升级完后，我们经常用于做免密登录的公钥拷贝命令 ssh-copy-id也没有了！

其实不是没有了，而是我们需要去解压后源码包拷贝到/usr/bin/目录

# cp /root/openssh-7.9p1/contrib/ssh-copy-id  /usr/bin/

# chmod  755  /usr/bin/ssh-copy-id



六、制作离线升级安装包



在serverA



# yum -y install  yum-utils createrepo

# mkdir  /root/localrepo

# repotrack  openssl  -p /root/localrepo/



你可能会疑惑：不是找opennsh相关包的依赖么，怎么找的是openssl了？

其实从上面安装可以，升级opennsh版本并不会缺少依赖，我们们只是需要相应地升级一下openssl的版本：



# cp  /root/rpmbuild/RPMS/x86_64/*.rpm  /root/localrepo

# createrepo -v    /root/localrepo



编写离线升级安装脚本：



cat install.sh

######################################################

#!/bin/bash

# 定位脚本当前路径

parent_path=$( cd "$(dirname "${BASH_SOURCE}")"; pwd -P )

cd "$parent_path"

mkdir -p /etc/yum.repos.d/backup

mv /etc/yum.repos.d/*.repo  /etc/yum.repos.d/backup

rm -rf /tmp/localrepo

mkdir -p /tmp/localrepo

cp -rf  ./localrepo/*  /tmp/localrepo

echo "[localrepo]"                              > /etc/yum.repos.d/localrepo.repo

echo "name=Local Repository"          >> /etc/yum.repos.d/localrepo.repo

echo "baseurl=file:///tmp/localrepo"    >> /etc/yum.repos.d/localrepo.repo

echo "gpgcheck=0"                              >> /etc/yum.repos.d/localrepo.repo

echo "enabled=1"                                >> /etc/yum.repos.d/localrepo.repo

yum clean all

yum -y  install openssl

yum -y install openssh*  --disablerepo="*" --enablerepo="localrepo"

rm -rf /tmp/localrepo

rm -f /etc/yum.repos.d/localrepo.repo

mv /etc/yum.repos.d/backup/*.repo  /etc/yum.repos.d

rm -rf /etc/yum.repos.d/backup

chmod 600  /etc/ssh/ssh_host_*_key

# modify /etc/ssh/sshd_config

cp /etc/ssh/sshd_config /etc/ssh/sshd_config.bak

sed -i -e "s/#PasswordAuthentication yes/PasswordAuthentication yes/g" /etc/ssh/sshd_config

sed -i -e "s/#PermitRootLogin prohibit-password/PermitRootLogin yes/g" /etc/ssh/sshd_config

sed -i -e "s/#PermitEmptyPasswords no/PermitEmptyPasswords no/g"      /etc/ssh/sshd_config

sed -i -e "s/#UsePAM no/UsePAM yes/g"                                  /etc/ssh/sshd_config

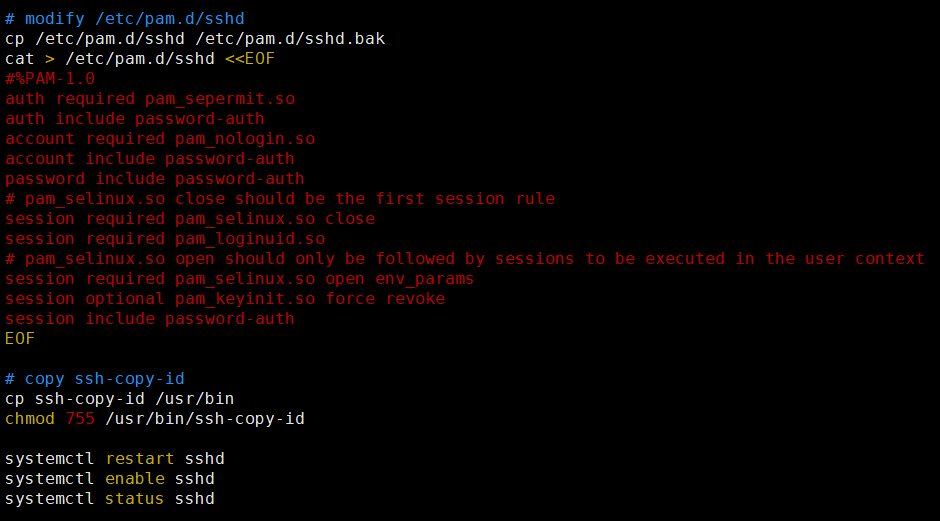

# modify /etc/pam.d/sshd

cp /etc/pam.d/sshd /etc/pam.d/sshd.bak

cat > /etc/pam.d/sshd <<EOF

#%PAM-1.0

auth required pam_sepermit.so

auth include password-auth

account required pam_nologin.so

account include password-auth

password include password-auth

# pam_selinux.so close should be the first session rule

session required pam_selinux.so close

session required pam_loginuid.so

# pam_selinux.so open should only be followed by sessions to be executed in the user context

session required pam_selinux.so open env_params

session optional pam_keyinit.so force revoke

session include password-auth

EOF

# copy ssh-copy-id

cp ssh-copy-id /usr/bin

chmod 755 /usr/bin/ssh-copy-id

systemctl restart sshd

systemctl enable sshd

systemctl status sshd

rpm -qa | grep open

systemctl status  sshd| grep  "Active: active (running)"

if [ $? -eq 0 ]; then

  echo -e "\033[32m[INFO] OpenSSH upgraded to 7.9p1  successfully！\033[0m"

else

  echo -e "\033[31m[ERROR] OpenSSH upgraded to 7.9p1 faild！\033[0m"

fi

##############################################################





打包离线安装包



# mkdir  /root/opensshUpgrade

# cp install.sh  /root/opensshUpgrade

# cp  -r  lcoalrepo /root/opensshUpgrade

# cp /root/openssh-7.9p1/contrib/ssh-copy-id  /root/opensshUpgrade

# tar openssshUpgrade.tar.gz  opensshUpgrade





七、离线安装升级openSSH

将离线升级安装包 openssshUpgrade.tar.gz拷贝到serverB 服务器

#  tar  -zxf  openssshUpgrade.tar.gz

# cd  openssshUpgrade

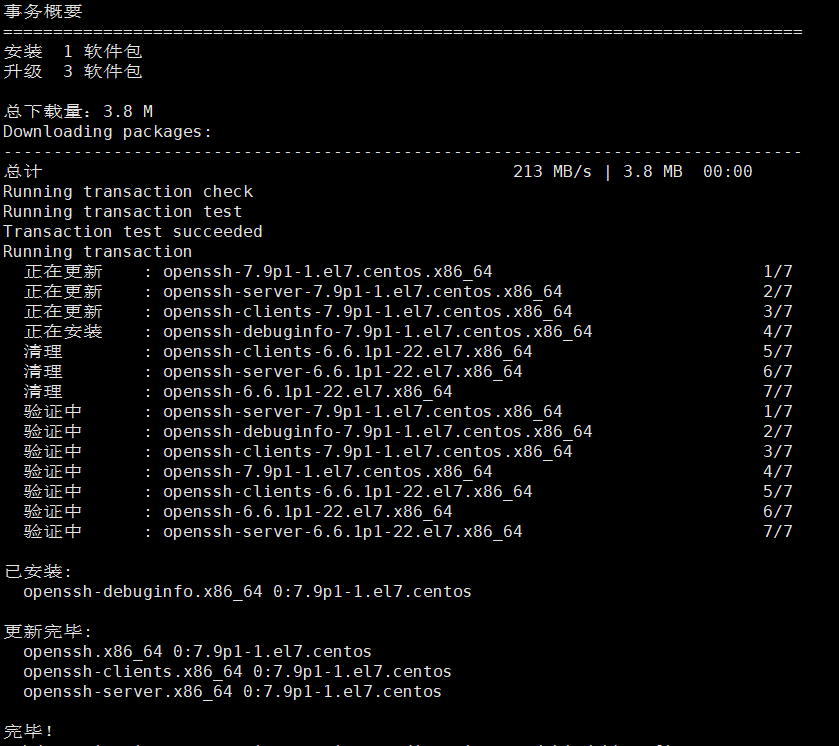

#  bash install.sh | tee install.log





# rpm -qa | grep openssl

# rpm -qa | grep openssh



# systemctl  status sshd

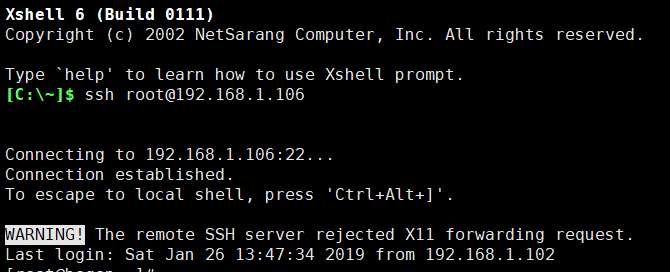

测试登录

[C:\~]$  ssh  root@192.168.1.106
