前言

深度卷积网络除了准确度，计算复杂度也是考虑的重要指标。本文列出了近年主流的轻量级网络，简单地阐述了它们的思想。由于本人水平有限，对这部分的理解还不够深入，还需要继续学习和完善。

最后我参考部分列出来的文章都写的非常棒，建议继续阅读。

复杂度分析

• 理论计算量（FLOPs）：浮点运算次数（FLoating-point Operation）
• 参数数量(params)：单位通常为M，用float32表示。

对比

• std conv（主要贡献计算量）
  • params：kh×kw×cin×coutkh×kw×cin×cout
  • FLOPs：kh×kw×cin×cout×H×Wkh×kw×cin×cout×H×W
• fc（主要贡献参数量）
  • params：cin×coutcin×cout
  • FLOPs：cin×coutcin×cout
• group conv
  • params：(kh×kw×cin/g×cout/g)×g=kh×kw×cin×cout/g(kh×kw×cin/g×cout/g)×g=kh×kw×cin×cout/g
  • FLOPs：kh×kw×cin×cout×H×W/gkh×kw×cin×cout×H×W/g
• depth-wise conv
  • params：kh×kw×cin×cout/cin=kh×kw×coutkh×kw×cin×cout/cin=kh×kw×cout
  • FLOPs：kh×kw×cout×H×Wkh×kw×cout×H×W

SqueezeNet

SqueezeNet：AlexNet-level accuracy with 50x fewer parameters and <0.5MB

核心思想

• 提出Fire module，包含两部分：squeeze和expand层。
  1. squeeze为1x1卷积，S1<MS1<M，从而压缩
  2. Expand层为e1个1x1卷积和e3个3x3卷积，分别输出H×W×e1H×W×e1和H×W×e2H×W×e2。
  3. concat得到H×W×(e1+e3)H×W×(e1+e3)

class Fire(nn.Module):def __init__(self, in_channel, out_channel, squzee_channel):super().__init__()self.squeeze = nn.Sequential(nn.Conv2d(in_channel, squzee_channel, 1),nn.BatchNorm2d(squzee_channel),nn.ReLU(inplace=True))self.expand_1x1 = nn.Sequential(nn.Conv2d(squzee_channel, int(out_channel / 2), 1),nn.BatchNorm2d(int(out_channel / 2)),nn.ReLU(inplace=True))self.expand_3x3 = nn.Sequential(nn.Conv2d(squzee_channel, int(out_channel / 2), 3, padding=1),nn.BatchNorm2d(int(out_channel / 2)),nn.ReLU(inplace=True))def forward(self, x):x = self.squeeze(x)x = torch.cat([self.expand_1x1(x),self.expand_3x3(x)], 1)return x

网络架构

class SqueezeNet(nn.Module):"""mobile net with simple bypass"""def __init__(self, class_num=100):super().__init__()self.stem = nn.Sequential(nn.Conv2d(3, 96, 3, padding=1),nn.BatchNorm2d(96),nn.ReLU(inplace=True),nn.MaxPool2d(2, 2))self.fire2 = Fire(96, 128, 16)self.fire3 = Fire(128, 128, 16)self.fire4 = Fire(128, 256, 32)self.fire5 = Fire(256, 256, 32)self.fire6 = Fire(256, 384, 48)self.fire7 = Fire(384, 384, 48)self.fire8 = Fire(384, 512, 64)self.fire9 = Fire(512, 512, 64)self.conv10 = nn.Conv2d(512, class_num, 1)self.avg = nn.AdaptiveAvgPool2d(1)self.maxpool = nn.MaxPool2d(2, 2)def forward(self, x):x = self.stem(x)f2 = self.fire2(x)f3 = self.fire3(f2) + f2f4 = self.fire4(f3)f4 = self.maxpool(f4)f5 = self.fire5(f4) + f4f6 = self.fire6(f5)f7 = self.fire7(f6) + f6f8 = self.fire8(f7)f8 = self.maxpool(f8)f9 = self.fire9(f8)c10 = self.conv10(f9)x = self.avg(c10)x = x.view(x.size(0), -1)return xdef squeezenet(class_num=100):return SqueezeNet(class_num=class_num)

实验结果

• 注意：0.5MB是模型压缩的结果。

MobileNetV1

MobileNets: Efficient Convolutional Neural Networks for Mobile Vision Applications

核心思想

1. 使用了depth-wise separable conv降低了参数和计算量。

2. 提出两个超参数Width Multiplier和Resolution Multiplier来平衡时间和精度。

• depth-wise separable conv

Standard Conv

DKDK：kernel size

DFDF：feature map size

MM：input channel number

NN：output channel number

参数量：DK×DK×M×N(3×3×3×2)DK×DK×M×N(3×3×3×2)

计算量：DK?DK?M?N?DF?DFDK?DK?M?N?DF?DF

用depth-wise separable conv来替代std conv，depth-wise conv分解为depthwise conv和pointwise conv。

std conv输出的每个通道的feature包含了输入所有通道的feature，depth-wise separable conv没有办法做到，所以需要用pointwise conv来结合不同通道的feature。

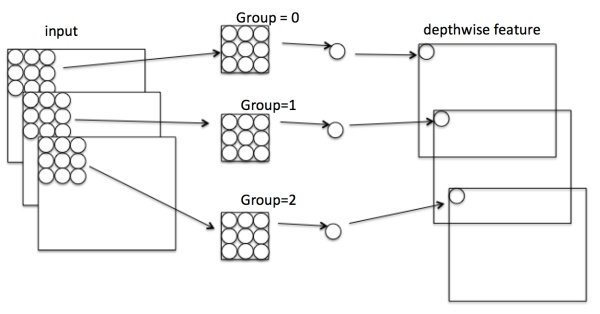

Depthwise Conv

对输入feature的每个通道单独做卷积操作，得到每个通道对应的输出feature。

参数量：DK×DK×M(3×3×3)DK×DK×M(3×3×3)

计算量：DK?DK?M?DF?DFDK?DK?M?DF?DF

Pointwise Conv

将depthwise conv的输出，即不同通道的feature map结合起来，从而达到和std conv一样的效果。

参数量：1×1×M×N(1×1×3×2)1×1×M×N(1×1×3×2)

计算量：M?N?DF?DFM?N?DF?DF

从而总计算量为DK?DK?M?DF?DF+M? N?DF?DFDK?DK?M?DF?DF+M? N?DF?DF

通过拆分，相当于将standard conv计算量压缩为：

• 代码实现

  BasicConv2d & DepthSeperableConv2d



class DepthSeperabelConv2d(nn.Module):def __init__(self, input_channels, output_channels, kernel_size, **kwargs):super().__init__()self.depthwise = nn.Sequential(nn.Conv2d(input_channels,input_channels,kernel_size,groups=input_channels,**kwargs),nn.BatchNorm2d(input_channels),nn.ReLU(inplace=True))self.pointwise = nn.Sequential(nn.Conv2d(input_channels, output_channels, 1),nn.BatchNorm2d(output_channels),nn.ReLU(inplace=True))def forward(self, x):x = self.depthwise(x)x = self.pointwise(x)return xclass BasicConv2d(nn.Module):def __init__(self, input_channels, output_channels, kernel_size, **kwargs):super().__init__()self.conv = nn.Conv2d(input_channels, output_channels, kernel_size, **kwargs)self.bn = nn.BatchNorm2d(output_channels)self.relu = nn.ReLU(inplace=True)def forward(self, x):x = self.conv(x)x = self.bn(x)x = self.relu(x)return x

• Two hyper-parameters

1. Width Multiplier αα：以系数1,0.75,0.5和0.251,0.75,0.5和0.25乘以input、output channel

计算量变为DK?DK?αM?DF?DF+αM? αN?DF?DFDK?DK?αM?DF?DF+αM? αN?DF?DF

1. Resoltion Multiplier ρρ：将输入分辨率变为224,192,160或128224,192,160或128。

计算量变为DK?DK?αM?ρDF?ρDF+αM? αN?ρDF?ρDFDK?DK?αM?ρDF?ρDF+αM? αN?ρDF?ρDF

网络架构

def mobilenet(alpha=1, class_num=100):return MobileNet(alpha, class_num)class MobileNet(nn.Module):"""Args:width multipler: The role of the width multiplier α is to thin a network uniformly at each layer. For a given layer and width multiplier α, the number of input channels M becomes αM and the number of output channels N becomes αN."""def __init__(self, width_multiplier=1, class_num=100):super().__init__()alpha = width_multiplierself.stem = nn.Sequential(BasicConv2d(3, int(32 * alpha), 3, padding=1, bias=False),DepthSeperabelConv2d(int(32 * alpha),int(64 * alpha),3,padding=1,bias=False))#downsampleself.conv1 = nn.Sequential(DepthSeperabelConv2d(int(64 * alpha),int(128 * alpha),3,stride=2,padding=1,bias=False),DepthSeperabelConv2d(int(128 * alpha),int(128 * alpha),3,padding=1,bias=False))#downsampleself.conv2 = nn.Sequential(DepthSeperabelConv2d(int(128 * alpha),int(256 * alpha),3,stride=2,padding=1,bias=False),DepthSeperabelConv2d(int(256 * alpha),int(256 * alpha),3,padding=1,bias=False))#downsampleself.conv3 = nn.Sequential(DepthSeperabelConv2d(int(256 * alpha),int(512 * alpha),3,stride=2,padding=1,bias=False),DepthSeperabelConv2d(int(512 * alpha),int(512 * alpha),3,padding=1,bias=False),DepthSeperabelConv2d(int(512 * alpha),int(512 * alpha),3,padding=1,bias=False),DepthSeperabelConv2d(int(512 * alpha),int(512 * alpha),3,padding=1,bias=False),DepthSeperabelConv2d(int(512 * alpha),int(512 * alpha),3,padding=1,bias=False),DepthSeperabelConv2d(int(512 * alpha),int(512 * alpha),3,padding=1,bias=False))#downsampleself.conv4 = nn.Sequential(DepthSeperabelConv2d(int(512 * alpha),int(1024 * alpha),3,stride=2,padding=1,bias=False),DepthSeperabelConv2d(int(1024 * alpha),int(1024 * alpha),3,padding=1,bias=False))self.fc = nn.Linear(int(1024 * alpha), class_num)self.avg = nn.AdaptiveAvgPool2d(1)def forward(self, x):x = self.stem(x)x = self.conv1(x)x = self.conv2(x)x = self.conv3(x)x = self.conv4(x)x = self.avg(x)x = x.view(x.size(0), -1)x = self.fc(x)return x

实验结果

MobileNetV2

核心思想

• Inverted residual block：引入残差结构和bottleneck层。
• Linear Bottlenecks：ReLU会破坏信息，故去掉第二个Conv1x1后的ReLU，改为线性神经元。

MobileNetv2与其他网络对比

MobileNetV2 block

• 代码实现

class LinearBottleNeck(nn.Module):def __init__(self, in_channels, out_channels, stride, t=6, class_num=100):super().__init__()self.residual = nn.Sequential(nn.Conv2d(in_channels, in_channels * t, 1),nn.BatchNorm2d(in_channels * t),nn.ReLU6(inplace=True),nn.Conv2d(in_channels * t, in_channels * t, 3, stride=stride, padding=1, groups=in_channels * t),nn.BatchNorm2d(in_channels * t),nn.ReLU6(inplace=True),nn.Conv2d(in_channels * t, out_channels, 1),nn.BatchNorm2d(out_channels))self.stride = strideself.in_channels = in_channelsself.out_channels = out_channelsdef forward(self, x):residual = self.residual(x)if self.stride == 1 and self.in_channels == self.out_channels:residual += xreturn residual

网络架构

class MobileNetV2(nn.Module):def __init__(self, class_num=100):super().__init__()self.pre = nn.Sequential(nn.Conv2d(3, 32, 1, padding=1),nn.BatchNorm2d(32),nn.ReLU6(inplace=True))self.stage1 = LinearBottleNeck(32, 16, 1, 1)self.stage2 = self._make_stage(2, 16, 24, 2, 6)self.stage3 = self._make_stage(3, 24, 32, 2, 6)self.stage4 = self._make_stage(4, 32, 64, 2, 6)self.stage5 = self._make_stage(3, 64, 96, 1, 6)self.stage6 = self._make_stage(3, 96, 160, 1, 6)self.stage7 = LinearBottleNeck(160, 320, 1, 6)self.conv1 = nn.Sequential(nn.Conv2d(320, 1280, 1),nn.BatchNorm2d(1280),nn.ReLU6(inplace=True))self.conv2 = nn.Conv2d(1280, class_num, 1)def forward(self, x):x = self.pre(x)x = self.stage1(x)x = self.stage2(x)x = self.stage3(x)x = self.stage4(x)x = self.stage5(x)x = self.stage6(x)x = self.stage7(x)x = self.conv1(x)x = F.adaptive_avg_pool2d(x, 1)x = self.conv2(x)x = x.view(x.size(0), -1)return xdef _make_stage(self, repeat, in_channels, out_channels, stride, t):layers = []layers.append(LinearBottleNeck(in_channels, out_channels, stride, t))while repeat - 1:layers.append(LinearBottleNeck(out_channels, out_channels, 1, t))repeat -= 1return nn.Sequential(*layers)def mobilenetv2():return MobileNetV2()

实验结果

ShuffleNetV1

核心思想

• 利用group convolution和channel shuffle来减少模型参数量。

• ShuffleNet unit

从ResNet bottleneck 演化得到shuffleNet unit

1. (a)带depth-wise conv的bottleneck unit
2. (b)将1x1conv换成1x1Gconv，并在第一个1x1Gconv后增加一个channel shuffle。
3. (c)旁路增加AVG pool，减小feature map的分辨率；分辨率小了，最后不采用add而是concat，从而弥补分辨率减小带来的信息损失。

• 代码实现

class ChannelShuffle(nn.Module):def __init__(self, groups):super().__init__()self.groups = groupsdef forward(self, x):batchsize, channels, height, width = x.data.size()channels_per_group = int(channels / self.groups)#"""suppose a convolutional layer with g groups whose output has#g x n channels; we first reshape the output channel dimension#into (g, n)"""x = x.view(batchsize, self.groups, channels_per_group, height, width)#"""transposing and then flattening it back as the input of next layer."""x = x.transpose(1, 2).contiguous()x = x.view(batchsize, -1, height, width)return xclass ShuffleNetUnit(nn.Module):def __init__(self, input_channels, output_channels, stage, stride, groups):super().__init__()#"""Similar to [9], we set the number of bottleneck channels to 1/4 #of the output channels for each ShuffleNet unit."""self.bottlneck = nn.Sequential(PointwiseConv2d(input_channels, int(output_channels / 4), groups=groups),nn.ReLU(inplace=True))#"""Note that for Stage 2, we do not apply group convolution on the first pointwise #layer because the number of input channels is relatively small."""if stage == 2:self.bottlneck = nn.Sequential(PointwiseConv2d(input_channels, int(output_channels / 4),groups=groups),nn.ReLU(inplace=True))self.channel_shuffle = ChannelShuffle(groups)self.depthwise = DepthwiseConv2d(int(output_channels / 4), int(output_channels / 4), 3, groups=int(output_channels / 4), stride=stride,padding=1)self.expand = PointwiseConv2d(int(output_channels / 4),output_channels,groups=groups)self.relu = nn.ReLU(inplace=True)self.fusion = self._addself.shortcut = nn.Sequential()#"""As for the case where ShuffleNet is applied with stride, #we simply make two modifications (see Fig 2 (c)): #(i) add a 3 × 3 average pooling on the shortcut path; #(ii) replace the element-wise addition with channel concatenation, #which makes it easy to enlarge channel dimension with little extra #computation cost.if stride != 1 or input_channels != output_channels:self.shortcut = nn.AvgPool2d(3, stride=2, padding=1)self.expand = PointwiseConv2d(int(output_channels / 4),output_channels - input_channels,groups=groups)self.fusion = self._catdef _add(self, x, y):return torch.add(x, y)def _cat(self, x, y):return torch.cat([x, y], dim=1)def forward(self, x):shortcut = self.shortcut(x)shuffled = self.bottlneck(x)shuffled = self.channel_shuffle(shuffled)shuffled = self.depthwise(shuffled)shuffled = self.expand(shuffled)output = self.fusion(shortcut, shuffled)output = self.relu(output)return output

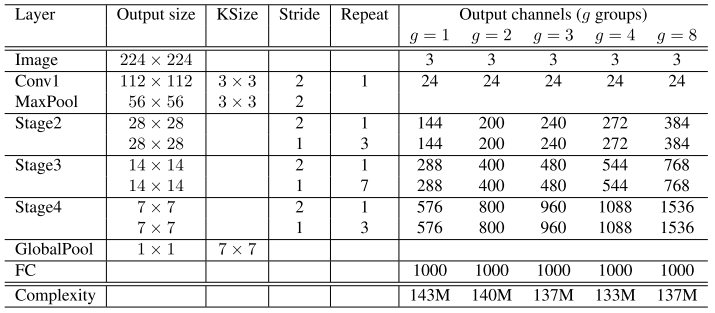

网络架构

• 代码实现

class ShuffleNet(nn.Module):def __init__(self, num_blocks, num_classes=100, groups=3):super().__init__()if groups == 1:out_channels = [24, 144, 288, 567]elif groups == 2:out_channels = [24, 200, 400, 800]elif groups == 3:out_channels = [24, 240, 480, 960]elif groups == 4:out_channels = [24, 272, 544, 1088]elif groups == 8:out_channels = [24, 384, 768, 1536]self.conv1 = BasicConv2d(3, out_channels[0], 3, padding=1, stride=1)self.input_channels = out_channels[0]self.stage2 = self._make_stage(ShuffleNetUnit, num_blocks[0], out_channels[1], stride=2, stage=2,groups=groups)self.stage3 = self._make_stage(ShuffleNetUnit, num_blocks[1], out_channels[2], stride=2,stage=3, groups=groups)self.stage4 = self._make_stage(ShuffleNetUnit,num_blocks[2],out_channels[3],stride=2,stage=4,groups=groups)self.avg = nn.AdaptiveAvgPool2d((1, 1))self.fc = nn.Linear(out_channels[3], num_classes)def forward(self, x):x = self.conv1(x)x = self.stage2(x)x = self.stage3(x)x = self.stage4(x)x = self.avg(x)x = x.view(x.size(0), -1)x = self.fc(x)return xdef _make_stage(self, block, num_blocks, output_channels, stride, stage, groups):"""make shufflenet stage Args:block: block type, shuffle unitout_channels: output depth channel number of this stagenum_blocks: how many blocks per stagestride: the stride of the first block of this stagestage: stage indexgroups: group number of group convolution Return:return a shuffle net stage"""strides = [stride] + [1] * (num_blocks - 1)stage = []for stride in strides:stage.append(block(self.input_channels, output_channels, stride=stride, stage=stage, groups=groups))self.input_channels = output_channelsreturn nn.Sequential(*stage)def shufflenet():return ShuffleNet([4, 8, 4])

实验结果

ShuffleNetV2

核心思想

• 基于四条准则，改进了SuffleNetv1

  G1）同等通道最小化内存访问量（1x1卷积平衡输入和输出通道大小）

  G2）过量使用组卷积增加内存访问量（谨慎使用组卷积）

  G3）网络碎片化降低并行度（避免网络碎片化）

  G4）不能忽略元素级操作（减少元素级运算）

• 代码实现

def channel_split(x, split):"""split a tensor into two pieces along channel dimensionArgs:x: input tensorsplit:(int) channel size for each pieces"""assert x.size(1) == split * 2return torch.split(x, split, dim=1)def channel_shuffle(x, groups):"""channel shuffle operationArgs:x: input tensorgroups: input branch number"""batch_size, channels, height, width = x.size()channels_per_group = int(channels / groups)x = x.view(batch_size, groups, channels_per_group, height, width)x = x.transpose(1, 2).contiguous()x = x.view(batch_size, -1, height, width)return xclass ShuffleUnit(nn.Module):def __init__(self, in_channels, out_channels, stride):super().__init__()self.stride = strideself.in_channels = in_channelsself.out_channels = out_channelsif stride != 1 or in_channels != out_channels:self.residual = nn.Sequential(nn.Conv2d(in_channels, in_channels, 1),nn.BatchNorm2d(in_channels),nn.ReLU(inplace=True),nn.Conv2d(in_channels, in_channels, 3, stride=stride, padding=1, groups=in_channels),nn.BatchNorm2d(in_channels),nn.Conv2d(in_channels, int(out_channels / 2), 1),nn.BatchNorm2d(int(out_channels / 2)),nn.ReLU(inplace=True))self.shortcut = nn.Sequential(nn.Conv2d(in_channels, in_channels, 3, stride=stride, padding=1, groups=in_channels),nn.BatchNorm2d(in_channels),nn.Conv2d(in_channels, int(out_channels / 2), 1),nn.BatchNorm2d(int(out_channels / 2)),nn.ReLU(inplace=True))else:self.shortcut = nn.Sequential()in_channels = int(in_channels / 2)self.residual = nn.Sequential(nn.Conv2d(in_channels, in_channels, 1),nn.BatchNorm2d(in_channels),nn.ReLU(inplace=True),nn.Conv2d(in_channels, in_channels, 3, stride=stride, padding=1, groups=in_channels),nn.BatchNorm2d(in_channels),nn.Conv2d(in_channels, in_channels, 1),nn.BatchNorm2d(in_channels),nn.ReLU(inplace=True) )def forward(self, x):if self.stride == 1 and self.out_channels == self.in_channels:shortcut, residual = channel_split(x, int(self.in_channels / 2))else:shortcut = xresidual = xshortcut = self.shortcut(shortcut)residual = self.residual(residual)x = torch.cat([shortcut, residual], dim=1)x = channel_shuffle(x, 2)return x

网络架构

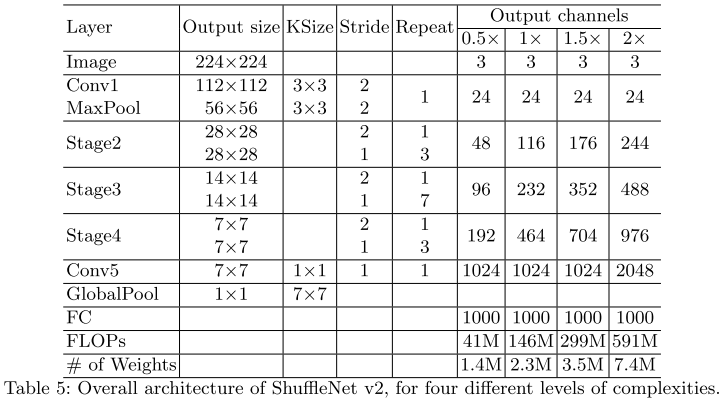

class ShuffleNetV2(nn.Module):def __init__(self, ratio=1, class_num=100):super().__init__()if ratio == 0.5:out_channels = [48, 96, 192, 1024]elif ratio == 1:out_channels = [116, 232, 464, 1024]elif ratio == 1.5:out_channels = [176, 352, 704, 1024]elif ratio == 2:out_channels = [244, 488, 976, 2048]else:ValueError('unsupported ratio number')self.pre = nn.Sequential(nn.Conv2d(3, 24, 3, padding=1),nn.BatchNorm2d(24))self.stage2 = self._make_stage(24, out_channels[0], 3)self.stage3 = self._make_stage(out_channels[0], out_channels[1], 7)self.stage4 = self._make_stage(out_channels[1], out_channels[2], 3)self.conv5 = nn.Sequential(nn.Conv2d(out_channels[2], out_channels[3], 1),nn.BatchNorm2d(out_channels[3]),nn.ReLU(inplace=True))self.fc = nn.Linear(out_channels[3], class_num)def forward(self, x):x = self.pre(x)x = self.stage2(x)x = self.stage3(x)x = self.stage4(x)x = self.conv5(x)x = F.adaptive_avg_pool2d(x, 1)x = x.view(x.size(0), -1)x = self.fc(x)return xdef _make_stage(self, in_channels, out_channels, repeat):layers = []layers.append(ShuffleUnit(in_channels, out_channels, 2))while repeat:layers.append(ShuffleUnit(out_channels, out_channels, 1))repeat -= 1return nn.Sequential(*layers)def shufflenetv2():return ShuffleNetV2()

实验结果
