TexturePacker(TP) 的应用_综合

转自博客：http://blog.csdn.net/akak2010110/article/details/50777846

TexturePacker是一款非常牛逼的打图集软件，是一款收费软件。这是它的官网：https://www.codeandweb.com/texturepacker，大家可以下到最新版本。即便如此，网上还是有很多破解版的（虽然不是最新版的），但是已经够用了。
其实Unity本身也有图集打包功能，但Unity并不想让开发者知道图集这个概念。开发的过程中，如果你不想知道图集的存在，Unity完全可以帮你隐藏得很深，但其实它还在帮你打图集。对于这种打图集方式，我很不放心。我还是想像传统那样的自己打图集，并且能看到打好的图集在哪里，长什么样，但又能被Unity所识别，即在Unity里能用。那TP就可以派上用场了。这是我用的3.0.3版本的TP。大家可以到这里下载
：http://pan.baidu.com/s/1bgjlHs。关于TP的用法，本文并不做介绍。本文要做的就是利用TP的命令行来实现完全自动化的图集打包。

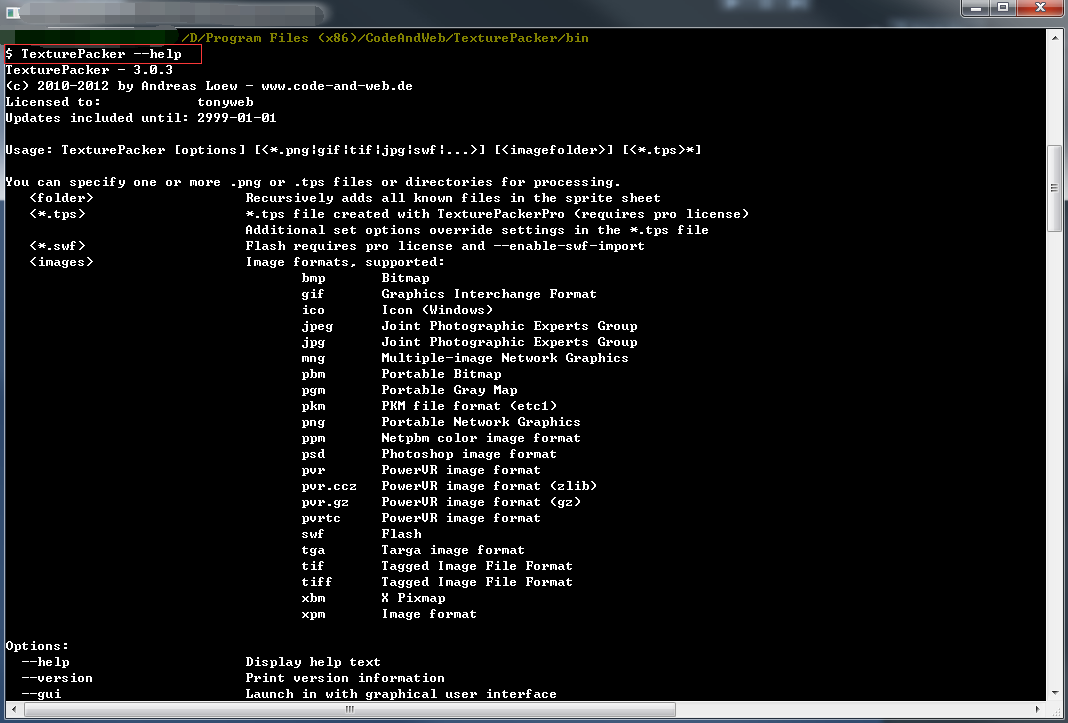

打开命令行工具并CD到TexturePacker的安装目录，输入 TexturePacker –help,会出现该版本的TP的一些命令行参数。
这里写图片描述
下面我们写代码来用上这些命令行参数。写代码之前先看看我们要打成图集的小图们：

这里写图片描述

好的，上代码：

#if UNITY_EDITOR
using UnityEngine;
using System.IO;
using UnityEditor;
using System.Text;
using System.Diagnostics;
public class CommandBuild : Editor
{[MenuItem("Tools/SpritesPacker/CommandBuild")]public static void BuildTexturePacker(){//选择并设置TP命令行的参数和参数值string commandText = " --sheet {0}.png --data {1}.xml --format sparrow --trim-mode None --pack-mode Best --algorithm MaxRects --max-size 2048 --size-constraints POT --disable-rotation --scale 1 {2}" ;string inputPath = string.Format ("{0}/Images", Application.dataPath);//小图目录string outputPath = string.Format ("{0}/TexturePacker", Application.dataPath);//用TP打包好的图集存放目录string[] imagePath = Directory.GetDirectories (inputPath); for (int i = 0; i < imagePath.Length; i++) {UnityEngine.Debug.Log (imagePath [i]);StringBuilder sb = new StringBuilder("");string[] fileName = Directory.GetFiles(imagePath[i]);for (int j = 0; j < fileName.Length; j++){string extenstion = Path.GetExtension(fileName[j]);if (extenstion == ".png"){sb.Append(fileName[j]);sb.Append(" ");}UnityEngine.Debug.Log("fileName [j]:" + fileName[j]);}string name = Path.GetFileName(imagePath [i]);string outputName = string.Format ("{0}/TexturePacker/{1}/{2}", Application.dataPath,name,name);string sheetName = string.Format("{0}/SheetsByTP/{1}", Application.dataPath, name);//执行命令行processCommand("D:\\Program Files (x86)\\CodeAndWeb\\TexturePacker\\bin\\TexturePacker.exe", string.Format(commandText, sheetName, sheetName, sb.ToString()));}AssetDatabase.Refresh();}private static void processCommand(string command, string argument){ProcessStartInfo start = new ProcessStartInfo(command);start.Arguments = argument;start.CreateNoWindow = false;start.ErrorDialog = true;start.UseShellExecute = false;if(start.UseShellExecute){start.RedirectStandardOutput = false;start.RedirectStandardError = false;start.RedirectStandardInput = false;} else{start.RedirectStandardOutput = true;start.RedirectStandardError = true;start.RedirectStandardInput = true;start.StandardOutputEncoding = System.Text.UTF8Encoding.UTF8;start.StandardErrorEncoding = System.Text.UTF8Encoding.UTF8;}Process p = Process.Start(start);if(!start.UseShellExecute){UnityEngine.Debug.Log(p.StandardOutput.ReadToEnd());UnityEngine.Debug.Log(p.StandardError.ReadToEnd());}p.WaitForExit();p.Close();}}
#endif

   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   56
   57
   58
   59
   60
   61
   62
   63
   64
   65
   66
   67
   68
   69
   70
   71
   72
   73
   74


   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   56
   57
   58
   59
   60
   61
   62
   63
   64
   65
   66
   67
   68
   69
   70
   71
   72
   73
   74

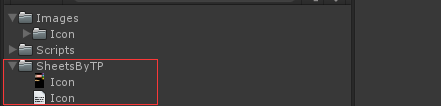

运行 Tools/SpritesPacker/CommandBuild，并查看SheetsByTP目录下打包好的图集：

这里写图片描述

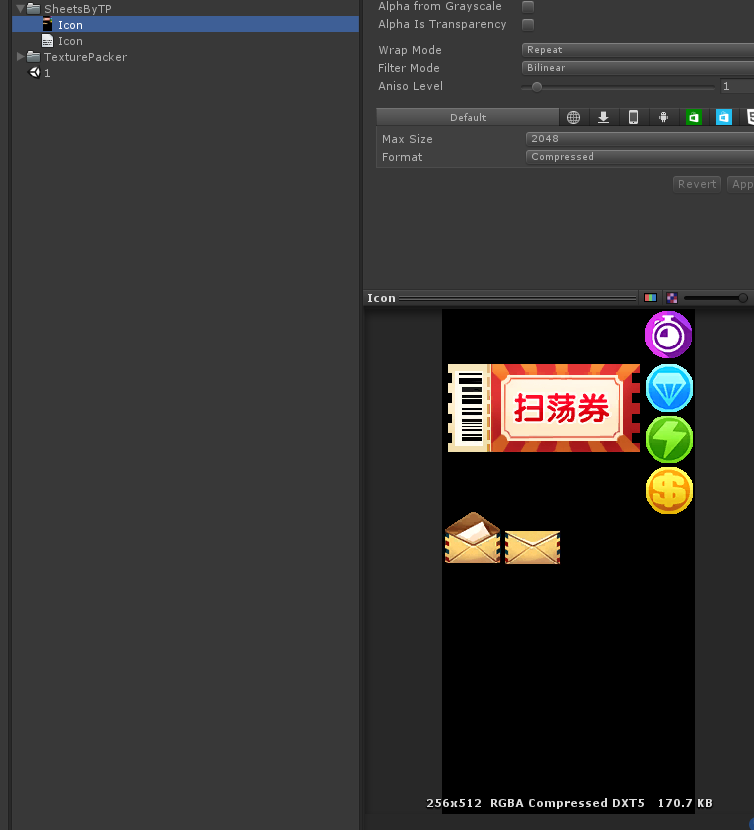

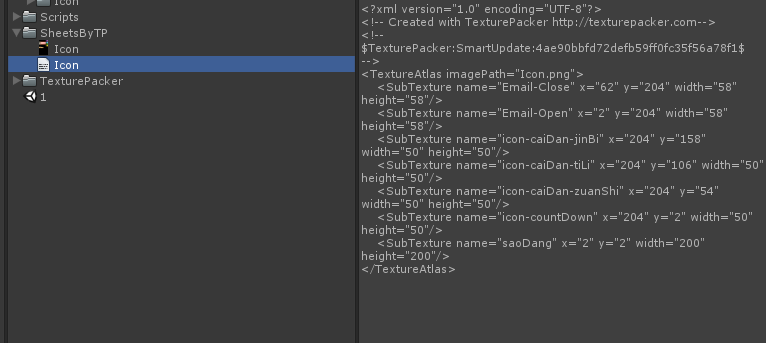

发现得到了两个文件，一个就是打包好的大图，及一个XML格式的配置文件：
这里写图片描述

这里写图片描述

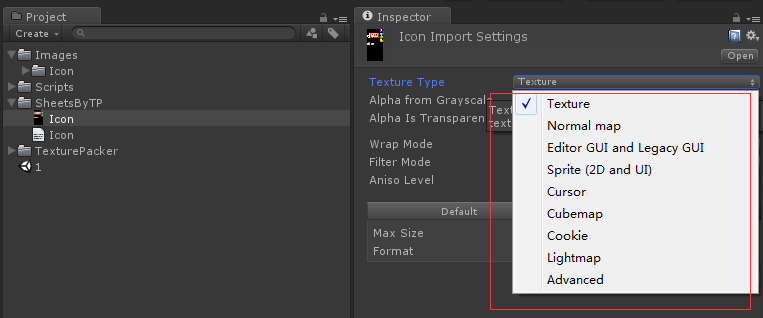

但这样子的图集，unity并不能用，还需要做进一步的处理。这里先说下原理。在Unity里，一张图片的格式很多

这里写图片描述

不同格式有着不同的用途（UGUI用的是Sprite的格式），当我们往Unity里导入图片时，这张图片是什么格式由TextureImporter类决定，大家可以去看看这个类的API。然后我们再在Unity里随便找到一张图片的 .meta文件，用你喜欢的文本编辑器打开它：

fileFormatVersion: 2
guid: 542eed357a373ac4186621aa69a5ae78
timeCreated: 1456884951
licenseType: Pro
TextureImporter:fileIDToRecycleName: {
    }serializedVersion: 2mipmaps:mipMapMode: 0enableMipMap: 1linearTexture: 0correctGamma: 0fadeOut: 0borderMipMap: 0mipMapFadeDistanceStart: 1mipMapFadeDistanceEnd: 3bumpmap:convertToNormalMap: 0externalNormalMap: 0heightScale: .25normalMapFilter: 0isReadable: 0grayScaleToAlpha: 0generateCubemap: 0cubemapConvolution: 0cubemapConvolutionSteps: 8cubemapConvolutionExponent: 1.5seamlessCubemap: 0textureFormat: -1maxTextureSize: 2048textureSettings:filterMode: -1aniso: -1mipBias: -1wrapMode: -1nPOTScale: 1lightmap: 0rGBM: 0compressionQuality: 50allowsAlphaSplitting: 0spriteMode: 0spriteExtrude: 1spriteMeshType: 1alignment: 0spritePivot: {
    x: .5, y: .5}spriteBorder: {
    x: 0, y: 0, z: 0, w: 0}spritePixelsToUnits: 100alphaIsTransparency: 0textureType: -1buildTargetSettings: []spriteSheet:sprites: []spritePackingTag: userData: assetBundleName: assetBundleVariant:


   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   56
   57


   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   56
   57

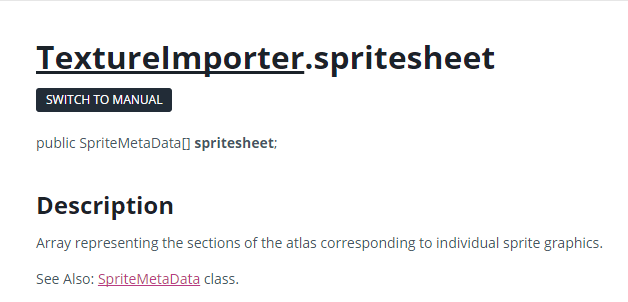

里边有个spriteSheet的项，在 TextureImporter的API里对应
这里写图片描述

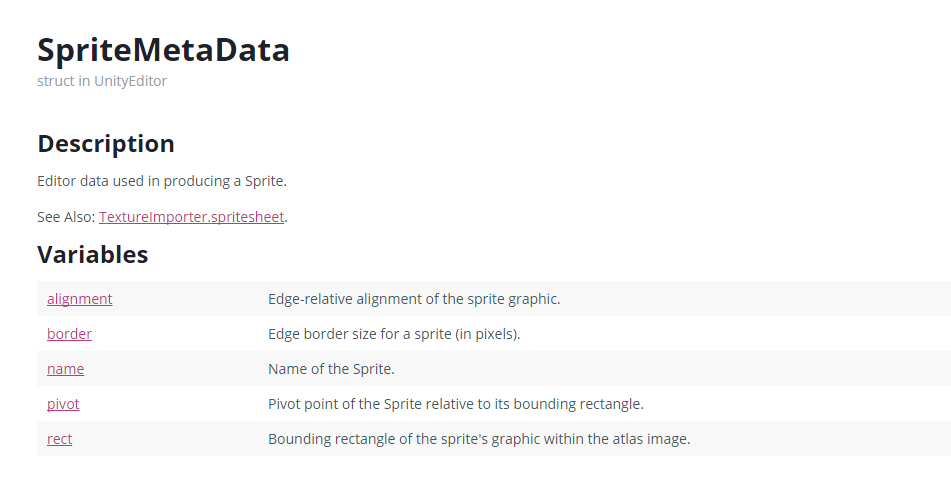

发现是一个SpriteMetaData的数组。在看看SpriteMetaData有什么

这里写图片描述

我们只要把这些信息填好就行。上代码：

#if UNITY_EDITOR
using UnityEngine;
using System;
using System.IO;
using UnityEditor;
using System.Collections.Generic;
using System.Xml;
public class MySpritesPacker : Editor
{[MenuItem("Tools/SpritesPacker/TexturePacker")]public static void BuildTexturePacker(){string inputPath = string.Format("{0}/SheetsByTP/", Application.dataPath);string[] imagePath = Directory.GetFiles(inputPath);foreach (string path in imagePath){if (Path.GetExtension(path) == ".png" || Path.GetExtension(path) == ".PNG"){string sheetPath = GetAssetPath(path);Texture2D texture = AssetDatabase.LoadAssetAtPath<Texture2D>(sheetPath);Debug.Log(texture.name);string rootPath = string.Format("{0}/TexturePacker/{1}", Application.dataPath,texture.name);string pngPath = rootPath + "/" + texture.name + ".png";TextureImporter asetImp = null;Dictionary<string, Vector4> tIpterMap = new Dictionary<string,Vector4>();if (Directory.Exists(rootPath)){if(File.Exists(pngPath)){Debug.Log("exite: " + pngPath);asetImp = GetTextureIpter(pngPath);SaveBoreder(tIpterMap, asetImp);File.Delete(pngPath);}File.Copy(inputPath + texture.name + ".png", pngPath);}else{Directory.CreateDirectory(rootPath);File.Copy(inputPath + texture.name + ".png", pngPath);}AssetDatabase.Refresh();FileStream fs = new FileStream(inputPath + texture.name + ".xml", FileMode.Open);StreamReader sr = new StreamReader(fs);string jText = sr.ReadToEnd();fs.Close();sr.Close();XmlDocument xml = new XmlDocument();xml.LoadXml(jText);XmlNodeList elemList = xml.GetElementsByTagName("SubTexture");WriteMeta(elemList, texture.name, tIpterMap);}}AssetDatabase.Refresh();}//如果这张图集已经拉好了9宫格，需要先保存起来static void SaveBoreder(Dictionary<string,Vector4> tIpterMap,TextureImporter tIpter){for(int i = 0,size = tIpter.spritesheet.Length; i < size; i++){tIpterMap.Add(tIpter.spritesheet[i].name, tIpter.spritesheet[i].border);}}static TextureImporter GetTextureIpter(Texture2D texture){TextureImporter textureIpter = null;string impPath = AssetDatabase.GetAssetPath(texture);textureIpter = TextureImporter.GetAtPath(impPath) as TextureImporter;return textureIpter;}static TextureImporter GetTextureIpter(string path){TextureImporter textureIpter = null;Texture2D textureOrg = AssetDatabase.LoadAssetAtPath<Texture2D>(GetAssetPath(path));string impPath = AssetDatabase.GetAssetPath(textureOrg);textureIpter =  TextureImporter.GetAtPath(impPath) as TextureImporter;return textureIpter;}//写信息到SpritesSheet里static void WriteMeta(XmlNodeList elemList, string sheetName,Dictionary<string,Vector4> borders){string path = string.Format("Assets/TexturePacker/{0}/{1}.png", sheetName, sheetName);Texture2D texture = AssetDatabase.LoadAssetAtPath <Texture2D>(path);string impPath = AssetDatabase.GetAssetPath(texture);TextureImporter asetImp = TextureImporter.GetAtPath(impPath) as TextureImporter;SpriteMetaData[] metaData = new SpriteMetaData[elemList.Count];for (int i = 0, size = elemList.Count; i < size; i++){XmlElement node = (XmlElement)elemList.Item(i);Rect rect = new Rect();rect.x = int.Parse(node.GetAttribute("x"));rect.y = texture.height - int.Parse(node.GetAttribute("y")) - int.Parse(node.GetAttribute("height"));rect.width = int.Parse(node.GetAttribute("width"));rect.height = int.Parse(node.GetAttribute("height"));metaData[i].rect = rect;metaData[i].pivot = new Vector2(0.5f, 0.5f);metaData[i].name = node.GetAttribute("name");if (borders.ContainsKey(metaData[i].name)){metaData[i].border = borders[metaData[i].name];}}asetImp.spritesheet = metaData;asetImp.textureType = TextureImporterType.Sprite;asetImp.spriteImportMode = SpriteImportMode.Multiple;asetImp.mipmapEnabled = false;asetImp.SaveAndReimport();}static string GetAssetPath(string path){string[] seperator = { "Assets" };string p = "Assets" + path.Split(seperator, StringSplitOptions.RemoveEmptyEntries)[1];return p;}}internal class TextureIpter
{public string spriteName = "";public Vector4 border = new Vector4();public TextureIpter() { }public TextureIpter(string spriteName, Vector4 border){this.spriteName = spriteName;this.border = border;}
}
#endif

   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   56
   57
   58
   59
   60
   61
   62
   63
   64
   65
   66
   67
   68
   69
   70
   71
   72
   73
   74
   75
   76
   77
   78
   79
   80
   81
   82
   83
   84
   85
   86
   87
   88
   89
   90
   91
   92
   93
   94
   95
   96
   97
   98
   99
   100
   101
   102
   103
   104
   105
   106
   107
   108
   109
   110
   111
   112
   113
   114
   115
   116
   117
   118
   119
   120
   121
   122
   123
   124
   125
   126
   127
   128
   129
   130
   131
   132


   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   56
   57
   58
   59
   60
   61
   62
   63
   64
   65
   66
   67
   68
   69
   70
   71
   72
   73
   74
   75
   76
   77
   78
   79
   80
   81
   82
   83
   84
   85
   86
   87
   88
   89
   90
   91
   92
   93
   94
   95
   96
   97
   98
   99
   100
   101
   102
   103
   104
   105
   106
   107
   108
   109
   110
   111
   112
   113
   114
   115
   116
   117
   118
   119
   120
   121
   122
   123
   124
   125
   126
   127
   128
   129
   130
   131
   132

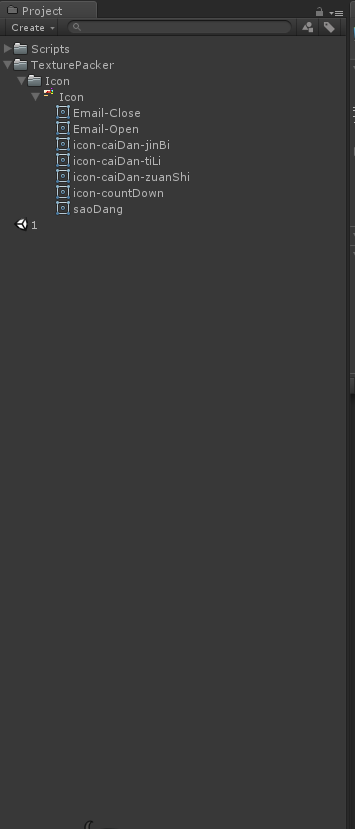

然后点击 Tools/SpritesPacker/TexturePacker，看看 TexturePacker文件夹，会发现

这里写图片描述

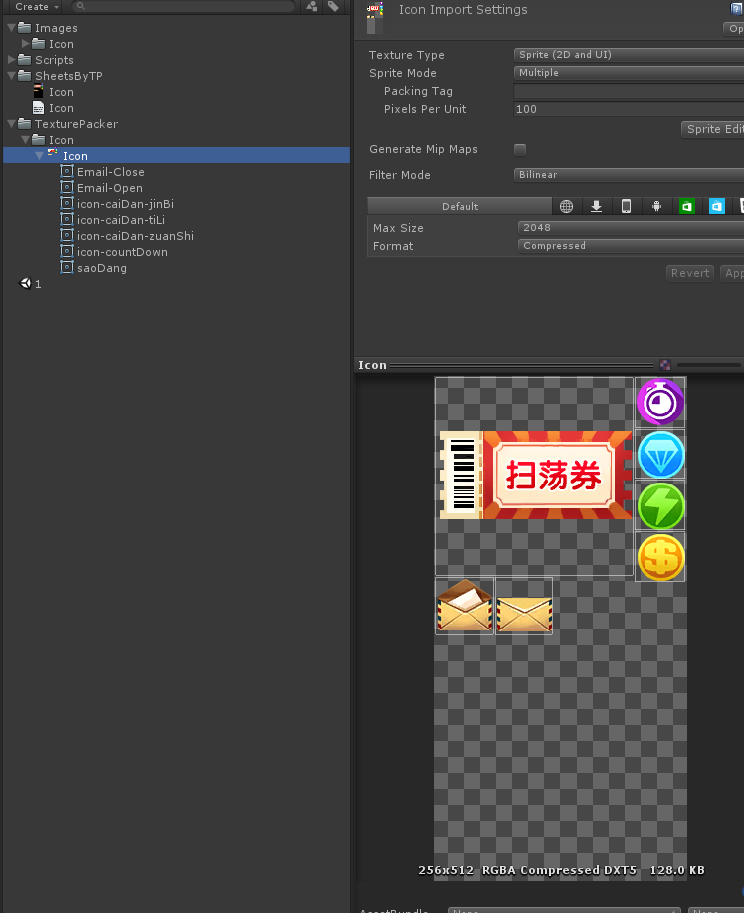

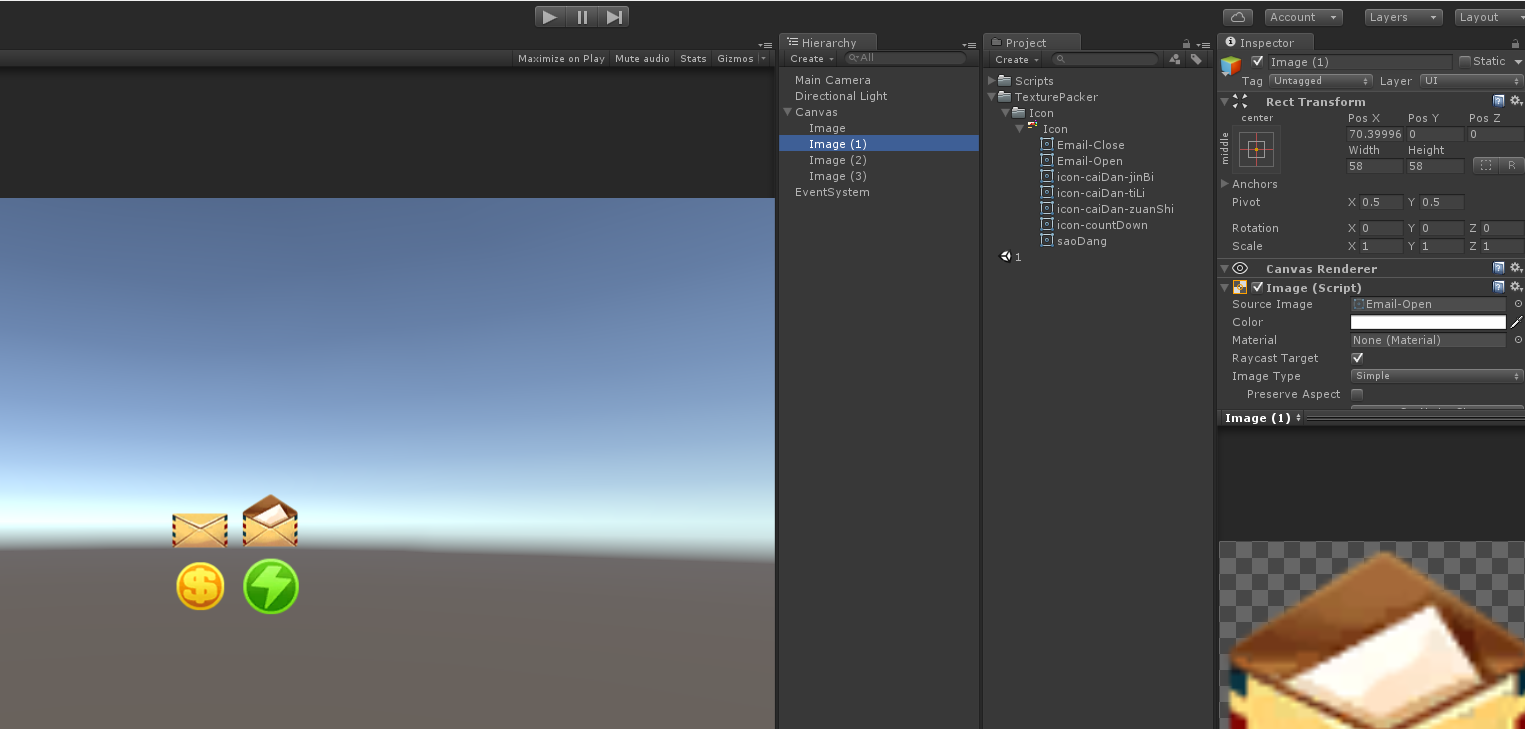

这样Unity就用了，为了验证能用，我们把原来的小图和在TP里打包的图集都删掉，然后创建一些Image，用上我们打包好的图集里的图片。
这里写图片描述

这里写图片描述

到此就成功地在Unity用上了用TP打包好的图集了。
图片用到的九宫格信息也在这里哦！
