Hbase1.3.1集群

热度：10   发布时间：2024-01-16 11:36:49.0



    1. Hbase1.3.1集群



集群规划：

主机名     IP            安装的软件               运行的进程

hdp-ha-01  192.168.1.63  jdk、hadoop、zookeeper、hbase       NameNode,SecondaryNameNode,NodeManager,ResourceManager,QuorumPeerMain、hmaster



hdp-ha-02  192.168.1.63  jdk、hadoop、zookeeper、hbase      DataNode、NodeManager、QuorumPeerMain、、hregionserver



hdp-ha-03  192.168.1.64  jdk、hadoop、zookeeper、hbase      DataNode、NodeManager、QuorumPeerMain、hregionserver





      1. 准备工作
  2. 安装jdk
  3. Hadoop集群
  4. Zookeeper集群



安装步骤：

（1）下载hbase安装包，上传hbase安装包到linux

（2）解压

（3）配置hbase集群，要修改3个文件

    注意：要把hadoop的hdfs-site.xml和core-site.xml 放到hbase/conf下



    （3.1）修改hbase-env.sh

    export JAVA_HOME=/usr/java/jdk1.7.0_55

    //告诉hbase使用外部的zk

    export HBASE_MANAGES_ZK=false



    （3.2）修改 hbase-site.xml

    <configuration>

        <!-- 指定hbase在HDFS上存储的路径 -->

        <property>

                <name>hbase.rootdir</name>

                <value>hdfs://ns1/hbase</value>

        </property>

        <!-- 指定hbase是分布式的 -->

        <property>

                <name>hbase.cluster.distributed</name>

                <value>true</value>

        </property>

        <!-- 指定zk的地址，多个用“,”分割 -->

        <property>

                <name>hbase.zookeeper.quorum</name>

                <value>hdp-server-01:2181, hdp-server-02:2181, hdp-server-03:2181</value>

        </property>

    </configuration>



（3.3）修改 regionservers

    weekend03

    weekend04

    weekend05

    weekend06



(3.4) 拷贝hbase到其他节点

        scp -r /weekend/hbase-0.96.2-hadoop2/ weekend02:/weekend/

        scp -r /weekend/hbase-0.96.2-hadoop2/ weekend03:/weekend/

        scp -r /weekend/hbase-0.96.2-hadoop2/ weekend04:/weekend/

        scp -r /weekend/hbase-0.96.2-hadoop2/ weekend05:/weekend/

        scp -r /weekend/hbase-0.96.2-hadoop2/ weekend06:/weekend/

(4) 将配置好的HBase拷贝到每一个节点并同步时间。



(5) 启动所有的hbase进程

    首先启动zk集群

        ./zkServer.sh start

    启动hbase集群

        start-dfs.sh

    启动hbase，在主节点上运行：

        start-hbase.sh

(6) 通过浏览器访问hbase管理页面

    192.168.1.201:60010

(7) 为保证集群的可靠性，要启动多个HMaster

    hbase-daemon.sh start master









      1. 解压缩到/usr/local目录

[root@xuegod63 download]#

[root@xuegod63 download]# tar -zxf hbase-1.3.1-bin.tar.gz  -C /usr/local/

[root@xuegod63 download]# cd /usr/local/

[root@xuegod63 local]# ls

bin              games         include  libexec      share    ucenter1.5                        vmware-tools-distrib

etc              hadoop-2.6.2  lib      redis-3.2.8  src      ucenter_home2.0                   zookeeper-3.4.6

fail2ban-0.8.14  hbase-1.3.1   lib64    sbin         tomcat7  VMwareTools-9.6.2-1688356.tar.gz

[root@xuegod63 local]#

[root@xuegod63 local]# cd hbase-1.3.1/

[root@xuegod63 hbase-1.3.1]# ls

bin          conf           LEGAL  LICENSE.txt  NOTICE.txt  xuegod65

CHANGES.txt  hbase-webapps  lib    logs         README.txt

[root@xuegod63 hbase-1.3.1]#



      1. 设置环境变量

[root@xuegod63 hbase-1.3.1]#  vim /etc/profile

export JAVA_HOME=/usr/java/jdk1.7.0_15

export JRE_HOME=/usr/java/jdk1.7.0_15/jre

export CLASSPATH=$JAVA_HOME/lib:$JRE_HOME/lib:$CLASSPATH

export PATH=$JAVA_HOME/bin:$JRE_HOME/bin:$PATH



export HADOOP_HOME=/usr/local/hadoop-2.6.2

export PATH=$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$PATH



export ZOOKEEPER_HOME=/usr/local/zookeeper-3.4.6

export PATH=$ZOOKEEPER_HOME/bin::$PATH



export HBASE_HOME=/usr/local/hbase-1.3.1

export PATH=$HBASE_HOME/bin::$PATH



[root@xuegod63 hbase-1.3.1]#





      1. 修改hbase-env.sh配置文件

[root@xuegod63 hbase-1.3.1]# ls

bin          conf           LEGAL  LICENSE.txt  NOTICE.txt  xuegod65

CHANGES.txt  hbase-webapps  lib    logs         README.txt

[root@xuegod63 hbase-1.3.1]# cd conf/

[root@xuegod63 conf]# ls

core-site.xml                     hbase-env.sh      hdfs-site.xml

hadoop-metrics2-hbase.properties  hbase-policy.xml  log4j.properties

hbase-env.cmd                     hbase-site.xml    regionservers

[root@xuegod63 conf]#

修改hbase-env.sh

[root@xuegod63 conf]# vim hbase-env.sh

#添加一下内容:

# The java implementation to use.  Java 1.7+ required.

export JAVA_HOME=/usr/java/jdk1.7.0_15



# Extra Java CLASSPATH elements.  Optional.

#设置到Hadoop的etc/hadoop目录是用来引导Hbase找到Hadoop,即hbase和hadoop进行关联

export HBASE_CLASSPATH=/usr/local/hadoop-2.6.2/etc/hadoop



export HBASE_MANAGES_ZK=false 默认为true,使用自带的zookeeper,如果设置为false,需要自己配置zookeeper.

[root@xuegod63 conf]#





      1. 修改hbase-site.xml配置文件

[root@xuegod63 conf]#

[root@localhost65 conf]# vim hbase-site.xml

<configuration>

    <!-- 指定hbase在HDFS上存储的路径，hbase.rootdir的前端与$HADOOP_HOME/conf/core-site.xml的fs.defaultFS一致 -->

        <property>

                <name>hbase.rootdir</name>

                <value>hdfs://192.168.3.65:9000/hbase</value>

        </property>

<!-- 指定hbase是分布式的 -->

        <property>

                <name>hbase.cluster.distributed</name>

                <value>true</value>

        </property>



<!--本地文件系统的临时文件夹。可以修改到一个更为持久的目录上。(/tmp会在重启时清除) -->

        <property>

                <name>hbase.tmp.dir</name>

                <value>/home/hbase/tmp</value>

        </property>



<!--如果只设置单个 Hmaster，那么 hbase.master 属性参数需要设置为 master5:60000 (主机名:60000) -->

<!--如果要设置多个 Hmaster，那么我们只需要提供端口 60000，因为选择真正的 master 的事情会有 zookeeper 去处理 -->

        <property>

                <name>hbase.master</name>

                <value>60000</value>

        </property>



<!--这个参数用户设置 ZooKeeper 快照的存储位置，默认值为 /tmp，显然在重启的时候会清空。因为笔者的 ZooKeeper 是独立安装的，所以这里路径是指向了 $ZOOKEEPER_HOME/conf/zoo.cfg 中 dataDir 所设定的位置 -->

        <property>

                <name>hbase.zookeeper.property.dataDir</name>

                <value>/home/zookeeper/data</value>

        </property>



<!--客户端连接 ZooKeeper服务地址，这里有几个集群zookeeper就配置几个，多个以逗号分隔，zookeeper集群最好是奇数个，由于zookeeper的选举机>制是过半原则，偶数集群选举时间比较长 -->

        <property>

                <name>hbase.zookeeper.quorum</name>

                <value>xuegod63:2181,xuegod64:2181,xuegod65:2181</value>

        </property>

<!--表示客户端连接 ZooKeeper 的端口 -->

        <property>

                <name>hbase.zookeeper.property.clientPort</name>

                <value>2181</value>

        </property>

<!--ZooKeeper 会话超时。Hbase 把这个值传递改 zk 集群，向它推荐一个会话的最大超时时间 -->

        <property>

                <name>zookeeper.session.timeout</name>

                <value>120000</value>

        </property>



<!--当 regionserver 遇到 ZooKeeper session expired ， regionserver 将选择 restart 而不是 abort -->

        <property>

                <name>hbase.regionserver.restart.on.zk.expire</name>

                <value>true</value>

        </property>

</configuration>

[root@xuegod63 conf]#



      1. 拷贝hadoop目录下hdfs-site.xml和core-site.xml 放到hbase/conf下



要把hadoop的hdfs-site.xml和core-site.xml 放到hbase/conf下





[root@xuegod63 conf]# cp /usr/local/hadoop-2.6.2/etc/hadoop/hdfs-site.xml ./

[root@xuegod63 conf]# cp /usr/local/hadoop-2.6.2/etc/hadoop/core-site.xml ./

[root@xuegod63 conf]# ls

core-site.xml                     hbase-env.sh      hdfs-site.xml

hadoop-metrics2-hbase.properties  hbase-policy.xml  log4j.properties

hbase-env.cmd                     hbase-site.xml    regionservers

[root@xuegod63 conf]# vim core-site.xml

[root@xuegod63 conf]#





      1. 修改regionservers文件

Master只能有一个，如果启动多个master，则其他的都为standby。Regionserver可以有多个。

编辑所有机器的HBase的HMasters和HRegionServers。修改/conf 文件夹下的regionservers文件。添加DataNode的IP即可，通常是将regionserver与datanode服务器放在一起

[root@xuegod63 conf]#

[root@xuegod63 conf]# ls

core-site.xml                     hbase-env.sh      hdfs-site.xml

hadoop-metrics2-hbase.properties  hbase-policy.xml  log4j.properties

hbase-env.cmd                     hbase-site.xml    regionservers

[root@xuegod63 conf]# vim regionservers

xuegod63

xuegod64

xuegod65

[root@xuegod63 conf]#



      1. 将hbase拷贝到其他服务器

[root@xuegod63 local]#

[root@xuegod63 local]# scp -r hbase-1.3.1/ xuegod64:/usr/local/

[root@xuegod63 local]# scp -r hbase-1.3.1/ xuegod65:/usr/local/

[root@xuegod63 local]#





[root@xuegod64 local]# ls

bin           hadoop-2.7.3.tar  lib64        share                             zookeeper-3.4.6

etc           hbase-1.3.1       libexec      src

games         include           redis-3.2.8  VMwareTools-9.6.2-1688356.tar.gz

hadoop-2.6.2  lib               sbin         vmware-tools-distrib

[root@xuegod64 local]#



[root@xuegod65 ~]# cd /usr/local/

[root@xuegod65 local]# ls

bin              hadoop-2.6.2  lib64        share       ucenter_home2.0

etc              hbase-1.3.1   libexec      src         VMwareTools-9.6.2-1688356.tar.gz

fail2ban-0.8.14  include       redis-3.2.8  tomcat7     vmware-tools-distrib

games            lib           sbin         ucenter1.5  zookeeper-3.4.6

[root@xuegod65 local]#





      1. 启动hbase服务

[root@xuegod63 local]# start-hbase.sh

starting master, logging to /usr/local/hbase-1.3.1/logs/hbase-root-master-xuegod63.out

xuegod65: starting regionserver, logging to /usr/local/hbase-1.3.1/bin/../logs/hbase-root-regionserver-xuegod65.out

xuegod64: starting regionserver, logging to /usr/local/hbase-1.3.1/bin/../logs/hbase-root-regionserver-xuegod64.out

xuegod63: starting regionserver, logging to /usr/local/hbase-1.3.1/bin/../logs/hbase-root-regionserver-xuegod63.out

[root@xuegod63 local]# jps

7026 NameNode

6814 QuorumPeerMain

8258 HRegionServer

8304 Jps

8133 HMaster

7270 SecondaryNameNode

7440 ResourceManager

7539 NodeManager

[root@xuegod63 local]#



Xuegod64服务：

[root@xuegod64 ~]# jps

5656 HRegionServer

6616 Jps

5307 DataNode

5188 QuorumPeerMain

5411 NodeManager

[root@xuegod64 ~]#



Xuegod65服务：

[root@xuegod65 local]# jps

4435 Jps

4275 HRegionServer

4030 NodeManager

3833 QuorumPeerMain

[root@xuegod65 local]#

注意：在集群使用命令start-hbase.sh启动的服务为Hmaster,并且master只能有一个，其他的为standby,  HregionServer则为hbase中regionserver配置文件中的配置的主机。可以为多个。



可以通过手动启动standby节点，如下：

[root@xuegod63 hbase-1.3.1]# hbase-daemon.sh start master

starting master, logging to /usr/local/hbase-1.3.1/logs/hbase-root-master-xuegod63.out

[root@xuegod63 hbase-1.3.1]#







      1. 查看hbase服务是否已经启动

[root@xuegod63 hbase-1.3.1]# jps

7026 NameNode

6814 QuorumPeerMain

9028 Jps

8258 HRegionServer

7270 SecondaryNameNode

7440 ResourceManager

8797 Hmaster    #表示hbase已经启动成功

7539 NodeManager

[root@xuegod63 hbase-1.3.1]#





      1. 登录zookeeper查看hbase

[root@xuegod63 hbase-1.3.1]#

[root@xuegod63 hbase-1.3.1]# zkCli.sh

Connecting to localhost:2181

2017-09-25 23:18:29,809 [myid:] - INFO  [main:Environment@100] - Client environment:zookeeper.version=3.4.6-1569965, built on 02/20/2014 09:09 GMT

2017-09-25 23:18:29,823 [myid:] - INFO  [main:Environment@100] - Client environment:host.name=xuegod63

2017-09-25 23:18:29,824 [myid:] - INFO  [main:Environment@100] - Client environment:java.version=1.7.0_15

2017-09-25 23:18:29,834 [myid:] - INFO  [main:Environment@100] - Client environment:java.vendor=Oracle Corporation

2017-09-25 23:18:29,834 [myid:] - INFO  [main:Environment@100] - Client environment:java.home=/usr/java/jdk1.7.0_15/jre

2017-09-25 23:18:29,834 [myid:] - INFO  [main:Environment@100] - Client environment:java.class.path=/usr/local/zookeeper-3.4.6/bin/../build/classes:/usr/local/zookeeper-3.4.6/bin/../build/lib/*.jar:/usr/local/zookeeper-3.4.6/bin/../lib/slf4j-log4j12-1.6.1.jar:/usr/local/zookeeper-3.4.6/bin/../lib/slf4j-api-1.6.1.jar:/usr/local/zookeeper-3.4.6/bin/../lib/netty-3.7.0.Final.jar:/usr/local/zookeeper-3.4.6/bin/../lib/log4j-1.2.16.jar:/usr/local/zookeeper-3.4.6/bin/../lib/jline-0.9.94.jar:/usr/local/zookeeper-3.4.6/bin/../zookeeper-3.4.6.jar:/usr/local/zookeeper-3.4.6/bin/../src/java/lib/*.jar:/usr/local/zookeeper-3.4.6/bin/../conf:/usr/java/jdk1.7.0_15/lib:/usr/java/jdk1.7.0_15/jre/lib:

2017-09-25 23:18:29,834 [myid:] - INFO  [main:Environment@100] - Client environment:java.library.path=/usr/java/packages/lib/amd64:/usr/lib64:/lib64:/lib:/usr/lib

2017-09-25 23:18:29,835 [myid:] - INFO  [main:Environment@100] - Client environment:java.io.tmpdir=/tmp

2017-09-25 23:18:29,835 [myid:] - INFO  [main:Environment@100] - Client environment:java.compiler=<NA>

2017-09-25 23:18:29,835 [myid:] - INFO  [main:Environment@100] - Client environment:os.name=Linux

2017-09-25 23:18:29,835 [myid:] - INFO  [main:Environment@100] - Client environment:os.arch=amd64

2017-09-25 23:18:29,836 [myid:] - INFO  [main:Environment@100] - Client environment:os.version=2.6.32-431.el6.x86_64

2017-09-25 23:18:29,836 [myid:] - INFO  [main:Environment@100] - Client environment:user.name=root

2017-09-25 23:18:29,836 [myid:] - INFO  [main:Environment@100] - Client environment:user.home=/root

2017-09-25 23:18:29,836 [myid:] - INFO  [main:Environment@100] - Client environment:user.dir=/usr/local/hbase-1.3.1

2017-09-25 23:18:29,841 [myid:] - INFO  [main:ZooKeeper@438] - Initiating client connection, connectString=localhost:2181 sessionTimeout=30000 watcher=org.apache.zookeeper.ZooKeeperMain$MyWatcher@27c09226

Welcome to ZooKeeper!

2017-09-25 23:18:29,917 [myid:] - INFO  [main-SendThread(localhost:2181):ClientCnxn$SendThread@975] - Opening socket connection to server localhost/0:0:0:0:0:0:0:1:2181. Will not attempt to authenticate using SASL (unknown error)

2017-09-25 23:18:29,945 [myid:] - INFO  [main-SendThread(localhost:2181):ClientCnxn$SendThread@852] - Socket connection established to localhost/0:0:0:0:0:0:0:1:2181, initiating session

JLine support is enabled

2017-09-25 23:18:29,990 [myid:] - INFO  [main-SendThread(localhost:2181):ClientCnxn$SendThread@1235] - Session establishment complete on server localhost/0:0:0:0:0:0:0:1:2181, sessionid = 0x15eb96af2fd0008, negotiated timeout = 30000



WATCHER::



WatchedEvent state:SyncConnected type:None path:null

[zk: localhost:2181(CONNECTED) 0] ls /

[hbase, zookeeper]

[zk: localhost:2181(CONNECTED) 1] ls /hbase

[meta-region-server, backup-masters, switch, table, draining, region-in-transition, table-lock, running, master, namespace, hbaseid, online-snapshot, replication, splitWAL, recovering-regions, rs, flush-table-proc]

[zk: localhost:2181(CONNECTED) 2]



      1. 关闭hbase服务

[root@xuegod63 hbase-1.3.1]#

[root@xuegod63 hbase-1.3.1]# stop-hbase.sh

stopping hbase.....................



[root@xuegod63 hbase-1.3.1]#



      1. 测试hbase服务

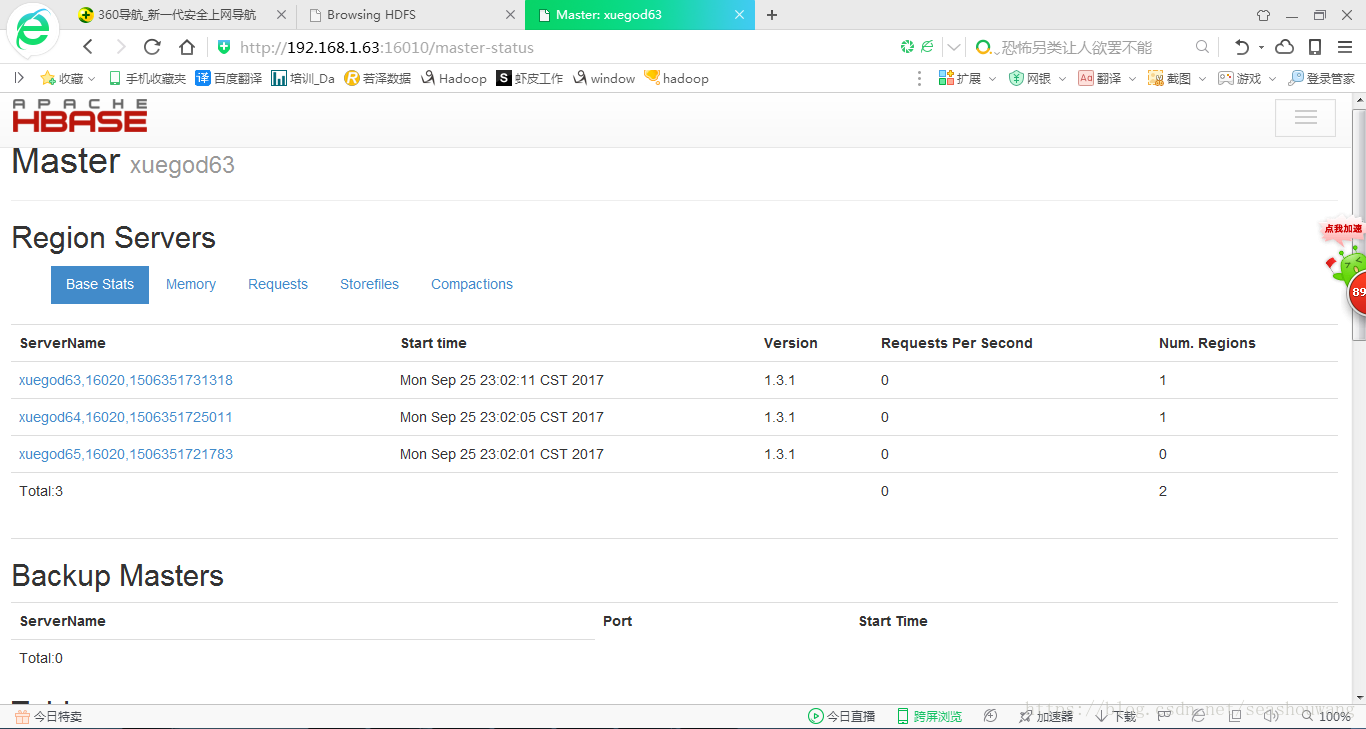

浏览器输入：http://192.168.3.63:16010/  hbase默认端口是16010。















      1. hbase通过脚本复制到其他节点



创建脚本：

[root@server66 ~]# vim cphbase.sh

#!/bin/bash

if [ "$#" != "2" ]; then

        echo "usage:$(basename $0) <dir-name> <ln-name>"

        echo "example:$(basename $0) hbase-1.3 hbase"

fi



SRC_PATH="/usr/local/$1/conf/regionservers"

for srv in $(cat $SRC_PATH);

do

        echo "sending command to $srv...";

        rsync -vaz --exclude='logs/*' /usr/local/$1 $srv:/root/test/

#       ssh $srv "rm -rf /usr/local/$2;ln -s /usr/local/$1 /usr/local/$2"

done

echo "done.............";

~

[root@server66 ~]#

执行复制操作：

[root@server66 ~]# sh cphbase.sh hbase-1.3.1 hbase-1.3.1



  相关解决方案

代码迷 - 您身边的软件异常，代码异常，编程异常助手（发现，解决，分享）
Copyright © 2009-2013 DAIMAMI.COM. All rights reserved.
