- 目的
在做表情识别项目过程中遇到脸分区的问题，本以为可以用OPenCV floodfill 方法解决，对floodfill 不甚理解，于是乎写了一段例子来测试它的功能，为了不让大家重复劳动，在此分享给大家。
- 程序实现
本代码是在Qt中实现，在此假设您已经会在Qt中配置OPenCV，如果不会也没关系，底部我会上传我的代码，从 .pro文件中您应该会看出我是如何在Qt上配OpenCV的，当然还有一个假设，您会编译Qt版的Opencv。
如果Qt版的OpenCV你也不会配，那么没有关系，如果你是用的VS跑OpenCV直接把main.cpp中的代码拷到您的项目中也可以跑起来。
话不多说，直接上图：

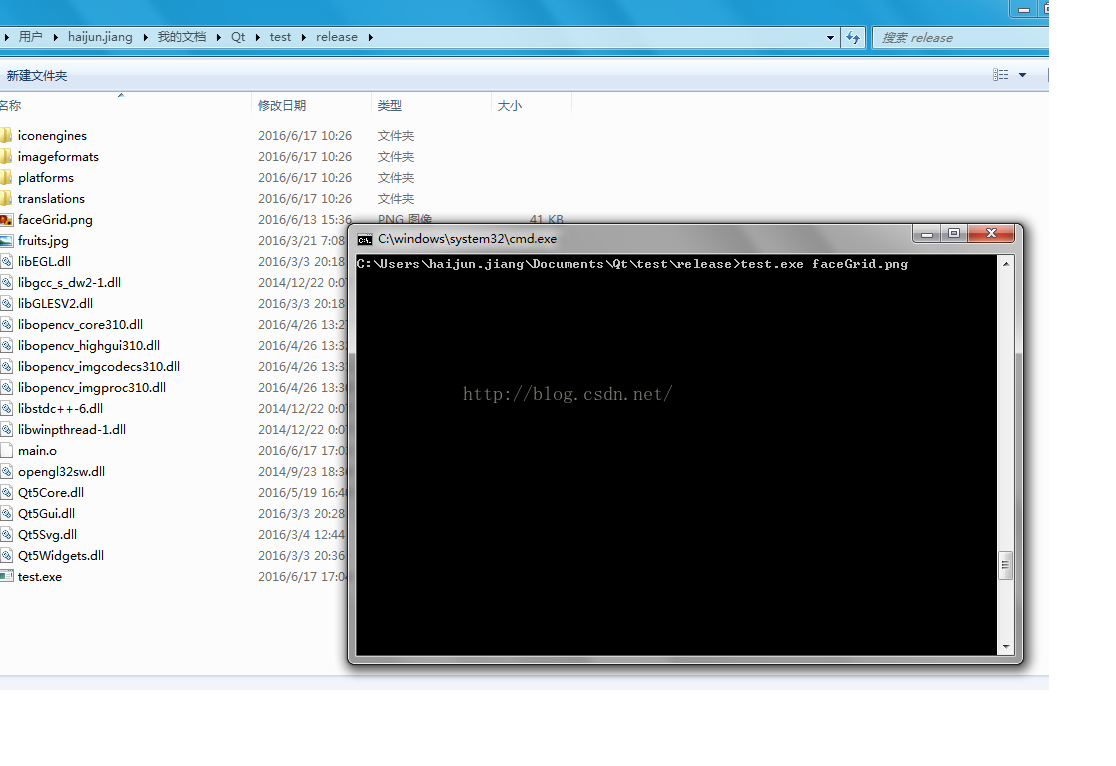

第一步：release目录下输入 test.exe faceGrid.png启动程序
第二步：选中图像任意区域，floodfill会根据您选择的像素允许偏差范围，进行上色并统计这种区域像素个数
这就是floodfill方法的用处，中文应该叫泛洪填充，下面是代码：
#include <opencv2/imgproc/imgproc.hpp>
#include <opencv2/imgcodecs.hpp>
#include <opencv2/videoio/videoio.hpp>
#include <opencv2/highgui/highgui.hpp>
#include <iostream>
using namespace cv;
using namespace std;
static void help()
{
cout << "\nThis program demonstrated the floodFill() function\n"
"Call:\n"
"./ffilldemo [image_name -- Default: ../data/fruits.jpg]\n" << endl;
cout << "Hot keys: \n"
"\tESC - quit the program\n"
"\tc - switch color/grayscale mode\n"
"\tm - switch mask mode\n"
"\tr - restore the original image\n"
"\ts - use null-range floodfill\n"
"\tf - use gradient floodfill with fixed(absolute) range\n"
"\tg - use gradient floodfill with floating(relative) range\n"
"\t4 - use 4-connectivity mode\n"
"\t8 - use 8-connectivity mode\n" << endl;
}
Mat image0, image, gray, mask;
int ffillMode = 1;
int loDiff = 20, upDiff = 20;
int connectivity = 4;
int isColor = true;
bool useMask = false;
int newMaskVal = 255;
static void onMouse( int event, int x, int y, int, void* )
{
if( event != EVENT_LBUTTONDOWN )
return;
Point seed = Point(x,y);
int lo = ffillMode == 0 ? 0 : loDiff;
int up = ffillMode == 0 ? 0 : upDiff;
int flags = connectivity + (newMaskVal << 8) +
(ffillMode == 1 ? FLOODFILL_FIXED_RANGE : 0);
int b = (unsigned)theRNG() & 255;
int g = (unsigned)theRNG() & 255;
int r = (unsigned)theRNG() & 255;
Rect ccomp;
Scalar newVal = isColor ? Scalar(b, g, r) : Scalar(r*0.299 + g*0.587 + b*0.114);
Mat dst = isColor ? image : gray;
int area;
if( useMask )
{
threshold(mask, mask, 1, 128, THRESH_BINARY);
area = floodFill(dst, mask, seed, newVal, &ccomp, Scalar(lo, lo, lo),
Scalar(up, up, up), flags);
imshow( "mask", mask );
}
else
{
area = floodFill(dst, seed, newVal, &ccomp, Scalar(lo, lo, lo),
Scalar(up, up, up), flags);
}
imshow("image", dst);
cout << area << " pixels were repainted\n";
}
int main( int argc, char** argv )
{
cv::CommandLineParser parser (argc, argv,
"{help h | | show help message}{@image|../data/fruits.jpg| input image}"
);
if (parser.has("help"))
{
parser.printMessage();
return 0;
}
string filename = parser.get<string>("@image");
image0 = imread(filename, 1);
if( image0.empty() )
{
cout << "Image empty\n";
parser.printMessage();
return 0;
}
help();
image0.copyTo(image);
cvtColor(image0, gray, COLOR_BGR2GRAY);
mask.create(image0.rows+2, image0.cols+2, CV_8UC1);
namedWindow( "image", 0 );
createTrackbar( "lo_diff", "image", &loDiff, 255, 0 );
createTrackbar( "up_diff", "image", &upDiff, 255, 0 );
setMouseCallback( "image", onMouse, 0 );
for(;;)
{
imshow("image", isColor ? image : gray);
int c = waitKey(0);
if( (c & 255) == 27 )
{
cout << "Exiting ...\n";
break;
}
switch( (char)c )
{
case 'c':
if( isColor )
{
cout << "Grayscale mode is set\n";
cvtColor(image0, gray, COLOR_BGR2GRAY);
mask = Scalar::all(0);
isColor = false;
}
else
{
cout << "Color mode is set\n";
image0.copyTo(image);
mask = Scalar::all(0);
isColor = true;
}
break;
case 'm':
if( useMask )
{
destroyWindow( "mask" );
useMask = false;
}
else
{
namedWindow( "mask", 0 );
mask = Scalar::all(0);
imshow("mask", mask);
useMask = true;
}
break;
case 'r':
cout << "Original image is restored\n";
image0.copyTo(image);
cvtColor(image, gray, COLOR_BGR2GRAY);
mask = Scalar::all(0);
break;
case 's':
cout << "Simple floodfill mode is set\n";
ffillMode = 0;
break;
case 'f':
cout << "Fixed Range floodfill mode is set\n";
ffillMode = 1;
break;
case 'g':
cout << "Gradient (floating range) floodfill mode is set\n";
ffillMode = 2;
break;
case '4':
cout << "4-connectivity mode is set\n";
connectivity = 4;
break;
case '8':
cout << "8-connectivity mode is set\n";
connectivity = 8;
break;
}
}
return 0;
}
最后附上我建的项目链接：http://download.csdn.net/detail/searobbers_duck/9552284
