本编文章在ADI官方HDMI例程的基础上进行修改，实现视频通路，为使用ZYNQ视频处理做好必要准备。
在 【ZYNQ-7000开发之九】使用VDMA在PL和PS之间传输视频流数据 这篇文章中，介绍了如何使用VDMA传输stream类型的视频流数据，本次实验将结合【ZYNQ-7000开发之三】ZYNQ平台的HDMI驱动测试这篇文章，本次实验默认大家已经完成了【ZYNQ-7000开发之三】和【ZYNQ-7000开发之九，至少要完成【ZYNQ-7000开发之三】，本次实验将在【ZYNQ-7000开发之三】的基础上直接修改。
本篇文章的思想是使用TPG产生stream类型的数据，然后用VDMA转换成Memory Map类型的数据写入到DDR3缓存，最后再用VDMA 从DDR3读出来转换成stream类型，发送给HDMI控制器，进而显示在HDMI显示器上。
TGP VDMA等的规范说明可以到官网下载最新版本
本文所使用的开发板是Miz702(兼容zedboard)
PC 开发环境版本：Vivado 2015.2 Xilinx SDK 2015.2
其它：HDMI显示器，串口线
修改硬件系统工程
打开【ZYNQ-7000开发之三】做好的vivado工程，打开Block Design

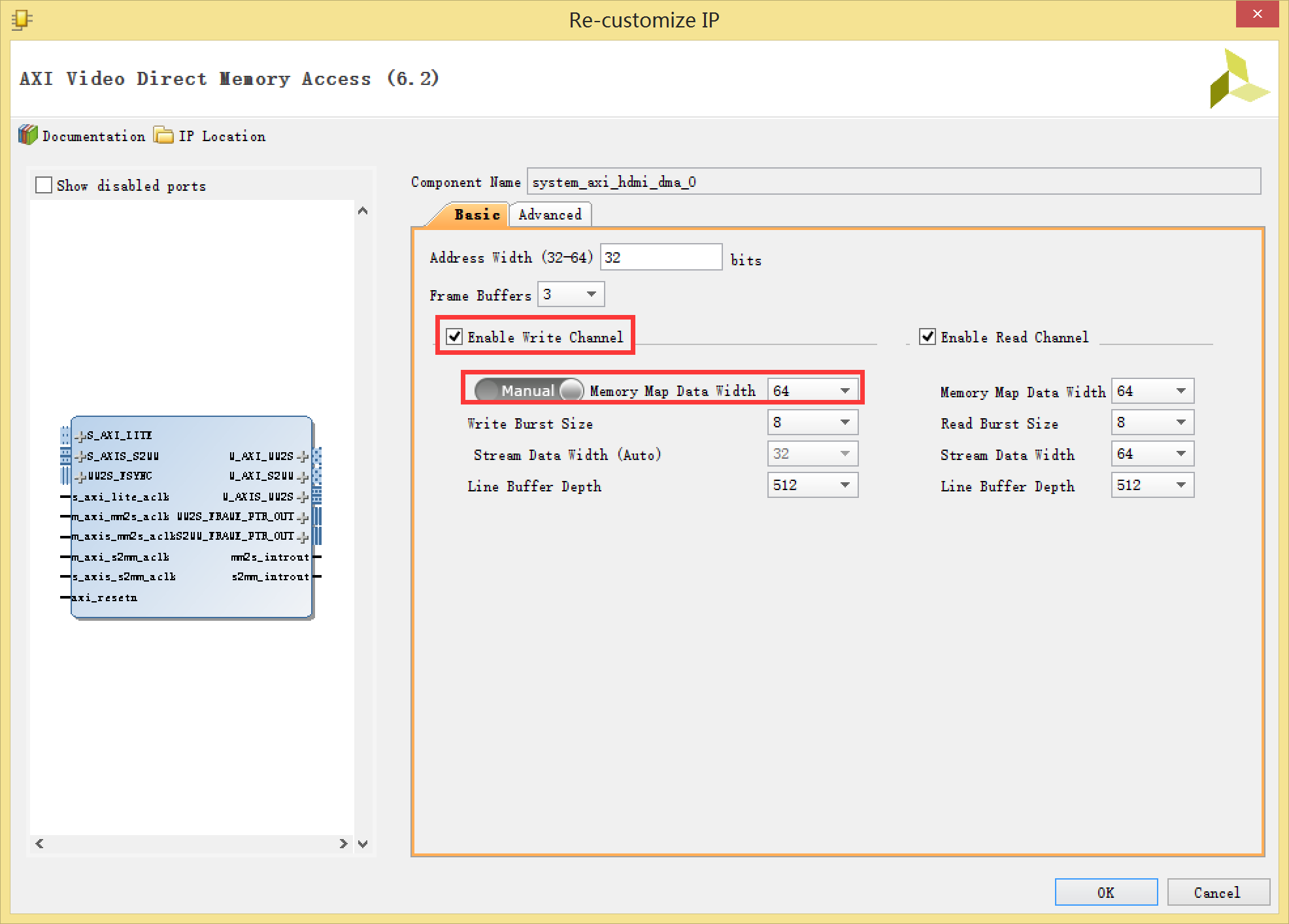

找到VDMA双击，选中Enable Write Channel，同时设置Memory Map Data Width为64，点击OK
点击Run Connection Automation，在弹出的对话框选择ALL，点击OK
点击ADD IP,添加一个TPG IP Core
双击刚刚添加的TPG,按照如图所示配置,这个主要为了简洁一些，去掉了一些不必要的功能

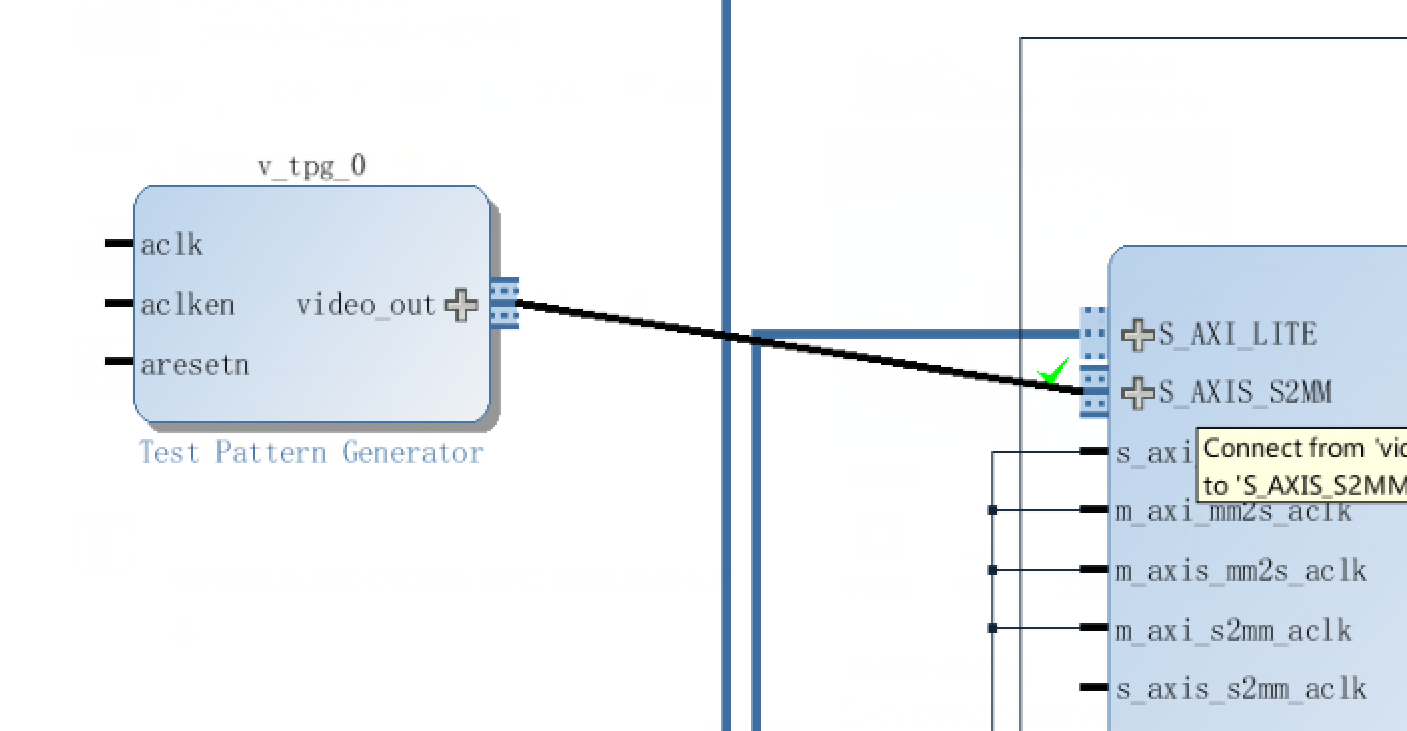

把TPG的video_out和VDMA的S_AXIS_S2MM连接在一起，如图所示
同理把TPG的aclk连接到VDMA的aclk,把TPG的aresetn连接到VDMA的resetn,此外VDMA的s_axis_s2mm_aclk也和VDMA的aclk连在一起
然后按下F6快捷键，验证下系统是不是有问题，没有问题就保存工程，点击generate bitstream
完成后，导出硬件，Launch SDK
修改软件工程
找到cf_hdmi.c文件，把InitHdmiVideoPcore函数修改如下：
/***************************************************************************//*** @brief InitHdmiVideoPcore.
*******************************************************************************/ void InitHdmiVideoPcore(unsigned short horizontalActiveTime,unsigned short horizontalBlankingTime,unsigned short horizontalSyncOffset,unsigned short horizontalSyncPulseWidth,unsigned short verticalActiveTime,unsigned short verticalBlankingTime,unsigned short verticalSyncOffset,unsigned short verticalSyncPulseWidth) {unsigned short horizontalCount = 0;unsigned short verticalCount = 0;unsigned short horizontalBackPorch = 0;unsigned short verticalBackPorch = 0;unsigned short horizontalDeMin = 0;unsigned short horizontalDeMax = 0;unsigned short verticalDeMin = 0;unsigned short verticalDeMax = 0;DDRVideoWr(horizontalActiveTime, verticalActiveTime);horizontalCount = horizontalActiveTime +horizontalBlankingTime;verticalCount = verticalActiveTime +verticalBlankingTime;horizontalBackPorch = horizontalBlankingTime -horizontalSyncOffset -horizontalSyncPulseWidth;verticalBackPorch = verticalBlankingTime -verticalSyncOffset -verticalSyncPulseWidth;horizontalDeMin = horizontalSyncPulseWidth +horizontalBackPorch;horizontalDeMax = horizontalDeMin +horizontalActiveTime;verticalDeMin = verticalSyncPulseWidth +verticalBackPorch;verticalDeMax = verticalDeMin +verticalActiveTime;Xil_Out32((CFV_BASEADDR + AXI_HDMI_REG_HTIMING1),((horizontalActiveTime << 16) | horizontalCount));Xil_Out32((CFV_BASEADDR + AXI_HDMI_REG_HTIMING2),horizontalSyncPulseWidth);Xil_Out32((CFV_BASEADDR + AXI_HDMI_REG_HTIMING3),((horizontalDeMax << 16) | horizontalDeMin));Xil_Out32((CFV_BASEADDR + AXI_HDMI_REG_VTIMING1),((verticalActiveTime << 16) | verticalCount));Xil_Out32((CFV_BASEADDR + AXI_HDMI_REG_VTIMING2),verticalSyncPulseWidth);Xil_Out32((CFV_BASEADDR + AXI_HDMI_REG_VTIMING3),((verticalDeMax << 16) | verticalDeMin));Xil_Out32((CFV_BASEADDR + AXI_HDMI_REG_RESET), 0x1);Xil_Out32((CFV_BASEADDR + AXI_HDMI_REG_SOURCE_SEL), 0x0);Xil_Out32((CFV_BASEADDR + AXI_HDMI_REG_SOURCE_SEL), 0x1);Xil_Out32(VDMA_BASEADDR + 0x30, 0x4); //reset S2MM VDMA Control RegisterXil_Out32(VDMA_BASEADDR + 0x30, 0x8); //genlockXil_Out32(VDMA_BASEADDR + 0xAC, 0x08000000);//S2MM Start AddressesXil_Out32(VDMA_BASEADDR + 0xAC+4, 0x0A000000);Xil_Out32(VDMA_BASEADDR + 0xAC+8, 0x0D000000);Xil_Out32(VDMA_BASEADDR + 0xA4, 640*4);//S2MM Horizontal SizeXil_Out32(VDMA_BASEADDR + 0xA8, 640*4);//S2MM Frame Delay and StrideXil_Out32(VDMA_BASEADDR + 0x30, 0x3);//S2MM VDMA Control RegisterXil_Out32(VDMA_BASEADDR + 0xA0, 480);//S2MM Vertical Size start an S2MXil_DCacheFlush();Xil_Out32((VDMA_BASEADDR + AXI_VDMA_REG_DMA_CTRL),0x00000003); // enable circular modeXil_Out32((VDMA_BASEADDR + AXI_VDMA_REG_START_1),0x08000000); // start address Xil_Out32((VDMA_BASEADDR + AXI_VDMA_REG_START_2),0x0A000000); // start addressXil_Out32((VDMA_BASEADDR + AXI_VDMA_REG_START_3),0x0D000000); // start addressXil_Out32((VDMA_BASEADDR + AXI_VDMA_REG_FRMDLY_STRIDE),(horizontalActiveTime*4)); // h offsetXil_Out32((VDMA_BASEADDR + AXI_VDMA_REG_H_SIZE),(horizontalActiveTime*4)); // h sizeXil_Out32((VDMA_BASEADDR + AXI_VDMA_REG_V_SIZE),verticalActiveTime); // v size }分别配置好FPGA和ARM后，在串口终端按‘6’，选择640*480分辨率，看到如下所示的效果就成功了。大家可以更换TPG的输出类型，查看不同的效果。
总结

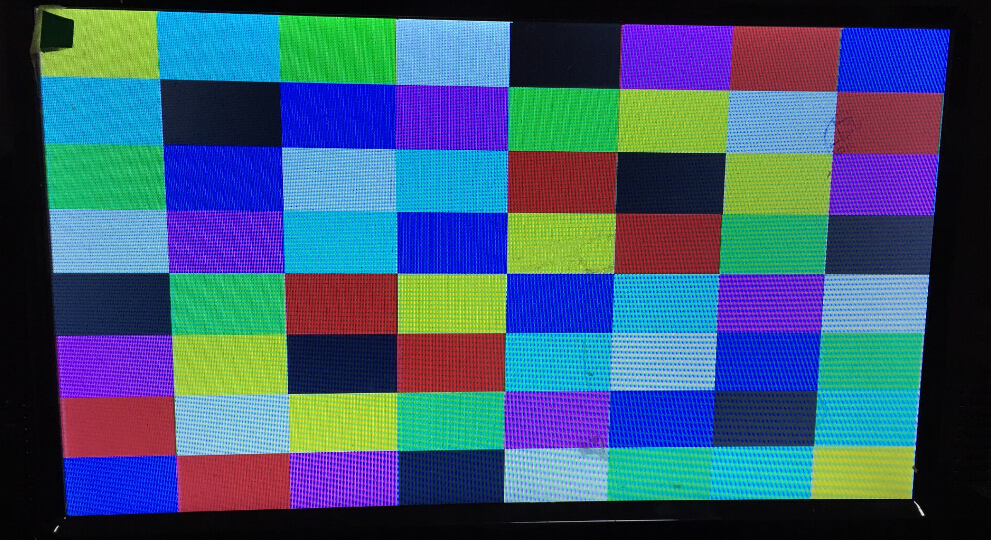

目前通过zynq实现了640*480的视频显示,大家可以调试下其它的分辨率。此外，串口终端发送数据的时候会断开，不知道大家是否会遇到这个BUG。
