kubernetes1.7集群创建过程

热度：2   发布时间：2024-01-04 12:28:33.0

前言

关于kubernetes时什么以及kubernetes的相关介绍，可以去网络搜索或着去我的另一篇博客kubernetes(k8s)集群搭建

一、实验环境

系统：Red Hat Enterprise Linux Server release 7.2 (Maipo)

hostanme ip role
server2 172.25.27.2 k8s-master
server3 172.25.27.3 k8s-node1
server4 172.25.27.4 k8s-node2
  • 关闭防火墙和selinux
[root@server2 ~]# vim env.sh
#!/bin/bash
systemctl disable firewalld
systemctl stop firewalld
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config
iptables -F
setenforce 0[root@server2 ~]# chmod +x env.sh
[root@server2 ~]# ./env.sh
[root@server2 ~]# scp fire.sh server3:
[root@server2 ~]# scp fire.sh server4:
[root@server3 ~]# ./env.sh
[root@server4 ~]# ./env.sh

二、下载并安装kubernetes

  • 使用阿里云yum
##docker yum源
cat >> /etc/yum.repos.d/docker.repo <<EOF
[docker-repo]
name=Docker Repository
baseurl=http://mirrors.aliyun.com/docker-engine/yum/repo/main/centos/7
enabled=1
gpgcheck=0
EOF##kubernetes yum源
cat >> /etc/yum.repos.d/kubernetes.repo <<EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=0
EOF
  • docker安装
    Kubernetes 1.6还没有针对docker 1.13和最新的docker 17.03上做测试和验证，所以这里安装Kubernetes官方推荐的Docker 1.12版本。
[root@server2 ~]# yum list docker-engine --showduplicates ##查看docker版本
[root@server2 ~]# yum install -y docker-engine-1.12.6-1.el7.centos.x86_64 ##安装docker

直接这样装会报错。需要同时安装docker-engine-selinux-1.12.6-1.el7.centos.noarch.rpm，如下

[root@server2 ~]# yum install -y docker-engine-1.12.6-1.el7.centos.x86_64 docker-engine-selinux-1.12.6-1.el7.centos.noarch##或者将这两个包下载下来，再一起安装[root@server2 ~]# wget https://mirrors.aliyun.com/docker-engine/yum/repo/main/centos/7/Packages/docker-engine-1.12.6-1.el7.centos.x86_64.rpm
[root@server2 ~]# wget https://mirrors.aliyun.com/docker-engine/yum/repo/main/centos/7/Packages/docker-engine-selinux-1.12.6-1.el7.centos.noarch.rpm
[root@server2 ~]# yum install -y docker-engine-1.12.6-1.el7.centos.x86_64.rpm docker-engine-selinux-1.12.6-1.el7.centos.noarch.rpm
  • kubernetes安装：
[root@server2 ~]# yum list kubeadm --showduplicates
[root@server2 ~]# yum list kubernetes-cni --showduplicates
[root@server2 ~]# yum list kubelet --showduplicates
[root@server2 ~]# yum list kubectl --showduplicates
##以上为查看可用版本，选择合适版本安装即可[root@server2 ~]# yum install -y kubernetes-cni-0.5.1-0.x86_64 kubelet-1.7.2-0.x86_64 kubectl-1.7.2-0.x86_64 kubeadm-1.7.2-0.x86_64

三、下载kubernetes镜像

  • 下载和上传镜像脚本
[root@server2 ~]# vim images.sh
#!/bin/bash
set -o errexit
set -o nounset
set -o pipefailKUBE_VERSION=v1.7.2
KUBE_PAUSE_VERSION=3.0
ETCD_VERSION=3.0.17
DNS_VERSION=1.14.4GCR_URL=gcr.io/google_containers
ALIYUN_URL=registry.cn-hangzhou.aliyuncs.com/szss_k8simages=(kube-proxy-amd64:${KUBE_VERSION}
kube-scheduler-amd64:${KUBE_VERSION}
kube-controller-manager-amd64:${KUBE_VERSION}
kube-apiserver-amd64:${KUBE_VERSION}
pause-amd64:${KUBE_PAUSE_VERSION}
etcd-amd64:${ETCD_VERSION}
k8s-dns-sidecar-amd64:${DNS_VERSION}
k8s-dns-kube-dns-amd64:${DNS_VERSION}
k8s-dns-dnsmasq-nanny-amd64:${DNS_VERSION})for imageName in ${images[@]} ; dodocker pull $GCR_URL/$imageNamedocker tag $GCR_URL/$imageName $ALIYUN_URL/$imageNamedocker push $ALIYUN_URL/$imageNamedocker rmi $ALIYUN_URL/$imageName
done[root@server2 ~]# systemctl start docker
[root@server2 ~]# chmod +x images.sh
[root@server2 ~]# ./images.sh

四、配置kubelet

  • 配置pod的基础镜像
[root@server2 ~]# vim /etc/systemd/system/kubelet.service.d/10-kubeadm.conf
Environment="KUBELET_EXTRA_ARGS=--pod-infra-container-image=registry.cn-hangzhou.aliyuncs.com/szss_k8s/pause-amd64:3.0"     ##添加这一行##如果怕搞混，可以新建个文件写入，两者选其一即可
[root@server2 ~]# cat > /etc/systemd/system/kubelet.service.d/20-pod-infra-image.conf <<EOF
[Service]
Environment="KUBELET_EXTRA_ARGS=--pod-infra-container-image=registry.cn-hangzhou.aliyuncs.com/szss_k8s/pause-amd64:3.0"
EOF
  • 设置cgroup-driver
[root@server2 ~]# sed -i.bak 's/cgroup-driver=systemd/cgroup-driver=cgroupfs/g' /etc/systemd/system/kubelet.service.d/10-kubeadm.conf

五、启动相关组件

[root@server2 ~]# systemctl enable docker
[root@server2 ~]# systemctl enable kubelet
[root@server2 ~]# systemctl start docker
[root@server2 ~]# systemctl start kubelet

六、创建集群

首先在master上执行init操作,api-advertise-addresses为master ip，pod-network-cidr指定IP段需要和kube-flannel.yml文件中配置的一致（kube-flannel.yaml在下面flannel的安装中会用到）

[root@server2 ~]# export KUBE_REPO_PREFIX="registry.cn-hangzhou.aliyuncs.com/szss_k8s"
[root@server2 ~]# export KUBE_ETCD_IMAGE="registry.cn-hangzhou.aliyuncs.com/szss_k8s/etcd-amd64:3.0.17"
[root@server2 ~]# echo 1 > /proc/sys/net/bridge/bridge-nf-call-iptables

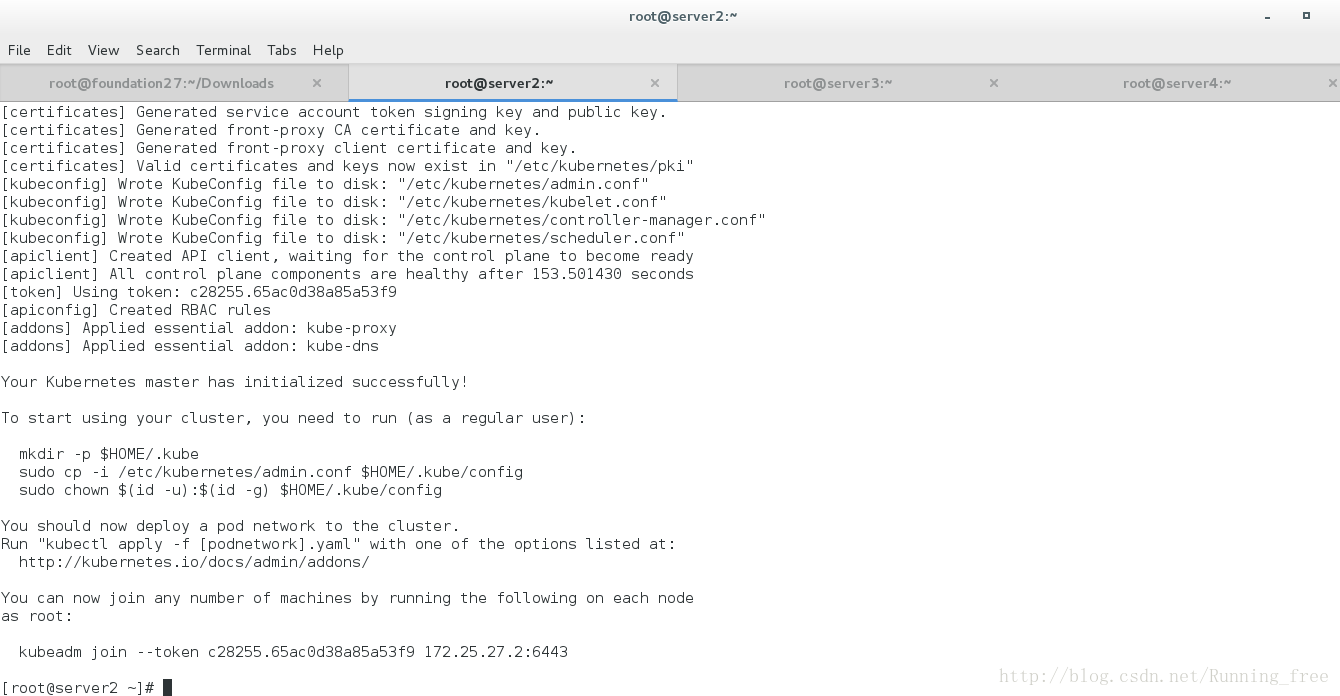

[root@server2 ~]# kubeadm init --apiserver-advertise-address=172.25.27.2 --kubernetes-version=v1.7.2 --pod-network-cidr=172.25.0.0/16

执行结果：

[kubeadm] WARNING: kubeadm is in beta, please do not use it for production clusters. [init] Using Kubernetes version: v1.7.2 [init] Using Authorization modes: [Node RBAC] [preflight] Running pre-flight checks [kubeadm] WARNING: starting in 1.8, tokens expire after 24 hours by default (if you require a non-expiring token use --token-ttl 0) [certificates] Generated CA certificate and key. [certificates] Generated API server certificate and key. [certificates] API Server serving cert is signed for DNS names [server2 kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 172.25.27.2] [certificates] Generated API server kubelet client certificate and key. [certificates] Generated service account token signing key and public key. [certificates] Generated front-proxy CA certificate and key. [certificates] Generated front-proxy client certificate and key. [certificates] Valid certificates and keys now exist in "/etc/kubernetes/pki" [kubeconfig] Wrote KubeConfig file to disk: "/etc/kubernetes/admin.conf" [kubeconfig] Wrote KubeConfig file to disk: "/etc/kubernetes/kubelet.conf" [kubeconfig] Wrote KubeConfig file to disk: "/etc/kubernetes/controller-manager.conf" [kubeconfig] Wrote KubeConfig file to disk: "/etc/kubernetes/scheduler.conf" [apiclient] Created API client, waiting for the control plane to become ready [apiclient] All control plane components are healthy after 153.501430 seconds [token] Using token: c28255.65ac0d38a85a53f9 [apiconfig] Created RBAC rules [addons] Applied essential addon: kube-proxy [addons] Applied essential addon: kube-dnsYour Kubernetes master has initialized successfully!To start using your cluster, you need to run (as a regular user):mkdir -p $HOME/.kubesudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/configsudo chown $(id -u):$(id -g) $HOME/.kube/configYou should now deploy a pod network to the cluster. Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:http://kubernetes.io/docs/admin/addons/You can now join any number of machines by running the following on each node as root:kubeadm join --token c28255.65ac0d38a85a53f9 172.25.27.2:6443
  • Kubernetes根据在/etc/kubernetes/manifests目录下的manifests生成API server, controller manager and scheduler等静态pod。
[root@server2 ~]# ls /etc/kubernetes/manifests
etcd.yaml  kube-apiserver.yaml  kube-controller-manager.yaml  kube-scheduler.yaml
  • kube-apiserver.yaml文件，可以查看到启动kube-apiserver需要的参数（可定制，修改该文件即可，kubelet会监控该文件变化，一旦变化会立即重新生成pod）、image、health check探针、QoS等配置，也可以把image提前下载下来加快部署速度。
  • kube-apiserver yaml文件kube-apiserver.yaml中的选项–insecure-port设置为0，说明kube-apiserver并未监听默认http 8080端口，而是监听了https 6443端口
[root@server2 ~]# netstat -nltp | grep 6443
tcp6       0      0 :::6443                 :::*                    LISTEN      2883/kube-apiserver
  • 注：从上面信息可知kube-dns已经以pod形式运行但处于pending状态，主要因为pod网络flannel还未部署，另外因下文中的Master Isolation特性导致kube-dns无节点可部署。加入节点以及解除Master Isolation均可以使kube-dns成功运行、处于running状态

注意

  • kubeadm init命令最后生成的“kubeadm join –token c28255.65ac0d38a85a53f9 172.25.27.2:6443”需要记录，用于节点加入集群，token也可通过 kubeadm token list获取。
[root@server2 ~]# kubeadm token list
TOKEN                     TTL         EXPIRES   USAGES                   DESCRIPTION
c28255.65ac0d38a85a53f9   <forever>   <never>   authentication,signing   The default bootstrap token generated by 'kubeadm init'.

这里写图片描述

七、配置kubectl的kubeconfig

##均来自上面初始化的提示
[root@server2 ~]# mkdir -p $HOME/.kube
[root@server2 ~]# cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@server2 ~]# chown $(id -u):$(id -g) $HOME/.kube/config
  • 全部namespace下的pod
[root@server2 ~]# netstat -nltp | grep 6443
tcp6       0      0 :::6443                 :::*                    LISTEN      2883/kube-apiserver
[root@server2 ~]# kubectl get pods --all-namespaces
NAMESPACE     NAME                              READY     STATUS    RESTARTS   AGE
kube-system   etcd-server2                      1/1       Running   0          31m
kube-system   kube-apiserver-server2            1/1       Running   0          31m
kube-system   kube-controller-manager-server2   1/1       Running   0          32m
kube-system   kube-dns-2030594980-htbvk         3/3       Running   0          31m
kube-system   kube-flannel-ds-w3h4h             2/2       Running   0          24m
kube-system   kube-proxy-k38m7                  1/1       Running   0          31m
kube-system   kube-scheduler-server2            1/1       Running   0          32m

八、安装flannel

  • 在master节点安装flannel
[root@server2 ~]# kubectl --namespace kube-system apply -f https://raw.githubusercontent.com/coreos/flannel/v0.8.0/Documentation/kube-flannel-rbac.yml
clusterrole "flannel" created
clusterrolebinding "flannel" created[root@server2 ~]# wget https://raw.githubusercontent.com/coreos/flannel/v0.8.0/Documentation/kube-flannel.yml[root@server2 ~]# sed -i 's/quay.io\/coreos\/flannel:v0.8.0-amd64/registry.cn-hangzhou.aliyuncs.com\/szss_k8s\/flannel:v0.8.0-amd64/g' ./kube-flannel.yml[root@server2 ~]# kubectl --namespace kube-system apply -f ./kube-flannel.yml
serviceaccount "flannel" created
configmap "kube-flannel-cfg" created
daemonset "kube-flannel-ds" created

九、master节点安装验证

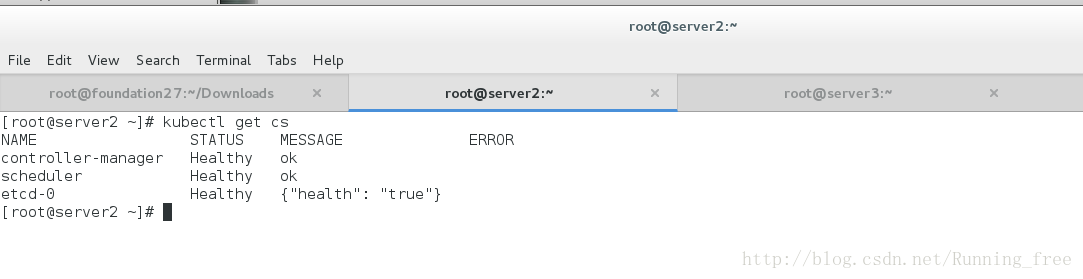

[root@server2 ~]# kubectl get cs
NAME                 STATUS    MESSAGE              ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-0               Healthy   {
   "health": "true"}

这里写图片描述

  • 验证dns是否工作
    创建busybox.yml,内容如下：
[root@server2 ~]# vim busybox.yml
apiVersion: v1
kind: Pod
metadata:name: busyboxnamespace: default
spec:containers:- image: kube-registry:5000/busybox         command:- sleep           - "3600"         imagePullPolicy: IfNotPresentname: busyboxrestartPolicy: Always
  • 通过kubectl create -f busybox.yaml创建pod，并验证通过kubectl exec -ti busybox – nslookup kubernetes.default验证dns是否工作。
[root@server2 ~]# kubectl create -f busybox.yaml
pod "busybox" created[root@server2 ~]# kubectl exec busybox -- nslookup kubernetes
Server:    10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.localName:      kubernetes
Address 1: 10.96.0.1 kubernetes.default.svc.cluster.local

十、node节点安装和加入集群

node的节点需要执行1~3的安装步骤，安装完后执行下面的命令将node的节点加入集群：

[root@server3 ~]# yum install -y docker-engine-1.12.6-1.el7.centos.x86_64 docker-engine-selinux-1.12.6-1.el7.centos.noarch kubernetes-cni-0.5.1-0.x86_64 kubelet-1.7.2-0.x86_64 kubectl-1.7.2-0.x86_64 kubeadm-1.7.2-0.x86_64[root@server3 ~]# export KUBE_REPO_PREFIX="registry.cn-hangzhou.aliyuncs.com/szss_k8s"
[root@server3 ~]# export KUBE_ETCD_IMAGE="registry.cn-hangzhou.aliyuncs.com/szss_k8s/etcd-amd64:3.0.17"
[root@server3 ~]# kubeadm join --token c28255.65ac0d38a85a53f9 172.25.27.2:6443 ##上面master初始化提示信息的最后一行
  • 报了一堆错误呀，挨个解决吧
CGROUPS_FREEZER: enabled
CGROUPS_MEMORY: enabled
[preflight] WARNING: hostname "" could not be reached
[preflight] WARNING: hostname "" lookup : no such host
[preflight] WARNING: kubelet service is not enabled, please run 'systemctl enable kubelet.service'
[preflight] WARNING: docker service is not enabled, please run 'systemctl enable docker.service'
[preflight] Some fatal errors occurred:failed to get docker info: Cannot connect to the Docker daemon. Is the docker daemon running on this host?hostname "" a DNS-1123 subdomain must consist of lower case alphanumeric characters, '-' or '.', and must start and end with an alphanumeric character (e.g. 'example.com', regex used for validation is '[a-z0-9]([-a-z0-9]*[a-z0-9])?(\.[a-z0-9]([-a-z0-9]*[a-z0-9])?)*')docker service is not active, please run 'systemctl start docker.service'/proc/sys/net/bridge/bridge-nf-call-iptables contents are not set to 1
[preflight] If you know what you are doing, you can skip pre-flight checks with `--skip-preflight-checks`

先按提示来

[root@server3 ~]# systemctl enable kubelet.service
[root@server3 ~]# systemctl enable docker.service
[root@server3 ~]# systemctl start docker.service [root@server3 ~]# kubeadm reset [root@server3 ~]# kubeadm join --token c28255.65ac0d38a85a53f9 172.25.27.2:6443[kubeadm] WARNING: kubeadm is in beta, please do not use it for production clusters. [preflight] Running pre-flight checks [preflight] WARNING: hostname "" could not be reached [preflight] WARNING: hostname "" lookup : no such host [preflight] Some fatal errors occurred:hostname "" a DNS-1123 subdomain must consist of lower case alphanumeric characters, '-' or '.', and must start and end with an alphanumeric character (e.g. 'example.com', regex used for validation is '[a-z0-9]([-a-z0-9]*[a-z0-9])?(\.[a-z0-9]([-a-z0-9]*[a-z0-9])?)*')/proc/sys/net/bridge/bridge-nf-call-iptables contents are not set to 1 [preflight] If you know what you are doing, you can skip pre-flight checks with `--skip-preflight-checks`
  • 预检查报了一个Fatal错误，这应该是kubeadm1.7的一个bug，可用–skip-preflight-checks取消预检查

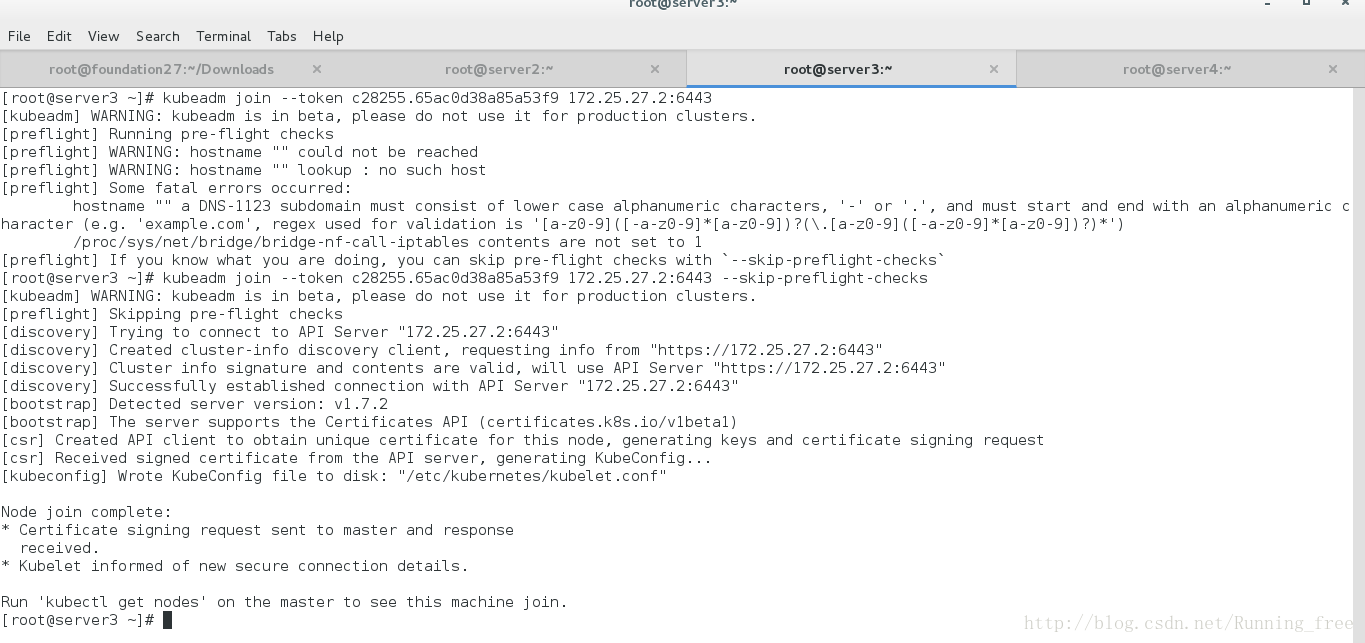

[root@server3 ~]# kubeadm join --token c28255.65ac0d38a85a53f9 172.25.27.2:6443 --skip-preflight-checks
[kubeadm] WARNING: kubeadm is in beta, please do not use it for production clusters.
[preflight] Skipping pre-flight checks
[discovery] Trying to connect to API Server "172.25.27.2:6443"
[discovery] Created cluster-info discovery client, requesting info from "https://172.25.27.2:6443"
[discovery] Cluster info signature and contents are valid, will use API Server "https://172.25.27.2:6443"
[discovery] Successfully established connection with API Server "172.25.27.2:6443"
[bootstrap] Detected server version: v1.7.2
[bootstrap] The server supports the Certificates API (certificates.k8s.io/v1beta1)
[csr] Created API client to obtain unique certificate for this node, generating keys and certificate signing request
[csr] Received signed certificate from the API server, generating KubeConfig...
[kubeconfig] Wrote KubeConfig file to disk: "/etc/kubernetes/kubelet.conf"Node join complete:
* Certificate signing request sent to master and responsereceived.
* Kubelet informed of new secure connection details.Run 'kubectl get nodes' on the master to see this machine join.
  • 注：node上需要安装kubeadm，kubelet安装并启动，否则join提示成功但实际加入失败

这里写图片描述

十一、node节点安装验证

  • 通过kubectl get nodes查看节点是否成功加入集群
[root@server2 ~]# kubectl get nodes
NAME      STATUS    AGE       VERSION
server2   Ready     15m       v1.7.2
server3   Ready     2m       v1.7.2
server4   Ready     1m       v1.7.2

十二、测试集群是否正常工作

[root@server2 ~]# vim rc-nginx.yaml
apiVersion: v1
kind: ReplicationController
metadata:name: rc-nginx-2
spec:replicas: 2template:metadata:labels:app: nginx-2spec:containers:- name: nginx-2image: xingwangc.docker.rg/nginxports:- containerPort: 80[root@server2 ~]# kubectl create -f rc-nginx.yaml
replicationcontroller "rc-nginx-2" created
[root@server2 ~]# kubectl get rc
NAME         DESIRED   CURRENT   READY     AGE
rc-nginx-2   2         2         0         12s

[root@server2 ~]# kubectl create -f https://raw.githubusercontent.com/kubernetes/kubernetes.github.io/master/d
[root@server2 ~]# kubectl get po -o wide
NAME               READY     STATUS              RESTARTS   AGE       IP           NODE
busybox            1/1       Running             0          41m       172.25.0.4   server2
rc-nginx-2-1crh0   0/1       ContainerCreating   0          1m        <none>       server2
rc-nginx-2-89pdr   0/1       ErrImagePull        0          1m        172.25.0.5   server2

通过kubectl get po -o wide查看，2个Nginx实例分别部署到2个node上

[root@server2 ~]# kubectl get po -o wide
NAME                               READY     STATUS    RESTARTS   AGE       IP            NODE
nginx-deployment-431080787-2z167   1/1       Running   0          3m        10.244.0.15   bjo-ep-dep-039.dev.fwmrm.net
nginx-deployment-431080787-55fl8   1/1       Running   0          3m        10.16.103.5   bjo-ep-svc-017.dev.fwmrm.net
