spring4mvc+hibernate4整合

1.首先先搭建springMvc

（1）所需jar包：

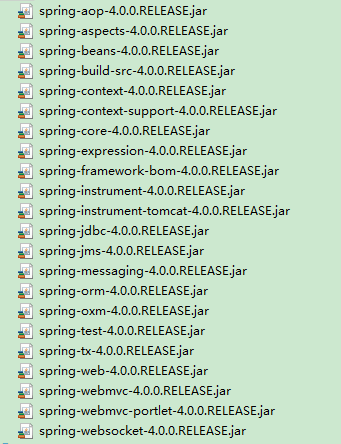

spring自带: （不了解，所以把spring4的所有jar包都加进来）

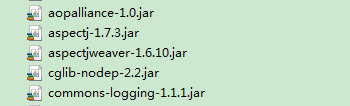

spring还需要：

以上jar包包括了spring4mvc_hibernate4中spring所有需要的包。

（2）在web.xml中加入springmvc的控制，springbeans的控制，以及中文乱码的控制

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"><display-name></display-name>   <welcome-file-list><welcome-file>index.jsp</welcome-file></welcome-file-list><!--控制springbeans--><context-param><param-name>contextConfigLocation</param-name><param-value>classpath:/beans.xml</param-value></context-param><listener><listener-class>org.springframework.web.context.ContextLoaderListener</listener-class></listener><!-- 解决中文乱码 （只对post提交有效） --><filter>    <filter-name>Character Encoding</filter-name>    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>    <init-param>    <param-name>encoding</param-name>    <param-value>UTF-8</param-value>    </init-param>    </filter>    <filter-mapping>    <filter-name>Character Encoding</filter-name>    <url-pattern>/*</url-pattern>    </filter-mapping>  <!--springmvc必须--><servlet>  <servlet-name>springmvc</servlet-name>  <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>  <init-param>  <param-name>contextConfigLocation</param-name>  <param-value>/WEB-INF/springmvc-context.xml</param-value>  </init-param>  </servlet>  <servlet-mapping>  <servlet-name>springmvc</servlet-name>  <url-pattern>*.do</url-pattern>  </servlet-mapping> </web-app>

（3）在web.xml中DispatcherServlet所写的对应位置上创建springmvc-context.xml，在listener所写的位置即src目录下下创建beans.xml

springmvc-context.xml:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:context="http://www.springframework.org/schema/context"xmlns:mvc="http://www.springframework.org/schema/mvc"xmlns:p="http://www.springframework.org/schema/p"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:tx="http://www.springframework.org/schema/tx"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsdhttp://www.springframework.org/schema/contexthttp://www.springframework.org/schema/context/spring-context-3.0.xsdhttp://www.springframework.org/schema/mvchttp://www.springframework.org/schema/mvc/spring-mvc-3.0.xsdhttp://www.springframework.org/schema/txhttp://www.springframework.org/schema/tx/spring-tx-4.0.xsd"><!-- springmvc 注解驱动 --><mvc:annotation-driven/><!-- 扫描器 --><context:component-scan base-package="com.controller"/><!-- 重中之重 base-package一定要写到controller一层, 否则不好使 整合hibernate用getCurrentSession()会报 No Session found for current thread --><!-- 配置视图解析器 --><bean class="org.springframework.web.servlet.view.InternalResourceViewResolver"><!-- 前缀 --><property name="prefix" value="/view/"></property><!-- 后缀 --><property name="suffix" value=".jsp"></property></bean></beans>

beans.xml:

<beans xmlns="http://www.springframework.org/schema/beans"xmlns:context="http://www.springframework.org/schema/context"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:tx="http://www.springframework.org/schema/tx"xmlns:aop="http://www.springframework.org/schema/aop"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsdhttp://www.springframework.org/schema/contexthttp://www.springframework.org/schema/context/spring-context-4.0.xsdhttp://www.springframework.org/schema/aophttp://www.springframework.org/schema/aop/spring-aop-4.0.xsdhttp://www.springframework.org/schema/txhttp://www.springframework.org/schema/tx/spring-tx-4.0.xsd"><context:annotation-config /><context:component-scan base-package="com.dao,com.service,com.controller" />
</beans>

（4）创建WebRoot/index.jsp、WebRoot/view/student/add.jsp、WebRoot/view/student/list.jsp
内容分别为

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<% String path = request.getContextPath(); String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/"; %><!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html><head><base href="<%=basePath%>"><title>导航页</title></head><body><a href="student/add.do">新增</a> <br/></body>
</html>

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<% String path = request.getContextPath(); String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/"; %><!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html><head><base href="<%=basePath%>"><title>新增用户页</title><meta http-equiv="Content-Type" content="text/html; charset=UTF-8"></head><body><form action="student/add.do" method="post">姓名:<input type="text" name="name"/><br/>年龄:<input type="text" name="age"/><br/><input type="submit" value="提交"/></form>${result}</body>
</html>

（5）在src下加入dao类com.dao.StudentDao.java，service类com.service.StudentService.java，控制类com.controller.StudentController.java

package com.dao;import javax.annotation.Resource;import org.springframework.stereotype.Component;@Component
public class StudentDao {
    public void save(){System.out.println("插入");}
}

package com.service;import javax.annotation.Resource;
import org.springframework.stereotype.Component;
import com.dao.StudentDao;@Component
public class StudentService {
    private StudentDao studentDao;public StudentDao getStudentDao() {return studentDao;}@Resourcepublic void setStudentDao(StudentDao studentDao) {this.studentDao = studentDao;}public void addStudent(){studentDao.save();}
}

package com.controller;import javax.annotation.Resource;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import com.service.StudentService;@Controller
@RequestMapping("/student")
public class StudentController {
    private StudentService studentService;public StudentService getStudentService() {return studentService;}@Resourcepublic void setStudentService(StudentService studentService) {this.studentService = studentService;}@RequestMapping("/add.do")public String addStudent(String name,String age,Model model){System.out.println(name+"-"+age);String result = (name==null||"".equals(name))?"":name+"新增成功";model.addAttribute("result",result);if(name!=null && age!=null){studentService.addStudent();}return "student/add";}}

（6）访问http://127.0.0.1:8080/spring4mvc_hibernate4测试springmvc是否成功。
至此的源码：http://download.csdn.net/detail/qwcs163/9142475

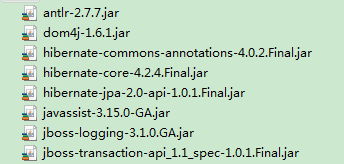

（7） spring配置正确，接下来整合hibernate，首先导入hibernate4 jar包

（8）创建model层

package com.model;import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.SequenceGenerator;@Entity
public class Student {
    private int id;private String name;private int age;@SequenceGenerator(name="sequenceGenerator",sequenceName="student_sequence",allocationSize=1)@GeneratedValue(strategy=GenerationType.SEQUENCE, generator="sequenceGenerator")@Idpublic int getId() {return id;}public void setId(int id) {this.id = id;}public String getName() {return name;}public void setName(String name) {this.name = name;}public int getAge() {return age;}public void setAge(int age) {this.age = age;}}

（9）修改beans.xml，加入hibernate整合 以及事物

<beans xmlns="http://www.springframework.org/schema/beans"xmlns:context="http://www.springframework.org/schema/context"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:tx="http://www.springframework.org/schema/tx"xmlns:aop="http://www.springframework.org/schema/aop"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsdhttp://www.springframework.org/schema/contexthttp://www.springframework.org/schema/context/spring-context-4.0.xsdhttp://www.springframework.org/schema/aophttp://www.springframework.org/schema/aop/spring-aop-4.0.xsdhttp://www.springframework.org/schema/txhttp://www.springframework.org/schema/tx/spring-tx-4.0.xsd"><context:annotation-config /><context:component-scan base-package="com.dao,com.service,com.controller" /><bean id="myDataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource"><property name="driverClassName" value="oracle.jdbc.driver.OracleDriver"/><property name="url" value="jdbc:oracle:thin:@127.0.0.1:1521:orcl"/><property name="username" value="cat"/><property name="password" value="cat"/></bean><bean id="sessionFactory" class="org.springframework.orm.hibernate4.LocalSessionFactoryBean"><property name="dataSource" ref="myDataSource" /><property name="hibernateProperties"><props><prop key="hibernate.dialect">org.hibernate.dialect.OracleDialect</prop>  <prop key="hibernate.show_sql">true</prop>  <prop key="hibernate.format_sql">true</prop>  <prop key="hibernate.hbm2ddl.auto">update</prop>  <prop key="hibernate.max_fetch_depth">1</prop>  <prop key="hibernate.use_sql_comments">true</prop></props></property><property name="packagesToScan"><list><value>com.model</value></list></property></bean><!-- 配置Hibernate事务管理器 --><bean id="txManager" class="org.springframework.orm.hibernate4.HibernateTransactionManager"><property name="sessionFactory" ref="sessionFactory" /></bean><tx:advice id="txAdvice" transaction-manager="txManager"><tx:attributes><tx:method name="get*" read-only="true" /><tx:method name="*" propagation="REQUIRED"/></tx:attributes></tx:advice><aop:config proxy-target-class="true"><aop:pointcut id="serviceOperation" expression="execution(public * com.service.*.*(..))"/><aop:advisor advice-ref="txAdvice" pointcut-ref="serviceOperation"/></aop:config></beans>

（10）修改dao层，service层，修改controller层。

package com.dao;import javax.annotation.Resource;import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.springframework.stereotype.Component;import com.model.Student;@Component
public class StudentDao {
    private SessionFactory sessionFactory;public SessionFactory getSessionFactory() {return sessionFactory;}@Resourcepublic void setSessionFactory(SessionFactory sessionFactory) {this.sessionFactory = sessionFactory;}public void save(Student s){Session session = sessionFactory.getCurrentSession();session.save(s);System.out.println("插入");}
}

package com.service;import javax.annotation.Resource;import org.springframework.stereotype.Component;import com.dao.StudentDao;
import com.model.Student;@Component
public class StudentService {
    private StudentDao studentDao;public StudentDao getStudentDao() {return studentDao;}@Resourcepublic void setStudentDao(StudentDao studentDao) {this.studentDao = studentDao;}public void addStudent(Student s){studentDao.save(s);}
}

package com.controller;import javax.annotation.Resource;import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;import com.model.Student;
import com.service.StudentService;@Controller
@RequestMapping("/student")
public class StudentController {
    private StudentService studentService;public StudentService getStudentService() {return studentService;}@Resourcepublic void setStudentService(StudentService studentService) {this.studentService = studentService;}@RequestMapping("/add.do")public String addStudent(String name,String age,Model model){System.out.println(name+"-"+age);String result = (name==null||"".equals(name))?"":name+"新增成功";model.addAttribute("result",result);if(name!=null && age!=null){Student s= new Student();s.setName(name);s.setAge(Integer.parseInt(age));studentService.addStudent(s);}return "student/add";}}

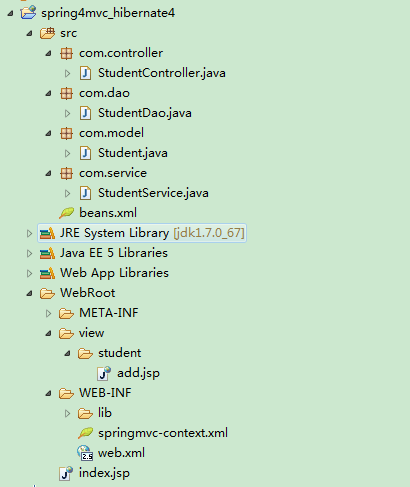

（11）结构图及源码

下载地址：http://download.csdn.net/detail/qwcs163/9152121
