shader编程-通过交集、并集、差集实现形状的合并

1. 准备
2. 交集实现
3. 并集实现
3. 差集实现
4. 示例代码

1. 准备

先复习一下数学概念，交集、并集、差集如下图所示

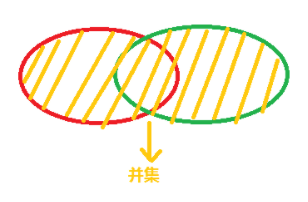

在这里插入图片描述

我们准备拿圆做实验，绘制圆的函数如下

float circle(vec2 st,vec2 center,float radius) {
       float blur = 0.002;float pct = distance(st,center);//计算任意点到圆心的距离return 1.0-smoothstep(radius,radius+blur,pct);
}

2. 交集实现

交集是求两个集合相交的部分，实现的方式有两种，一个是使用min函数，另外一种是将二者相乘，结果是一样的，为了验证给出了两个求交集的函数，如下

//交集
float shapeIntersection(float a,float b){
    return min(a,b);
}float shapeIntersection1(float a,float b){
    return a*b;
}

调用过程是首先绘制了两个圆，然后对这两个圆求交，具体如下

 void main( void ) {
    //窗口坐标调整为[-1,1],坐标原点在屏幕中心vec2 st = (gl_FragCoord.xy * 2. - u_resolution) / u_resolution.y;vec3 line_color = vec3(1.0,1.0,0.0);vec3 color = vec3(0.6);//背景色float pct = 0.0;//绘制两个圆float cirlce = circle(st,vec2(-0.2,0.0),0.65);float cirlce1 = circle(st,vec2(0.2,0.0),0.65);//交集pct = shapeIntersection(cirlce,cirlce1);//pct = shapeIntersection1(cirlce,cirlce1);color = mix(color,line_color,pct);gl_FragColor = vec4(color, 1);}

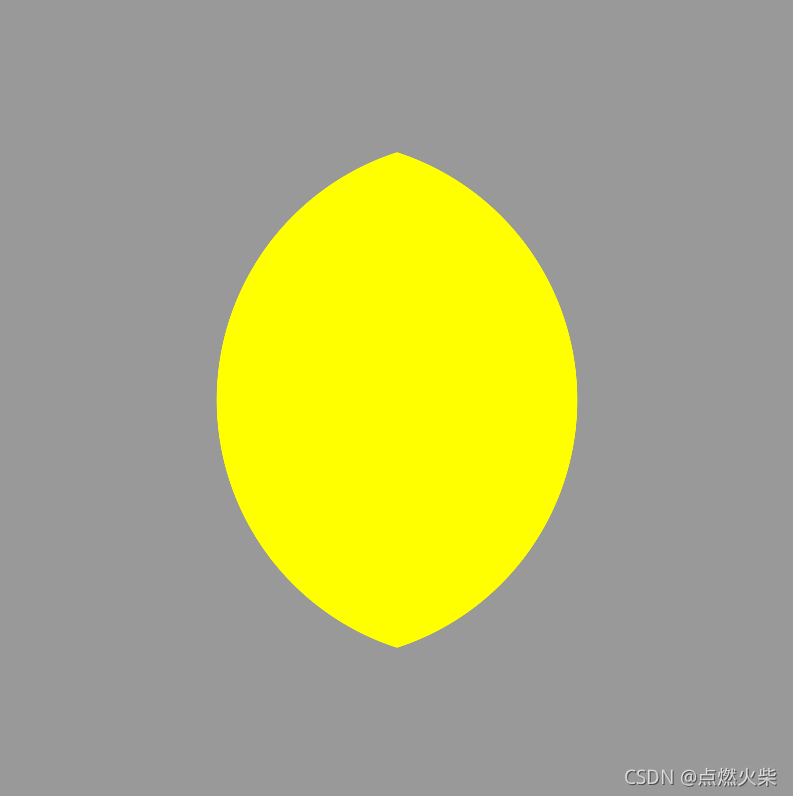

结果如下
在这里插入图片描述

3. 并集实现

并集是求两个集合所覆盖的全部的部分，实现的方式也有两种，一个是使用max函数，另外一种是将二者相加，如下

//并集
float shapeUnion(float a,float b){
    return max(a,b);
}
float shapeUnion1(float a,float b){
    return a+b;
}

调用过程非常简单在上一步的基础上直接调用函数求并集即可

//并集
pct = shapeUnion(cirlce,cirlce1);
//pct = shapeUnion1(cirlce,cirlce1);

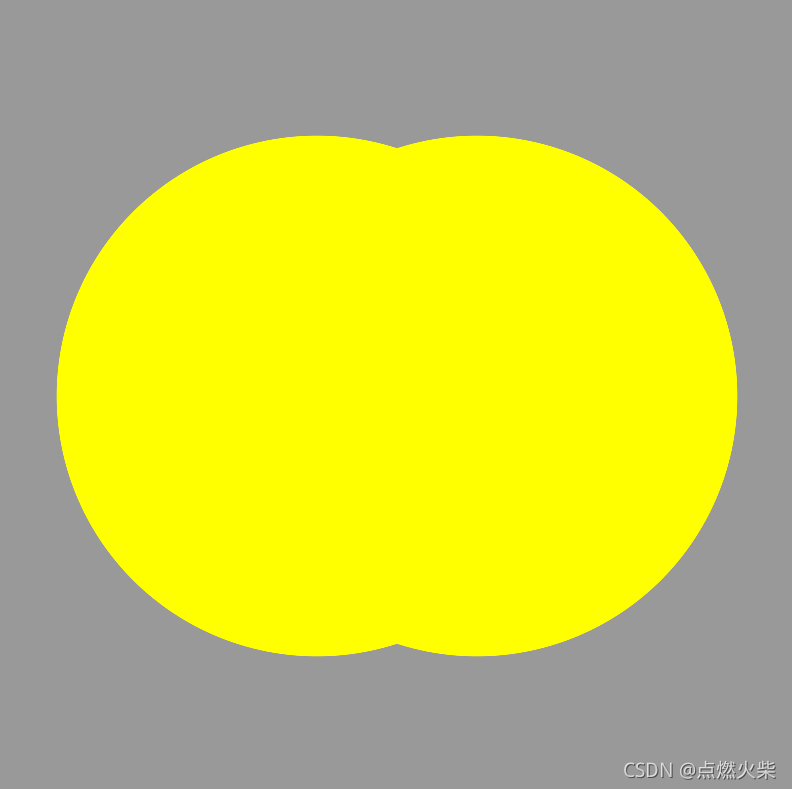

结果如下
在这里插入图片描述

3. 差集实现

差集的实现，其实要先求交集，然后用集合A减去二者的交集就得到A集合相对于B集合的差集，代码如下

//差集
float shapeDifferenceSet(float a,float b){
    return a-min(a,b);
}

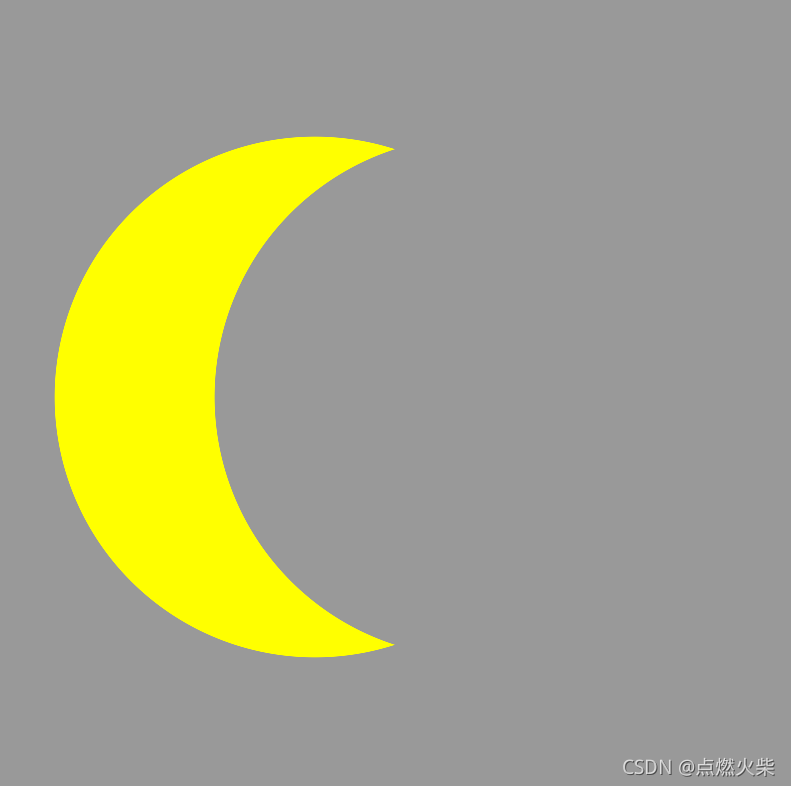

调用过程就不解释了，直接看执行结果
在这里插入图片描述

4. 示例代码
