网络请求框架(OKHttp+Retrofit+RxJava)

开发者们现在都在使用OkHttp了，在很多借鉴之后，现在也来封装属于自己的网络请求框架。

该框架使用Retrofit，OkHttp,RxJava,RxAndroid,Gson一起封装。

客户端请求一般分为如下几步：

通过API向服务器发送请求——->服务器收到请求然后响应(这里有两种情况，一是请求成功返回Json数据,二是去请求失败返回失败状态)———->客服端拿到服务器返回状态解析数据或者请求失败提示用户

根据以上思路来看代码：

import android.os.Build;import java.io.IOException;
import java.util.concurrent.TimeUnit;import okhttp3.Interceptor;
import okhttp3.OkHttpClient;
import okhttp3.Request;
import okhttp3.Response;
import okhttp3.logging.HttpLoggingInterceptor;
import retrofit2.Retrofit;
import retrofit2.adapter.rxjava.RxJavaCallAdapterFactory;/*** Created by hedong on 2016/4/19.*/
public class LocalService {public static final String API_BASE_URL = "http://www.tngou.net/api/info/";//主Api路径private static final LocalApi service = getRetrofit().create(LocalApi.class);private static Retrofit mRetrofit;private static OkHttpClient mOkHttpClient;public final static int CONNECT_TIMEOUT = 60;        //设置连接超时时间public final static int READ_TIMEOUT = 60;            //设置读取超时时间public final static int WRITE_TIMEOUT = 60;           //设置写的超时时间private static OkHttpClient genericClient() {HttpLoggingInterceptor interceptor = new HttpLoggingInterceptor();interceptor.setLevel(HttpLoggingInterceptor.Level.HEADERS);OkHttpClient httpClient = new OkHttpClient.Builder().addNetworkInterceptor(interceptor).retryOnConnectionFailure(true).readTimeout(READ_TIMEOUT, TimeUnit.SECONDS)//设置读取超时时间.writeTimeout(WRITE_TIMEOUT, TimeUnit.SECONDS)//设置写的超时时间.connectTimeout(CONNECT_TIMEOUT, TimeUnit.SECONDS)//设置连接超时时间.addInterceptor(new Interceptor() {@Overridepublic Response intercept(Chain chain) throws IOException {Request request = chain.request().newBuilder().addHeader("source-terminal", "Android")   //操作系统名称（注：ios、android）//设备型号.addHeader("device-model", Build.MODEL)         //设备型号.addHeader("os-version", Build.VERSION.RELEASE)//操作系统版本号//.addHeader("app-name", name);//应用名称.build();return chain.proceed(request);}}).build();return httpClient;}public static LocalApi getApi() {return service;}protected static Retrofit getRetrofit() {if (null == mRetrofit) {if (null == mOkHttpClient) {mOkHttpClient = genericClient();}mRetrofit = new Retrofit.Builder().baseUrl(API_BASE_URL).addConverterFactory(ResponseConverterFactory.create()).addCallAdapterFactory(RxJavaCallAdapterFactory.create()).client(mOkHttpClient).build();}return mRetrofit;}
}

注释写的很清楚了，但是在添加header的时候，根据自己需要添加。

LocalApi是什么呢，在这个类里面我们定义请求方法，get,post等等，

public interface LocalApi {//获取类别@GET("classify")Observable<List<HealthClassifyBean>> getHealthClassify();}

请求发出去了，看一下怎么解析返回的json数据呢，自定义ResponseConverterFactory继承自Converter.Factory

public class ResponseConverterFactory extends Converter.Factory {public static ResponseConverterFactory create() {return create(new Gson());}public static ResponseConverterFactory create(Gson gson) {return new ResponseConverterFactory(gson);}private final Gson gson;private ResponseConverterFactory(Gson gson) {if (gson == null) throw new NullPointerException("gson == null");this.gson = gson;}@Overridepublic Converter<ResponseBody, ?> responseBodyConverter(Type type, Annotation[] annotations, Retrofit retrofit) {return new GsonResponseBodyConverter<>(gson, type);}@Overridepublic Converter<?, RequestBody> requestBodyConverter(Type type, Annotation[] parameterAnnotations, Annotation[] methodAnnotations, Retrofit retrofit) {return new GsonResponseBodyConverter<>(gson, type);}
}

这只是跟Retrofit绑定，真正的拿到数据，解析的json的在下面：

/*** Created by hedong on 2016/4/19.*/
public class GsonResponseBodyConverter<T> implements Converter<ResponseBody, T> {private final Gson gson;private final Type type;public GsonResponseBodyConverter(Gson gson, Type type) {this.gson = gson;this.type = type;}/*** {* "status": true,* "data": [* {* "description": "",* "id": 6,* "keywords": "",* "name": "",* "seq": 1,* "title": ""* },* {* "description": "",* "id": 5,* "keywords": "",* "name": "",* "seq": 2,* "title": ""* }* ]* }** @param value* @return* @throws IOException*/@Overridepublic T convert(ResponseBody value) throws IOException {String response = value.string();Log.d("Network", "response>>" + response);try {JSONObject jsonObject = new JSONObject(response);if (jsonObject.getString("status").equals("true")) {//result==true表示成功返回，继续用本来的Model类解析String data = jsonObject.getString("data");return gson.fromJson(data, type);} else {//ErrResponse 将msg解析为异常消息文本ErrResponse errResponse = gson.fromJson(response, ErrResponse.class);throw new ResultException(0, errResponse.getMsg());}} catch (JSONException e) {e.printStackTrace();Log.e("Network", e.getMessage());return null;}}
}

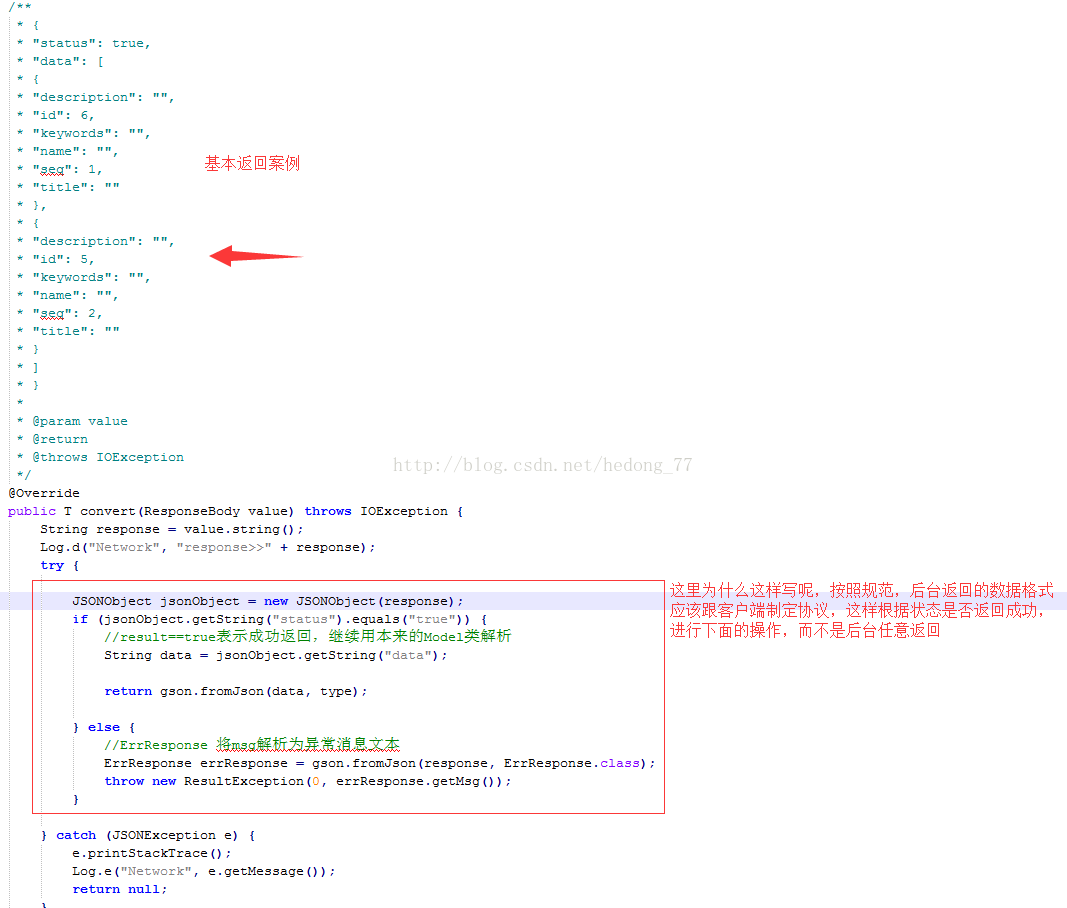

这里解释一下：

在开始写后台的时候最好定好规范，以免造成不必要的麻烦。以上格式只是参考，使用者可自行修改。

我们也可以跟服务器约定错误类型，捕获异常：

/*** 用于捕获服务器约定的错误类型*/
public class ResultException extends RuntimeException {private int errCode = 0;public ResultException(int errCode, String msg) {super(msg);this.errCode = errCode;}public int getErrCode() {return errCode;}
}

自定义回调，获取http请求对应的状态码：

public abstract class AbsAPICallback<T> extends Subscriber<T> {//对应HTTP的状态码private static final int UNAUTHORIZED = 401;private static final int FORBIDDEN = 403;private static final int NOT_FOUND = 404;private static final int REQUEST_TIMEOUT = 408;private static final int INTERNAL_SERVER_ERROR = 500;private static final int BAD_GATEWAY = 502;private static final int SERVICE_UNAVAILABLE = 503;private static final int GATEWAY_TIMEOUT = 504;protected AbsAPICallback() {}@Overridepublic void onError(Throwable e) {Throwable throwable = e;//获取最根源的异常while (throwable.getCause() != null) {e = throwable;throwable = throwable.getCause();}if (e instanceof HttpException) {//HTTP错误HttpException httpException = (HttpException) e;switch (httpException.code()) {case UNAUTHORIZED:case FORBIDDEN:case NOT_FOUND:case REQUEST_TIMEOUT:case GATEWAY_TIMEOUT:case INTERNAL_SERVER_ERROR:case BAD_GATEWAY:case SERVICE_UNAVAILABLE:default://Toast.makeText(App.getInstance(), R.string.server_http_error, Toast.LENGTH_SHORT).show();break;}} else if (e instanceof SocketTimeoutException) {//Toast.makeText(App.getInstance(), R.string.network_error, Toast.LENGTH_SHORT).show();} else if (e instanceof ResultException) {//服务器返回的错误ResultException resultException = (ResultException) e;//  Toast.makeText(App.getInstance(), resultException.getMessage(), Toast.LENGTH_SHORT).show();} else if (e instanceof JsonParseException || e instanceof JSONException || e instanceof ParseException) {// Toast.makeText(App.getInstance(), R.string.data_error, Toast.LENGTH_SHORT).show(); //均视为解析错误} else if(e instanceof ConnectException){// Toast.makeText(App.getInstance(), R.string.server_http_error, Toast.LENGTH_SHORT).show();} else {//未知错误}onCompleted();}protected abstract void onDone(T t);@Overridepublic void onCompleted() {}@Overridepublic void onNext(T t) {onDone(t);}
}

代码里面都注释很清楚。

最后在Activity怎么调用呢，直接贴代码：

  private void requestData() {LocalService.getApi().getHealthClassify().subscribeOn(Schedulers.io()).observeOn(Schedulers.io()).observeOn(AndroidSchedulers.mainThread()).subscribe(new AbsAPICallback<List<HealthClassifyBean>>() {@Overrideprotected void onDone(List<HealthClassifyBean> list) {//请求成功，做相应的页面操作}@Overridepublic void onError(Throwable e) {super.onError(e);//e.getMessage() 可获取服务器返回错误信息}});}

ok，到此就结束了。

项目已上传：https://github.com/hedongBlog/MyNetHttp
