测试环境

测试环境依然用上次测STT的两台物理机，已有的网络环境如下：

node1, duduo.seg,

eth0: 10.230.56.14, 1000Mb/s, br-ex
eth6: 10.230.56.15, 10000Mb/s, out-off-band management
eth7: 192.168.122.2, 10000Mb/s, br-phy

sudo ovs-vsctl -- --may-exist add-br br-ex
sudo ovs-vsctl -- --may-exist add-port br-ex eth0
sudo ifconfig eth0 0.0.0.0 up
sudo ifconfig br-ex 10.230.56.233/21

sudo ovs-vsctl -- --may-exist add-br br-phy
sudo ovs-vsctl -- --may-exist add-port br-phy eth7
sudo ifconfig eth7 0.0.0.0 up
sudo ifconfig br-phy 192.168.122.2/24

node2, voltorb.seg,

eth0: 10.230.56.21, 1000Mb/s, out-off-band management

eth4: 192.168.122.3, 10000Mb/s, br-phy

sudo ovs-vsctl -- --may-exist add-br br-phy
sudo ovs-vsctl -- --may-exist add-port br-phy eth4
sudo ifconfig eth4 0.0.0.0 up
sudo ifconfig br-phy 192.168.122.3/24

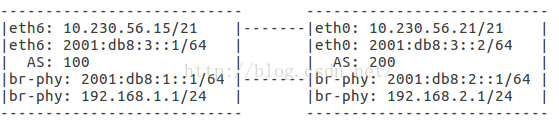

这次BGP实验规划的新增的网络环境如下：

------------------------------- -------------------------------
| eth6: 10.230.56.15/21 |-------| eth0: 10.230.56.21/21 |
| eth6: 2001:db8:3::1/64 | | eth0: 2001:db8:3::2/64 |
| AS: 100 | | AS: 200 |
| br-phy: 2001:db8:1::1/64 |-------| br-phy: 2001:db8:2::1/64 |
| br-phy: 192.168.1.1/24 | | br-phy: 192.168.2.1/24 |
------------------------------- -------------------------------
sudo ip addr add 2001:db8:3::1/64 dev eth6
sudo ip addr add 2001:db8:1::1/64 dev br-phy
sudo ip addr add 192.168.1.1/24 dev br-phy

sudo ip addr add 2001:db8:3::2/64 dev eth0
sudo ip addr add 2001:db8:2::1/64 dev br-phy
sudo ip addr add 192.168.2.1/24 dev br-phy

Quagga安装及防火墙配置

sudo apt-get install quagga
sudo chown quagga.quaggavty /etc/quagga/*.conf
sudo chmod 640 /etc/quagga/*.conf

echo "net.ipv4.conf.all.forwarding=1" | sudo tee -a /etc/sysctl.conf
echo "net.ipv4.conf.default.forwarding=1" | sudo tee -a /etc/sysctl.conf
sed 's/#net.ipv6.conf.all.forwarding=1/net.ipv6.conf.all.forwarding=1/g' /etc/sysctl.conf | sudo tee /etc/sysctl.conf
echo "net.ipv6.conf.default.forwarding=1" | sudo tee -a /etc/sysctl.conf
sudo sysctl -p
sudo ip6tables -F

# BGP sessions
sudo iptables -A INPUT -p tcp --dport 179 -j ACCEPT
sudo iptables -A INPUT -p tcp --sport 179 -j ACCEPT
# Telnet session to zebra
sudo iptables -A INPUT -p tcp --dport 2601 -j ACCEPT
# Telnet session to quagga/bgpd
sudo iptables -A INPUT -p tcp --dport 2605 -j ACCEPT

Quagga配置文件

1, 两节点上的配置文件 /etc/quagga/zebra.conf

sudo cp /usr/share/doc/quagga/examples/zebra.conf.sample /etc/quagga/zebra.conf

ubuntu@duduo:~$ sudo cat /etc/quagga/zebra.conf
hostname duduo #另一台节点修改为voltorb
password zebra
enable password zebra
log file /var/log/quagga/zebra.log

1, 两节点上的配置文件 /etc/quagga/daemons

ubuntu@duduo:~$ sudo cat /etc/quagga/daemons
zebra=yes
bgpd=yes
ospfd=no
ospf6d=no
ripd=no
ripngd=no
isisd=no
babeld=no

3, 两节点上的配置文件 /etc/quagga/bgpd.conf如下：

ubuntu@duduo:~$ sudo cat /etc/quagga/bgpd.conf hostname duduo password zebra log file /var/log/quagga/bgpd.log log stdout ! router bgp 100 no synchronization bgp router-id 10.230.56.15 network 192.168.1.0/24 neighbor 10.230.56.21 remote-as 200 neighbor 10.230.56.21 description test-v4 neighbor 2001:db8:3::2 remote-as 200 neighbor 2001:db8:3::2 description test-v6 no auto-summary no neighbor 2001:db8:3::2 activate ! address-family ipv6 network 2001:db8:1::/48 network 2001:db8:1::/56 network 2001:db8:1::/64 neighbor 2001:db8:3::2 activate neighbor 2001:db8:3::2 route-map IPV6-OUT out exit-address-family ! ipv6 prefix-list pl-ipv6 seq 10 permit 2001:db8:1::/56 le 64 route-map IPV6-OUT permit 10 match ipv6 address prefix-list pl-ipv6 set ipv6 next-hop global 2001:db8:3::1 ! line vty ! debug bgp events debug bgp filters !debug bgp fsm !debug bgp keepalives debug bgp updates

ubuntu@voltorb:~$ sudo cat /etc/quagga/bgpd.conf hostname voltorb password zebra log file /var/log/quagga/bgpd.log log stdout ! router bgp 200 no synchronization bgp router-id 10.230.56.21 network 192.168.2.0/24 neighbor 10.230.56.15 remote-as 100 neighbor 10.230.56.15 description test-v4 neighbor 2001:db8:3::1 remote-as 100 neighbor 2001:db8:3::1 description test-v6 no auto-summary no neighbor 2001:db8:3::1 activate ! address-family ipv6 network 2001:db8:2::/48 network 2001:db8:2::/56 network 2001:db8:2::/64 neighbor 2001:db8:3::1 activate neighbor 2001:db8:3::1 route-map IPV6-OUT out exit-address-family ! ipv6 prefix-list pl-ipv6 seq 10 permit 2001:db8:2::/56 le 64 route-map IPV6-OUT permit 10 match ipv6 address prefix-list pl-ipv6 set ipv6 next-hop global 2001:db8:3::2 ! line vty ! debug bgp events debug bgp filters !debug bgp fsm !debug bgp keepalives debug bgp updates

验证结果

两节点上重启quagga进程（sudo service quagga restart）后观察到的邻居信息如下：

ubuntu@duduo:~$ sudo vtyshHello, this is Quagga (version 0.99.22.4). Copyright 1996-2005 Kunihiro Ishiguro, et al.duduo# show bgp summary BGP router identifier 10.230.56.15, local AS number 100 RIB entries 6, using 672 bytes of memory Peers 2, using 9120 bytes of memoryNeighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd 2001:db8:3::2 4 200 10 11 0 0 0 00:06:30 2Total number of neighbors 1ubuntu@voltorb:~$ sudo vtyshHello, this is Quagga (version 0.99.22.4). Copyright 1996-2005 Kunihiro Ishiguro, et al.voltorb# show bgp summary BGP router identifier 10.230.56.21, local AS number 200 RIB entries 6, using 672 bytes of memory Peers 2, using 9120 bytes of memoryNeighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd 2001:db8:3::1 4 100 11 14 0 0 0 00:08:22 2Total number of neighbors 1

两节点观察到的日志分别如下：

2016/07/04 09:29:46 BGP: BGPd 0.99.22.4 starting: vty@2605, bgp@<all>:179 2016/07/04 09:29:46 BGP: Import timer expired. 2016/07/04 09:29:49 BGP: [Event] BGP connection from host 2001:db8:3::2 2016/07/04 09:29:49 BGP: [Event] BGP connection IP address 2001:db8:3::2 is Idle state 2016/07/04 09:29:50 BGP: 2001:db8:3::2 [Event] Connect start to 2001:db8:3::2 fd 13 2016/07/04 09:29:51 BGP: 2001:db8:3::2 send UPDATE 2001:db8:1::/56 2016/07/04 09:29:51 BGP: 2001:db8:3::2 send UPDATE 2001:db8:1::/64 2016/07/04 09:29:51 BGP: 2001:db8:3::2 rcvd UPDATE w/ attr: , origin i, mp_nexthop 2001:db8:3::2(fe80::3ea8:2aff:fe21:9908), metric 0, path 200 2016/07/04 09:29:51 BGP: 2001:db8:3::2 rcvd 2001:db8:2::/56 2016/07/04 09:29:51 BGP: 2001:db8:3::2 rcvd UPDATE w/ attr: , origin i, mp_nexthop 2001:db8:3::2(fe80::3ea8:2aff:fe21:9908), metric 0, path 200 2016/07/04 09:29:51 BGP: 2001:db8:3::2 rcvd 2001:db8:2::/64 2016/07/04 09:29:53 BGP: 10.230.56.21 [Event] Connect start to 10.230.56.21 fd 14 2016/07/04 09:29:54 BGP: 10.230.56.21 send UPDATE 192.168.1.0/24 2016/07/04 09:29:54 BGP: 10.230.56.21 rcvd UPDATE w/ attr: nexthop 10.230.56.21, origin i, metric 0, path 200 2016/07/04 09:29:54 BGP: 10.230.56.21 rcvd 192.168.2.0/242016/07/04 09:29:11 BGP: 2001:db8:3::1 [Event] Connect start to 2001:db8:3::1 fd 13 2016/07/04 09:29:11 BGP: stream_read_try: read failed on fd 13: Connection reset by peer 2016/07/04 09:29:11 BGP: 2001:db8:3::1 [Error] bgp_read_packet error: Connection reset by peer 2016/07/04 09:29:12 BGP: [Event] BGP connection from host 2001:db8:3::1 2016/07/04 09:29:12 BGP: [Event] Make dummy peer structure until read Open packet 2016/07/04 09:29:12 BGP: 2001:db8:3::1 [Event] Transfer accept BGP peer to real (state Active) 2016/07/04 09:29:12 BGP: 2001:db8:3::1 [Event] Accepting BGP peer delete 2016/07/04 09:29:13 BGP: 2001:db8:3::1 send UPDATE 2001:db8:2::/56 2016/07/04 09:29:13 BGP: 2001:db8:3::1 send UPDATE 2001:db8:2::/64 2016/07/04 09:29:13 BGP: 2001:db8:3::1 rcvd UPDATE w/ attr: , origin i, mp_nexthop 2001:db8:3::1(fe80::8edc:d4ff:feb3:9c3c), metric 0, path 100 2016/07/04 09:29:13 BGP: 2001:db8:3::1 rcvd 2001:db8:1::/56 2016/07/04 09:29:13 BGP: 2001:db8:3::1 rcvd UPDATE w/ attr: , origin i, mp_nexthop 2001:db8:3::1(fe80::8edc:d4ff:feb3:9c3c), metric 0, path 100 2016/07/04 09:29:13 BGP: 2001:db8:3::1 rcvd 2001:db8:1::/64 2016/07/04 09:29:15 BGP: [Event] BGP connection from host 10.230.56.15 2016/07/04 09:29:15 BGP: [Event] Make dummy peer structure until read Open packet 2016/07/04 09:29:15 BGP: 10.230.56.15 [Event] Transfer accept BGP peer to real (state Active) 2016/07/04 09:29:15 BGP: 10.230.56.15 [Event] Accepting BGP peer delete 2016/07/04 09:29:16 BGP: 10.230.56.15 send UPDATE 192.168.2.0/24 2016/07/04 09:29:16 BGP: 10.230.56.15 rcvd UPDATE w/ attr: nexthop 10.230.56.15, origin i, metric 0, path 100 2016/07/04 09:29:16 BGP: 10.230.56.15 rcvd 192.168.1.0/24

路由变化如下：

ubuntu@duduo:~$ route -n Kernel IP routing table Destination Gateway Genmask Flags Metric Ref Use Iface 0.0.0.0 10.230.56.1 0.0.0.0 UG 0 0 0 eth6 10.230.56.0 0.0.0.0 255.255.248.0 U 0 0 0 eth6 10.230.56.0 0.0.0.0 255.255.248.0 U 0 0 0 br-ex 10.230.56.0 0.0.0.0 255.255.248.0 U 0 0 0 eth0 192.168.1.0 0.0.0.0 255.255.255.0 U 0 0 0 br-phy 192.168.2.0 10.230.56.21 255.255.255.0 UG 0 0 0 eth6 192.168.122.0 0.0.0.0 255.255.255.0 U 0 0 0 br-phy ubuntu@duduo:~$ route -n |grep 192.168.2 192.168.2.0 10.230.56.21 255.255.255.0 UG 0 0 0 eth6 ubuntu@duduo:~$ ping -c 1 192.168.2.1 PING 192.168.2.1 (192.168.2.1) 56(84) bytes of data. 64 bytes from 192.168.2.1: icmp_seq=1 ttl=64 time=0.232 ms--- 192.168.2.1 ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 0.232/0.232/0.232/0.000 ms ubuntu@duduo:~$ ping6 -c 1 2001:db8:2::1 PING 2001:db8:2::1(2001:db8:2::1) 56 data bytes 64 bytes from 2001:db8:2::1: icmp_seq=1 ttl=64 time=0.287 ms--- 2001:db8:2::1 ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 0.287/0.287/0.287/0.000 msubuntu@duduo:~$ route -n -6 |grep 2001:db8:2 2001:db8:2::/64 fe80::3ea8:2aff:fe21:9908 UG 1024 1 0 eth6 2001:db8:2::/56 fe80::3ea8:2aff:fe21:9908 UG 1024 0 0 eth6
