debian8.4(jessie)配置nginx1.10.0+LDAP来授权_综合

服务器是debian8.4(jessie), x86_64bit, 需要对某些页面进行auth保护, 要求用公司提供的LDAP server.

这里实验我用docker来安装debian8.4和nginx 1.10.0, 下面是Dockerfile

FROM debian:8.4
MAINTAINER rainysia "rainysia#gmail.com"# Define some variables.
ENV NGINX_VERSION release-1.10.0# Install needed packages, compile and install.
# Remove unused packages and cleanup some directories.
RUN \     apt-get update && \     DEBIAN_FRONTEND=noninteractive apt-get install -y \         ca-certificates \         git \         gcc \         make \         libpcre3-dev \         zlib1g-dev \         libldap2-dev \         libssl-dev \         wget \         vim \         python-pip  \         ldap-utils \         openssh-client && \     pip install ldap3 && \     mkdir /var/log/nginx && \     mkdir /etc/nginx && \     cd /tmp && \     git clone https://github.com/kvspb/nginx-auth-ldap.git && \     git clone https://github.com/nginx/nginx.git && \     cd /tmp/nginx && \     git checkout tags/${
     NGINX_VERSION} && \  ./auto/configure \  --add-module=/tmp/nginx-auth-ldap \  --with-http_ssl_module \  --with-http_gzip_static_module \  --with-pcre \  --with-debug \  --conf-path=/etc/nginx/nginx.conf \ --sbin-path=/usr/sbin/nginx \ --pid-path=/var/log/nginx/nginx.pid \ --error-log-path=/var/log/nginx/error.log \ --http-log-path=/var/log/nginx/access.log && \ make install && \  apt-get purge -y \  git \  gcc \  make \  libpcre3-dev \  zlib1g-dev \  libldap2-dev \  libssl-dev \  wget && \  apt-get autoremove -y && \  apt-get -y clean && \  rm -rf /var/lib/apt/lists/* && \  rm -rf /usr/src/* && \  rm -rf /tmp/* && \  rm -rf /usr/share/doc/* && \  rm -rf /usr/share/man/* && \  rm -rf /usr/share/locale/*ADD nginx.conf /etc/nginx/nginx.conf # Expose ports. EXPOSE 80 443 CMD ["nginx", "-g", "daemon off;"]

nginx.conf文件如下

#user  nobody;
worker_processes  1;#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;
#pid        logs/nginx.pid;events {worker_connections  1024;
}http {include       mime.types;default_type  application/octet-stream;auth_ldap_cache_enabled on;auth_ldap_cache_expiration_time 10000;auth_ldap_cache_size 1000;ldap_server LDAP1 {url "ldap://cdccc03.domain.org:3268/dc=domain,dc=org?sAMAccountName?sub?";binddn "domain_account@domain.org";binddn_passwd "domain_account_passwd";connect_timeout 5s;bind_timeout 5s;request_timeout 5s;satisfy any;group_attribute member;group_attribute_is_dn on;#require group "OU=people,DC=domain,DC=org";require valid_user;}gzip                 on;sendfile             on;tcp_nopush           on;tcp_nodelay          on;keepalive_timeout    65;types_hash_max_size  2048;client_max_body_size 2000m;access_log /var/log/access.log;error_log /var/log/error.log;server {listen      80;server_name localhost;charset     utf-8;auth_ldap "Please enter your domain username";auth_ldap_servers LDAP1;index index.html index.htm index.php;root /var/www;location / {autoindex on;autoindex_exact_size on;autoindex_localtime on;index index.html index.htm index.php;try_files $uri $uri/ /index.php?$args;}}
}

解释下, 上面的nginx.conf里面, 公司的LDAP server 其中一台LDAP server是cdccc03.domain.org, 端口是3268, dc是domain和org
binddn这里填写一个公司的用户帐号, 比如tester@domain.org,
binddn_passwd 这里填写密码,

然后运行docker

docker run -tid --name nginx8089 -p 8089:80  \-v /docker-config/nginx_ldap.conf:/etc/nginx/conf.d/default.conf \-v /docker-config/index.html:/var/www/index.html \ cdkdc.domain.org:5000/nginx_ldap:latest

这里我把容器的80端口映射到宿主机的8089端口, 并且把nginx_ldap.conf挂载进容器.

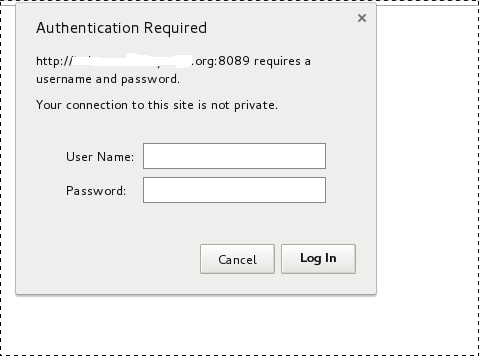

访问后, 弹出需要授权, 输入帐号,密码后成功显示页面.
nginx login

可以通过docker exec -ti nginx8089 cat /var/log/nginx/error.log 来查看授权失败的日志
