NAT实验报告

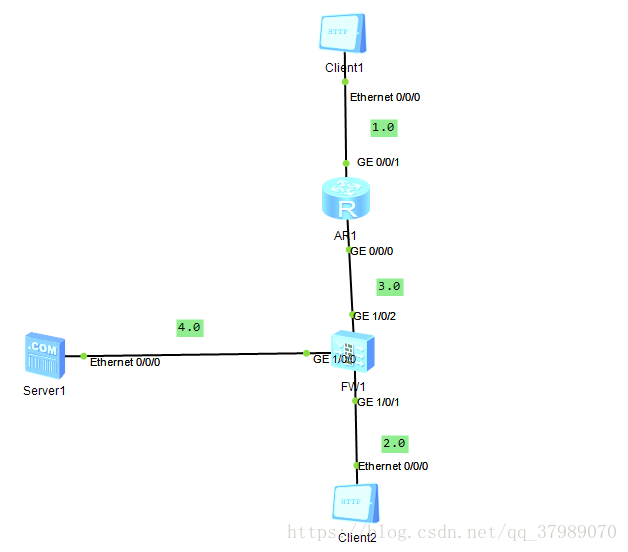

实验拓扑图：
一、实验需求：
1.pc不同网段
2.需配置防火墙NAT
二、实验目标：
1.了解NAT的配置方法
2.了解NAT的作用
三、实验步骤：
第一步：配置思路
1.配置ip
2.配置静态ip
3.配置区域
4.配置安全策略
5.防火墙NAT配置
6.配置NAT-Server
7.测试
第二步：实验操作
- 配置ip

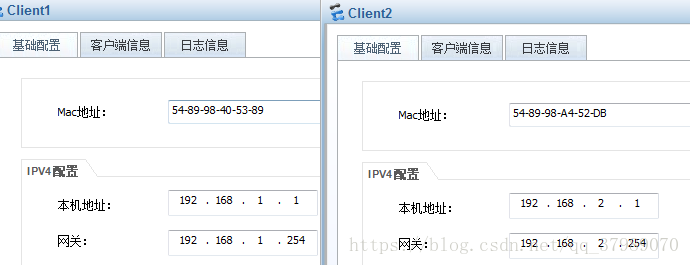

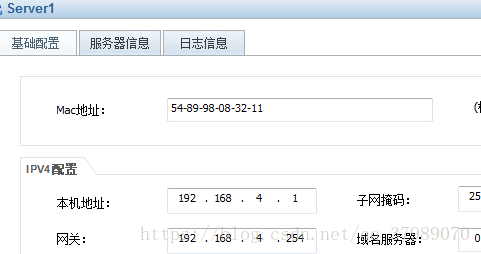

Client：

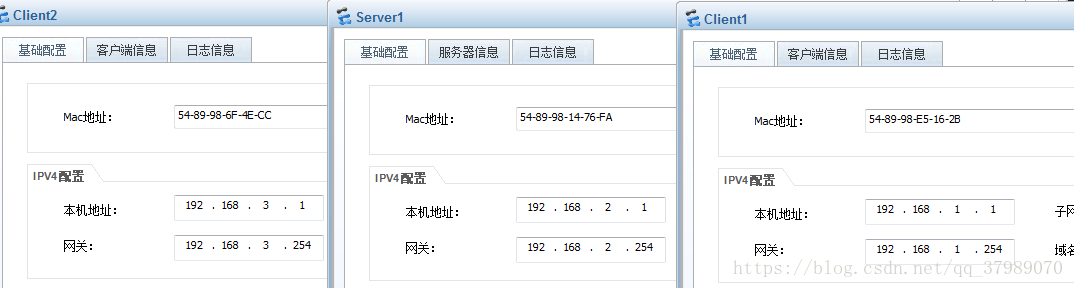

Server：
FW1：
[FW1] interface GigabitEthernet1/0/0
[FW1-GigabitEthernet1/0/0] ip address 192.168.4.254 255.255.255.0
[FW1-GigabitEthernet1/0/0] service-manage ping permit
[FW1] interface GigabitEthernet1/0/1
[FW1-GigabitEthernet1/0/1] ip address 192.168.2.254 255.255.255.0
[FW1-GigabitEthernet1/0/1] service-manage ping permit
[FW1] interface GigabitEthernet1/0/2
[FW1-GigabitEthernet1/0/2] ip address 202.169.3.2 255.255.255.0
[FW1-GigabitEthernet1/0/2] service-manage ping permit
R1:
[R1]int g0/0/1
[R1-GigabitEthernet0/0/1]ip add 192.168.1.254 24
[R1-GigabitEthernet0/0/1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip add 192.168.3.1 24
2.配置静态：
FW1:
ip route-static 0.0.0.0 0.0.0.0 192.168.3.1
R1:
ip route-static 0.0.0.0 0.0.0.0 202.169.3.2
3.配置区域：
FW1：
[FW1]firewall zone trust
[FW1-zone-trust]add interface GigabitEthernet1/0/1
[FW1]firewall zone untrust
[FW1-zone-untrust]add interface GigabitEthernet1/0/2
[FW1]firewall zone dmz
[FW1-zone-dmz] add interface GigabitEthernet1/0/0
4.配置安全策略：
FW1:
[FW1]security-policy
[FW1-policy-security] rule name 1
[FW1-policy-security-rule-1] source-zone untrust
[FW1-policy-security-rule-1] destination-zone dmz
[FW1-policy-security-rule-1] destination-address 192.168.4.1 32
[FW1-policy-security-rule-1] service ftp
[FW1-policy-security-rule-1] action permit
[FW1-policy-security]rule name 2
[FW1-policy-security-rule-2] source-zone trust
[FW1-policy-security-rule-2] destination-zone untrust
[FW1-policy-security-rule-2] action permit
5.防火墙NAT配置：
[FW1]nat address-group a
[FW1-address-group-a]mode pat
[FW1-address-group-a]section 1 192.168.3.100 192.168.3.110
[FW1]nat-policy
[FW1-policy-nat]rule name 1
[FW1-policy-nat]source-zone trust
[FW1-policy-nat]destination-zone untrust
[FW1-policy-nat]source-address 192.168.2.0 24
[FW1-policy-nat]action nat address-group a
6.配置NAT-server:
FW1：
[FW1]nat server ftpsever 0 protocol tcp global 192.168.3.5 ftp inside 192.168.4.1 ftp

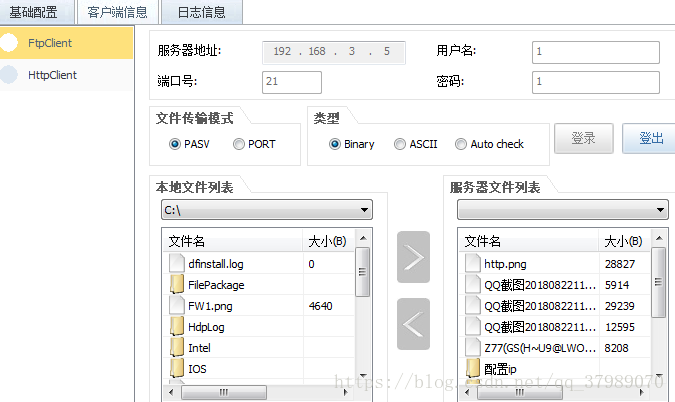

7.测试：
NAT双接口实验报告

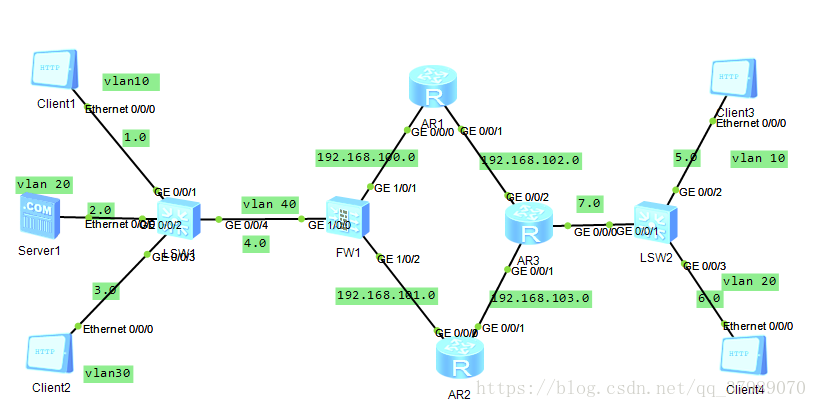

实验拓扑图：
一、实验需求：
1.pc与服务端不在同一网段
2.网关在交换机上
3.使用静态路由打通
4.广域网不能出现私网地址
5.总部服务器使用NAT双出口
二、实验步骤：
第一步：配置思路
1.配置vlan和ip并开启ping服务
2.配置静态路由
3.防火墙配置区域
4.防火墙开启安全策略
5.路由器配置Easyip
6.在防火墙上配置natserver
7.测试
第二步：实验操作
- 配置vlan和ip并开启ping服务

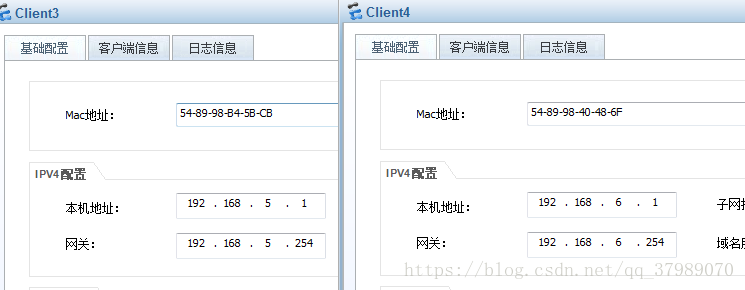

PC：
SW1:
vlan batch 10 20 30 40
interface GigabitEthernet0/0/1
port link-type access
port default vlan 10
interface GigabitEthernet0/0/2
port link-type access
port default vlan 20
interface GigabitEthernet0/0/3
port link-type access
port default vlan 30
interface GigabitEthernet0/0/4
port link-type access
port default vlan 40
SW2：
vlan batch 10 20 30
interface GigabitEthernet0/0/1
port link-type access
port default vlan 30
interface GigabitEthernet0/0/2
port link-type access
port default vlan 10
interface GigabitEthernet0/0/3
port link-type access
port default vlan 20
SW1
interface Vlanif10
ip address 192.168.1.254 255.255.255.0
interface Vlanif20
ip address 192.168.2.254 255.255.255.0
interface Vlanif30
ip address 192.168.3.254 255.255.255.0
interface Vlanif40
ip address 192.168.4.1 255.255.255.0
FW1
interface GigabitEthernet1/0/0
ip address 192.168.4.2 255.255.255.0
service-manage ping permit
interface GigabitEthernet1/0/1
ip address 192.168.100.1 255.255.255.0
service-manage ping permit
interface GigabitEthernet1/0/2
ip address 192.168.101.1 255.255.255.0
service-manage ping permit
R1
interface GigabitEthernet0/0/0
ip address 192.168.100.2 255.255.255.0
interface GigabitEthernet0/0/1
ip address 192.168.102.1 255.255.255.0
R2
interface GigabitEthernet0/0/0
ip address 192.168.101.2 255.255.255.0
interface GigabitEthernet0/0/1
ip address 192.168.103.1 255.255.255.0
R3
interface GigabitEthernet0/0/0
ip address 192.168.7.1 255.255.255.0
interface GigabitEthernet0/0/1
ip address 192.168.103.2 255.255.255.0
interface GigabitEthernet0/0/2
ip address 192.168.102.2 255.255.255.0
SW2
interface Vlanif10
ip address 192.168.5.254 255.255.255.0
interface Vlanif20
ip address 192.168.6.254 255.255.255.0
interface Vlanif30
ip address 192.168.7.2 255.255.255.0
- 配置静态路由
SW1
ip route-static 0.0.0.0 0.0.0.0 192.168.4.2
FW1
ip route-static 0.0.0.0 0.0.0.0 192.168.4.1
ip route-static 192.168.102.0 255.255.255.0 192.168.100.2
ip route-static 192.168.102.0 255.255.255.0 192.168.101.2 preference 100
ip route-static 192.168.103.0 255.255.255.0 192.168.101.2
ip route-static 192.168.103.0 255.255.255.0 192.168.100.2 preference 100
R1
ip route-static 192.168.101.0 255.255.255.0 192.168.100.1
ip route-static 192.168.103.0 255.255.255.0 192.168.102.2
R2
ip route-static 192.168.100.0 255.255.255.0 192.168.101.1
ip route-static 192.168.102.0 255.255.255.0 192.168.103.2
R3
ip route-static 192.168.100.0 255.255.255.0 192.168.102.1
ip route-static 192.168.100.0 255.255.255.0 192.168.103.1 preference 100
ip route-static 192.168.101.0 255.255.255.0 192.168.103.1
ip route-static 192.168.101.0 255.255.255.0 192.168.102.1 preference 100
ip route-static 192.168.5.0 255.255.255.0 192.168.7.2
ip route-static 192.168.6.0 255.255.255.0 192.168.7.2
SW2
ip route-static 0.0.0.0 0.0.0.0 192.168.7.1
- 防火墙配置区域
FW1
firewall zone trust
set priority 85
add interface GigabitEthernet0/0/0
add interface GigabitEthernet1/0/0
firewall zone untrust
set priority 5
add interface GigabitEthernet1/0/1
add interface GigabitEthernet1/0/2
- 防火墙开启安全策略
FW1
security-policy
rule name 1
source-zone trust
destination-zone untrust
action permit
rule name 2
source-zone untrust
destination-zone trust
action permit
nat address-group a 0
mode pat
section 1 192.168.100.100 192.168.100.110
section 2 192.168.101.100 192.168.101.110
nat-policy
rule name 1
source-zone trust
destination-zone untrust
action nat address-group a
rule name 2
source-zone untrust
destination-zone trust
action nat address-group a
5. 路由器配置Easyip
R3
acl number 2000
rule 5 permit source 192.168.5.0 0.0.0.255
rule 10 permit source 192.168.6.0 0.0.0.255
interface GigabitEthernet0/0/1
nat outbound 2000
interface GigabitEthernet0/0/2
nat outbound 2000
6. 在防火墙上配置natserver
nat server up 0 protocol tcp global 192.168.100.100 ftp inside
192.168.2.1 ftp no-reverse
nat server down 1 protocol tcp global 192.168.101.101 ftp inside 192.168.2.1 ftp no-reverse

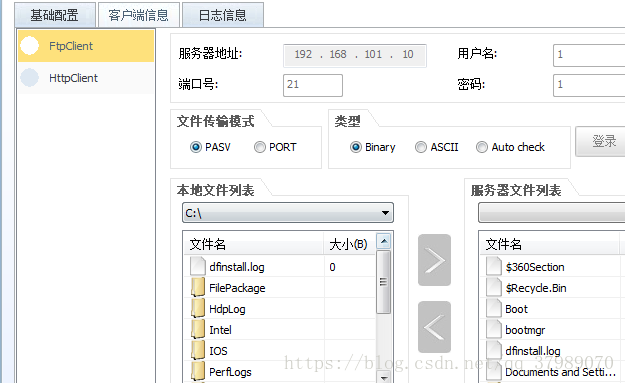

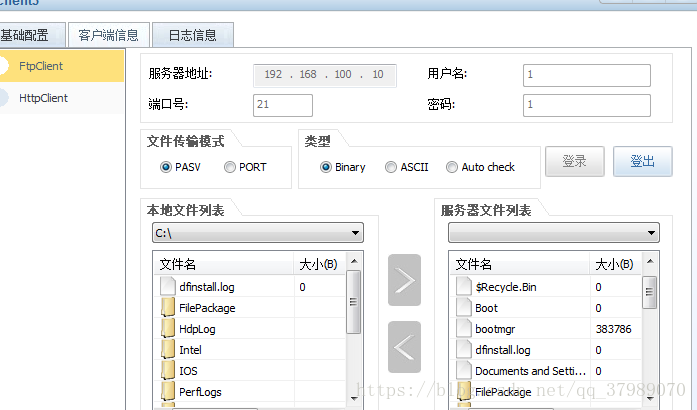

7.测试：

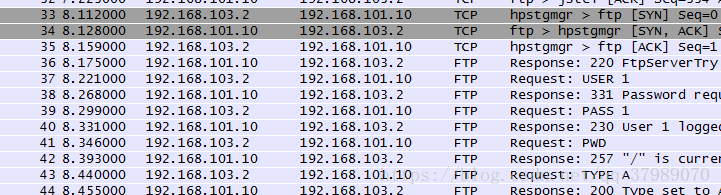

抓包：
