wget http://mirrors.163.com/centos/6/os/x86_64/Packages/python-iniparse-0.3.1-2.1.el6.noarch.rpmwget http://mirrors.163.com/centos/6/os/x86_64/Packages/yum-metadata-parser-1.1.2-16.el6.x86_64.rpmwget http://mirrors.163.com/centos/6/os/x86_64/Packages/yum-3.2.29-40.el6.centos.noarch.rpmwget http://mirrors.163.com/centos/6/os/x86_64/Packages/yum-plugin-fastestmirror-1.1.30-14.el6.noarch.rpm

3.1.2 卸载redhat的yum包

rpm -qa|grep -i yum|xargs rpm -e --nodeps

3.1.3 安装centOS的yum包

rpm -ivh python-iniparse-0.3.1-2.1.el6.noarch.rpmrpm -ivh yum-metadata-parser-1.1.2-16.el6.x86_64.rpmrpm -ivh yum-3.2.29-40.el6.centos.noarch.rpm yum-plugin-fastestmirror-1.1.30-14.el6.noarch.rpm

3.1.4 配置163的CentOS6.6的yum

[[email protected] yum.repos.d]# cd /etc/yum.repos.d[[email protected] yum.repos.d]# cat CentOS6-Base-163.repo # CentOS-Base.repo## The mirror system uses the connecting IP address of the client and the# update status of each mirror to pick mirrors that are updated to and# geographically close to the client.  You should use this for CentOS updates# unless you are manually picking other mirrors.## If the mirrorlist= does not work for you, as a fall back you can try the # remarked out baseurl= line instead.##[base]name=CentOS-6.6 - Base - 163.combaseurl=http://mirrors.163.com/centos/6.6/os/$basearch/#mirrorlist=http://mirrorlist.centos.org/?release=6.6&arch=$basearch&repo=osgpgcheck=1gpgkey=http://mirror.centos.org/centos/RPM-GPG-KEY-CentOS-6#released updates [updates]name=CentOS-6.6 - Updates - 163.combaseurl=http://mirrors.163.com/centos/6.6/updates/$basearch/#mirrorlist=http://mirrorlist.centos.org/?release=6.6&arch=$basearch&repo=updatesgpgcheck=1gpgkey=http://mirror.centos.org/centos/RPM-GPG-KEY-CentOS-6#additional packages that may be useful[extras]name=CentOS-6.6 - Extras - 163.combaseurl=http://mirrors.163.com/centos/6.6/extras/$basearch/#mirrorlist=http://mirrorlist.centos.org/?release=6.6&arch=$basearch&repo=extrasgpgcheck=1gpgkey=http://mirror.centos.org/centos/RPM-GPG-KEY-CentOS-6#additional packages that extend functionality of existing packages[centosplus]name=CentOS-6.6 - Plus - 163.combaseurl=http://mirrors.163.com/centos/6.6/centosplus/$basearch/#mirrorlist=http://mirrorlist.centos.org/?release=6.6&arch=$basearch&repo=centosplusgpgcheck=1enabled=0gpgkey=http://mirror.centos.org/centos/RPM-GPG-KEY-CentOS-6#contrib - packages by Centos Users[contrib]name=CentOS-6.6 - Contrib - 163.combaseurl=http://mirrors.163.com/centos/6.6/contrib/$basearch/#mirrorlist=http://mirrorlist.centos.org/?release=6.6&arch=$basearch&repo=contribgpgcheck=1enabled=0gpgkey=http://mirror.centos.org/centos/RPM-GPG-KEY-CentOS-6

3.1.5 配置zabbix的yum源

wget http://repo.zabbix.com/zabbix/2.4/rhel/6/i386/zabbix-release-2.4-1.el6.noarch.rpmrpm -ivh zabbix-release-2.4-1.el6.noarch.rpm

[[email protected] yum.repos.d]# cat zabbix.repo [zabbix]name=Zabbix Official Repository - $basearchbaseurl=http://repo.zabbix.com/zabbix/2.4/rhel/6/$basearch/enabled=1gpgcheck=1gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-ZABBIX[zabbix-non-supported]name=Zabbix Official Repository non-supported - $basearch baseurl=http://repo.zabbix.com/non-supported/rhel/6/$basearch/enabled=1gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-ZABBIXgpgcheck=1

3.2 Zabbix Server安装

yum remove mysql-libs-5.1.71-1.el6.i686rpm -ivh MySQL-server-advanced-5.6.23-1.el6.i686.rpmrpm -ivh MySQL-client-advanced-5.6.23-1.el6.i686.rpmrpm -ivh MySQL-shared-compat-advanced-5.6.23-1.el6.i686.rpm MySQL-shared-advanced-5.6.23-1.el6.i686.rpm MySQL-devel-advanced-5.6.23-1.el6.i686.rpm

3.2.2 配置mysql

[[email protected] etc]# cat my.cnf[client]port = 3306socket = /tmp/mysql.sock#The MySQL Server#########Basic######[mysqld]server-id = 1port = 3306user = mysqlbasedir = /usr/ datadir = /var/lib/mysqltmpdir = /var/lib/mysql/tmpsocket = /tmp/mysql.sockskip-external-lockingskip-name-resolvedefault-storage-engine = INNODBcharacter-set-server = utf8wait_timeout = 100connect_timeout = 20interactive_timeout = 100back_log = 500event_scheduler = onexplicit_defaults_for_timestamp#skip-grant-tables #############binlog##############log-bin = /var/lib/mysql/logs/mysql-binbinlog_format = rowmax_binlog_size = 128Mbinlog_cache_size = 4Mexpire_logs_days = 5 ##############Slow log####################slow_query_log = 1slow_query_log_file = /var/lib/mysql/logs/mysql.slowlong_query_time = 2###############Per_Thread_Buffers########################max_connections = 1024max_user_connections = 1000max_connect_errors = 10000key_buffer_size = 32Mmax_allowed_packet = 128Mtable_open_cache = 3096table_definition_cache = 4096sort_buffer_size = 512Kread_buffer_size = 512Kread_rnd_buffer_size = 512Kjoin_buffer_size = 512Ktmp_table_size = 16Mmax_heap_table_size = 16Mquery_cache_type = 0query_cache_size = 0bulk_insert_buffer_size = 16Mthread_cache_size = 64thread_stack = 256K################InnoDB#########################innodb_data_home_dir = /var/lib/mysqlinnodb_autoinc_lock_mode = 2innodb_log_group_home_dir = /var/lib/mysql/logsinnodb_data_file_path = ibdata1:1G:autoextendinnodb_buffer_pool_size = 256Minnodb_buffer_pool_instances = 1innodb_log_file_size = 64Minnodb_log_buffer_size = 4Minnodb_flush_log_at_trx_commit = 2innodb_lock_wait_timeout = 10innodb_sync_spin_loops = 40innodb_max_dirty_pages_pct = 90innodb_support_xa = 1innodb_thread_concurrency = 0innodb_thread_sleep_delay = 500innodb_file_io_threads = 4innodb_concurrency_tickets = 1000log_bin_trust_function_creators = 1innodb_flush_method = O_DIRECTinnodb_file_per_tableinnodb_read_io_threads = 4innodb_write_io_threads = 4innodb_io_capacity = 2000innodb_file_format = Barracudainnodb_purge_threads = 1innodb_purge_batch_size = 32innodb_old_blocks_pct = 75innodb_change_buffering = alltransaction_isolation = READ-COMMITTED

[mysqldump]quickmax_allowed_packet = 64M[mysql]no-auto-rehash[myisamchk]key_buffer_size = 32Msort_buffer_size = 256Kread_buffer = 2Mwrite_buffer = 2M[mysqlhotcopy]interactive-timeout[mysqld_safe]open-files-limit=28192[mysql]host=localhostuser=zabbixpassword=zabbixsocket=/tmp/mysql.sock[mysqladmin]host=localhostuser=zabbixpassword=zabbixsocket=/tmp/mysql.sock

mkdir -p /var/lib/mysql/tmpmkdir -p /var/lib/mysql/logschown -R mysql:mysql /var/lib/mysql

mysql_install_db --defaults-file=/etc/my.cnf --datadir=/var/lib/mysql/

service mysql startmysql> create database zabbix default charset utf8;

mysql> grant all on *.* to 'root'@'localhost' identified by '123456';

mysql> grant all on *.* to 'root'@'%' identified by '123456';

mysql> flush privileges;

3.2.3 安装zabbix

yum install zabbix-server-mysql zabbix-web-mysqlyum install zabbix-get

3.2.4 初始化zabbix数据库

cd /usr/share/doc/zabbix-server-mysql-2.4.5/create

[[email protected] create]# mysql -p123456 -uroot zabbix < schema.sql[[email protected] create]# mysql -p123456 -uroot zabbix < images.sql [[email protected] create]# mysql -p123456 -uroot zabbix < data.sql

3.2.5 修改zabbix server配置文件

cat /etc/zabbix/zabbix_server.confDBHost=localhostDBName=zabbixDBUser=rootDBPassword=123456

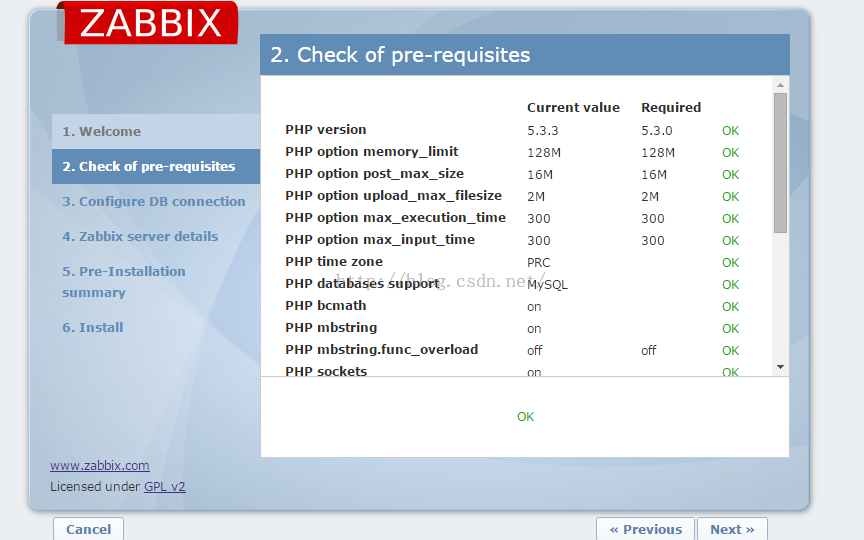

3.2.6 修改php配置文件

php_value max_execution_time 300php_value memory_limit 128Mphp_value post_max_size 16Mphp_value upload_max_filesize 2Mphp_value max_input_time 300date.timezone = PRC

3.2.7 启动服务

service zabbix-server startservivce httpd start

yum install zabbix-agentyum install zabbix-sender

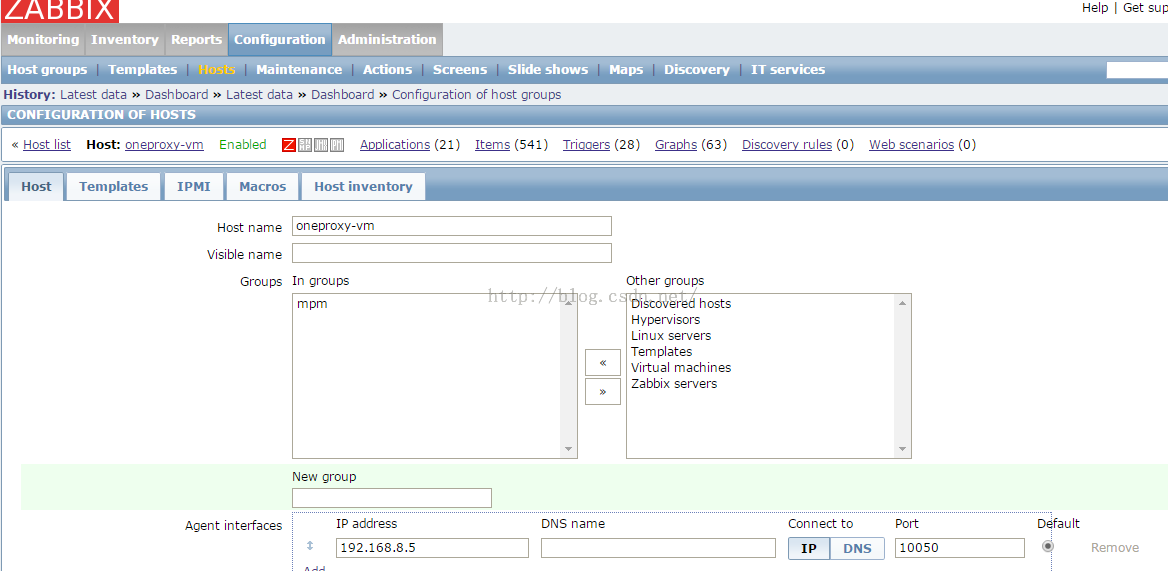

Server=192.168.8.3ServerActive=192.168.8.3Hostname=oneproxy-vm

4.2 MPM安装配置

4.2.1 安装依赖包

yum install perl-File-Which perl-libwww-perl perl-Digest-SHA perl-DBD-MySQL perl-Time-HiRes perl-Crypt-SSLeay

mv mysql_performance_monitor_agent-0.9.3 /opt/mysql_performance_monitor_agent

cd /opt/mysql_performance_monitor_agent/etccp FromDualMySQLagent.conf.template /etc/zabbix/FromDualMySQLagent.confmkdir -p /var/log/zabbix /var/log/zabbix/cachechown -R zabbix: /var/log/zabbix /var/log/zabbix/cache

UserParameter=FromDual.MySQL.check,/opt/mysql_performance_monitor_agent/FromDualMySQLagent.pl /etc/zabbix/FromDualMySQLagent.conf

[[email protected] zabbix]# cat /etc/zabbix/FromDualMySQLagent.conf[default]# Type of section:# mysqld for a normal MySQL database# ndbd   for a MySQL clusterType         = mysqld# Debug levels are:# 1 is logging only errors# 2 is logging errors and warnings (this is the default)# 3 logs some informations messages as well# 4 logs everything (for debugging purposes only)Debug         = 2LogFile       = /var/log/zabbix/FromDualMySQLagent.log# Directory where the Cache files should be written to:CacheFileBase = /var/log/zabbix/cache/FromDualAgentCache# If you agent is not located in the same time zone as your server# For US something like -6.0 to our MaaS Server# For Asia something like +7.0 to our MaaS Server# TimeShift = +0.0# Information for MySQL connections:Username     = rootPassword     = 123456MysqlHost    = 127.0.0.1MysqlPort    = 3306# Zabbix Server IP addressZabbixServer = 192.168.8.3

</pre><pre name="code" class="html"># If section is disabledDisabled     = false# Possible modules for databases are:# process mysql myisam aria innodb pbxt ndb master slave drbd galera memcache# Possible modules for servers are:# mpm server# Usual modules areModules      = process mysql myisam innodb[oneproxy-vm]          # This MUST match Hostname in Zabbix!Type         = mysqldUsername     = rootPassword     = 123456MysqlHost    = 127.0.0.1MysqlPort    = 3306Modules      = process mysql myisam innodbPidFile      = /data/mysql_3306/mysql.pid

chmod o+r /data/mysql_3306/mysql.pid

touch /var/log/zabbix/FromDualMySQLagent.log

chown -R zabbix:zabbix /var/log/zabbix

service zabbix-agent start
