基于tomcat和spring开发的个人博客， 服务器是基于tomcat， 用了spring框架， web.xml的配置简单明了，我们只要配置MYSQL和用户过滤器等， 服务器的jsp就是负责VIEW， 用户通过ajax请求， 与服务器进行交互， 编辑器使用了百度的UEeditor；；
数据表
数据库有四个表，一切基于数据进行展开， 用户表， 博客内容表， 博客评论表以及友情链接的表：
//用户表；CREATE TABLE `user` ( `username` varchar(20) NOT NULL DEFAULT '', `password` varchar(20) DEFAULT NULL, PRIMARY KEY (`username`)) ENGINE=InnoDB DEFAULT CHARSET=gb2312 COMMENT='用户';//博客内容表；CREATE TABLE `article` ( `Id` int(11) NOT NULL AUTO_INCREMENT, `title` varchar(50) DEFAULT NULL, `content` text, `username` varchar(50) DEFAULT NULL, `date` datetime DEFAULT NULL, PRIMARY KEY (`Id`), KEY `username` (`username`), CONSTRAINT `article_ibfk_1` FOREIGN KEY (`username`) REFERENCES `user` (`username`)) ENGINE=InnoDB AUTO_INCREMENT=7 DEFAULT CHARSET=gb2312 COMMENT='博客内容';//博客评论；CREATE TABLE `critique` ( `Id` int(11) NOT NULL AUTO_INCREMENT, `AId` int(11) DEFAULT NULL, `content` text, `username` varchar(50) DEFAULT NULL, PRIMARY KEY (`Id`), KEY `AId` (`AId`), CONSTRAINT `critique_ibfk_1` FOREIGN KEY (`AId`) REFERENCES `article` (`Id`)) ENGINE=InnoDB AUTO_INCREMENT=8 DEFAULT CHARSET=gb2312 COMMENT='博客评论';//友情链接的表CREATE TABLE `links` ( `name` varchar(20) NOT NULL DEFAULT '', `url` varchar(80) DEFAULT NULL) ENGINE=InnoDB DEFAULT CHARSET=gb2312 COMMENT='友情链接';
路由
首页的路由和用户的路由： 所有博客内容列表路由， 博客登录路由， 博客的详细内容路由， 写博客的路由， 比如登录路由和写博客的路由既包含post也包含get；
主界面路由 MainCon.java：
package com.nono.Controller;import java.util.ArrayList;import javax.naming.LinkRef;import javax.servlet.ServletRequest;import javax.servlet.ServletResponse;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import javax.servlet.http.HttpSession;import net.sf.jsqlparser.expression.operators.arithmetic.Addition;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Controller;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestMethod;import org.springframework.web.servlet.ModelAndView;import com.nono.Dao.GetLinks;import com.nono.Service.CompareUserService;import com.nono.Service.GetAllArticle;import com.nono.po.ArticlePo;import com.nono.po.Link;@Controllerpublic class MainCon { @Autowired CompareUserService compareUserService; @Autowired GetAllArticle getAllArticle; @Autowired GetLinks getLinks; @RequestMapping(value="index",method = RequestMethod.GET) public ModelAndView index(ServletRequest request, ServletResponse response) { ArrayList<ArticlePo> list = getAllArticle.getAll(); ModelAndView maView = new ModelAndView("list-index"); maView.addObject("list", list); maView.addObject("links", getLinks.getLinks()); ArrayList<Link> links = getLinks.getLinks(); return maView; } @RequestMapping(value="login",method = RequestMethod.GET) public String login(ServletRequest request, ServletResponse response) { return "login"; } @RequestMapping(value="login",method = RequestMethod.POST) public ModelAndView loginPost(HttpServletRequest request, HttpServletResponse response) { String nameString = (String)request.getParameter("username"); String password = (String)request.getParameter("password"); //获取session; HttpSession session = request.getSession(false); ModelAndView mav; Boolean boolean1 = compareUserService.isRightPassword(nameString, password); ArrayList<ArticlePo> list = getAllArticle.getAll(); if(boolean1 == true) { mav = new ModelAndView("list-index"); //设置用户名字为session; session.setAttribute("user", nameString); mav.addObject("list", list); mav.addObject("links", getLinks.getLinks()); }else{ mav = new ModelAndView("login"); mav.addObject("state", "密码错误"); }; mav.addObject("links", getLinks.getLinks()); return mav; } }
博客的详细内容和写博客的路由 ArticleCon.java：
package com.nono.Controller;import javax.servlet.ServletRequest;import javax.servlet.ServletResponse;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Controller;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestMethod;import org.springframework.web.bind.annotation.ResponseBody;import org.springframework.web.servlet.ModelAndView;import com.nono.Dao.AddArt;import com.nono.Dao.AddCommentDao;import com.nono.Dao.GetLinks;import com.nono.Service.GetArticalByIdService;import com.nono.po.ArticlePo;@Controller@RequestMapping ("user") public class ArticleCon { @Autowired GetArticalByIdService getArticalByIdSer; @Autowired AddCommentDao addCommentDao; @Autowired GetLinks getLinks; @Autowired AddArt addArt; @RequestMapping(value="add", method=RequestMethod.GET) public String addArticle(ServletRequest request, ServletResponse response) { return "addArticle"; } @RequestMapping(value="show", method=RequestMethod.GET) public ModelAndView showArticle(ServletRequest request, ServletResponse response) { ModelAndView mavAndView = new ModelAndView("showArticle"); int articalID = Integer.parseInt( request.getParameter("aid") ); ArticlePo articlePo = getArticalByIdSer.getByAid( articalID ); mavAndView.addObject("art", articlePo); mavAndView.addObject("coms", getArticalByIdSer.getComByAid(articalID)); mavAndView.addObject("links", getLinks.getLinks()); return mavAndView; } @RequestMapping(value="addComment",method=RequestMethod.POST) @ResponseBody public String post(ServletRequest request, ServletResponse response) { String string = "false"; String aid = request.getParameter("aid"); String name = request.getParameter("name"); String content = request.getParameter("content"); if(true == addCommentDao.addCommentDao(aid, name, content) ) { string = "true"; }; return string; } @RequestMapping(value="addArt",method=RequestMethod.POST) @ResponseBody public String addArt(ServletRequest request, ServletResponse response) { String string = "false"; String content = request.getParameter("content"); String title = request.getParameter("title"); if(true == addArt.addArt(title, content) ) { string = "true"; }; return string; } }

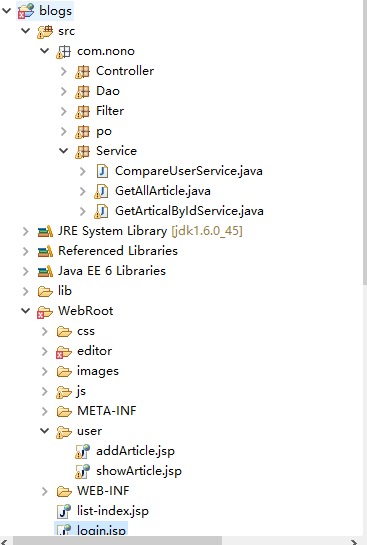

项目的结构如图：
web.xml和application-servlet.xml的配置：
<?xml version="1.0" encoding="UTF-8"?><web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"> <display-name></display-name> <welcome-file-list> <welcome-file>index.htm</welcome-file> </welcome-file-list> <servlet> <servlet-name>application</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>application</servlet-name> <url-pattern>*.do</url-pattern> </servlet-mapping> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- 使用Spring中的过滤器解决在请求和应答中的中文乱码问题 --> <filter> <filter-name>characterEncodingFilter</filter-name> <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class> <init-param> <param-name>encoding</param-name> <param-value>utf-8</param-value> </init-param> <init-param> <!-- 强制转换编码(request和response均适用) --> <param-name>ForceEncoding</param-name> <param-value>true</param-value> </init-param> </filter> <filter> <filter-name>SecurityServlet</filter-name> <filter-class>com.nono.Filter.UserFilter</filter-class> </filter> <filter-mapping> <filter-name>SecurityServlet</filter-name> <url-pattern>*.do</url-pattern> </filter-mapping> <context-param> <param-name> contextConfigLocation </param-name> <param-value> /WEB-INF/application-servlet.xml </param-value> </context-param></web-app>
<?xml version="1.0" encoding="UTF-8" ?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p" xmlns:context="http://www.springframework.org/schema/context" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:task="http://www.springframework.org/schema/task" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task-3.0.xsd"> <context:annotation-config> </context:annotation-config> <context:component-scan base-package="com.nono" > </context:component-scan> <bean name="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource"> <property name="driverClassName" value="com.mysql.jdbc.Driver" /> <property name="url" value="jdbc:mysql://127.0.0.1:3306/db_blog_" /> <property name="username" value="root" /> <property name="password" value="111111" /> </bean> <bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate" abstract="false" lazy-init="false" autowire="default"> <!-- 把这个bean传进去 --> <property name="dataSource" ref="dataSource"> </property> </bean> <bean id="jdbcDao" class="com.nono.Dao.JdbcDao"> <property name="jdbcTemplate" ref="jdbcTemplate"></property> </bean> <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="suffix"> <value>.jsp</value> </property> </bean></beans>

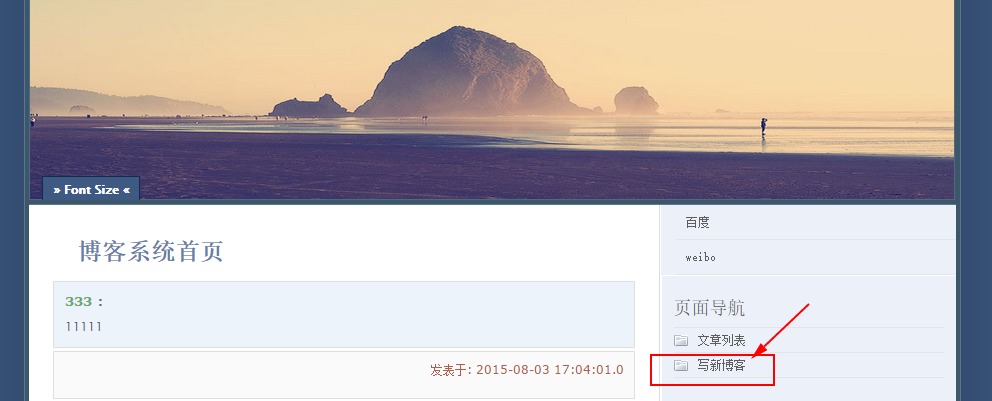

使用了Filter过滤器实现用户只有登录的情况下才能发布博客， 否则只能允许跳转到登录界面， 主界面如下：

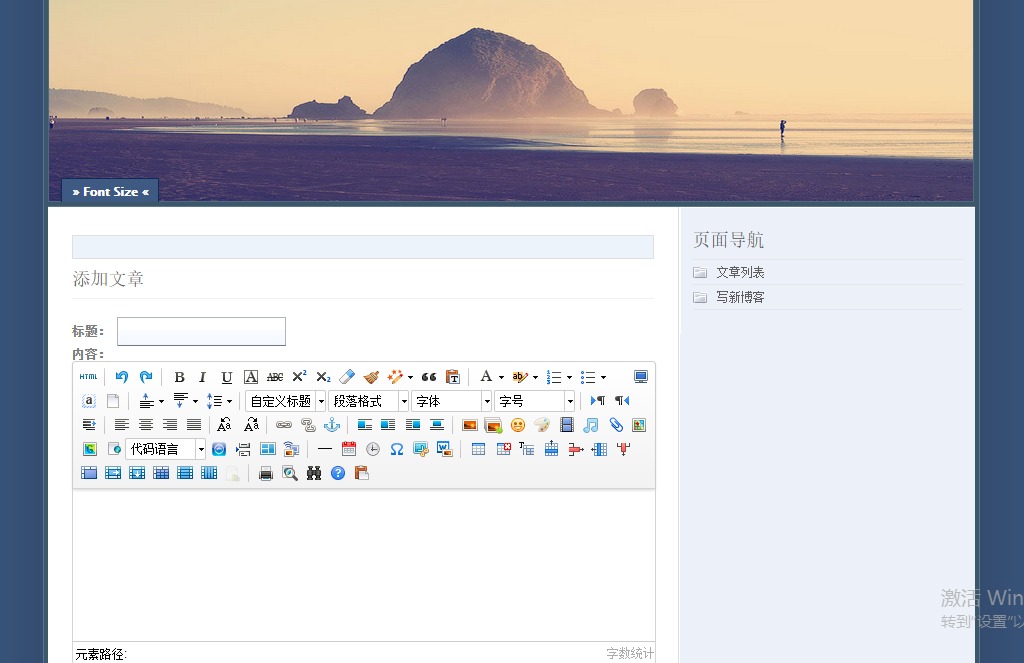

下面为静态界面， 包含登录页， 首页， 博客详细页， 添加博客页，( •? ω •? )y；
login.do:
<%@ page language="java" contentType="text/html; charset=utf-8"%><%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%><!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"><html xmlns="http://www.w3.org/1999/xhtml" lang="en" xml:lang="en"><head><title>博客系统登录</title><meta http-equiv="Content-Type" content="text/html; charset=utf-8" /><link type="text/css" rel="stylesheet" href="css/main.css" media="all" /><!--[if IE 6]><link type="text/css" rel="stylesheet" href="css/ie6.css" media="all" /><![endif]--><script type="text/javascript" src="js/mootools.js"></script><script type="text/javascript" src="js/site.js"></script></head><body><div id="wrapper"> <div id="container"> <div id="scene"> <img src="images/scene.jpg" alt="" /> <div id="scale_area"> <div id="scale_knob">» Font Size «</div> </div> </div> <div id="content"> <div id="col_left"> <div class="post"> <div class="meta"></div> <div class="comments"><div class="comment"></div> <h2>博客登录</h2> <form class="h" method="post"> <p> ${state} </p> <div> <label>用户名:</label> <input type="text" name="username" /> </div> <div> <label>密码:</label> <input type="password" name="password" /> </div> <div> <label></label> <div class="clear"> </div> </div> <div class="button_wrapper"> <input name="提交" type="submit" class="button" value="登录" /> </div> </form> </div> </div> </div> <div id="col_right"> <div id="links"> <c:forEach items="${links}" var="item"> <a href="${item.url}"> ${item.name} </a> </c:forEach> </div> <div id="sidebar"> <h2>页面导航</h2> <ul> <li class="holder"> <a href="index.do">文章列表</a> </li> <c:if test="${user==null}"> <li class="holder"> <a href="login.do">博客登录</a> </li> </c:if> <c:if test="${user!=null}"> <li class="holder"> <a href="user/add.do">写新博客</a> </li> </c:if> </ul> </div> </div> <div class="clear"> </div> </div> <div id="footer"> <div class="clear"> </div> <hr /> <p class="credit">博客网站系统</p> </div> </div></div></body></html>
index.do:
<%@ page language="java" contentType="text/html; charset=utf-8"%><%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%><!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"><html xmlns="http://www.w3.org/1999/xhtml" lang="en" xml:lang="en"><head><title>博客系统首页</title><meta http-equiv="Content-Type" content="text/html; charset=utf-8" /><link type="text/css" rel="stylesheet" href="css/main.css" media="all" /><!--[if IE 6]><link type="text/css" rel="stylesheet" href="css/ie6.css" media="all" /><![endif]--><script type="text/javascript" src="js/mootools.js"></script><script type="text/javascript" src="js/site.js"></script></head><body><div id="wrapper"> <div id="container"> <div id="scene"> <img src="images/scene.jpg" alt="" /> <div id="scale_area"> <div id="scale_knob">» Font Size «</div> </div> </div> <div id="content"> <div id="col_left"> <div class="post"> <div class="meta"><a class="title" href="">博客系统首页</a> <div class="clear"></div> </div> <!-- 循环输出 --> <c:forEach items="${list}" var="item"> <div class="comments"> <div class="comment"> <div class="meta"> <span><a href="user/show.do?aid=${item.id}">${item.title}</a> <small>:</small></span> <div class="clear"> </div> </div> <div> ${item.content} </div> </div> <div class="comment alt"> <div class="meta"><span class="datetime"> <!-- 发表时间 --> 发表于: ${item.date} </span> <div class="clear"> </div> </div> </div> </div> </c:forEach> </div> </div> <div id="col_right"> <div id="links"> <c:forEach items="${links}" var="item"> <a href="${item.url}"> ${item.name} </a> </c:forEach> </div> <div id="sidebar"> <h2>页面导航</h2> <ul> <li class="holder"> <a href="index.do">文章列表</a> </li> <c:if test="${user==null}"> <li class="holder"> <a href="login.do">博客登录</a> </li> </c:if> <c:if test="${user!=null}"> <li class="holder"> <a href="user/add.do">写新博客</a> </li> </c:if> </ul> </div> </div> <div class="clear"> </div> </div> <div id="footer"> <div class="clear"> </div> <hr /> <p class="credit">博客网站系统</p> </div> </div></div></body></html>
add.do:
<%@ page language="java" import="java.util.*" pageEncoding="utf-8"%><%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%><%String path = request.getContextPath();String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path;%><!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"><html xmlns="http://www.w3.org/1999/xhtml" lang="en" xml:lang="en"><head><title>添加文章</title><meta http-equiv="Content-Type" content="text/html; charset=utf-8" /><link type="text/css" rel="stylesheet" href="../css/main.css" media="all" /><script src="http://cdn.bootcss.com/jquery/1.9.0/jquery.js"></script><!--[if IE 6]><link type="text/css" rel="stylesheet" href="css/ie6.css" media="all" /><![endif]--><script type="text/javascript" src="../js/mootools.js"></script><script type="text/javascript" src="../js/site.js"></script><script type="text/javascript" charset="utf-8" src="<%=basePath%>/editor/ueditor.config.js"></script><script type="text/javascript" charset="utf-8" src="<%=basePath%>/editor/ueditor.all.min.js"> </script><!--建议手动加在语言，避免在ie下有时因为加载语言失败导致编辑器加载失败--><!--这里加载的语言文件会覆盖你在配置项目里添加的语言类型，比如你在配置项目里配置的是英文，这里加载的中文，那最后就是中文--><script type="text/javascript" charset="utf-8" src="<%=basePath%>/editor/lang/zh-cn/zh-cn.js"></script></head><body><div id="wrapper"> <div id="container"> <div id="scene"> <img src="../images/scene.jpg" alt="" /> <div id="scale_area"> <div id="scale_knob">» Font Size «</div> </div> </div> <div id="content"> <div id="col_left"> <div class="post"> <div class="meta"></div> <div class="comments"><div class="comment"></div> <h2>添加文章</h2> <div> <label>标题：</label> <input id="title" type="text" name="title" /> </div> <div> <label>内容：</label> <div> <script id="c" type="text/plain"></script> </div> </div> <div> <label></label> <div class="clear"> </div> </div> <div class="button_wrapper"> <input id="submit" name="提交" type="submit" class="button" value="提交" /> </div> <script> jQuery("#submit").click(function() { jQuery.post("addArt.do", {content:window.ue.getContent(), title: jQuery("#title").val()}, function( response ) { if(response === "true") { location.href = "../index.do"; } }); }); jQuery(function(){ window.ue = UE.getEditor('c'); }); </script> </div> </div> </div> <div id="col_right"> <div id="links"> <c:forEach items="${links}" var="item"> <a href="${item.url}"> ${item.name} </a> </c:forEach> </div> <div id="sidebar"> <h2>页面导航</h2> <ul> <li class="holder"> <a href="../index.do">文章列表</a> </li> <c:if test="${user==null}"> <li class="holder"> <a href="../login.do">博客登录</a> </li> </c:if> <c:if test="${user!=null}"> <li class="holder"> <a href="add.do">写新博客</a> </li> </c:if> </ul> </div> </div> <div class="clear"> </div> </div> <div id="footer"> <div class="clear"> </div> <hr /> <p class="credit">博客网站系统</p> </div> </div></div></body></html>
show.do:
<%@ page language="java" contentType="text/html; charset=utf-8"%><%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%><!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"><html xmlns="http://www.w3.org/1999/xhtml" lang="en" xml:lang="en"><head><title>我的文章</title><meta http-equiv="Content-Type" content="text/html; charset=utf-8" /><link type="text/css" rel="stylesheet" href="../css/main.css" media="all" /><!--[if IE 6]><link type="text/css" rel="stylesheet" href="css/ie6.css" media="all" /><![endif]--><script src="http://cdn.bootcss.com/jquery/1.9.0/jquery.js"></script><script type="text/javascript" src="../js/mootools.js"></script><script type="text/javascript" src="../js/site.js"></script></head><body><div id="wrapper"> <div id="container"> <div id="scene"> <img src="../images/scene.jpg" alt="" /> <div id="scale_area"> <div id="scale_knob">» Font Size «</div> </div> </div> <div id="content"> <div id="col_left"> <div class="post"> <div class="meta"> <a class="title" href="">${art.title}</a> <div class="clear"></div> <div class="blog_content"> ${art.content} </div> </div> <c:forEach items="${coms}" var="item"> <div class="comments"> <div class="comment"> <div class="meta"> <span> ${item.username}： ${item.content} </span> <div class="clear"> </div> </div> </div> </div> </c:forEach> <!-- 循环输出 --> <div class="clear"> </div> <div class="comment"> <h2>发表评论</h2> <div> <input id="c" type="text" value="" placeHolder="评论"/> <input id="n" type="text" value="匿名" placeHolder="您的名字"/> <br/> <br/> <div class="button_wrapper"> <input id="submit" name="提交" type="submit" class="button" value="提交" /> </div> </div> <script> $("submit").addEvent("click",function(ev) { jQuery.post("./addComment.do",{aid : location.href.substr(location.href.indexOf("aid")+4), name:jQuery("#n").val(), content:jQuery("#c").val()},function( res ){ if(res==="true") { location.reload(); }; }); }); </script> </div> </div> </div> <div id="col_right"> <div id="links"> <c:forEach items="${links}" var="item"> <a href="${item.url}"> ${item.name} </a> </c:forEach> </div> <div id="sidebar"> <h2>页面导航</h2> <ul> <li class="holder"> <a href="../index.do">文章列表</a> </li> <c:if test="${user==null}"> <li class="holder"> <a href="../login.do">博客登录</a> </li> </c:if> <c:if test="${user!=null}"> <li class="holder"> <a href="add.do">写新博客</a> </li> </c:if> </ul> </div> </div> <div class="clear"> </div> </div> <div id="footer"> <div class="clear"> </div> <hr /> <p class="credit">博客网站系统</p> </div> </div></body></html>
项目源代码分享到百度云盘，jar包等都全部导出了，可作为参考：打开
作者： NONO
出处：http://www.cnblogs.com/diligenceday/
QQ：287101329
