(五)配置jboss数据源_JBoss

(5)配置jboss数据源
     <jndi-name>itmDS</jndi-name>
    <connection-url>jdbc:mysql://localhost:3306/jbossdb</connection-url>
    <driver-class>com.mysql.jdbc.Driver</driver-class>
    <user-name>root</user-name>

F:\javaEEService\jboss-4.2.3.GA-jdk6\jboss-4.2.3.GA\docs\examples\jca--------mssql-ds.xml

<?xml version="1.0" encoding="UTF-8"?><!-- $Id: mysql-ds.xml 71535 2008-04-01 07:05:03Z adrian@jboss.org $ --><!--  Datasource config for MySQL using 3.0.9 available from:http://www.mysql.com/downloads/api-jdbc-stable--><datasources>  <local-tx-datasource>    <jndi-name>itmDS</jndi-name>    <connection-url>jdbc:mysql://localhost:3306/jbossdb</connection-url>    <driver-class>com.mysql.jdbc.Driver</driver-class>    <user-name>root</user-name>    <password>root</password>    <exception-sorter-class-name>org.jboss.resource.adapter.jdbc.vendor.MySQLExceptionSorter</exception-sorter-class-name>    <!-- should only be used on drivers after 3.22.1 with "ping" support    <valid-connection-checker-class-name>org.jboss.resource.adapter.jdbc.vendor.MySQLValidConnectionChecker</valid-connection-checker-class-name>    -->    <!-- sql to call when connection is created    <new-connection-sql>some arbitrary sql</new-connection-sql>      -->    <!-- sql to call on an existing pooled connection when it is obtained from pool - MySQLValidConnectionChecker is preferred for newer drivers    <check-valid-connection-sql>some arbitrary sql</check-valid-connection-sql>      -->    <!-- corresponding type-mapping in the standardjbosscmp-jdbc.xml (optional) -->    <metadata>       <type-mapping>mySQL</type-mapping>    </metadata>  </local-tx-datasource></datasources>

把修改好之后的mssql-ds.xml文件放到jboss的发布目录：

控制台打印：

12:15:49,718 INFO [ConnectionFactoryBindingService] Bound ConnectionManager 'jboss.jca:service=DataSourceBinding,name=itmDS' to JNDI name 'java:itmDS'

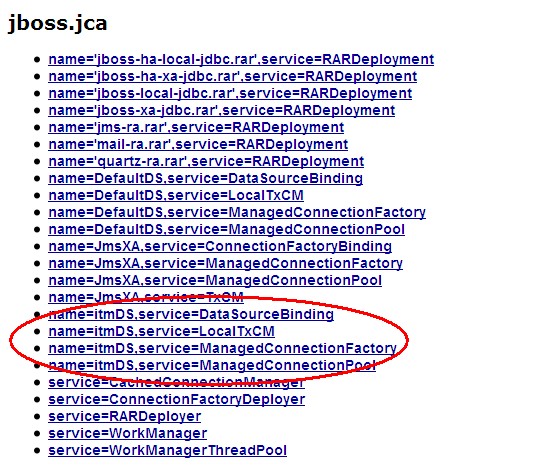

在浏览器上输入：http://localhost:8080/jmx-console/
