看图说话:把icesoft加入到jsf+spring+hibernate当中

????? 本文目的,轻松实现ajax组件式编程,并引用轻量级框架完成WEB应用.

????? 开发环境:myeclipse 6.01GA jave ee5? tomcat6.0

???? 组件版本:jsf1.2(呵呵) spring2.0 hibernate3.2 icesoft1.62

第一部分:集成环境测试

?????? 1下载icesoft for myeclipse plugin
????????? 地址: http://www.icefaces.org//main/downloads/os-downloads.iface??

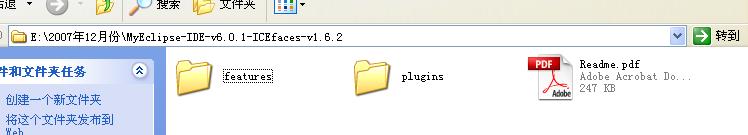

????????? 分别把features和plugins放在myeclipse相应的目录下:???????????

icesoft组件

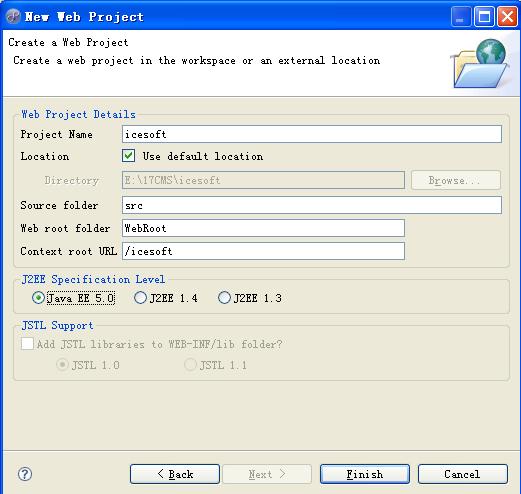

?????? 2)创建web project

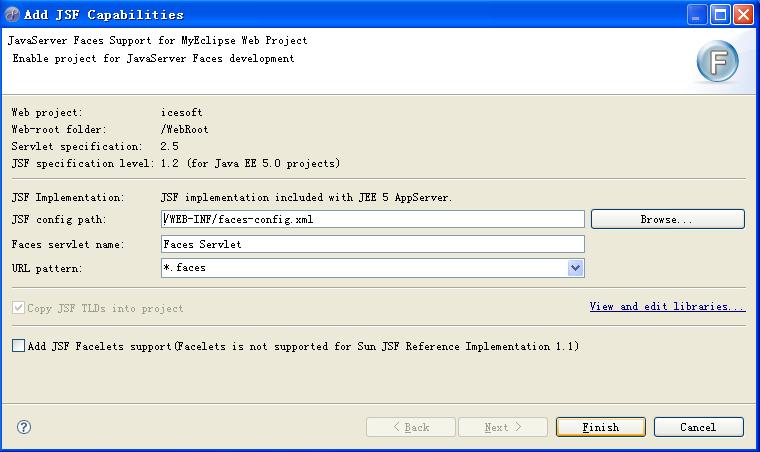

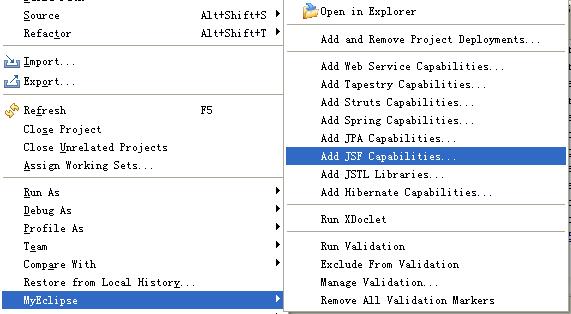

?????? 3)增加JSF框架

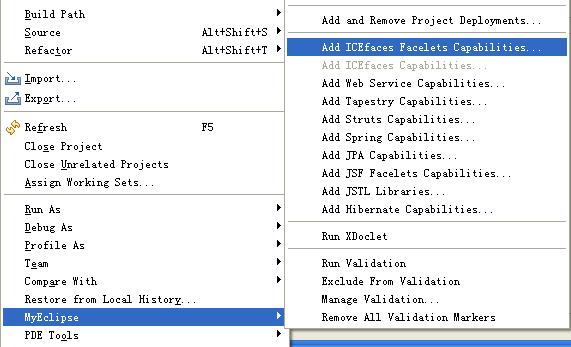

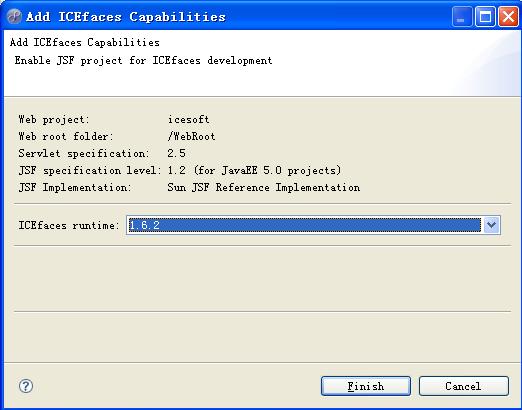

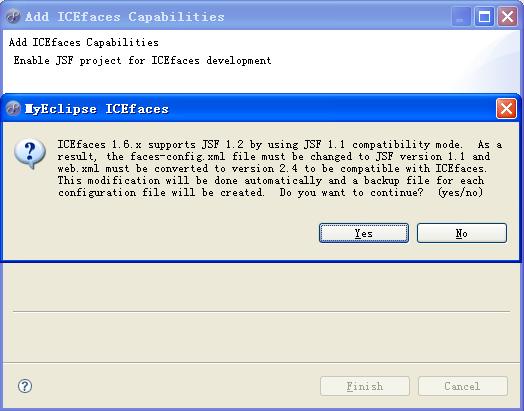

????? 4)加入icesoft组件

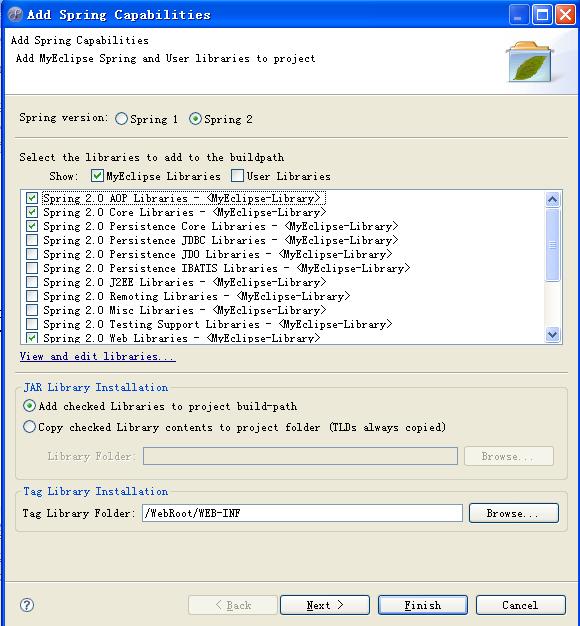

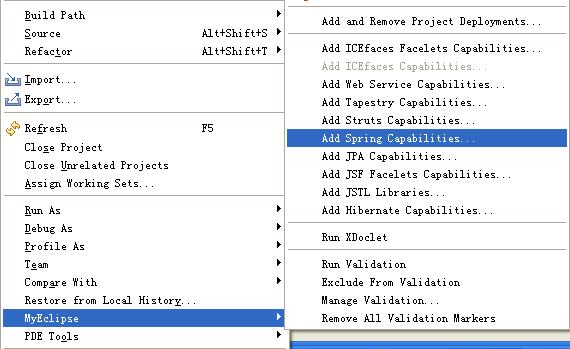

???? 5)加入SPRING框架

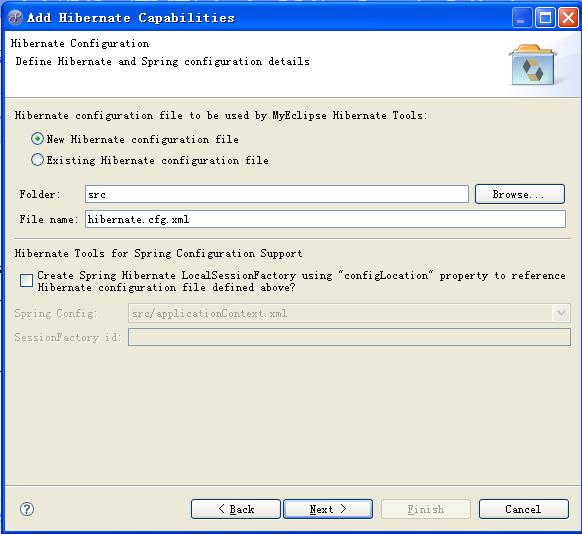

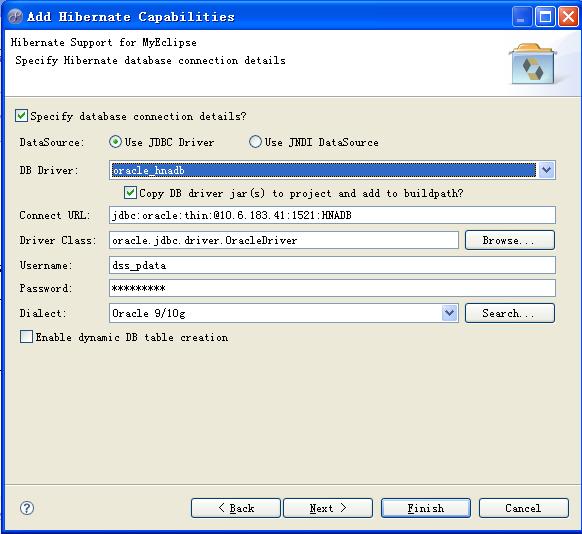

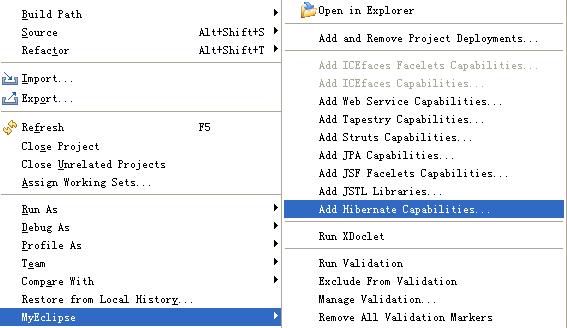

???? 6)加入hibernate框架

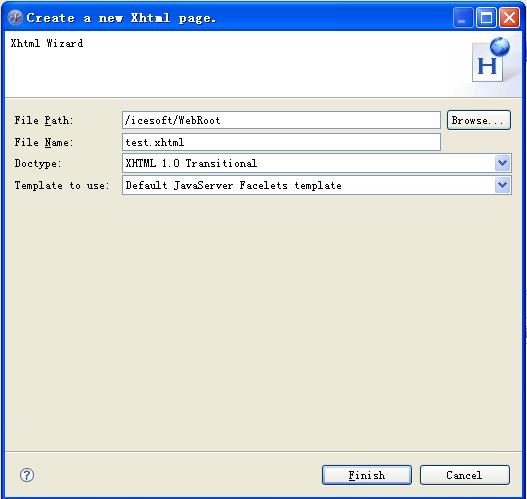

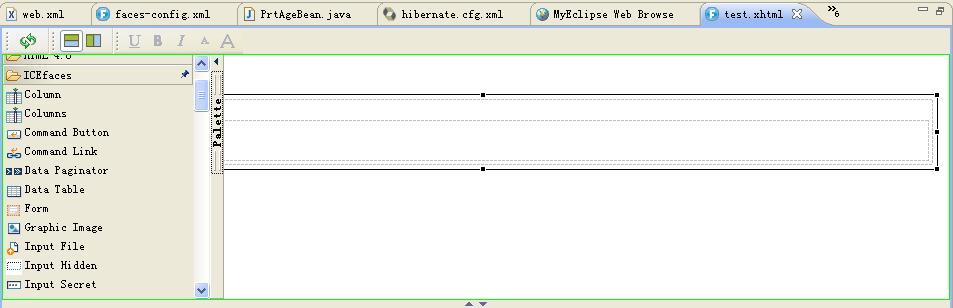

???? 7)创建一个xhtml页面

???? 8)测试,http://localhost:8090/icesoft/test.iface 可以通过.

第二部分:集成jsf+spring+hibernate

???? 程序基本组织形式:

所有代码见附件.

其中没有包括的代码列表如下:

faces-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE faces-config PUBLIC "-//Sun Microsystems, Inc.//DTD JavaServer Faces Config 1.1//EN" "http://java.sun.com/dtd/web-facesconfig_1_1.dtd">

<faces-config>
	<application>
		<variable-resolver>
			org.springframework.web.jsf.DelegatingVariableResolver
		</variable-resolver>
		<view-handler>
			com.icesoft.faces.facelets.D2DFaceletViewHandler
		</view-handler>
	</application>
	<managed-bean>
		<managed-bean-name>prtAgeBean</managed-bean-name>
		<managed-bean-class>
			com.antbee.hnds.action.PrtAgeBean
		</managed-bean-class>
		<managed-bean-scope>request</managed-bean-scope>
		<managed-property>
			<property-name>proAgencyDAO</property-name>
			<value>#{proAgencyDAO}</value>
		</managed-property>
	</managed-bean>
</faces-config>

?web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/j2ee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="2.4"
	xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd"
	id="hnds4">
	<servlet>
		<servlet-name>context</servlet-name>
		<servlet-class>
			org.springframework.web.context.ContextLoaderServlet
		</servlet-class>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:applicationContext.xml</param-value>
	</context-param>
	<context-param>
		<param-name>javax.faces.CONFIG_FILES</param-name>
		<param-value>/WEB-INF/faces-config.xml</param-value>
	</context-param>
	<context-param>
		<param-name>javax.faces.STATE_SAVING_METHOD</param-name>
		<param-value>server</param-value>
	</context-param>
	<context-param>
		<param-name>com.icesoft.faces.uploadDirectory</param-name>
		<param-value>upload</param-value>
	</context-param>
	<context-param>
		<param-name>com.icesoft.faces.uploadMaxFileSize</param-name>
		<param-value>4048576</param-value>
	</context-param>
	<context-param>
		<param-name>javax.faces.DEFAULT_SUFFIX</param-name>
		<param-value>.xhtml</param-value>
	</context-param>
	<listener>
		<listener-class>
			com.icesoft.faces.util.event.servlet.ContextEventRepeater
		</listener-class>
	</listener>
	<servlet>
		<servlet-name>Faces Servlet</servlet-name>
		<servlet-class>javax.faces.webapp.FacesServlet</servlet-class>
		<load-on-startup>0</load-on-startup>
	</servlet>
	<servlet>
		<servlet-name>Persistent Faces Servlet</servlet-name>
		<servlet-class>
			com.icesoft.faces.webapp.xmlhttp.PersistentFacesServlet
		</servlet-class>
		<load-on-startup>0</load-on-startup>
	</servlet>
	<servlet>
		<servlet-name>Blocking Servlet</servlet-name>
		<servlet-class>
			com.icesoft.faces.webapp.xmlhttp.BlockingServlet
		</servlet-class>
		<load-on-startup>0</load-on-startup>
	</servlet>
	<servlet>
		<servlet-name>uploadServlet</servlet-name>
		<servlet-class>
			com.icesoft.faces.component.inputfile.FileUploadServlet
		</servlet-class>
		<load-on-startup>0</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>Persistent Faces Servlet</servlet-name>
		<url-pattern>*.faces</url-pattern>
	</servlet-mapping>
	<servlet-mapping>
		<servlet-name>Persistent Faces Servlet</servlet-name>
		<url-pattern>/xmlhttp/*</url-pattern>
	</servlet-mapping>
	<servlet-mapping>
		<servlet-name>Persistent Faces Servlet</servlet-name>
		<url-pattern>*.iface</url-pattern>
	</servlet-mapping>
	<servlet-mapping>
		<servlet-name>Blocking Servlet</servlet-name>
		<url-pattern>/block/*</url-pattern>
	</servlet-mapping>
	<servlet-mapping>
		<servlet-name>uploadServlet</servlet-name>
		<url-pattern>/uploadHtml</url-pattern>
	</servlet-mapping>
	<welcome-file-list>
		<welcome-file>index.jsp</welcome-file>
	</welcome-file-list>
	<!--Tomcat 5 Workaround: Listener used to initialize JSF on startup-->
	<!--Remove comment tags to enable listener.
		<listener>
		<listener-class>com.sun.faces.config.ConfigureListener</listener-class>
		</listener>
	-->
	<!--Tomcat 5 Workaround: Listener implementation to handle web application lifecycle event-->
	<!--Remove comment tags to enable listener.
		<listener>
		<listener-class>com.sun.faces.application.WebappLifecycleListener</listener-class>
		</listener>
	-->
</web-app>

?test2.html

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml"
	xmlns:ui="http://java.sun.com/jsf/facelets"
	xmlns:h="http://java.sun.com/jsf/html"
	xmlns:f="http://java.sun.com/jsf/core"
	xmlns:ice="http://www.icesoft.com/icefaces/component">
	<head>
		<title>My Facelets Page</title>
		<ice:outputStyle rel='stylesheet' type='text/css'
		 href='xmlhttp/css/xp/xp.css' />
		<meta http-equiv="content-type" content="text/html; charset=UTF-8" />
	</head>
	<body>
		<f:view>
			<ice:form partialSubmit="true">
				<ice:dataTable border="1" var="u" value="#{prtAgeBean.agency}"
					id="data" rows="10">
					<f:facet name="header">
						<ice:outputText value="机票代理人基本信息列表"></ice:outputText>
					</f:facet>
					<ice:column id="column1">
						<ice:rowSelector></ice:rowSelector>
						<f:facet name="header">
							<ice:outputText value="代理号"></ice:outputText>
						</f:facet>
						<ice:outputText value="#{u.id.offcIataCd}"></ice:outputText>

					</ice:column>
					<ice:column id="column2">
						<f:facet name="header">
							<ice:outputText value="Office号"></ice:outputText>
						</f:facet>
						<ice:outputText value="#{u.id.offcCd}"></ice:outputText>

					</ice:column>
					<ice:column id="column3">
						<f:facet name="header">
							<ice:outputText value="中文名称"></ice:outputText>
						</f:facet>
						<ice:outputText value="#{u.id.offcChnNm}"></ice:outputText>
					</ice:column>
					<ice:column id="column4">
						<f:facet name="header">
							<ice:outputText value="英文名称"></ice:outputText>
						</f:facet>
						<ice:outputText value="#{u.id.offcEngNm}"></ice:outputText>
					</ice:column>
					<ice:column id="column5">
						<f:facet name="header">
							<ice:outputText value="分布系统"></ice:outputText>
						</f:facet>
						<ice:outputText value="#{u.id.ttlSysCd}"></ice:outputText>
					</ice:column>
					<f:facet name="footer">
						<ice:outputText value="共有#{prtAgeBean.agency.rowCount}条记录!"></ice:outputText>
					</f:facet>
				</ice:dataTable>

			<ice:panelGrid border="1" columns="1" styleClass="scrollerTable2" columnClasses="standardTable_ColumnCentered" style="width: 552px; ">
				<ice:dataPaginator for="data" fastStep="10" pageCountVar="pageCount"
					pageIndexVar="pageIndex" paginator="true" paginatorMaxPages="9">
					<f:facet name="first">
						<ice:graphicImage style="border:none;"
							url="xmlhttp/css/xp/css-images/arrow-first.gif"></ice:graphicImage>
					</f:facet>
					<f:facet name="last">
						<ice:graphicImage style="border:none;"
							url="xmlhttp/css/xp/css-images/arrow-last.gif"></ice:graphicImage>
					</f:facet>
					<f:facet name="previous">
						<ice:graphicImage style="border:none;"
							url="xmlhttp/css/xp/css-images/arrow-previous.gif"></ice:graphicImage>
					</f:facet>
					<f:facet name="next">
						<ice:graphicImage style="border:none;"
							url="xmlhttp/css/xp/css-images/arrow-next.gif"></ice:graphicImage>
					</f:facet>
					<f:facet name="fastforward">
						<ice:graphicImage style="border:none;"
							url="xmlhttp/css/xp/css-images/arrow-ff.gif"></ice:graphicImage>
					</f:facet>
					<f:facet name="fastrewind">
						<ice:graphicImage style="border:none;"
							url="xmlhttp/css/xp/css-images/arrow-fr.gif"></ice:graphicImage>
					</f:facet>
				</ice:dataPaginator>

			</ice:panelGrid>
			</ice:form>
		</f:view>
	</body>
</html>
