jsp课程（7）---jsp+servlet+javabean 实现的简单网上购物车

简单购物车案例（附源码）

下面具体流程，很多功能都还未完善，之后会实现更多功能，例如分页，付款等敬请期待

使用jsp的MVC模型开发购物车（jsp+servlet+javabean）

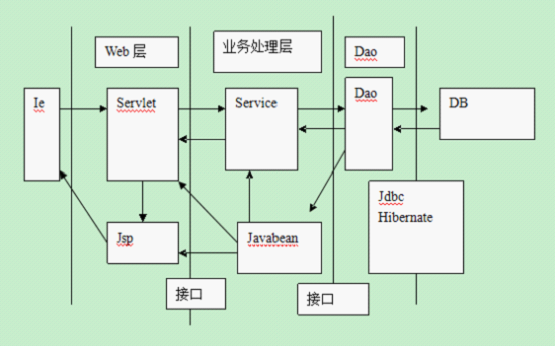

必须有三层架构思想：web层负责与用户打交道业务处理层（服务层 service）数据访问层（dao）

1.搭建开发环境

1）导入开发包：jdbc驱动（jstl的jar包）

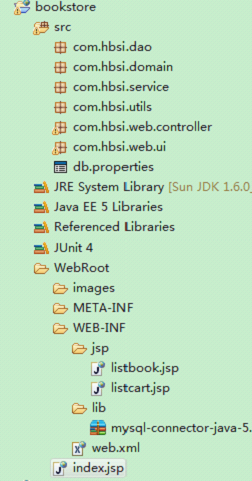

2）创建程序所在的包，如下：

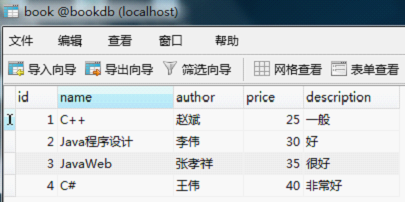

3）在MYSQL下创建库和表字段有：book，name，author，price，description

2.编码

1)开发实体类bean：Book

2) 开发dao （创建工具类）

3) 开发service

4) web层

3.实现效果如下：

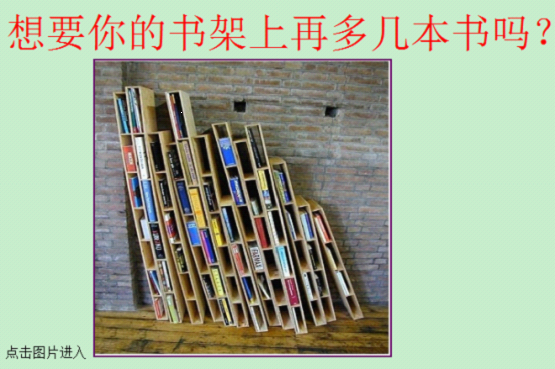

1）在浏览器输入：http://localhost:8080/bookstore/后如下图：

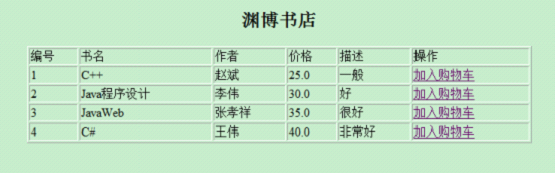

2）进入后显示图书列表

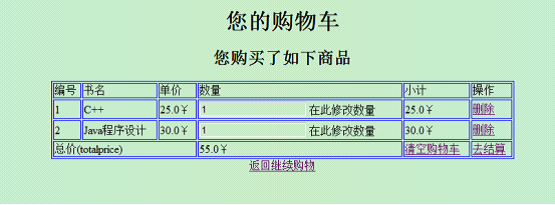

3）加入两种书进入购物车后

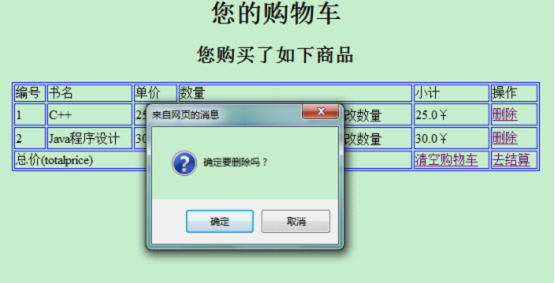

4）当点击删除后

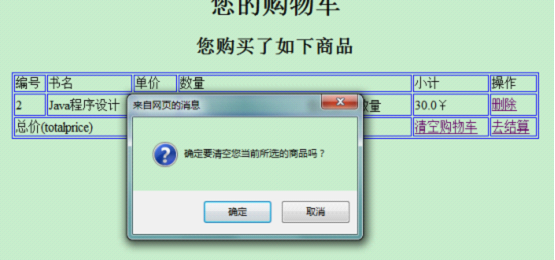

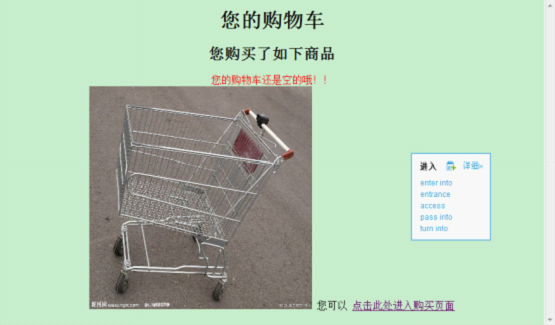

5）点击清空购物车后

6）结算功能还未实现

4.附源码：

//BookDao.java
package com.hbsi.dao;

import java.util.List;

import com.hbsi.domain.Book;

public interface BookDao {

	//获取所有的书
	public List<Book> getAll();

	//根据id获取书
	public Book find(String id);

}

//BookDaoImpl.java

package com.hbsi.dao;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.util.ArrayList;
import java.util.List;

import com.hbsi.domain.Book;
import com.hbsi.utils.DBManager;

public class BookDaoImpl implements BookDao{

	@Override
	public Book find(String id) {
		Connection conn = null;
		PreparedStatement pt = null;
		ResultSet rs = null;

		try {
			conn = DBManager.getConnection();
			String sql = "select * from book where id=?";
			pt = conn.prepareStatement(sql);

			pt.setString(1, id);

			rs = pt.executeQuery();
			//Book b = null;
			if(rs.next()){
				Book b = new Book();
				b.setId(rs.getString("id"));
				b.setName(rs.getString("name"));
				b.setAuthor(rs.getString("author"));
				b.setPrice(rs.getDouble("price"));
				b.setDescription(rs.getString("description"));
				return b;

			}
			return null;


		} catch (Exception e) {
			throw new RuntimeException(e);

		} finally {
			DBManager.closeDB(conn, pt, rs);
		}
	}

	@Override
	public List<Book> getAll() {
		Connection conn = null;
		PreparedStatement pt = null;
		ResultSet rs = null;

		try {
			conn = DBManager.getConnection();
			String sql = "select id,name,author,price,description from book";
			pt = conn.prepareStatement(sql);
			rs = pt.executeQuery();

			List<Book> list = new ArrayList<Book>();

			while (rs.next()) {
				Book b = new Book();
				b.setId(rs.getString("id"));
				b.setName(rs.getString("name"));
				b.setAuthor(rs.getString("author"));
				b.setPrice(rs.getDouble("price"));
				b.setDescription(rs.getString("description"));

				list.add(b);

			}
			return list;

		} catch (Exception e) {
			throw new RuntimeException(e);

		} finally {
			DBManager.closeDB(conn, pt, rs);
		}

	}

}

//Book.java
package com.hbsi.domain;

public class Book {
	private String id;
	private String name;
	private String author;
	private double price;
	private String description;
	public String getId() {
		return id;
	}
	public void setId(String id) {
		this.id = id;
	}
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public String getAuthor() {
		return author;
	}
	public void setAuthor(String author) {
		this.author = author;
	}
	public double getPrice() {
		return price;
	}
	public void setPrice(double price) {
		this.price = price;
	}
	public String getDescription() {
		return description;
	}
	public void setDescription(String description) {
		this.description = description;
	}

}

//Cart.java
package com.hbsi.domain;

import java.util.LinkedHashMap;
import java.util.Map;

public class Cart {
	private Map<String,CartItem> map=new LinkedHashMap<String,CartItem>();
	private double price;//所有购物项的价格总计

	public void add(Book book){
		CartItem item=map.get(book.getId());
		if(item!=null){
			item.setQuantity(item.getQuantity()+1);
		}else{
			item=new CartItem();
			item.setBook(book);
			item.setQuantity(1);
			//把新的购物项添加到map集合中
			map.put(book.getId(),item);
		}
	}
	public Map<String, CartItem> getMap() {
		return map;
	}
	public void setMap(Map<String, CartItem> map) {
		this.map = map;
	}
	public double getPrice() {
		double totalprice=0;
		for(Map.Entry<String, CartItem> me:map.entrySet()){
			CartItem item=me.getValue();
			totalprice+=item.getPrice();
		}
		this.price=totalprice;
		return price;
	}
	public void setPrice(double price) {
		this.price = price;
	}
}

//CartItem.java
package com.hbsi.domain;
//用于代表购买的商品（书）。包括书的数量。（购物项，购物车的一行）
public class CartItem {
	private Book book;
	private int quantity;
	private double price;//对此类书的价格计算（小计）
	public Book getBook() {
		return book;
	}
	public void setBook(Book book) {
		this.book = book;
	}
	public int getQuantity() {
		return quantity;
	}
	public void setQuantity(int quantity) {
		this.quantity = quantity;
		this.price=this.book.getPrice()*this.quantity;//书的单价乘以数量
	}
	public double getPrice() {

		return price;
	}
	public void setPrice(double price) {
		this.price = price;
	}

}

//BusinessService.java
package com.hbsi.service;

import java.util.List;

import com.hbsi.domain.Book;
import com.hbsi.domain.Cart;

public interface BusinessService {
	public List<Book> getAllBook();
	//获取指定id的书
	public Book findBook(String id);
//删除购物项
	public void deleteCartItem(String sid, Cart cart);
	//清空购物车
	public void clearCart(Cart cart);
	//改变数量
	public void changeQuantity(String sid, String quantity, Cart cart);

}

//BusinessServiceImpl.java
package com.hbsi.service;

import java.util.List;

import com.hbsi.dao.BookDao;
import com.hbsi.dao.BookDaoImpl;
import com.hbsi.domain.Book;
import com.hbsi.domain.Cart;
import com.hbsi.domain.CartItem;

public class BusinessServiceImpl implements BusinessService{
BookDao dao=new BookDaoImpl();
	@Override
	public List<Book> getAllBook() {

		return dao.getAll();
	}


	@Override
	public void deleteCartItem(String sid, Cart cart) {

		cart.getMap().remove(sid);
	}


	@Override
	public Book findBook(String id) {

		return dao.find(id);
	}


	@Override
	public void clearCart(Cart cart) {
		cart.getMap().clear();

	}


	@Override
	public void changeQuantity(String sid, String quantity, Cart cart) {
		CartItem item=cart.getMap().get(sid);
		item.setQuantity(Integer.parseInt(quantity));

	}


}

//db.properties
driver=com.mysql.jdbc.Driver
url=jdbc:mysql://localhost:3306/bookdb
username=root
password=root

//BuyServlet.java
package com.hbsi.web.controller;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.hbsi.domain.Book;
import com.hbsi.domain.Cart;
import com.hbsi.service.BusinessServiceImpl;

public class BuyServlet extends HttpServlet {
	BusinessServiceImpl service=new BusinessServiceImpl();
	public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		//1.获取要买的书
		String sid=request.getParameter("id");
		Book book =service.findBook(sid);
		//2.得到购物车
		Cart cart=(Cart)request.getSession().getAttribute("cart");
		if(cart==null){
			cart=new Cart();
			request.getSession().setAttribute("cart", cart);
		}
		//3.把数添加到购物车中
		cart.add(book);
		response.sendRedirect("./ListCartServlet");
		//request.getRequestDispatcher("/WEB-INF/jsp/listcart.jsp").forward(request, response);


	}

	public void doPost(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		doGet(request, response);
	}

}

//ChangeQuantitySevlet.java
package com.hbsi.web.controller;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.hbsi.domain.Cart;
import com.hbsi.service.BusinessService;
import com.hbsi.service.BusinessServiceImpl;

public class ChangeQuantitySevlet extends HttpServlet {

	public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		String sid = request.getParameter("id");
		String quantity = request.getParameter("quantity");

		Cart cart = (Cart) request.getSession().getAttribute("cart");

		BusinessService service = new BusinessServiceImpl();
		service.changeQuantity(sid,quantity,cart);

		request.getRequestDispatcher("/WEB-INF/jsp/listcart.jsp").forward(request, response);

	}

	public void doPost(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		doGet(request, response);
	}

}

//ClearCartServlet.java
package com.hbsi.web.controller;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.hbsi.domain.Cart;
import com.hbsi.service.BusinessService;
import com.hbsi.service.BusinessServiceImpl;

public class ClearCartServlet extends HttpServlet {
	BusinessService service=new BusinessServiceImpl();
	public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		Cart cart=(Cart) request.getSession().getAttribute("cart");
		service.clearCart(cart);

		request.getRequestDispatcher("/WEB-INF/jsp/listcart.jsp").forward(request, response);
	}

	public void doPost(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		doGet(request, response);
	}

}

//DeleteItemServlet.java
package com.hbsi.web.controller;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.hbsi.domain.Cart;
import com.hbsi.service.BusinessService;
import com.hbsi.service.BusinessServiceImpl;

public class DeleteItemServlet extends HttpServlet {
	//调服务类里边的方法从购物项里删除想要删除的书
	BusinessService service=new BusinessServiceImpl();

	public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		//获取到购物项
		String sid=request.getParameter("id");
		Cart cart=(Cart)request.getSession().getAttribute("cart");


		service.deleteCartItem(sid,cart);
		request.getRequestDispatcher("/WEB-INF/jsp/listcart.jsp").forward(request, response);

	}

	public void doPost(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		doGet(request, response);
	}

}

//ListBookServlet.java
package com.hbsi.web.controller;

import java.io.IOException;
import java.util.List;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.hbsi.domain.Book;
import com.hbsi.service.BusinessService;
import com.hbsi.service.BusinessServiceImpl;

public class ListBookServlet extends HttpServlet {
	BusinessService service=new BusinessServiceImpl();
	public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {


			List<Book> list=service.getAllBook();
			request.setAttribute("books", list);

			request.getRequestDispatcher("../WEB-INF/jsp/listbook.jsp").forward(request, response);

	}

	public void doPost(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		doGet(request, response);
	}

}

//ListCartServlet.java
package com.hbsi.web.ui;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class ListCartServlet extends HttpServlet {

	public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		request.getRequestDispatcher("/WEB-INF/jsp/listcart.jsp").forward(request, response);
	}

	public void doPost(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		doGet(request, response);
	}

}

//listbook.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
  <head>


    <title>My JSP 'listbook.jsp' starting page</title>



  </head>

  <body style="text-align:center">
    <h2>渊博书店</h2>

      <table border="1" width="80%">
        <tr>
           <td>编号</td>
           <td>书名</td>
           <td>作者</td>
           <td>价格</td>
           <td>描述</td>
           <td>操作</td>
        </tr>
        <c:forEach var="book" items="${books}">
          <tr>
          <td>${book.id}</td>
           <td>${book.name}</td>
           <td>${book.author}</td>
           <td>${book.price}</td>
           <td>${book.description}</td>
           <td>
               <a href="${pageContext.request.contextPath}/servlet/BuyServlet?id=${book.id}">加入购物车</a>

           </td>

          </tr>

        </c:forEach>



      </table>
  </body>
</html>



//listcart.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
  <head>


    <title>My JSP 'listbook.jsp' starting page购物显示页面</title>
    <script type="text/javascript">
    	function deleteItem(id){
    	var  b = window.confirm("确定要删除吗？");
           if(b){
				window.location.href="${pageContext.request.contextPath}/servlet/DeleteItemServlet?id="+id;
           }
    	}
    	function clearcart(){
    	var  b = window.confirm("确定要清空您当前所选的商品吗？");
           if(b){
				window.location.href="${pageContext.request.contextPath}/servlet/ClearCartServlet";
           }
    	}
    function changequantity(input,id,oldvalue){
           //得到修改的数量
          var quantity = input.value;

          //判断是否是正整数
          if(quantity<0 || quantity!=parseInt(quantity)){
                 alert("请输入正整数！！");
                 input.value=oldvalue;
                 return;
          }
           var  b = window.confirm("确定要将数量修改为："+quantity);
           if(b){
				window.location.href="${pageContext.request.contextPath}/servlet/ChangeQuantitySevlet?id="+id+"&quantity="+quantity;
           }

       }

    </script>



  </head>

  <body style="text-align:center">
  <h1> 您的购物车</h1>
    <h2>您购买了如下商品</h2>
    <c:if test="${empty cart.map}">
 <font color="red">您的购物车还是空的哦！！</font><br/>
  <img src="../images/gouwuche.jpg" width="350" height="350"/>
    您可以
    <a href="${pageContext.request.contextPath}/servlet/ListBookServlet">点击此处进入购买页面</a>
    </c:if>
    <c:if test="${!empty cart.map}">
      <table border="1" width="80%" bordercolor="blue">
        <tr>
           <td>编号</td>
           <td>书名</td>
           <td>单价</td>
           <td>数量</td>
           <td>小计</td>
           <td>操作</td>
        </tr>
        <c:forEach var="me" items="${cart.map}">
          <tr>
          <td>${me.key}</td>
           <td>${me.value.book.name}</td>
           <td>${me.value.book.price}￥</td>
           <td>
          <input type="text" name="quantity" value="${me.value.quantity}" onchange="changequantity(this,${me.key},${me.value.quantity})"/>
          在此修改数量
           </td>
           <td>${me.value.price}￥</td>

           <td>
           		<a href="javascript:deleteItem(${me.key })" >删除</a>
           		  <!--<a href="javascript:void(0)" onclick="deleteItem(${me.key })">删除</a>-->
               <!--<a href="${pageContext.request.contextPath}/servlet/DeleteItemServlet?id=${me.key}">删除</a>-->

           </td>

          </tr>

        </c:forEach>
        <tr>
        	<td colspan="3">总价(totalprice)</td>
        	<td colspan="1">${cart.price }￥</td>
        	<td>
        		  <!--<a href="${pageContext.request.contextPath}/servlet/ClearCartServlet">清空购物车</a>-->
        		<a href="javascript:clearcart()">清空购物车</a>
        	</td>
        	 <td> <a href="javascript:pay()">去结算</a></td>
        </tr>

      </table>
      <a href="${pageContext.request.contextPath}/servlet/ListBookServlet">返回继续购物</a>
       </c:if>
  </body>
</html>


//index.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
  <head>
    <base href="<%=basePath%>">

    <title>网上购物首页</title>

  </head>
  <body>
  <font color="red" size="15px">   想要你的书架上再多几本书吗？</font><br/>点击图片进入

    <a href="${pageContext.request.contextPath}/servlet/ListBookServlet"> <img src="./images/book.jpg" width="350" height="350"/>  </a>
  </body>
</html>

//DBConn.java

package com.hbsi.utils;

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;

public class DBConn {
	private static Connection conn=null;
	public static Connection getConn(){
		if(conn==null){
			try {
				Class.forName("com.mysql.jdbc.Driver");
				try {
					conn=DriverManager.getConnection("jdbc:mysql://localhost:3306/bookdb?user=root&password=root&useUnicode=true&characterEncoding=UTF-8");
				} catch (SQLException e) {
					// TODO Auto-generated catch block
					e.printStackTrace();
				}
			} catch (ClassNotFoundException e) {
				// TODO Auto-generated catch block
				e.printStackTrace();
			}
		}


		return conn;

	}
	public static void realse(ResultSet rs, PreparedStatement pstmt) {
		if(rs!=null){
			try {
				rs.close();
			} catch (SQLException e) {
				// TODO Auto-generated catch block
				e.printStackTrace();
			}
		}
		if(pstmt!=null){
			try {
				pstmt.close();
			} catch (SQLException e) {
				// TODO Auto-generated catch block
				e.printStackTrace();
			}
		}
	}


}

//DBManager.java

package com.hbsi.utils;

import java.io.IOException;
import java.io.InputStream;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.Properties;

public class DBManager {

	/**
	 * @param args
	 */
	static String driver;
	static String url;
	static String username;
	static String password;


	static{
		InputStream in=DBManager.class.getClassLoader().getResourceAsStream("db.properties");
		Properties pro=new Properties();
		try {
			pro.load(in);
		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}

		driver = pro.getProperty("driver");

		url = pro.getProperty("url");

		username = pro.getProperty("username");

		password = pro.getProperty("password");
		try {
			Class.forName(driver);
		} catch (ClassNotFoundException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}

	}
	public static Connection getConnection(){
		Connection con=null;


		try {
			con=DriverManager.getConnection(url,username,password);

		} catch (SQLException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
		return con;

	}

	public static void closeDB(Connection con,Statement st,ResultSet rs){
		if(rs!=null){
			try {
				rs.close();
			} catch (SQLException e) {
				// TODO Auto-generated catch block
				e.printStackTrace();
			}
		}
		if(st!=null){
			try {
				st.close();
			} catch (SQLException e) {
				// TODO Auto-generated catch block
				e.printStackTrace();
			}
		}
		if(con!=null){
			try {
				con.close();
			} catch (SQLException e) {
				// TODO Auto-generated catch block
				e.printStackTrace();
			}
		}

	}


	public static void main(String[] args) {
		getConnection();



}
}

声明：此博客内容和百度文库中的内容一样都是我自己的点击打开链接，百度文库中没有DBConn.java和DBManager.java

jsp课程（7）-jsp+servlet+javabean 实现的简单网下购物车
