自定义ExtJS控件之Ext下拉树跟Ext下拉表格

热度:214   发布时间:2013-10-16 11:29:46.0
自定义ExtJS控件之Ext下拉树和Ext下拉表格

简介


在Ext官方的例子中只有下拉列表控件,但是在实际业务中只有下拉列表无法满足需求的,像下拉树和下拉表格都是很常见的控件,对于刚使用Ext的人来说,自定义一个控件好难,其实多读官方的源码有些事情就不会那么难了。下面是下拉树的代码:
Ext.define('ComboTreeBox',{
	extend : 'Ext.form.field.ComboBox',

	multiSelect : true,

	createPicker : function(){
		var me = this;

		//创建树控件
		var picker = Ext.create('Ext.tree.Panel', {
		    store: me.store,
		    rootVisible: false,
		     selModel: {
                    mode: me.multiSelect ? 'SIMPLE' : 'SINGLE'
                },
		    floating: true,
            hidden: true,
            focusOnToFront: false
		});
		//注册事件用于选择用户选择的值
		me.mon(picker, {
            itemclick: me.onItemClick,
            refresh: me.onListRefresh,
            scope: me
        });

        me.mon(picker.getSelectionModel(), {
            beforeselect: me.onBeforeSelect,
            beforedeselect: me.onBeforeDeselect,
            selectionchange: me.onListSelectionChange,
            scope: me
        });
		this.picker = picker;
		return picker;
	},

	onItemClick: function(picker, record){
        /*
         * If we're doing single selection, the selection change events won't fire when
         * clicking on the selected element. Detect it here.
         */
        var me = this,
            selection = me.picker.getSelectionModel().getSelection(),
            valueField = me.valueField;

        if (!me.multiSelect && selection.length) {
            if (record.get(valueField) === selection[0].get(valueField)) {
                // Make sure we also update the display value if it's only partial
                me.displayTplData = [record.data];
                me.setRawValue(me.getDisplayValue());
                me.collapse();
            }
        }
    }
});
下拉树的代码很简单,只要集成Ext.form.field.ComboBox类,然后重写createPicker方法就可以了,同理下拉表格也是如此,下面是下拉表格的代码:
Ext.define('ComboGridBox',{
	extend : 'Ext.form.field.ComboBox',

	multiSelect : true,

	createPicker : function(){
		var me = this;

		var picker = Ext.create('Ext.grid.Panel', {
			title : '下拉表格',
		    store: me.store,
		    frame : true,
		    resizable : true,
		    columns : [{
		    	text : '#ID',
		    	dataIndex : 'id'
		    },{
		    	text : '名称' ,
		    	dataIndex : 'name'
		    },{
		    	text : '描述' ,
		    	dataIndex : 'desc'
		    }],
		    selModel: {
                mode: me.multiSelect ? 'SIMPLE' : 'SINGLE'
            },
		    floating: true,
            hidden: true,
            width : 300,
            columnLines : true,
            focusOnToFront: false
		});
		me.mon(picker, {
            itemclick: me.onItemClick,
            refresh: me.onListRefresh,
            scope: me
        });

        me.mon(picker.getSelectionModel(), {
            beforeselect: me.onBeforeSelect,
            beforedeselect: me.onBeforeDeselect,
            selectionchange: me.onListSelectionChange,
            scope: me
        });
		this.picker = picker;
		return picker;
	},

	onItemClick: function(picker, record){
        /*
         * If we're doing single selection, the selection change events won't fire when
         * clicking on the selected element. Detect it here.
         */
        var me = this,
            selection = me.picker.getSelectionModel().getSelection(),
            valueField = me.valueField;

        if (!me.multiSelect && selection.length) {
            if (record.get(valueField) === selection[0].get(valueField)) {
                // Make sure we also update the display value if it's only partial
                me.displayTplData = [record.data];
                me.setRawValue(me.getDisplayValue());
                me.collapse();
            }
        }
    },

    matchFieldWidth : false,

    onListSelectionChange: function(list, selectedRecords) {
        var me = this,
            isMulti = me.multiSelect,
            hasRecords = selectedRecords.length > 0;
        // Only react to selection if it is not called from setValue, and if our list is
        // expanded (ignores changes to the selection model triggered elsewhere)
        if (!me.ignoreSelection && me.isExpanded) {
            if (!isMulti) {
                Ext.defer(me.collapse, 1, me);
            }
            /*
             * Only set the value here if we're in multi selection mode or we have
             * a selection. Otherwise setValue will be called with an empty value
             * which will cause the change event to fire twice.
             */
            if (isMulti || hasRecords) {
                me.setValue(selectedRecords, false);
            }
            if (hasRecords) {
                me.fireEvent('select', me, selectedRecords);
            }
            me.inputEl.focus();
        }
        console.log(me.getValue());
    },

    doAutoSelect: function() {
        var me = this,
            picker = me.picker,
            lastSelected, itemNode;
        if (picker && me.autoSelect && me.store.getCount() > 0) {
            // Highlight the last selected item and scroll it into view
            lastSelected = picker.getSelectionModel().lastSelected;
            itemNode = picker.view.getNode(lastSelected || 0);
            if (itemNode) {
                picker.view.highlightItem(itemNode);
                picker.view.el.scrollChildIntoView(itemNode, false);
            }
        }
    }


});
下拉表格也是继承了Ext.form.field.ComboBox这个类,重写了createPicker方法。

开发下拉树和下拉表格看起来so easy,只要研究透了Ext的运行机制,一切都会so easy

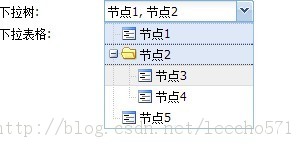

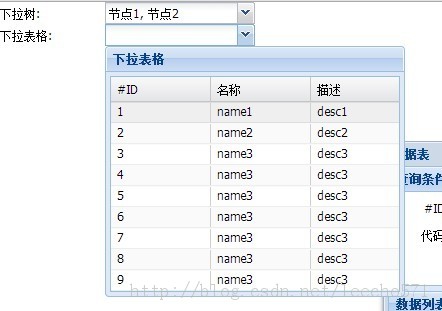

控件效果





实例下载


实例中的资源为myeclipse项目,导入即可运行,自己添加ext的js和css文件,实例中没有ext的基础文件。

下载地址:http://download.csdn.net/detail/leecho571/6398897
