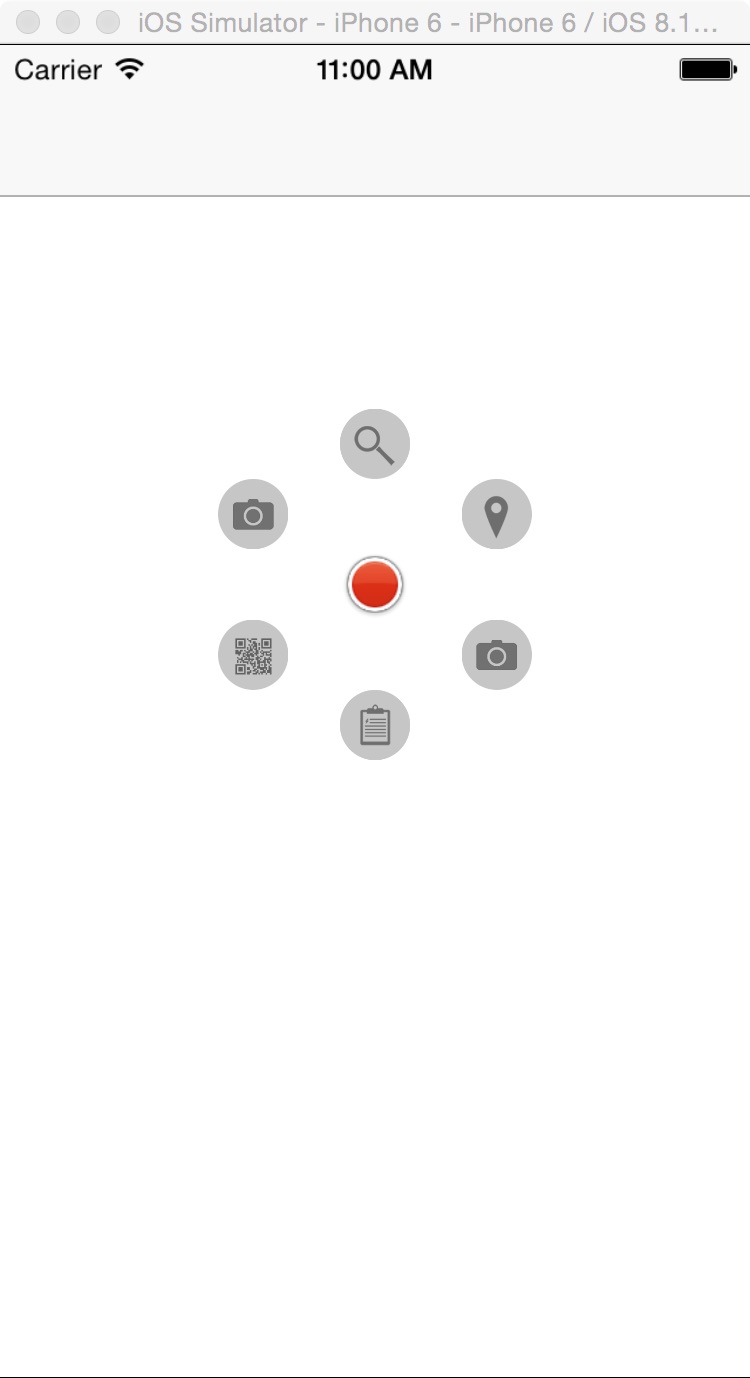

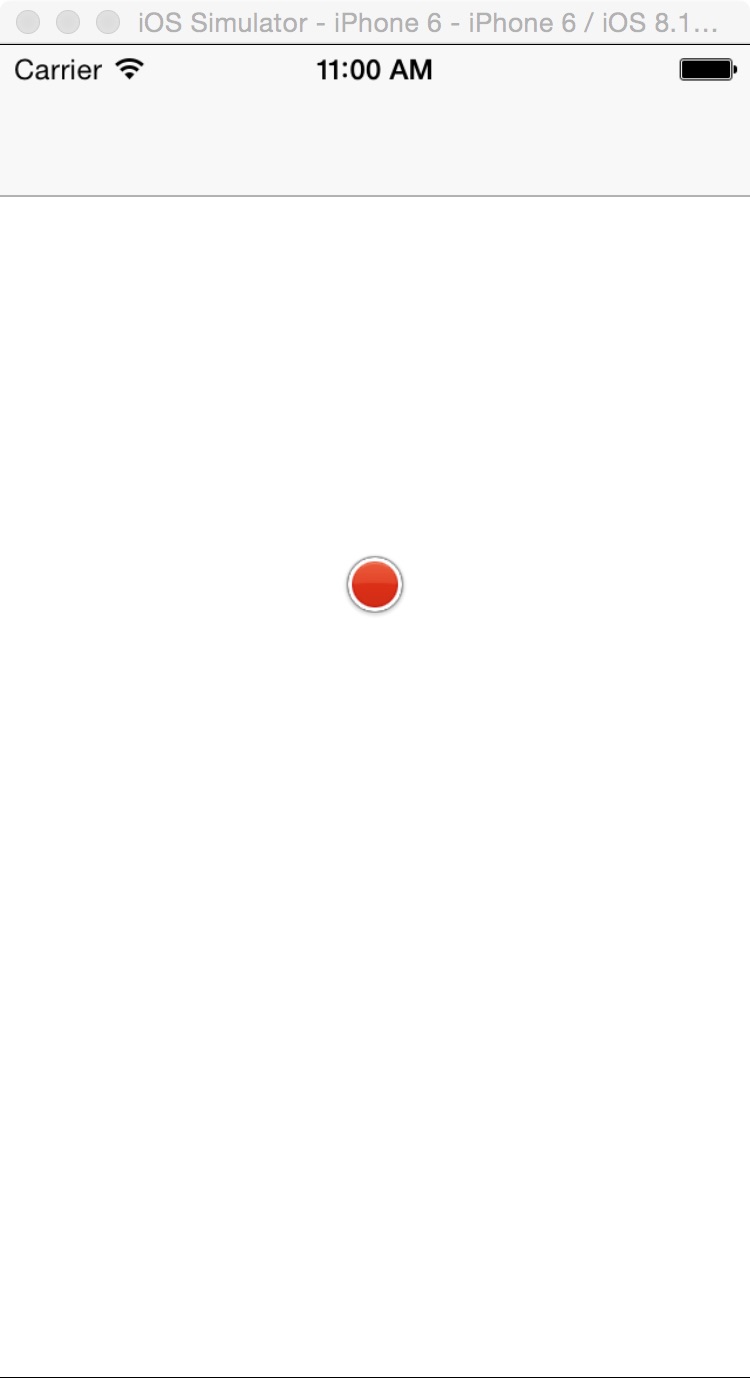

一,效果图。

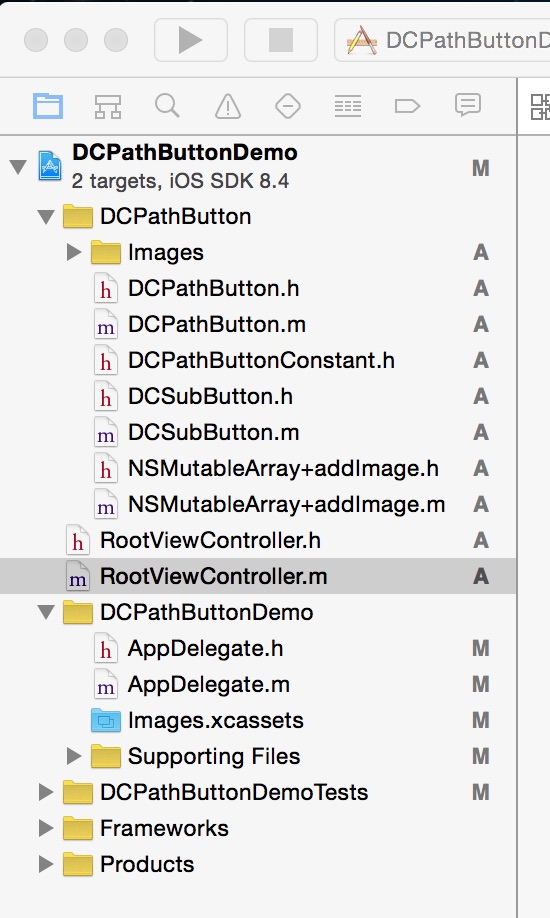

二,工程图。
三,代码。
RootViewController.h
#import <UIKit/UIKit.h>//加入头文件#import "DCPathButton.h"@interface RootViewController : UIViewController<DCPathButtonDelegate>@end
RootViewController.m
#import "RootViewController.h"@interface RootViewController ()@end@implementation RootViewController- (id)initWithNibName:(NSString *)nibNameOrNil bundle:(NSBundle *)nibBundleOrNil{ self = [super initWithNibName:nibNameOrNil bundle:nibBundleOrNil]; if (self) { // Custom initialization } return self;}- (void)viewDidLoad{ [super viewDidLoad]; // Do any additional setup after loading the view. self.view.frame = CGRectMake(0, 0, 320, 460); self.view.backgroundColor = [UIColor whiteColor]; DCPathButton *dcPathButton = [[DCPathButton alloc] initDCPathButtonWithSubButtons:6 totalRadius:60 centerRadius:15 subRadius:15 centerImage:@"custom_center" centerBackground:nil subImages:^(DCPathButton *dc){ [dc subButtonImage:@"custom_1" withTag:0]; [dc subButtonImage:@"custom_2" withTag:1]; [dc subButtonImage:@"custom_3" withTag:2]; [dc subButtonImage:@"custom_4" withTag:3]; [dc subButtonImage:@"custom_5" withTag:4]; [dc subButtonImage:@"custom_1" withTag:5]; } subImageBackground:nil inLocationX:0 locationY:0 toParentView:self.view]; dcPathButton.delegate = self;}#pragma mark - DCPathButton delegate- (void)button_0_action{ NSLog(@"Button Press Tag 0!!");}- (void)button_1_action{ NSLog(@"Button Press Tag 1!!");}- (void)button_2_action{ NSLog(@"Button Press Tag 2!!");}- (void)button_3_action{ NSLog(@"Button Press Tag 3!!");}- (void)button_4_action{ NSLog(@"Button Press Tag 4!!");}- (void)button_5_action{ NSLog(@"Button Press Tag 5!!");}- (void)didReceiveMemoryWarning{ [super didReceiveMemoryWarning]; // Dispose of any resources that can be recreated.}
