Spring IOC ( 1 ) : DefaultSingletonBeanRegistry源码分析

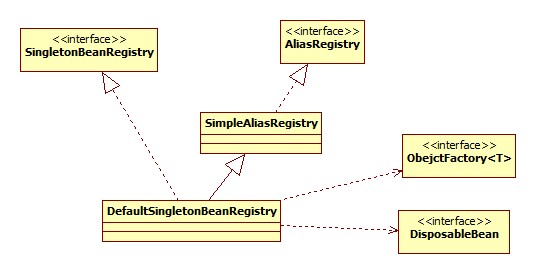

/** * 共享bean实例的通用注册表，实现了SingletonBeanRegistry. 允许注册表中注册的单例应该被所有调用者共享，通过bean名称获得。 *  * 还支持登记的DisposableBean实例，（这可能会或不能正确的注册单例），关闭注册表时destroyed. * 可以注册bean之间的依赖关系，执行适当的关闭顺序。 *  *  * 这个类主要用作基类的BeanFactory实现， 提供基本的管理 * singleton bean 实例功能。 *  */public class DefaultSingletonBeanRegistry extends SimpleAliasRegistry implements		SingletonBeanRegistry {//内部标记为一个空的单例对象： 并发 Maps( 不支持空值 )作为标志值。	protected static final Object NULL_OBJECT = new Object();// 日记用来记录子类	protected final Log logger = LogFactory.getLog(getClass());//是存放singleton对象的缓存	private final Map<String, Object> singletonObjects = new ConcurrentHashMap<String, Object>();// 是存放制造singleton的工厂对象的缓存	private final Map<String, ObjectFactory> singletonFactories = new HashMap<String, ObjectFactory>();//是存放singletonFactory 制造出来的 singleton 的缓存	private final Map<String, Object> earlySingletonObjects = new HashMap<String, Object>();//以上三个缓存是这个类存放单例bean的主要Map//就是单例注册表	private final Set<String> registeredSingletons = new LinkedHashSet<String>(			16);//目前正在创建中的单例bean的名称的集合	private final Set<String> singletonsCurrentlyInCreation = Collections			.synchronizedSet(new HashSet<String>());//存放异常出现的相关的原因的集合	private Set<Exception> suppressedExceptions;//标志，指示我们目前是否在销毁单例中	private boolean singletonsCurrentlyInDestruction = false;//存放一次性bean的缓存	private final Map<String, Object> disposableBeans = new LinkedHashMap<String, Object>();//外部bean与被包含在外部bean的所有内部bean集合包含关系的缓存	private final Map<String, Set<String>> containedBeanMap = new ConcurrentHashMap<String, Set<String>>();//指定bean与依赖指定bean的所有bean的依赖关系的缓存	private final Map<String, Set<String>> dependentBeanMap = new ConcurrentHashMap<String, Set<String>>();//指定bean与创建这个bean所需要依赖的所有bean的依赖关系的缓存	private final Map<String, Set<String>> dependenciesForBeanMap = new ConcurrentHashMap<String, Set<String>>();	// SingletonBeanRegistry接口的registerSingleton方法的实现	public void registerSingleton(String beanName, Object singletonObject)			throws IllegalStateException {		Assert.notNull(beanName, "'beanName' must not be null");		synchronized (this.singletonObjects) {			Object oldObject = this.singletonObjects.get(beanName);//如果singletonObjects缓存找到有指定名称为beanName的对象，则表示该名称已被占用			if (oldObject != null) {				throw new IllegalStateException("Could not register object ["						+ singletonObject + "] under bean name '" + beanName						+ "': there is already object [" + oldObject						+ "] bound");			}//若该名称没被占用，真正的注册操作在这里实现			addSingleton(beanName, singletonObject);		}	}		protected void addSingleton(String beanName, Object singletonObject) {		synchronized (this.singletonObjects) {			// 因为singletonObjects类型是ConcurrentHashMap,并发Map不支持空值作为标志值，所以用NULL_OBJECT来代替			this.singletonObjects.put(beanName,					(singletonObject != null ? singletonObject : NULL_OBJECT));			// beanName已被注册存放在singletonObjects缓存，那么singletonFactories不应该再持有名称为beanName的工厂			this.singletonFactories.remove(beanName);			// beanName已被注册存放在singletonObjects缓存，那么earlySingletonObjects不应该再持有名称为beanName的bean。			this.earlySingletonObjects.remove(beanName);			// beanName放进单例注册表中			this.registeredSingletons.add(beanName);		}	}	/**	 * 添加 名称为beanName的singletonFactory对象	 * 	 */	protected void addSingletonFactory(String beanName,			ObjectFactory singletonFactory) {		Assert.notNull(singletonFactory, "Singleton factory must not be null");		synchronized (this.singletonObjects) {			// 判断singletonObjects内名字为beanName是否被占用，若没有，进行注册操作			if (!this.singletonObjects.containsKey(beanName)) {				this.singletonFactories.put(beanName, singletonFactory);				this.earlySingletonObjects.remove(beanName);				this.registeredSingletons.add(beanName);			}		}	}	// SingletonBeanRegistry接口的getSingleton方法的实现	public Object getSingleton(String beanName) {		return getSingleton(beanName, true);	}	protected Object getSingleton(String beanName, boolean allowEarlyReference) {		Object singletonObject = this.singletonObjects.get(beanName);		// 如果singletonObjects指定beanName的对象是不存在的		if (singletonObject == null) {			synchronized (this.singletonObjects) {				singletonObject = this.earlySingletonObjects.get(beanName);				// 如果earlySingletonObjects指定的beanName的对象是不存在的且allowEarlyReference是允许的				if (singletonObject == null && allowEarlyReference) {					ObjectFactory singletonFactory = this.singletonFactories							.get(beanName);					// 如果存在指定beanName的singletonFactory对象					if (singletonFactory != null) {						// singletonFactory创建指定的单例对象						singletonObject = singletonFactory.getObject();						// 这里可以看出earlySingletonObjects缓存应该是存放singletonFactory产生的singleton						this.earlySingletonObjects.put(beanName,								singletonObject);						// 这里表示指定的beanName已被占用，所以要在singletonFactories移除该名称						this.singletonFactories.remove(beanName);					}				}			}		}		return (singletonObject != NULL_OBJECT ? singletonObject : null);	}	public Object getSingleton(String beanName, ObjectFactory singletonFactory) {		Assert.notNull(beanName, "'beanName' must not be null");		synchronized (this.singletonObjects) {			Object singletonObject = this.singletonObjects.get(beanName);			// 如果singetonObjects缓存不存在名称为beanName的对象			if (singletonObject == null) {				// 如果目前在销毁singellton				if (this.singletonsCurrentlyInDestruction) {					throw new BeanCreationNotAllowedException(							beanName,							"Singleton bean creation not allowed while the singletons of this factory are in destruction "									+ "(Do not request a bean from a BeanFactory in a destroy method implementation!)");				}				if (logger.isDebugEnabled()) {					logger.debug("Creating shared instance of singleton bean '"							+ beanName + "'");				}				// 单例对象创建前的回调,默认实现注册正在创建的单例				beforeSingletonCreation(beanName);				// 判断存储异常相关原因的集合是否已存在				boolean recordSuppressedExceptions = (this.suppressedExceptions == null);				// 若没有，刚创建异常集合的实例				if (recordSuppressedExceptions) {					this.suppressedExceptions = new LinkedHashSet<Exception>();				}				try {					// 由参数给定的singletonFactory创建singleton对象,getObject方法的具体实现由ObjectFactory的子类决定					singletonObject = singletonFactory.getObject();				} catch (BeanCreationException ex) {					// 如果异常被抓取，在这里将出现异常的原因抛出					if (recordSuppressedExceptions) {						for (Exception suppressedException : this.suppressedExceptions) {							ex.addRelatedCause(suppressedException);						}					}					throw ex;				} finally {					// 结束前，将异常集合销毁掉					if (recordSuppressedExceptions) {						this.suppressedExceptions = null;					}					// 单例创建之后的回调,默认的实现标志单例不要在创建了。					afterSingletonCreation(beanName);				}				// 注册创建后的单例				addSingleton(beanName, singletonObject);			}			return (singletonObject != NULL_OBJECT ? singletonObject : null);		}	}	/**	 * 注册 发生在singeton bean 实例创建之间发生的异常 	 */	protected void onSuppressedException(Exception ex) {		synchronized (this.singletonObjects) {			if (this.suppressedExceptions != null) {				this.suppressedExceptions.add(ex);			}		}	}	/**	 * 移除名称为beanName的单例,主要在四个集合中移除，	 * 如singletonObjects,singletonFactories,earlySingletonObjects	 * ,registeredSingletons	 * 	 */	protected void removeSingleton(String beanName) {		synchronized (this.singletonObjects) {			this.singletonObjects.remove(beanName);			this.singletonFactories.remove(beanName);			this.earlySingletonObjects.remove(beanName);			this.registeredSingletons.remove(beanName);		}	}	// singletonBeanRegistry接口的containsSingleton方法实现	public boolean containsSingleton(String beanName) {		return (this.singletonObjects.containsKey(beanName));	}	// singletonBeanRegistry接口的getSingletonNames方法实现	public String[] getSingletonNames() {		// 对singletonObjects加锁，可能是为了防止registeredSingletons和singletonObjects出现不一致的问题		synchronized (this.singletonObjects) {			return StringUtils.toStringArray(this.registeredSingletons);		}	}	// singletonBeanRegistry接口的getSingletonCount方法实现	public int getSingletonCount() {		synchronized (this.singletonObjects) {			return this.registeredSingletons.size();		}	}	/**	 * 单例对象创建前的回调,默认实现singletonsCurrentlyInCreation集合注册正在创建的单例.	 * 	 */	protected void beforeSingletonCreation(String beanName) {		if (!this.singletonsCurrentlyInCreation.add(beanName)) {			throw new BeanCurrentlyInCreationException(beanName);		}	}	/**	 * 单例创建之后的回调,默认实现singletonCurrentlyInCreation集合移除正在创建的单例	 * 	 */	protected void afterSingletonCreation(String beanName) {		if (!this.singletonsCurrentlyInCreation.remove(beanName)) {			throw new IllegalStateException("Singleton '" + beanName					+ "' isn't currently in creation");		}	}	/**	 * 返回 存放正在创建单例的集合是否包含指定名称为beanName的单例存在	 * 	 */	public final boolean isSingletonCurrentlyInCreation(String beanName) {		return this.singletonsCurrentlyInCreation.contains(beanName);	}	/**	 * 一次性bean注册，存放在disponsableBeans集合中	 * 	 */	public void registerDisposableBean(String beanName, DisposableBean bean) {		synchronized (this.disposableBeans) {			this.disposableBeans.put(beanName, bean);		}	}	/**	 * 注册两个bean之间的控制关系,例如内部bean和包含其的外部bean之间	 * 	 */	public void registerContainedBean(String containedBeanName,			String containingBeanName) {		synchronized (this.containedBeanMap) {			// 从containedBeanMap缓存中查找外部bean名为containingBeanName的内部bean集合			Set<String> containedBeans = this.containedBeanMap					.get(containingBeanName);			// 如果没有，刚新建一个存放内部bean的集合，并且存放在containedBeanMap缓存中			if (containedBeans == null) {				containedBeans = new LinkedHashSet<String>(8);				this.containedBeanMap.put(containingBeanName, containedBeans);			}			// 将名为containedBeanName的内部bean存放到内部bean集合			containedBeans.add(containedBeanName);		}		// 紧接着调用注册内部bean和外部bean的依赖关系的方法		registerDependentBean(containedBeanName, containingBeanName);	}	/**	 * 注册给定bean的一个依赖bean，给定的bean销毁之前被销毁。	 * 	 */	public void registerDependentBean(String beanName, String dependentBeanName) {		// 调用SimpleAliasRegistry的canonicalName方法，这方法是将参数beanName当做别名寻找到注册名，并依此递归		String canonicalName = canonicalName(beanName);		synchronized (this.dependentBeanMap) {			// 从dependentBeanMap缓存中找到依赖名为canonicalName这个bean的 依赖bean集合			Set<String> dependentBeans = this.dependentBeanMap					.get(canonicalName);			// 如果为空，则新建一个依赖bean集合，并且存放到dependentBeanMap缓存中			if (dependentBeans == null) {				dependentBeans = new LinkedHashSet<String>(8);				this.dependentBeanMap.put(canonicalName, dependentBeans);			}			// 依赖bean集合添加参数2指定的dependentBeanName			dependentBeans.add(dependentBeanName);		}		synchronized (this.dependenciesForBeanMap) {			// 从dependenciesForBeanMap缓存中找到dependentBeanName要依赖的所有bean集合			Set<String> dependenciesForBean = this.dependenciesForBeanMap					.get(dependentBeanName);			if (dependenciesForBean == null) {				dependenciesForBean = new LinkedHashSet<String>(8);				this.dependenciesForBeanMap.put(dependentBeanName,						dependenciesForBean);			}			dependenciesForBean.add(canonicalName);		}	}	/**	 *  确定是否还存在名为beanName的被依赖关系	 */	protected boolean hasDependentBean(String beanName) {		return this.dependentBeanMap.containsKey(beanName);	}	/**	 * 返回依赖于指定的bean的所有bean的名称，如果有的话。	 * 	 */	public String[] getDependentBeans(String beanName) {		Set<String> dependentBeans = this.dependentBeanMap.get(beanName);		if (dependentBeans == null) {			return new String[0];		}		return StringUtils.toStringArray(dependentBeans);	}	/**	 * 返回指定的bean依赖于所有的bean的名称，如果有的话。	 * 	 */	public String[] getDependenciesForBean(String beanName) {		Set<String> dependenciesForBean = this.dependenciesForBeanMap				.get(beanName);		// 如果没有的话返回new String[0]而不是null		if (dependenciesForBean == null) {			return new String[0];		}		return dependenciesForBean.toArray(new String[dependenciesForBean				.size()]);	}	// 销毁单例	public void destroySingletons() {		if (logger.isInfoEnabled()) {			logger.info("Destroying singletons in " + this);		}		// 单例目前销毁标志开始		synchronized (this.singletonObjects) {			this.singletonsCurrentlyInDestruction = true;		}		// 销毁disponsableBeans缓存中所有单例bean		synchronized (this.disposableBeans) {			String[] disposableBeanNames = StringUtils					.toStringArray(this.disposableBeans.keySet());			for (int i = disposableBeanNames.length - 1; i >= 0; i--) {				destroySingleton(disposableBeanNames[i]);			}		}		// containedBeanMap缓存清空,dependentBeanMap缓存清空，dependenciesForBeanMap缓存清空		this.containedBeanMap.clear();		this.dependentBeanMap.clear();		this.dependenciesForBeanMap.clear();		// singeltonObjects缓存清空，singletonFactories缓存清空，earlySingletonObjects缓存清空，registeredSingletons缓存清空		synchronized (this.singletonObjects) {			this.singletonObjects.clear();			this.singletonFactories.clear();			this.earlySingletonObjects.clear();			this.registeredSingletons.clear();			// 单例目前正在销毁标志为结束			this.singletonsCurrentlyInDestruction = false;		}	}	public void destroySingleton(String beanName) {		// Remove a registered singleton of the given name, if any.		removeSingleton(beanName);		// Destroy the corresponding DisposableBean instance.		DisposableBean disposableBean;		synchronized (this.disposableBeans) {			disposableBean = (DisposableBean) this.disposableBeans					.remove(beanName);		}		destroyBean(beanName, disposableBean);	}	protected void destroyBean(String beanName, DisposableBean bean) {		// Trigger destruction of dependent beans first...		// 这段代码告诉我们先移除要销毁依赖bean		Set<String> dependencies = this.dependentBeanMap.remove(beanName);		if (dependencies != null) {			if (logger.isDebugEnabled()) {				logger.debug("Retrieved dependent beans for bean '" + beanName						+ "': " + dependencies);			}			for (String dependentBeanName : dependencies) {				destroySingleton(dependentBeanName);			}		}		// Actually destroy the bean now...		// 销毁bean实例		if (bean != null) {			try {				bean.destroy();			} catch (Throwable ex) {				logger.error("Destroy method on bean with name '" + beanName						+ "' threw an exception", ex);			}		}		// Trigger destruction of contained beans...		// 从containedBeanMap缓存中移除要销毁的bean，递归移除它的包含内部bean集合		Set<String> containedBeans = this.containedBeanMap.remove(beanName);		if (containedBeans != null) {			for (String containedBeanName : containedBeans) {				destroySingleton(containedBeanName);			}		}		// Remove destroyed bean from other beans' dependencies.		// 从其它bean的依赖bean集合中移除要销毁的bean		synchronized (this.dependentBeanMap) {			for (Iterator<Map.Entry<String, Set<String>>> it = this.dependentBeanMap					.entrySet().iterator(); it.hasNext();) {				Map.Entry<String, Set<String>> entry = it.next();				Set<String> dependenciesToClean = entry.getValue();				dependenciesToClean.remove(beanName);				if (dependenciesToClean.isEmpty()) {					it.remove();				}			}		}		// Remove destroyed bean's prepared dependency information.		// 最后 从dependenciesForBeanMap缓存中移除要销毁的bean		this.dependenciesForBeanMap.remove(beanName);	}	/**	 * Expose the singleton mutex to subclasses.	 * <p>	 * Subclasses should synchronize on the given Object if they perform any	 * sort of extended singleton creation phase. In particular, subclasses	 * should <i>not</i> have their own mutexes involved in singleton creation,	 * to avoid the potential for deadlocks in lazy-init situations.	 */	protected final Object getSingletonMutex() {		return this.singletonObjects;	}}
