.net机房收费系统范例—三层+设计模式

   最近在做.net机房收费系统，和简单的三层来一个对比，现在贴出来和大家分享！

包图：

    应用了设计模式（抽象工厂），这样使得B层和D层之间无需再有关系（应用接口），应用了抽象工厂+反射+配置文件，使得工厂和D层的关系线消失，这样B层和工厂只需知道D层的接口，和D层解耦。

类图在这里就省略了！

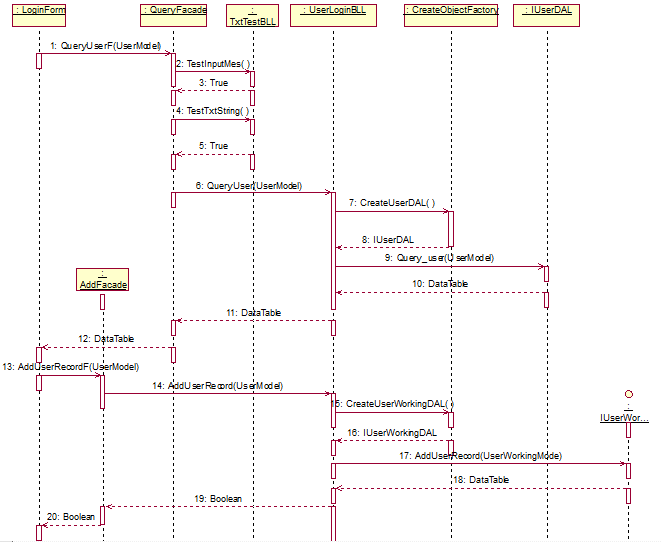

时序图：

下面则是实现的代码，当然只是简单的用上图的架构实现了登录的功能，时序图中的一些逻辑处理还没有应用.

U层：

Public Class Form    Private Sub butExit_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles butExit.Click        End    End Sub    Private Sub butLogin_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles butLogin.Click        '定义一个实体类对象，将文本框中的内容赋给实体类对象        Dim user As Model.Teacher = New Model.Teacher        user.user_ID = txtUserID.Text.ToString()        user.user_PWD = txtUserPWD.Text.ToString()        '定义一个业务逻辑层对象，根据业务逻辑层返回的结果，通知用户信息        Dim fd As Facade.UserF = New Facade.UserF        If fd.Query(user) Then            MsgBox(True)        Else            MsgBox(False)        End If    End SubEnd Class

Facede层：

Public Class UserF    Dim uB As BLL.UserBLL = New BLL.UserBLL    Function Query(ByVal user As Model.Teacher) As Boolean        If uB.QueryUser(user) Then            Return (True)        Else            Return (False)        End If    End FunctionEnd Class

B层

Public Class UserBLL       Dim factory As Factory.UserFactory = New Factory.UserFactory    Dim IUserDAL As IDAL.IUserIDAL    Public Function QueryUser(ByVal user As Model.Teacher) As Boolean        IUserDAL = factory.CreateUserDAL()        If IUserDAL.Query_user(user) Then            Return (True)        Else            Return (False)        End If    End FunctionEnd Class

Factory层

Imports System.ReflectionImports System.ConfigurationPublic Class UserFactory        Public Function CreateUserDAL() As IDAL.IUserIDAL        Dim AssemblyName = "DAL"        'Dim create = "User"        Dim create As String = ConfigurationManager.AppSettings("create")        Dim className As String        'Dim user As DAL.UserDAL = New DAL.UserDAL        'Return user        className = AssemblyName + "." + create + "DAL"        Return CType(Assembly.Load(AssemblyName).CreateInstance(className), IDAL.IUserIDAL)    End FunctionEnd Class

IDAL层

Imports ModelPublic Interface IUserIDAL    Function Query_user(ByVal user As Teacher) As BooleanEnd Interface
