// 视频API调用
[DllImport("avicap32.dll")]
public static extern IntPtr capCreateCaptureWindowA(byte[] lpszWindowName, int dwStyle, int x, int y, int nWidth, int nHeight, IntPtr hWndParent, int nID);
[DllImport("avicap32.dll")]
public static extern bool capGetDriverDescriptionA(short wDriver, byte[] lpszName, int cbName, byte[] lpszVer, int cbVer);
[DllImport("user32.dll")]
public static extern bool SendMessage(IntPtr hWnd, int wMsg, bool wParam, int lParam);
[DllImport("user32.dll")]
public static extern bool SendMessage(IntPtr hWnd, int wMsg, short wParam, int lParam);
// 常量
public const int WM_USER = 0x400;
public const int WS_CHILD = 0x40000000;
public const int WS_VISIBLE = 0x10000000;
public const int SWP_NOMOVE = 0x2;
public const int SWP_NOZORDER = 0x4;
public const int WM_CAP_DRIVER_CONNECT = WM_USER + 10;
public const int WM_CAP_DRIVER_DISCONNECT = WM_USER + 11;
public const int WM_CAP_SET_CALLBACK_FRAME = WM_USER + 5;
public const int WM_CAP_SET_PREVIEW = WM_USER + 50;
public const int WM_CAP_SET_PREVIEWRATE = WM_USER + 52;
public const int WM_CAP_SET_VIDEOFORMAT = WM_USER + 45;
public const int WM_CAP_START = WM_USER;
public const int WM_CAP_SAVEDIB = WM_CAP_START + 25;
/// <summary>
/// 打开视频设备
/// </summary>
public void StartWebCam()
{
byte[] lpszName = new byte[100];
byte[] lpszVer = new byte[100];
VideoAPI.capGetDriverDescriptionA(0, lpszName, 100, lpszVer, 100);
this.lwndC = VideoAPI.capCreateCaptureWindowA(lpszName, VideoAPI.WS_CHILD | VideoAPI.WS_VISIBLE, 0, 0, mWidth, mHeight, mControlPtr, 0);
//返回false
var aa = VideoAPI.SendMessage(lwndC, VideoAPI.WM_CAP_DRIVER_CONNECT, 0, 0);
if ( VideoAPI.SendMessage(lwndC, VideoAPI.WM_CAP_DRIVER_CONNECT, 0, 0))
{
VideoAPI.SendMessage(lwndC, VideoAPI.WM_CAP_SET_PREVIEWRATE, 100, 0);
VideoAPI.SendMessage(lwndC, VideoAPI.WM_CAP_SET_PREVIEW, true, 0);
}
}

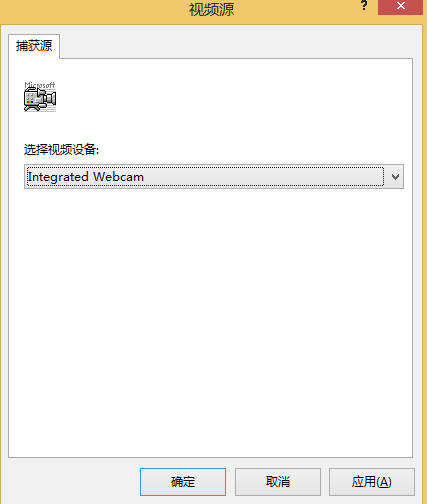

打开摄像头出现如下
怎么回事呢,
------解决思路----------------------
你要做什么?
使用DirectShow好用,在C#下有类库和例子的。
http://download.csdn.net/detail/mjp1234airen4385/3607954
看看这个例子里的能不能打开摄像头,如果不行,那DirectShow也帮不到你了
------解决思路----------------------
0、参考:http://bbs.csdn.net/topics/390820891
1、貌似是你的摄像头驱动有问题,重新下载个驱动
2、要不你就一直连摄像头,直到打开为止(不过不是很推荐这种方法)
int flag=VideoAPI.SendMessage(lwndC, VideoAPI.WM_CAP_DRIVER_CONNECT, 0, 0)
while(flag<0)
{
flag=VideoAPI.SendMessage(lwndC, VideoAPI.WM_CAP_DRIVER_CONNECT, 0, 0)
}
VideoAPI.SendMessage(lwndC, VideoAPI.WM_CAP_SET_PREVIEWRATE, 100, 0);
VideoAPI.SendMessage(lwndC, VideoAPI.WM_CAP_SET_PREVIEW, true, 0);
3、要不你换个摄像头接口吧
