Android Widget 电池插件的开发实现
最近突发奇想，想自己编一个Android电池插件放在桌面上，一是这个App确实有它的实用价值，二是编起来工程量应该不是很大，不用花太长时间，三来又能学习下Widget的开发方法，一举三得，于是，暂停下游戏开发的学习，来编一个widget先。
在查找并结合多方资料后终于实现，效果图如下：
长按桌面空白处，出现菜单，点击Widgets，此时的插件已经装入：

在电源连接时，机器人周围会星光闪闪，表明正在充电，不在充电时，周围的星光会消失。

机器人身上显示电池电量百分比。

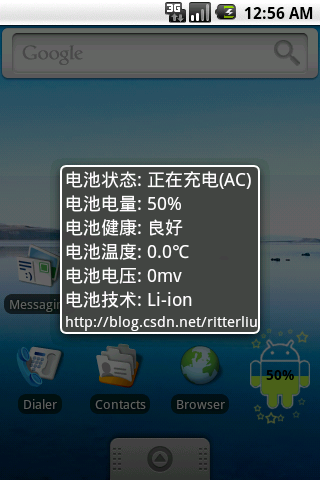

单击机器人图标，会跳出电池信息的详情，再次单击屏幕关闭详情信息。

下面介绍代码的实现：

整个工程主要实现两个部分，一个是AppWidget部分，实现桌面Widget的显示，更新等，另一个部分就是点击widget后出现的显示电池详细信息的Activity的实现了。

首先是AppWidget部分，上代码，NewBatteryWidget.java部分：
package com.ritterliu.newBatteryWidget;

import android.app.AlarmManager;
import android.app.PendingIntent;
import android.app.Service;
import android.appwidget.AppWidgetManager;
import android.appwidget.AppWidgetProvider;
import android.content.BroadcastReceiver;
import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.os.IBinder;
import android.widget.RemoteViews;

public class NewBatteryWidget extends AppWidgetProvider{
 private static int currentBatteryLevel;
 private static int currentBatteryStatus;

 public void onUpdate(Context context,AppWidgetManager appWidgetManager,int[] appWidgetIds)
 {
 super.onUpdate(context, appWidgetManager, appWidgetIds);

 /** 启动自动更新电池信息的service */
 context.startService(new Intent(context,updateService.class));

 /** 为AppWidget设置点击事件的响应，启动显示电池信息详情的activity */
 Intent startActivityIntent = new Intent(context,NewBatteryInfoActivity.class);
 PendingIntent Pintent = PendingIntent.getActivity(context,0,startActivityIntent,0);
 RemoteViews views = new RemoteViews(context.getPackageName(),R.layout.newrelativelayout);
 views.setOnClickPendingIntent(R.id.imageView,Pintent);
 appWidgetManager.updateAppWidget(appWidgetIds,views);

 }

 /** 自动更新电池信息的service,通过AlarmManager实现定时不间断地发送电池信息 */
 public static class updateService extends Service{
 Bitmap bmp; //定义机器人图片
 @Override
 public IBinder onBind(Intent intent) {
 // TODO Auto-generated method stub
 return null;
 }

 /** 定义一个接收电池信息的broascastReceiver */
 private BroadcastReceiver batteryReceiver=new BroadcastReceiver()
 {
 @Override
 public void onReceive(Context context, Intent intent) {
 // TODO Auto-generated method stub
 currentBatteryLevel=intent.getIntExtra("level", 0);
 currentBatteryStatus=intent.getIntExtra("status", 0);
 }

 };


 public void onStart(Intent intent,int startId)
 {
 super.onStart(intent, startId);

 /** 注册接收器 */
 registerReceiver(batteryReceiver,new IntentFilter(Intent.ACTION_BATTERY_CHANGED));

 /** 定义一个AppWidgetManager */
 AppWidgetManager manager=AppWidgetManager.getInstance(this);

 /** 定义一个RemoteViews，实现对AppWidget界面控制 */
 RemoteViews views=new RemoteViews(getPackageName(),R.layout.newrelativelayout);


 if(currentBatteryStatus==2||currentBatteryStatus==5) //当正在充电或充满电时，显示充电的图片
 {
 if(currentBatteryLevel>=95)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.jcharge);
 }
 else if(currentBatteryLevel>=85&& currentBatteryLevel<95)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.icharge);
 }
 else if(currentBatteryLevel>=75&& currentBatteryLevel<85)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.hcharge);
 }
 else if(currentBatteryLevel>=65&& currentBatteryLevel<75)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.gcharge);
 }
 else if(currentBatteryLevel>=55&& currentBatteryLevel<65)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.fcharge);
 }
 else if(currentBatteryLevel>=45&& currentBatteryLevel<55)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.echarge);
 }
 else if(currentBatteryLevel>=35&& currentBatteryLevel<45)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.dcharge);
 }
 else if(currentBatteryLevel>=25&& currentBatteryLevel<35)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.ccharge);
 }
 else if(currentBatteryLevel>=15&& currentBatteryLevel<25)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.bcharge);
 }
 else
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.acharge);
 }
 }
 else //未在充电时，显示不在充电状态的系列图片
 {
 if(currentBatteryLevel>=95)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.j);
 }
 else if(currentBatteryLevel>=85&¤tBatteryLevel<95)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.i);
 }
 else if(currentBatteryLevel>=75&¤tBatteryLevel<85)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.h);
 }
 else if(currentBatteryLevel>=65&¤tBatteryLevel<75)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.g);
 }
 else if(currentBatteryLevel>=55&¤tBatteryLevel<65)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.f);
 }
 else if(currentBatteryLevel>=45&¤tBatteryLevel<55)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.e);
 }
 else if(currentBatteryLevel>=35&¤tBatteryLevel<45)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.d);
 }
 else if(currentBatteryLevel>=25&¤tBatteryLevel<35)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.c);
 }
 else if(currentBatteryLevel>=15&¤tBatteryLevel<25)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.b);
 }
 else
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.a);
 }
 }

 /** 设置AppWidget上显示的图片和文字的内容 */
 views.setImageViewBitmap(R.id.imageView,bmp);
 views.setTextViewText(R.id.tv,currentBatteryLevel+"%");

 ComponentName thisWidget=new ComponentName(this,NewBatteryWidget.class);

 /** 使用AlarmManager实现每隔一秒发送一次更新提示信息，实现信息实时动态变化 */
 long now=System.currentTimeMillis();
 long pause=1000;

 Intent alarmIntent=new Intent();
 alarmIntent=intent;

 PendingIntent pendingIntent=PendingIntent.getService(this, 0, alarmIntent, 0);
 AlarmManager alarm=(AlarmManager)getSystemService(Context.ALARM_SERVICE);
 alarm.set(AlarmManager.RTC_WAKEUP,now+pause,pendingIntent);

 /** 更新AppWidget */
 manager.updateAppWidget(thisWidget, views);

 }
 }
}

对于Widget，配置它的显示layout,一个简单的RelativeLayout布局，一个ImageView和一个TextView，居中显示：

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:layout_width="fill_parent"
 android:layout_height="fill_parent" >

 <ImageView
 android:id="@+id/imageView"
 android:layout_centerInParent="true"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:src="@drawable/j"
 />

 <TextView
 android:id="@+id/tv"
 android:layout_centerInParent="true"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:textColor="#000000"
 android:textStyle="bold"
 android:textSize="14sp"
 />

</RelativeLayout>
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:layout_width="fill_parent"
 android:layout_height="fill_parent" >

 <ImageView
 android:id="@+id/imageView"
 android:layout_centerInParent="true"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:src="@drawable/j"
 />

 <TextView
 android:id="@+id/tv"
 android:layout_centerInParent="true"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:textColor="#000000"
 android:textStyle="bold"
 android:textSize="14sp"
 />

</RelativeLayout>接着就是编写配置Widget的xml了，设置Widget大小等信息，在res目录下新建一个xml文件夹用来存放Widget的配置xml文件：//备注2view plaincopy to clipboardprint?<?xml version="1.0" encoding="utf-8"?>
<appwidget-provider xmlns:android="http://schemas.android.com/apk/res/android"
 android:minHeight="72dip"
 android:minWidth="72dip"
 android:updatePeriodMillis="1000000"
 android:initialLayout="@layout/newrelativelayout"
 >

</appwidget-provider>
<?xml version="1.0" encoding="utf-8"?>
<appwidget-provider xmlns:android="http://schemas.android.com/apk/res/android"
 android:minHeight="72dip"
 android:minWidth="72dip"
 android:updatePeriodMillis="1000000"
 android:initialLayout="@layout/newrelativelayout"
 >

</appwidget-provider>
备注1，备注2：

请注意，在一些资料上说widget配置文件new_battery_widget.xml中的android：updatePeriodMillis是用来实现widget自动更新的，但本人编程时却发现，这个设置根本就没有效果，后来上网一搜，人家说这个功能在SDK1.5以后就不支持了。所以本次程序自动更新响应系统的battery change事件是通过一个AlarmManager定时发送响应来实现的，同学们千万注意，别像我一样一开始等着靠android：updatePeriodMillis实现更新，看没效果，还以为是别的什么地方出了问题，浪费了不少时间。

Widget的部分差不多了，下面介绍显示电池详情的Activity部分，上代码：

view plaincopy to clipboardprint?package com.ritterliu.newBatteryWidget;

import android.app.Activity;
import android.app.Service;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.os.Bundle;
import android.os.IBinder;
import android.view.MotionEvent;
import android.view.Window;
import android.widget.TextView;

public class NewBatteryInfoActivity extends Activity{
 /** 定义电池信息变量 */
 private static int currentBatteryPlugged=0;
 private static int currentBatteryStatus=0;
 private static int currentBatteryLevel=0;
 private static int currentBatteryHealth=0;
 private static int currentBatteryTemperature=0;
 private static int currentBatteryVoltage=0;
 private static String currentBatteryTechnology="";


 /** TextView 声明 */
 private static TextView tvBatteryStatus;
 private static TextView tvBatteryLevel;
 private static TextView tvBatteryHealth;
 private static TextView tvBatteryTemperature;
 private static TextView tvBatteryVoltage;
 private static TextView tvBatteryTechnology;

 /** 定义好字符串以备使用 */
 private static String batteryStatus="电池状态: ";
 private static String batteryLevel="电池电量: ";
 private static String batteryHealth="电池健康: ";
 private static String batteryTemperature="电池温度: ";
 private static String batteryVoltage="电池电压: ";
 private static String batteryTechnology="电池技术: ";

 private static String batteryStatusCharging="正在充电";
 private static String batteryStatusDischarging="正在放电";
 private static String batteryStatusFull="已充满";
 private static String batteryStatusNotCharging="未在充电";
 private static String batteryStatusUnknown="状态未知";

 private static String batteryPluggedAC="(AC)";
 private static String batteryPluggedUSB="(USB)";

 private static String batteryHealthCold="过冷";
 private static String batteryHealthDead="损坏";
 private static String batteryHealthGood="良好";
 private static String batteryHealthOverheat="过热";
 private static String batteryHealthOverVoltage="过压";
 private static String batteryHealthUnknown="未知";
 private static String batteryHealthUnspecifiedFailure="未知的故障";

 /** 提示Service启动标志位 */
 private static boolean flag;

 /** 提示信息接收器 */
 BroadcastReceiver infoReceiver;

 public void onCreate(Bundle savedInstanceState)
 {
 super.onCreate(savedInstanceState);

 this.requestWindowFeature(Window.FEATURE_NO_TITLE); //设置activity无标题
 setContentView(R.layout.newlayout); //使用newlayout的布局

 tvBatteryStatus=(TextView)findViewById(R.id.tvBatteryStatus);
 tvBatteryLevel=(TextView)findViewById(R.id.tvBatteryLevel);
 tvBatteryHealth=(TextView)findViewById(R.id.tvBatteryHealth);
 tvBatteryTemperature=(TextView)findViewById(R.id.tvBatteryTemperature);
 tvBatteryVoltage=(TextView)findViewById(R.id.tvBatteryVoltage);
 tvBatteryTechnology=(TextView)findViewById(R.id.tvBatteryTechnology);

 flag=true; //提示service的标志位置为true

 infoReceiver=new BroadcastReceiver() //提示信息接收器的定义
 {
 @Override
 public void onReceive(Context context, Intent intent) {
 // TODO Auto-generated method stub
 setText(); //收到intent，就及时修改TextView信息，使得Activity显示时，电池信息也能动态显示
 }
 };

 /** 注册提示信息的intentFilter */
 IntentFilter filter=new IntentFilter();
 filter.addAction("com.ritterliu.newBatteryWidget");
 registerReceiver(infoReceiver,filter);

 /** 启动提示service */
 Intent startService=new Intent(this,updateService.class);
 startService(startService);

 }

 /** 点击屏幕任意位置，关闭电池信息Activity */
 public boolean onTouchEvent(MotionEvent event)
 {
 this.finish();
 // onDestroy();
 // System.exit(0);
 return true;
 }

 @Override
 protected void onDestroy() {
 // TODO Auto-generated method stub
 flag=false;
 unregisterReceiver(infoReceiver);
 super.onDestroy();
 }

 /** 及时动态修改Activity上文字信息的函数 */
 public static void setText()
 {
 String plugState="";
 switch(currentBatteryPlugged)
 {
 case 0:
 plugState="";
 break;
 case 1:
 plugState=batteryPluggedAC;
 break;
 case 2:
 plugState=batteryPluggedUSB;
 break;
 default:
 plugState="";
 }

 switch(currentBatteryStatus)
 {
 case 1:
 tvBatteryStatus.setText(batteryStatus+batteryStatusUnknown);
 break;
 case 2:
 tvBatteryStatus.setText(batteryStatus+batteryStatusCharging+plugState);
 break;
 case 3:
 tvBatteryStatus.setText(batteryStatus+batteryStatusDischarging);
 break;
 case 4:
 tvBatteryStatus.setText(batteryStatus+batteryStatusNotCharging);
 break;
 case 5:
 tvBatteryStatus.setText(batteryStatus+batteryStatusFull+plugState);
 break;
 default:
 tvBatteryStatus.setText(batteryStatus+batteryStatusUnknown);
 }

 tvBatteryLevel.setText(batteryLevel+String.valueOf(currentBatteryLevel)+"%");

 switch(currentBatteryHealth)
 {
 case 1:
 tvBatteryHealth.setText(batteryHealth+batteryHealthUnknown);
 break;
 case 2:
 tvBatteryHealth.setText(batteryHealth+batteryHealthGood);
 break;
 case 3:
 tvBatteryHealth.setText(batteryHealth+batteryHealthOverheat);
 break;
 case 4:
 tvBatteryHealth.setText(batteryHealth+batteryHealthDead);
 break;
 case 5:
 tvBatteryHealth.setText(batteryHealth+batteryHealthOverVoltage);
 break;
 case 6:
 tvBatteryHealth.setText(batteryHealth+batteryHealthUnspecifiedFailure);
 break;
 case 7:
 tvBatteryHealth.setText(batteryHealth+batteryHealthCold);
 break;
 default:
 tvBatteryHealth.setText(batteryHealth+batteryHealthUnknown);
 }

 tvBatteryTemperature.setText(batteryTemperature+currentBatteryTemperature/10f+"℃");
 tvBatteryVoltage.setText(batteryVoltage+currentBatteryVoltage+"mv");
 tvBatteryTechnology.setText(batteryTechnology+currentBatteryTechnology);
 }

 /** 提示信息变化的service，约每隔一秒，就发送intent，
 * 提醒activity更新电池信息，主要为了检测电池状态的变化，
 * 例如连上充电时，状态会从“未在充电”变为“正在充电”
 * 通过调用plugged方式，还能判断是AC方式充电还是USB方式充电
 */
 public static class updateService extends Service{
 @Override
 public IBinder onBind(Intent intent) {
 // TODO Auto-generated method stub
 return null;
 }

 /** 定义得到电池信息的BroadcastReceiver，提取出关键信息，存入变量中 */
 private BroadcastReceiver batteryReceiver=new BroadcastReceiver()
 {
 @Override
 public void onReceive(Context context, Intent intent) {
 // TODO Auto-generated method stub
 currentBatteryStatus=intent.getIntExtra("status", 0);
 currentBatteryLevel=intent.getIntExtra("level", 0);
 currentBatteryHealth=intent.getIntExtra("health", 0);
 currentBatteryTemperature=intent.getIntExtra("temperature",0);
 currentBatteryVoltage=intent.getIntExtra("voltage",0);
 currentBatteryTechnology=intent.getStringExtra("technology");
 currentBatteryPlugged=intent.getIntExtra("plugged",0);
 }
 };


 public void onStart(Intent intent,int startId)
 {
 registerReceiver(batteryReceiver,new IntentFilter(Intent.ACTION_BATTERY_CHANGED));//注册BroadcastReceiver

 /** 启动一个线程，约每隔一秒就发送intent提醒Activity更新电池信息 */
 new Thread()
 {
 public void run()
 {
 while(flag)
 {
 Intent sendInfoToActivity=new Intent();
 sendInfoToActivity.setAction("com.ritterliu.newBatteryWidget");
 sendBroadcast(sendInfoToActivity);

 try
 {
 Thread.sleep(1000);
 }
 catch(Exception ex)
 {
 ex.printStackTrace();
 }
 }
 }
 }.start();
 super.onStart(intent, startId);
 }
 }
}

package com.ritterliu.newBatteryWidget;

import android.app.Activity;
import android.app.Service;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.os.Bundle;
import android.os.IBinder;
import android.view.MotionEvent;
import android.view.Window;
import android.widget.TextView;

public class NewBatteryInfoActivity extends Activity{
/** 定义电池信息变量 */
private static int currentBatteryPlugged=0;
private static int currentBatteryStatus=0;
private static int currentBatteryLevel=0;
private static int currentBatteryHealth=0;
private static int currentBatteryTemperature=0;
private static int currentBatteryVoltage=0;
private static String currentBatteryTechnology="";

/** TextView 声明 */
 private static TextView tvBatteryStatus;
 private static TextView tvBatteryLevel;
 private static TextView tvBatteryHealth;
 private static TextView tvBatteryTemperature;
 private static TextView tvBatteryVoltage;
 private static TextView tvBatteryTechnology;

 /** 定义好字符串以备使用 */
private static String batteryStatus="电池状态: ";
private static String batteryLevel="电池电量: ";
private static String batteryHealth="电池健康: ";
private static String batteryTemperature="电池温度: ";
private static String batteryVoltage="电池电压: ";
private static String batteryTechnology="电池技术: ";

 private static String batteryStatusCharging="正在充电";
 private static String batteryStatusDischarging="正在放电";
 private static String batteryStatusFull="已充满";
 private static String batteryStatusNotCharging="未在充电";
 private static String batteryStatusUnknown="状态未知";

 private static String batteryPluggedAC="(AC)";
 private static String batteryPluggedUSB="(USB)";

 private static String batteryHealthCold="过冷";
 private static String batteryHealthDead="损坏";
 private static String batteryHealthGood="良好";
 private static String batteryHealthOverheat="过热";
 private static String batteryHealthOverVoltage="过压";
 private static String batteryHealthUnknown="未知";
 private static String batteryHealthUnspecifiedFailure="未知的故障";

 /** 提示Service启动标志位 */
private static boolean flag;

/** 提示信息接收器 */
BroadcastReceiver infoReceiver;

public void onCreate(Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);

this.requestWindowFeature(Window.FEATURE_NO_TITLE); //设置activity无标题
setContentView(R.layout.newlayout); //使用newlayout的布局

tvBatteryStatus=(TextView)findViewById(R.id.tvBatteryStatus);
tvBatteryLevel=(TextView)findViewById(R.id.tvBatteryLevel);
tvBatteryHealth=(TextView)findViewById(R.id.tvBatteryHealth);
tvBatteryTemperature=(TextView)findViewById(R.id.tvBatteryTemperature);
tvBatteryVoltage=(TextView)findViewById(R.id.tvBatteryVoltage);
tvBatteryTechnology=(TextView)findViewById(R.id.tvBatteryTechnology);

flag=true; //提示service的标志位置为true

infoReceiver=new BroadcastReceiver() //提示信息接收器的定义
{
@Override
public void onReceive(Context context, Intent intent) {
// TODO Auto-generated method stub
setText(); //收到intent，就及时修改TextView信息，使得Activity显示时，电池信息也能动态显示
}
};

/** 注册提示信息的intentFilter */
IntentFilter filter=new IntentFilter();
filter.addAction("com.ritterliu.newBatteryWidget");
registerReceiver(infoReceiver,filter);

/** 启动提示service */
Intent startService=new Intent(this,updateService.class);
startService(startService);

}

/** 点击屏幕任意位置，关闭电池信息Activity */
public boolean onTouchEvent(MotionEvent event)
{
this.finish();
// onDestroy();
// System.exit(0);
return true;
}

@Override
protected void onDestroy() {
// TODO Auto-generated method stub
flag=false;
unregisterReceiver(infoReceiver);
super.onDestroy();
}

/** 及时动态修改Activity上文字信息的函数 */
public static void setText()
{
String plugState="";
switch(currentBatteryPlugged)
{
case 0:
plugState="";
break;
case 1:
plugState=batteryPluggedAC;
break;
case 2:
plugState=batteryPluggedUSB;
break;
default:
plugState="";
}

switch(currentBatteryStatus)
{
case 1:
tvBatteryStatus.setText(batteryStatus+batteryStatusUnknown);
break;
case 2:
tvBatteryStatus.setText(batteryStatus+batteryStatusCharging+plugState);
break;
case 3:
tvBatteryStatus.setText(batteryStatus+batteryStatusDischarging);
break;
case 4:
tvBatteryStatus.setText(batteryStatus+batteryStatusNotCharging);
break;
case 5:
tvBatteryStatus.setText(batteryStatus+batteryStatusFull+plugState);
break;
default:
tvBatteryStatus.setText(batteryStatus+batteryStatusUnknown);
}

tvBatteryLevel.setText(batteryLevel+String.valueOf(currentBatteryLevel)+"%");

switch(currentBatteryHealth)
{
case 1:
tvBatteryHealth.setText(batteryHealth+batteryHealthUnknown);
break;
case 2:
tvBatteryHealth.setText(batteryHealth+batteryHealthGood);
break;
case 3:
tvBatteryHealth.setText(batteryHealth+batteryHealthOverheat);
break;
case 4:
tvBatteryHealth.setText(batteryHealth+batteryHealthDead);
break;
case 5:
tvBatteryHealth.setText(batteryHealth+batteryHealthOverVoltage);
break;
case 6:
tvBatteryHealth.setText(batteryHealth+batteryHealthUnspecifiedFailure);
break;
case 7:
tvBatteryHealth.setText(batteryHealth+batteryHealthCold);
break;
default:
tvBatteryHealth.setText(batteryHealth+batteryHealthUnknown);
}

tvBatteryTemperature.setText(batteryTemperature+currentBatteryTemperature/10f+"℃");
tvBatteryVoltage.setText(batteryVoltage+currentBatteryVoltage+"mv");
tvBatteryTechnology.setText(batteryTechnology+currentBatteryTechnology);
}

/** 提示信息变化的service，约每隔一秒，就发送intent，
* 提醒activity更新电池信息，主要为了检测电池状态的变化，
* 例如连上充电时，状态会从“未在充电”变为“正在充电”
* 通过调用plugged方式，还能判断是AC方式充电还是USB方式充电
*/
public static class updateService extends Service{
@Override
public IBinder onBind(Intent intent) {
// TODO Auto-generated method stub
return null;
}

/** 定义得到电池信息的BroadcastReceiver，提取出关键信息，存入变量中 */
private BroadcastReceiver batteryReceiver=new BroadcastReceiver()
{
@Override
public void onReceive(Context context, Intent intent) {
// TODO Auto-generated method stub
currentBatteryStatus=intent.getIntExtra("status", 0);
currentBatteryLevel=intent.getIntExtra("level", 0);
currentBatteryHealth=intent.getIntExtra("health", 0);
currentBatteryTemperature=intent.getIntExtra("temperature",0);
currentBatteryVoltage=intent.getIntExtra("voltage",0);
currentBatteryTechnology=intent.getStringExtra("technology");
currentBatteryPlugged=intent.getIntExtra("plugged",0);
}
};

public void onStart(Intent intent,int startId)
{
registerReceiver(batteryReceiver,new IntentFilter(Intent.ACTION_BATTERY_CHANGED));//注册BroadcastReceiver

/** 启动一个线程，约每隔一秒就发送intent提醒Activity更新电池信息 */
new Thread()
{
public void run()
{
while(flag)
{
 Intent sendInfoToActivity=new Intent();
 sendInfoToActivity.setAction("com.ritterliu.newBatteryWidget");
 sendBroadcast(sendInfoToActivity);

try
{
Thread.sleep(1000);
}
catch(Exception ex)
{
ex.printStackTrace();
}
}
}
}.start();
super.onStart(intent, startId);
}
}
}
布局文件：view plaincopy to clipboardprint?<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:layout_width="fill_parent"
 android:layout_height="fill_parent"
 android:orientation="vertical" >

 <TextView
 android:id="@+id/tvBatteryStatus"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="@string/batteryStatus"
 android:textSize="18dp"
 android:textColor="#FFFFFF"
 />

 <TextView
 android:id="@+id/tvBatteryLevel"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="@string/batteryLevel"
 android:textSize="18dp"
 android:textColor="#FFFFFF"
 />

 <TextView
 android:id="@+id/tvBatteryHealth"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="@string/batteryHealth"
 android:textSize="18dp"
 android:textColor="#FFFFFF"
 />

 <TextView
 android:id="@+id/tvBatteryTemperature"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="@string/batteryTemperature"
 android:textSize="18dp"
 android:textColor="#FFFFFF"
 />

 <TextView
 android:id="@+id/tvBatteryVoltage"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="@string/batteryVoltage"
 android:textSize="18dp"
 android:textColor="#FFFFFF"
 />

 <TextView
 android:id="@+id/tvBatteryTechnology"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="@string/batteryTechnology"
 android:textSize="18dp"
 android:textColor="#FFFFFF"
 />

 <TextView
 android:id="@+id/tvInfo"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="http://blog.csdn.net/ritterliu"
 android:textSize="15dp"
 android:textColor="#FFFFFF"
 />

</LinearLayout>
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:layout_width="fill_parent"
 android:layout_height="fill_parent"
 android:orientation="vertical" >

<TextView
 android:id="@+id/tvBatteryStatus"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="@string/batteryStatus"
 android:textSize="18dp"
 android:textColor="#FFFFFF"
 />

<TextView
 android:id="@+id/tvBatteryLevel"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="@string/batteryLevel"
 android:textSize="18dp"
 android:textColor="#FFFFFF"
 />

<TextView
 android:id="@+id/tvBatteryHealth"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="@string/batteryHealth"
 android:textSize="18dp"
 android:textColor="#FFFFFF"
 />

<TextView
 android:id="@+id/tvBatteryTemperature"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="@string/batteryTemperature"
 android:textSize="18dp"
 android:textColor="#FFFFFF"
 />

<TextView
 android:id="@+id/tvBatteryVoltage"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="@string/batteryVoltage"
 android:textSize="18dp"
 android:textColor="#FFFFFF"
 />

<TextView
 android:id="@+id/tvBatteryTechnology"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="@string/batteryTechnology"
 android:textSize="18dp"
 android:textColor="#FFFFFF"
 />

<TextView
 android:id="@+id/tvInfo"
 android:layout_marginLeft="3sp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text="http://blog.csdn.net/ritterliu"
 android:textSize="15dp"
 android:textColor="#FFFFFF"
 />

</LinearLayout>
在代码中写了注释，还有什么不清楚的部分可以留言。

最后是AndroidManifest.xml：

view plaincopy to clipboardprint?<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
 package="com.ritterliu.newBatteryWidget"
 android:versionCode="1"
 android:versionName="1.0" >

 <uses-sdk android:minSdkVersion="4" />

 <application
 android:icon="@drawable/j"
 android:label="@string/app_name" >
 <receiver
 android:label="@string/app_name"
 android:name=".NewBatteryWidget" >
 <intent-filter >
 <action android:name="android.appwidget.action.APPWIDGET_UPDATE" />
 </intent-filter>
 <meta-data android:name="android.appwidget.provider"
 android:resource="@xml/new_battery_widget"
 />
 </receiver>

 <service android:name=".NewBatteryWidget$updateService"/>

 <activity android:name=".NewBatteryInfoActivity" android:label="OtherActiviy_app_name"
 android:theme="@android:style/Theme.Dialog">

 </activity>

 <service android:name=".NewBatteryInfoActivity$updateService"/>

 </application>

</manifest>
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
 package="com.ritterliu.newBatteryWidget"
 android:versionCode="1"
 android:versionName="1.0" >

 <uses-sdk android:minSdkVersion="4" />

 <application
 android:icon="@drawable/j"
 android:label="@string/app_name" >
 <receiver
 android:label="@string/app_name"
 android:name=".NewBatteryWidget" >
 <intent-filter >
 <action android:name="android.appwidget.action.APPWIDGET_UPDATE" />
 </intent-filter>
 <meta-data android:name="android.appwidget.provider"
 android:resource="@xml/new_battery_widget"
 />
 </receiver>

 <service android:name=".NewBatteryWidget$updateService"/>

 <activity android:name=".NewBatteryInfoActivity" android:label="OtherActiviy_app_name"
android:theme="@android:style/Theme.Dialog">

</activity>

 <service android:name=".NewBatteryInfoActivity$updateService"/>

 </application>

</manifest>
大功告成

总结：

本次开发大概前后折腾了4天时间，这其中绕了一段弯路（就是那个android：updatePeriodMillis），不仅学习了如何开发Widget，还对Activity的一些写法，比如设置风格为Dialog等又有了进一步的学习，在关闭Activity时，我是直接调用的finish关闭的，也许在用法上还有不当之处，本人从9月份开始自学Android开发至今两个多月的时间，开发水平还十分有限，代码中有写的不好的地方还请大家多多指点，不甚感激。

附上完整文件下载地址，由于本人积分很少（只有19 ），故略收1分，一周后将改为免费，谢谢大家。

http://download.csdn.net/detail/ritterliu/3791897

——————————————————————————————————————————————————————

更新于2011.11.14 15:17

经过昨晚一夜的测试，发现在AppWidget中设置AlarmManager每隔一秒刷新一次频率太高，过于费电了，一夜耗电量居然占到了8%，故针对这个问题正在修改，修改完成后将及时上传。

使用AlarmManager实现每隔一秒刷新一次主要是为了实现实时的充电状态的检测，电池信息的更新自然不用这么频繁，修改中。。。

修改完成，原来的通过AlarmManager每隔一秒刷新一次实现的对充电事件的及时响应改为对ACTION_POWER_CONNECTED和ACTION_POWER_DISCONNECTED监听来实现。

就修改了AppWidget部分：

view plaincopy to clipboardprint?package com.ritterliu.newBatteryWidget;

import android.app.AlarmManager;
import android.app.PendingIntent;
import android.app.Service;
import android.appwidget.AppWidgetManager;
import android.appwidget.AppWidgetProvider;
import android.content.BroadcastReceiver;
import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.os.IBinder;
import android.util.Log;
import android.widget.RemoteViews;
import android.widget.Toast;

public class NewBatteryWidget extends AppWidgetProvider{

 private static int currentBatteryLevel;
 private static int currentBatteryStatus;

 private static boolean firstTimeToCreate=true;

 public void onUpdate(Context context,AppWidgetManager appWidgetManager,int[] appWidgetIds)
 {
 super.onUpdate(context, appWidgetManager, appWidgetIds);

 /** 启动自动更新电池信息的service */
 context.startService(new Intent(context,updateService.class));

 /** 为AppWidget设置点击事件的响应，启动显示电池信息详情的activity */
 Intent startActivityIntent = new Intent(context,NewBatteryInfoActivity.class);
 PendingIntent Pintent = PendingIntent.getActivity(context,0,startActivityIntent,0);
 RemoteViews views = new RemoteViews(context.getPackageName(),R.layout.newrelativelayout);
 views.setOnClickPendingIntent(R.id.imageView,Pintent);
 appWidgetManager.updateAppWidget(appWidgetIds,views);

 }

 /** 自动更新电池信息的service,通过AlarmManager实现定时不间断地发送电池信息 */
 public static class updateService extends Service{
 Bitmap bmp; //定义机器人图片
 @Override
 public IBinder onBind(Intent intent) {
 // TODO Auto-generated method stub
 return null;
 }

 /** 定义一个接收电池信息的broascastReceiver */

 private BroadcastReceiver batteryReceiver=new BroadcastReceiver()
 {
 @Override
 public void onReceive(Context context, Intent intent) {
 // TODO Auto-generated method stub
 currentBatteryLevel=intent.getIntExtra("level", 0);
 currentBatteryStatus=intent.getIntExtra("status", 0);
 }

 };

 private BroadcastReceiver powerConnectedReceiver=new BroadcastReceiver()
 {
 @Override
 public void onReceive(Context context, Intent intent) {
 // TODO Auto-generated method stub
 setViews();
 }
 };

 private BroadcastReceiver powerDisconnectedReceiver=new BroadcastReceiver()
 {
 @Override
 public void onReceive(Context context, Intent intent) {
 // TODO Auto-generated method stub
 setViews();

 }
 };

 /** 设置Widget的显示 */
 private void setViews()
 {
 /** 定义一个AppWidgetManager */
 AppWidgetManager manager=AppWidgetManager.getInstance(this);

 /** 定义一个RemoteViews，实现对AppWidget界面控制 */
 RemoteViews views=new RemoteViews(getPackageName(),R.layout.newrelativelayout);

 if(currentBatteryStatus==2||currentBatteryStatus==5) //当正在充电或充满电时，显示充电的图片
 {
 if(currentBatteryLevel>=95)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.jcharge);
 }
 else if(currentBatteryLevel>=85&& currentBatteryLevel<95)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.icharge);
 }
 else if(currentBatteryLevel>=75&& currentBatteryLevel<85)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.hcharge);
 }
 else if(currentBatteryLevel>=65&& currentBatteryLevel<75)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.gcharge);
 }
 else if(currentBatteryLevel>=55&& currentBatteryLevel<65)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.fcharge);
 }
 else if(currentBatteryLevel>=45&& currentBatteryLevel<55)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.echarge);
 }
 else if(currentBatteryLevel>=35&& currentBatteryLevel<45)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.dcharge);
 }
 else if(currentBatteryLevel>=25&& currentBatteryLevel<35)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.ccharge);
 }
 else if(currentBatteryLevel>=15&& currentBatteryLevel<25)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.bcharge);
 }
 else
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.acharge);
 }
 }
 else //未在充电时，显示不在充电状态的系列图片
 {
 if(currentBatteryLevel>=95)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.j);
 }
 else if(currentBatteryLevel>=85&& currentBatteryLevel<95)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.i);
 }
 else if(currentBatteryLevel>=75&& currentBatteryLevel<85)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.h);
 }
 else if(currentBatteryLevel>=65&& currentBatteryLevel<75)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.g);
 }
 else if(currentBatteryLevel>=55&& currentBatteryLevel<65)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.f);
 }
 else if(currentBatteryLevel>=45&& currentBatteryLevel<55)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.e);
 }
 else if(currentBatteryLevel>=35&& currentBatteryLevel<45)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.d);
 }
 else if(currentBatteryLevel>=25&& currentBatteryLevel<35)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.c);
 }
 else if(currentBatteryLevel>=15&& currentBatteryLevel<25)
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.b);
 }
 else
 {
 bmp=BitmapFactory.decodeResource(getResources(),R.drawable.a);
 }
 }

 /** 设置AppWidget上显示的图片和文字的内容 */
 views.setImageViewBitmap(R.id.imageView,bmp);
 views.setTextViewText(R.id.tv,currentBatteryLevel+"%");

 ComponentName thisWidget=new ComponentName(this,NewBatteryWidget.class);

 /** 更新AppWidget */
 manager.updateAppWidget(thisWidget, views);

 }

 public void onStart(Intent intent,int startId)
 {
 super.onStart(intent, startId);

 /** 注册接收器 */
 registerReceiver(batteryReceiver,new IntentFilter(Intent.ACTION_BATTERY_CHANGED));

 /** 增加了对于POWER_CONNECTED和DISCONNECTED事件的监听，
 * 以实现充电时信息的动态变化，避免了原来需要依赖AlarmManager
 * 每隔一秒发送检测信息来实现，节约了电量，用原来隔一秒更新的方法，
 * 经过一夜测试，插件耗电量居然占到了8%，汗。。。
 *
 * */
 registerReceiver(powerConnectedReceiver,new IntentFilter(Intent.ACTION_POWER_CONNECTED));
 registerReceiver(powerDisconnectedReceiver,new IntentFilter(Intent.ACTION_POWER_DISCONNECTED ));

 /** 使用AlarmManager实现，第一次启动Widget时隔一秒立即更新，
 * 以后均为两分钟发送一次更新提示信息，实现信息实时动态变化，
 * 实现节电功能
 * */
 long now=System.currentTimeMillis();
 long pause;

 if(firstTimeToCreate)
 {
 firstTimeToCreate=false;
 pause=1000;
 }
 else
 {
 pause=1000*60*2;
 }

 Intent alarmIntent=new Intent();
 alarmIntent=intent;

 PendingIntent pendingIntent=PendingIntent.getService(this, 0, alarmIntent, 0);
 AlarmManager alarm=(AlarmManager)getSystemService(Context.ALARM_SERVICE);
 alarm.set(AlarmManager.RTC_WAKEUP,now+pause,pendingIntent);

 setViews();

 }
 }
}
新的源码下载地址：

http://download.csdn.net/detail/ritterliu/3794539

同样将在一周后将改为免费，谢谢大家。

原文地址：http://blog.csdn.net/ritterliu/article/details/6967206
