(转摘)Android腾讯微薄客户端开发九:博主详情界面篇(广播，听众,收听)

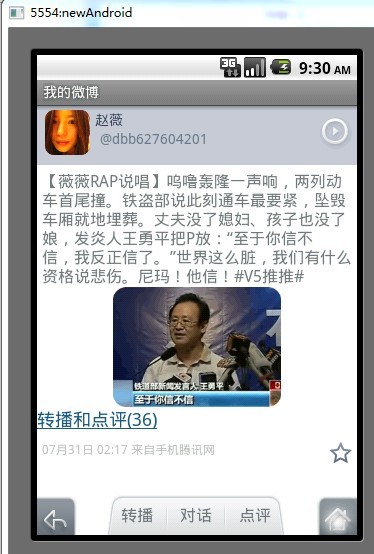

点击顶部的标题栏，界面跳转到此博主的关注界面

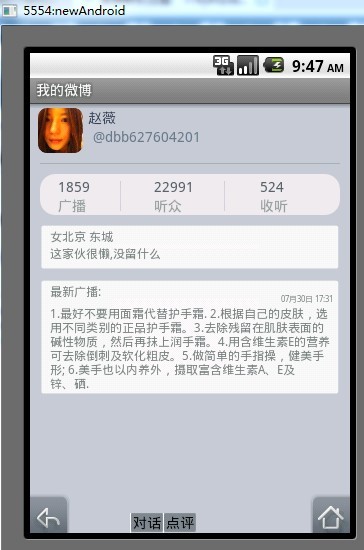

关注界面，此界面下面的对话和点评以及上面的广播，听众和收听丑了点，没时间了，我今天要把博客弄完，美化的事情交给你们了。
Java代码 复制代码?收藏代码
  1. public?class?UserInfoActivity?extends?Activity?implements?OnItemClickListener{ ??
  2. ????private?String?currentNick; ??
  3. ????private?String?name; ??
  4. ????private?String?origtext; ??
  5. ????private?String?timestamp; ??
  6. ????private?DataHelper?dataHelper; ??
  7. ????private?UserInfo?user; ??
  8. ????private?MyWeiboSync?weibo; ??
  9. ????private?Handler?handler; ??
  10. ????private?AsyncImageLoader?asyncImageLoader;? ??
  11. ????private?UserInfoThread?thread; ??
  12. ????private?String?weiboid; ??
  13. ????private?String?returnJsonStr; ??
  14. ????private?JSONObject?dataObj?; ??
  15. ????private?ImageView?user_headicon; ??
  16. ????private?TextView?user_nick; ??
  17. ????private?TextView?user_name; ??
  18. ????private?TextView?user_origtext; ??
  19. ????private?TextView?user_time; ??
  20. ????private?TextView?user_sex; ??
  21. ????private?TextView?user_age; ??
  22. ????private?TextView?user_location; ??
  23. ????private?TextView?user_verifyinfo; ??
  24. ????private?Button?user_back_btn; ??
  25. ????private?Button?user_dialog_btn; ??
  26. ????private?Button?user_message_btn; ??
  27. ????private?GridView?gridView; ??
  28. ???? ??
  29. ????@Override??
  30. ????protected?void?onCreate(Bundle?savedInstanceState){ ??
  31. ????????super.onCreate(savedInstanceState); ??
  32. ????????setContentView(R.layout.user_info); ??
  33. ????????setUpViews();//设置view ??
  34. ????????setUpListeners();//设置listenter ??
  35. ????????asyncImageLoader?=?new?AsyncImageLoader(); ??
  36. ????????dataHelper?=?new?DataHelper(UserInfoActivity.this); ??
  37. ????????weibo?=?new?MyWeiboSync(); ??
  38. ????????List<UserInfo>?userList?=?dataHelper.GetUserList(false); ??
  39. ???????? ??
  40. ????????SharedPreferences?preferences?=?getSharedPreferences("default_user",Activity.MODE_PRIVATE); ??
  41. ????????String?nick?=?preferences.getString("user_default_nick",?""); ??
  42. ???????? ??
  43. ????????if?(nick?!=?"")?{ ??
  44. ????????????user?=?dataHelper.getUserByName(nick,userList); ??
  45. ????????} ??
  46. ???????? ??
  47. ????????weibo.setAccessTokenKey(user.getToken()); ??
  48. ????????weibo.setAccessTokenSecrect(user.getTokenSecret()); ??
  49. ???????? ??
  50. ????????//获取从上一界面传递过来的数据 ??
  51. ????????Intent?intent?=?getIntent(); ??
  52. ????????name?=?intent.getStringExtra("name"); ??
  53. ????????currentNick?=?intent.getStringExtra("nick");//昵称 ??
  54. ????????origtext?=?intent.getStringExtra("origtext"); ??
  55. ????????timestamp?=?intent.getStringExtra("timestamp"); ??
  56. ????????user_name.setText("@"+name); ??
  57. ????????user_origtext.setText(origtext); ??
  58. ????????user_time.setText(timestamp); ??
  59. ???????? ??
  60. ????????handler?=?new?UserInfoHandler(); ??
  61. ????????thread?=?new?UserInfoThread(); ??
  62. ????????thread.start();//开启一个线程获取数据 ??
  63. ????} ??
  64. ???? ??
  65. ????private?void?setUpViews(){ ??
  66. ????????user_headicon?=?(ImageView)?findViewById(R.id.user_headicon); ??
  67. ????????user_nick?=?(TextView)?findViewById(R.id.user_nick); ??
  68. ????????user_name?=?(TextView)?findViewById(R.id.user_name); ??
  69. ????????user_origtext?=?(TextView)?findViewById(R.id.user_origtext); ??
  70. ????????user_time?=?(TextView)?findViewById(R.id.user_time); ??
  71. ????????user_sex?=?(TextView)?findViewById(R.id.user_sex); ??
  72. ????????user_age?=?(TextView)?findViewById(R.id.user_age); ??
  73. ????????user_location?=?(TextView)?findViewById(R.id.user_location); ??
  74. ????????user_verifyinfo?=?(TextView)?findViewById(R.id.user_verifyinfo); ??
  75. ????????user_back_btn?=?(Button)?findViewById(R.id.user_back_btn); ??
  76. ????????user_dialog_btn?=?(Button)?findViewById(R.id.user_dialog_btn); ??
  77. ????????user_message_btn?=?(Button)?findViewById(R.id.user_message_btn); ??
  78. ????????gridView?=?(GridView)findViewById(R.id.user_grid); ??
  79. ????} ??
  80. ???? ??
  81. ????private?void?setUpListeners(){ ??
  82. ????????gridView.setOnItemClickListener(this); ??
  83. ????} ??
  84. ???? ??
  85. ????class?UserInfoThread?extends?Thread?{ ??
  86. ????????@Override??
  87. ????????public?void?run()?{ ??
  88. ????????????returnJsonStr?=?weibo.getUserInfoByName(weibo.getAccessTokenKey(),?weibo.getAccessTokenSecrect(),?name); ??
  89. ????????????//通知handler处理数据 ??
  90. ????????????Message?msg?=?handler.obtainMessage(); ??
  91. ????????????handler.sendMessage(msg); ??
  92. ????????} ??
  93. ????} ??
  94. ???? ??
  95. ????class?UserInfoHandler?extends?Handler?{? ??
  96. ????????@Override??
  97. ????????public?void?handleMessage(Message?msg){ ??
  98. ????????????Drawable?cachedImage; ??
  99. ????????????try?{ ??
  100. ????????????????dataObj?=?new?JSONObject(returnJsonStr).getJSONObject("data"); ??
  101. ????????????????cachedImage?=?asyncImageLoader.loadDrawable(dataObj.getString("head")+"/100",user_headicon,?new?ImageCallback(){ ??
  102. ????????????????????@Override??
  103. ????????????????????public?void?imageLoaded(Drawable?imageDrawable,ImageView?imageView,?String?imageUrl)?{ ??
  104. ????????????????????????imageView.setImageDrawable(imageDrawable); ??
  105. ????????????????????} ??
  106. ????????????????}); ??
  107. ????????????????if?(cachedImage?==?null)?{ ??
  108. ????????????????????user_headicon.setImageResource(R.drawable.icon); ??
  109. ????????????????}?else?{ ??
  110. ????????????????????user_headicon.setImageDrawable(cachedImage); ??
  111. ????????????????} ??
  112. ????????????????user_nick.setText(dataObj.getString("nick")); ??
  113. ????????????????user_sex.setText(dataObj.getInt("sex")==1?"男":"女"); ??
  114. ????????????????if(dataObj.getInt("birth_year")!=0){ ??
  115. ????????????????????user_age.setText((Calendar.getInstance().get(Calendar.YEAR)-dataObj.getInt("birth_year"))+"岁"); ??
  116. ????????????????} ??
  117. ????????????????user_location.setText(dataObj.getString("location")); ??
  118. ????????????????String?verifyinfo?=?dataObj.getString("verifyinfo"); ??
  119. ????????????????if(verifyinfo==null||"".equals(verifyinfo)){ ??
  120. ????????????????????user_verifyinfo.setText("这家伙很懒,没留什么"); ??
  121. ????????????????}else{ ??
  122. ????????????????????user_verifyinfo.setText(verifyinfo); ??
  123. ????????????????} ??
  124. ????????????????final?List<String>?numsList?=?new?ArrayList<String>(); ??
  125. ????????????????numsList.add(dataObj.getString("tweetnum")); ??
  126. ????????????????numsList.add(dataObj.getString("fansnum")); ??
  127. ????????????????numsList.add(dataObj.getString("idolnum")); ??
  128. ????????????????gridView.setAdapter(new?GridAdapter(UserInfoActivity.this,?numsList)); ??
  129. ????????????}?catch?(JSONException?e)?{ ??
  130. ????????????????e.printStackTrace(); ??
  131. ????????????} ??
  132. ????????} ??
  133. ????} ??
  134. ???? ??
  135. ????class?GridAdapter?extends?BaseAdapter?{ ??
  136. ????????private?Context?context; ??
  137. ????????private?LayoutInflater?inflater; ??
  138. ????????List<String>?numList; ??
  139. ???????? ??
  140. ????????public?GridAdapter(Context?context,?List<String>?numList)?{ ??
  141. ????????????super(); ??
  142. ????????????this.context?=?context; ??
  143. ????????????this.numList?=?numList; ??
  144. ????????????this.inflater?=?LayoutInflater.from(context); ??
  145. ????????} ??
  146. ??
  147. ????????@Override??
  148. ????????public?int?getCount()?{ ??
  149. ????????????return?numList.size(); ??
  150. ????????} ??
  151. ??
  152. ????????@Override??
  153. ????????public?Object?getItem(int?position)?{ ??
  154. ????????????return?numList.get(position); ??
  155. ????????} ??
  156. ??
  157. ????????@Override??
  158. ????????public?long?getItemId(int?position)?{ ??
  159. ????????????return?position; ??
  160. ????????} ??
  161. ??
  162. ????????@Override??
  163. ????????public?View?getView(final?int?position,?View?convertView,?ViewGroup?parent){ ??
  164. ????????????convertView?=?inflater.inflate(R.layout.userinfo_grid_item,?null); ??
  165. ????????????TextView?num?=?(TextView)convertView.findViewById(R.id.userinfo_grid_num); ??
  166. ????????????TextView?title?=?(TextView)convertView.findViewById(R.id.userinfo_grid_title); ??
  167. ????????????ImageView?image?=?(ImageView)convertView.findViewById(R.id.userinfo_grid_image); ??
  168. ????????????switch?(position)?{ ??
  169. ????????????case?0: ??
  170. ????????????????num.setText(numList.get(0)); ??
  171. ????????????????title.setText("广播"); ??
  172. ????????????????image.setVisibility(View.VISIBLE); ??
  173. ????????????????break; ??
  174. ????????????case?1: ??
  175. ????????????????num.setText(numList.get(1)); ??
  176. ????????????????title.setText("听众"); ??
  177. ????????????????image.setVisibility(View.VISIBLE); ??
  178. ????????????????break; ??
  179. ????????????case?2: ??
  180. ????????????????num.setText(numList.get(2)); ??
  181. ????????????????title.setText("收听"); ??
  182. ????????????????break; ??
  183. ??
  184. ????????????default: ??
  185. ????????????????break; ??
  186. ????????????} ??
  187. ????????????return?convertView; ??
  188. ????????} ??
  189. ????} ??
  190. ??
  191. ????@Override??
  192. ????public?void?onItemClick(AdapterView<?>?arg0,?View?arg1,?int?position,?long?arg3){ ??
  193. ????????switch?(position)?{ ??
  194. ????????case?0: ??
  195. ????????????Intent?intent?=?new?Intent(UserInfoActivity.this,TweetsActivity.class); ??
  196. ????????????intent.putExtra("name",?name); ??
  197. ????????????intent.putExtra("nick",currentNick); ??
  198. ????????????startActivity(intent); ??
  199. ????????????break; ??
  200. ????????case?1: ??
  201. ????????????Intent?intent2?=?new?Intent(UserInfoActivity.this,FansActivity.class); ??
  202. ????????????intent2.putExtra("name",?name); ??
  203. ????????????intent2.putExtra("nick",currentNick); ??
  204. ????????????startActivity(intent2); ??
  205. ????????????break; ??
  206. ????????case?2: ??
  207. ????????????Intent?intent3?=?new?Intent(UserInfoActivity.this,IdolActivity.class); ??
  208. ????????????intent3.putExtra("name",?name); ??
  209. ????????????intent3.putExtra("nick",currentNick); ??
  210. ????????????startActivity(intent3); ??
  211. ????????????break; ??
  212. ????????default: ??
  213. ????????????break; ??
  214. ????????} ??
  215. ???????? ??
  216. ????} ??
  217. }??
public class UserInfoActivity extends Activity implements OnItemClickListener{	private String currentNick;	private String name;	private String origtext;	private String timestamp;	private DataHelper dataHelper;	private UserInfo user;	private MyWeiboSync weibo;	private Handler handler;	private AsyncImageLoader asyncImageLoader; 	private UserInfoThread thread;	private String weiboid;	private String returnJsonStr;	private JSONObject dataObj ;	private ImageView user_headicon;	private TextView user_nick;	private TextView user_name;	private TextView user_origtext;	private TextView user_time;	private TextView user_sex;	private TextView user_age;	private TextView user_location;	private TextView user_verifyinfo;	private Button user_back_btn;	private Button user_dialog_btn;	private Button user_message_btn;	private GridView gridView;		@Override	protected void onCreate(Bundle savedInstanceState){		super.onCreate(savedInstanceState);		setContentView(R.layout.user_info);		setUpViews();//设置view		setUpListeners();//设置listenter		asyncImageLoader = new AsyncImageLoader();		dataHelper = new DataHelper(UserInfoActivity.this);		weibo = new MyWeiboSync();		List<UserInfo> userList = dataHelper.GetUserList(false);				SharedPreferences preferences = getSharedPreferences("default_user",Activity.MODE_PRIVATE);		String nick = preferences.getString("user_default_nick", "");				if (nick != "") {			user = dataHelper.getUserByName(nick,userList);		}				weibo.setAccessTokenKey(user.getToken());		weibo.setAccessTokenSecrect(user.getTokenSecret());				//获取从上一界面传递过来的数据		Intent intent = getIntent();		name = intent.getStringExtra("name");		currentNick = intent.getStringExtra("nick");//昵称		origtext = intent.getStringExtra("origtext");		timestamp = intent.getStringExtra("timestamp");		user_name.setText("@"+name);		user_origtext.setText(origtext);		user_time.setText(timestamp);				handler = new UserInfoHandler();		thread = new UserInfoThread();		thread.start();//开启一个线程获取数据	}		private void setUpViews(){		user_headicon = (ImageView) findViewById(R.id.user_headicon);		user_nick = (TextView) findViewById(R.id.user_nick);		user_name = (TextView) findViewById(R.id.user_name);		user_origtext = (TextView) findViewById(R.id.user_origtext);		user_time = (TextView) findViewById(R.id.user_time);		user_sex = (TextView) findViewById(R.id.user_sex);		user_age = (TextView) findViewById(R.id.user_age);		user_location = (TextView) findViewById(R.id.user_location);		user_verifyinfo = (TextView) findViewById(R.id.user_verifyinfo);		user_back_btn = (Button) findViewById(R.id.user_back_btn);		user_dialog_btn = (Button) findViewById(R.id.user_dialog_btn);		user_message_btn = (Button) findViewById(R.id.user_message_btn);		gridView = (GridView)findViewById(R.id.user_grid);	}		private void setUpListeners(){		gridView.setOnItemClickListener(this);	}		class UserInfoThread extends Thread {		@Override		public void run() {			returnJsonStr = weibo.getUserInfoByName(weibo.getAccessTokenKey(), weibo.getAccessTokenSecrect(), name);			//通知handler处理数据			Message msg = handler.obtainMessage();			handler.sendMessage(msg);		}	}		class UserInfoHandler extends Handler { 		@Override		public void handleMessage(Message msg){			Drawable cachedImage;			try {				dataObj = new JSONObject(returnJsonStr).getJSONObject("data");				cachedImage = asyncImageLoader.loadDrawable(dataObj.getString("head")+"/100",user_headicon, new ImageCallback(){	                @Override	                public void imageLoaded(Drawable imageDrawable,ImageView imageView, String imageUrl) {	                    imageView.setImageDrawable(imageDrawable);	                }	            });				if (cachedImage == null) {					user_headicon.setImageResource(R.drawable.icon);				} else {					user_headicon.setImageDrawable(cachedImage);				}				user_nick.setText(dataObj.getString("nick"));				user_sex.setText(dataObj.getInt("sex")==1?"男":"女");				if(dataObj.getInt("birth_year")!=0){					user_age.setText((Calendar.getInstance().get(Calendar.YEAR)-dataObj.getInt("birth_year"))+"岁");				}				user_location.setText(dataObj.getString("location"));				String verifyinfo = dataObj.getString("verifyinfo");				if(verifyinfo==null||"".equals(verifyinfo)){					user_verifyinfo.setText("这家伙很懒,没留什么");				}else{					user_verifyinfo.setText(verifyinfo);				}				final List<String> numsList = new ArrayList<String>();				numsList.add(dataObj.getString("tweetnum"));				numsList.add(dataObj.getString("fansnum"));				numsList.add(dataObj.getString("idolnum"));				gridView.setAdapter(new GridAdapter(UserInfoActivity.this, numsList));			} catch (JSONException e) {				e.printStackTrace();			}		}	}		class GridAdapter extends BaseAdapter {		private Context context;		private LayoutInflater inflater;		List<String> numList;				public GridAdapter(Context context, List<String> numList) {			super();			this.context = context;			this.numList = numList;			this.inflater = LayoutInflater.from(context);		}		@Override		public int getCount() {			return numList.size();		}		@Override		public Object getItem(int position) {			return numList.get(position);		}		@Override		public long getItemId(int position) {			return position;		}		@Override		public View getView(final int position, View convertView, ViewGroup parent){			convertView = inflater.inflate(R.layout.userinfo_grid_item, null);			TextView num = (TextView)convertView.findViewById(R.id.userinfo_grid_num);			TextView title = (TextView)convertView.findViewById(R.id.userinfo_grid_title);			ImageView image = (ImageView)convertView.findViewById(R.id.userinfo_grid_image);			switch (position) {			case 0:				num.setText(numList.get(0));				title.setText("广播");				image.setVisibility(View.VISIBLE);				break;			case 1:				num.setText(numList.get(1));				title.setText("听众");				image.setVisibility(View.VISIBLE);				break;			case 2:				num.setText(numList.get(2));				title.setText("收听");				break;			default:				break;			}			return convertView;		}	}	@Override	public void onItemClick(AdapterView<?> arg0, View arg1, int position, long arg3){		switch (position) {		case 0:			Intent intent = new Intent(UserInfoActivity.this,TweetsActivity.class);			intent.putExtra("name", name);			intent.putExtra("nick",currentNick);			startActivity(intent);			break;		case 1:			Intent intent2 = new Intent(UserInfoActivity.this,FansActivity.class);			intent2.putExtra("name", name);			intent2.putExtra("nick",currentNick);			startActivity(intent2);			break;		case 2:			Intent intent3 = new Intent(UserInfoActivity.this,IdolActivity.class);			intent3.putExtra("name", name);			intent3.putExtra("nick",currentNick);			startActivity(intent3);			break;		default:			break;		}			}}


Java代码 复制代码?收藏代码
  1. <?xml?version="1.0"?encoding="utf-8"?> ??
  2. <RelativeLayout?android:layout_width="fill_parent"?android:layout_height="fill_parent"?android:background="#c0c8d0"??
  3. ????xmlns:android="http://schemas.android.com/apk/res/android"> ??
  4. ????<RelativeLayout?android:id="@+id/user_top"?android:paddingTop="5.0dip"?android:layout_width="fill_parent"?android:layout_height="60.0dip"?android:layout_alignParentTop="true"?android:layout_centerHorizontal="true"> ??
  5. ????????<ImageView?android:id="@+id/user_headicon"?android:layout_marginLeft="8.0dip"?android:layout_width="45.0dip"?android:layout_height="45.0dip"?android:layout_alignParentLeft="true"/> ??
  6. ????????<TextView?android:id="@+id/user_nick"?android:layout_marginLeft="5.0dip"?android:layout_width="wrap_content"?android:layout_toRightOf="@id/user_headicon"?android:textColor="#384050"??
  7. ????????????android:layout_height="wrap_content"/> ??
  8. ????????<TextView?android:id="@+id/user_name"?android:layout_width="wrap_content"?android:layout_marginLeft="10.0dip"?android:layout_toRightOf="@id/user_headicon"?android:textColor="#687888"??
  9. ????????????android:layout_height="wrap_content"?android:layout_below="@id/user_nick"/> ??
  10. ????</RelativeLayout> ??
  11. ????<LinearLayout?android:paddingLeft="10.0dip"?android:paddingRight="10.0dip"?android:layout_width="fill_parent"?android:layout_height="wrap_content"?android:orientation="vertical"?android:layout_below="@id/user_top"> ??
  12. ????????<ImageView?android:background="#a0b0b0"?android:layout_width="fill_parent"?android:layout_height="1.0dip"?android:scaleType="fitCenter"/> ??
  13. ????????<RelativeLayout?android:layout_width="fill_parent"?android:layout_height="wrap_content"?android:layout_marginTop="10.0dip"> ??
  14. ????????????<GridView?android:gravity="center"?android:listSelector="@drawable/listitem_selector"?android:id="@+id/user_grid"?android:background="@drawable/userinfo_grid_bg"?android:layout_width="fill_parent"?android:layout_height="wrap_content"?android:numColumns="3"/> ??
  15. ????????</RelativeLayout> ??
  16. ????????<RelativeLayout?android:layout_width="fill_parent"?android:layout_height="wrap_content"?android:layout_marginTop="10.0dip"?android:background="@drawable/panel_bg"> ??
  17. ????????????<TextView?android:id="@+id/user_sex"?android:layout_marginLeft="5.0dip"?android:layout_alignParentLeft="true"?android:layout_width="wrap_content"??android:textSize="12.0sp"?android:textColor="#788080"??
  18. ????????????????android:layout_height="wrap_content"/> ??
  19. ????????????<TextView?android:id="@+id/user_age"?android:layout_toRightOf="@id/user_sex"?android:layout_width="wrap_content"??android:textSize="12.0sp"?android:textColor="#788080"??
  20. ????????????????android:layout_height="wrap_content"/> ??
  21. ????????????<TextView??android:id="@+id/user_location"?android:layout_toRightOf="@id/user_age"?android:layout_width="wrap_content"?android:textSize="12.0sp"?android:textColor="#788080"??
  22. ????????????????android:layout_height="wrap_content"/> ??
  23. ????????????<TextView??android:id="@+id/user_verifyinfo"?android:layout_marginLeft="5.0dip"?android:layout_alignParentLeft="true"?android:layout_below="@id/user_sex"?android:layout_width="fill_parent"?android:textSize="12.0sp"?android:textColor="#788080"??
  24. ????????????????android:layout_height="wrap_content"/> ??
  25. ????????</RelativeLayout> ??
  26. ????????<RelativeLayout?android:layout_width="fill_parent"?android:layout_height="wrap_content"?android:layout_marginTop="10.0dip"?android:background="@drawable/panel_bg"> ??
  27. ????????????<TextView?android:text="最新广播:"?android:layout_width="fill_parent"?android:layout_marginLeft="5.0dip"?android:textSize="12.0sp"?android:textColor="#788080"??
  28. ????????????????android:layout_height="wrap_content"/> ??
  29. ????????????<TextView?android:id="@+id/user_time"?android:layout_width="wrap_content"?android:layout_marginLeft="3.0dip"?android:layout_marginTop="10.0dip"?android:textSize="8.0sp"?android:textColor="#788080"??
  30. ????????????????android:layout_height="wrap_content"?android:layout_alignParentRight="true"/> ??
  31. ????????????<TextView?android:id="@+id/user_origtext"?android:layout_width="fill_parent"?android:layout_marginLeft="5.0dip"?android:textSize="12.0sp"?android:textColor="#788080"? ??
  32. ????????????????android:layout_height="wrap_content"?android:layout_below="@id/user_time"?android:layout_alignParentLeft="true"/> ??
  33. ????????</RelativeLayout> ??
  34. ????</LinearLayout> ??
  35. ????<RelativeLayout?android:layout_width="fill_parent"?android:layout_height="40.0dip"?android:layout_alignParentBottom="true"> ??
  36. ????????<Button?android:id="@+id/user_back_btn"?android:layout_width="40.0dip"?android:drawableTop="@drawable/btn_back_selector"?android:background="@drawable/bottom_back_bg"??
  37. ????????????android:layout_height="40.0dip"??android:layout_alignParentLeft="true"/> ??
  38. ????????<LinearLayout?android:id="@+id/widget41"?android:layout_marginLeft="60.0dip"?android:layout_alignParentBottom="true"??
  39. ????????????android:layout_width="wrap_content"?android:layout_height="wrap_content"?android:orientation="horizontal"?android:layout_toRightOf="@id/user_back_btn"> ??
  40. ????????????<ImageView?android:background="#f8f8f8"?android:layout_width="1.0dip"?android:layout_height="20.0dip"?android:scaleType="fitCenter"/> ??
  41. ????????????<Button?android:id="@+id/user_dialog_btn"?android:layout_width="wrap_content"?android:background="@drawable/bottom_bar_bg"??
  42. ????????????????android:layout_height="wrap_content"?android:text="对话"/> ??
  43. ????????????<ImageView?android:background="#f8f8f8"?android:layout_width="1.0dip"?android:layout_height="20.0dip"?android:scaleType="fitCenter"/> ??
  44. ????????????<Button?android:id="@+id/user_message_btn"?android:layout_width="wrap_content"?android:background="@drawable/bottom_bar_bg"??
  45. ????????????????android:layout_height="wrap_content"?android:text="点评"/> ??
  46. ????????</LinearLayout> ??
  47. ????????<Button?android:id="@+id/user_tohome_btn"?android:layout_width="40.0dip"??
  48. ????????????android:layout_height="40.0dip"?android:drawableTop="@drawable/btn_home_selector"?android:background="@drawable/bottom_home_bg"?android:layout_alignParentRight="true"/> ??
  49. ????</RelativeLayout> ??
  50. </RelativeLayout>??
<?xml version="1.0" encoding="utf-8"?><RelativeLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:background="#c0c8d0"	xmlns:android="http://schemas.android.com/apk/res/android">	<RelativeLayout android:id="@+id/user_top" android:paddingTop="5.0dip" android:layout_width="fill_parent" android:layout_height="60.0dip" android:layout_alignParentTop="true" android:layout_centerHorizontal="true">		<ImageView android:id="@+id/user_headicon" android:layout_marginLeft="8.0dip" android:layout_width="45.0dip" android:layout_height="45.0dip" android:layout_alignParentLeft="true"/>		<TextView android:id="@+id/user_nick" android:layout_marginLeft="5.0dip" android:layout_width="wrap_content" android:layout_toRightOf="@id/user_headicon" android:textColor="#384050"			android:layout_height="wrap_content"/>		<TextView android:id="@+id/user_name" android:layout_width="wrap_content" android:layout_marginLeft="10.0dip" android:layout_toRightOf="@id/user_headicon" android:textColor="#687888"			android:layout_height="wrap_content" android:layout_below="@id/user_nick"/>	</RelativeLayout>	<LinearLayout android:paddingLeft="10.0dip" android:paddingRight="10.0dip" android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" android:layout_below="@id/user_top">		<ImageView android:background="#a0b0b0" android:layout_width="fill_parent" android:layout_height="1.0dip" android:scaleType="fitCenter"/>		<RelativeLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_marginTop="10.0dip">			<GridView android:gravity="center" android:listSelector="@drawable/listitem_selector" android:id="@+id/user_grid" android:background="@drawable/userinfo_grid_bg" android:layout_width="fill_parent" android:layout_height="wrap_content" android:numColumns="3"/>		</RelativeLayout>		<RelativeLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_marginTop="10.0dip" android:background="@drawable/panel_bg">			<TextView android:id="@+id/user_sex" android:layout_marginLeft="5.0dip" android:layout_alignParentLeft="true" android:layout_width="wrap_content"  android:textSize="12.0sp" android:textColor="#788080"				android:layout_height="wrap_content"/>			<TextView android:id="@+id/user_age" android:layout_toRightOf="@id/user_sex" android:layout_width="wrap_content"  android:textSize="12.0sp" android:textColor="#788080"				android:layout_height="wrap_content"/>			<TextView  android:id="@+id/user_location" android:layout_toRightOf="@id/user_age" android:layout_width="wrap_content" android:textSize="12.0sp" android:textColor="#788080"				android:layout_height="wrap_content"/>			<TextView  android:id="@+id/user_verifyinfo" android:layout_marginLeft="5.0dip" android:layout_alignParentLeft="true" android:layout_below="@id/user_sex" android:layout_width="fill_parent" android:textSize="12.0sp" android:textColor="#788080"				android:layout_height="wrap_content"/>		</RelativeLayout>		<RelativeLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_marginTop="10.0dip" android:background="@drawable/panel_bg">			<TextView android:text="最新广播:" android:layout_width="fill_parent" android:layout_marginLeft="5.0dip" android:textSize="12.0sp" android:textColor="#788080"				android:layout_height="wrap_content"/>			<TextView android:id="@+id/user_time" android:layout_width="wrap_content" android:layout_marginLeft="3.0dip" android:layout_marginTop="10.0dip" android:textSize="8.0sp" android:textColor="#788080"				android:layout_height="wrap_content" android:layout_alignParentRight="true"/>			<TextView android:id="@+id/user_origtext" android:layout_width="fill_parent" android:layout_marginLeft="5.0dip" android:textSize="12.0sp" android:textColor="#788080" 				android:layout_height="wrap_content" android:layout_below="@id/user_time" android:layout_alignParentLeft="true"/>		</RelativeLayout>	</LinearLayout>	<RelativeLayout android:layout_width="fill_parent" android:layout_height="40.0dip" android:layout_alignParentBottom="true">		<Button android:id="@+id/user_back_btn" android:layout_width="40.0dip" android:drawableTop="@drawable/btn_back_selector" android:background="@drawable/bottom_back_bg"			android:layout_height="40.0dip"  android:layout_alignParentLeft="true"/>		<LinearLayout android:id="@+id/widget41" android:layout_marginLeft="60.0dip" android:layout_alignParentBottom="true"			android:layout_width="wrap_content" android:layout_height="wrap_content" android:orientation="horizontal" android:layout_toRightOf="@id/user_back_btn">			<ImageView android:background="#f8f8f8" android:layout_width="1.0dip" android:layout_height="20.0dip" android:scaleType="fitCenter"/>			<Button android:id="@+id/user_dialog_btn" android:layout_width="wrap_content" android:background="@drawable/bottom_bar_bg"				android:layout_height="wrap_content" android:text="对话"/>			<ImageView android:background="#f8f8f8" android:layout_width="1.0dip" android:layout_height="20.0dip" android:scaleType="fitCenter"/>			<Button android:id="@+id/user_message_btn" android:layout_width="wrap_content" android:background="@drawable/bottom_bar_bg"				android:layout_height="wrap_content" android:text="点评"/>		</LinearLayout>		<Button android:id="@+id/user_tohome_btn" android:layout_width="40.0dip"			android:layout_height="40.0dip" android:drawableTop="@drawable/btn_home_selector" android:background="@drawable/bottom_home_bg" android:layout_alignParentRight="true"/>	</RelativeLayout></RelativeLayout>


Java代码 复制代码?收藏代码
  1. <?xml?version="1.0"?encoding="utf-8"?> ??
  2. <LinearLayout?xmlns:android="http://schemas.android.com/apk/res/android"?android:gravity="center"?android:paddingTop="3.0dip"?android:orientation="horizontal"?android:layout_width="wrap_content"?android:layout_height="wrap_content"> ??
  3. ????<LinearLayout?android:orientation="vertical"?android:layout_width="wrap_content"?android:layout_height="wrap_content"> ??
  4. ????????<TextView?android:id="@+id/userinfo_grid_num"?android:layout_width="wrap_content"?android:layout_height="wrap_content"?android:textColor="#586068"/> ??
  5. ????????<TextView?android:id="@+id/userinfo_grid_title"?android:layout_width="wrap_content"?android:layout_height="wrap_content"?android:textColor="#98a0a0"/> ??
  6. ????</LinearLayout> ??
  7. ????<ImageView?android:id="@+id/userinfo_grid_image"?android:src="#d0d0d8"?android:visibility="invisible"?android:layout_width="1.0dip"?android:layout_height="30.0dip"?android:layout_marginLeft="30.0dip"/> ??
  8. </LinearLayout>??
  9. http://helloandroid.iteye.com/blog/1136746
  相关解决方案

代码迷 - 您身边的软件异常，代码异常，编程异常助手（发现，解决，分享）
Copyright © 2009-2013 DAIMAMI.COM. All rights reserved.
