(转摘)Android腾讯微博客户端开发4:微博发送篇(QQ表情,@搜索)

凌晨发帖不容易啊，? 有一个问题，谁做过android的自定义表情啊？貌似还没有发现有客户端有，都是图片，如果能像在电脑上那样自定义表情的功能多好，那位大哥知道，麻烦告知一声，呵呵。写完，睡觉。

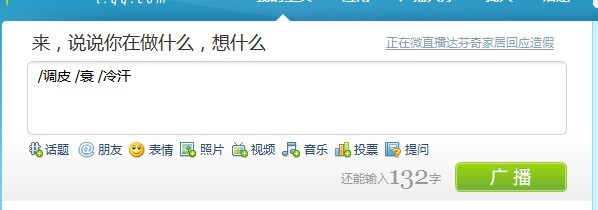

我们仔细来观察下腾讯微博的qq表情发送规律，由/开始,1到3个中文或者英文字符.

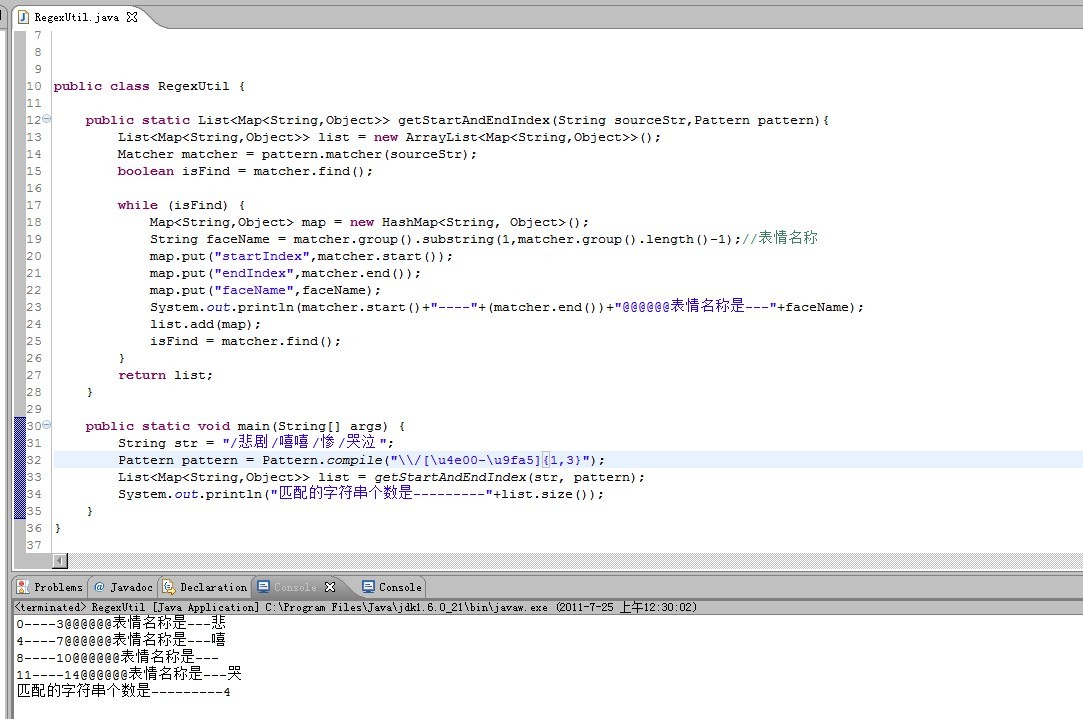

写个工具类来测试已测试正则表达式来匹配表情。

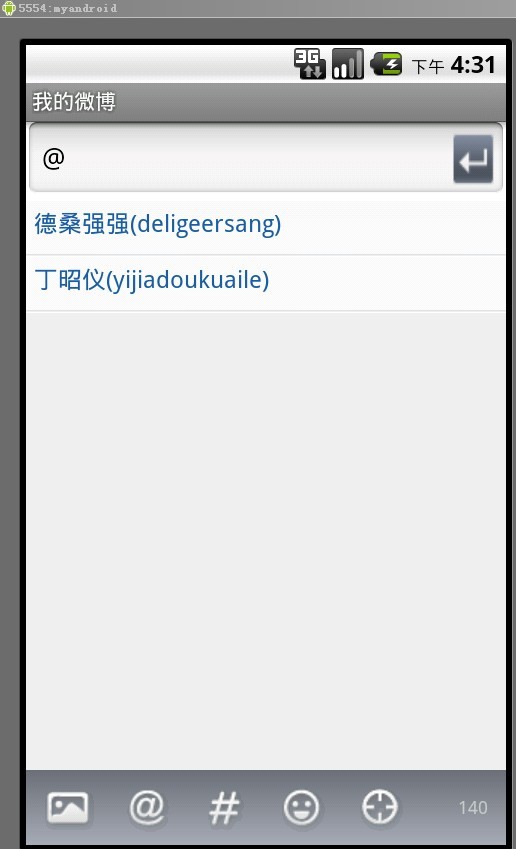

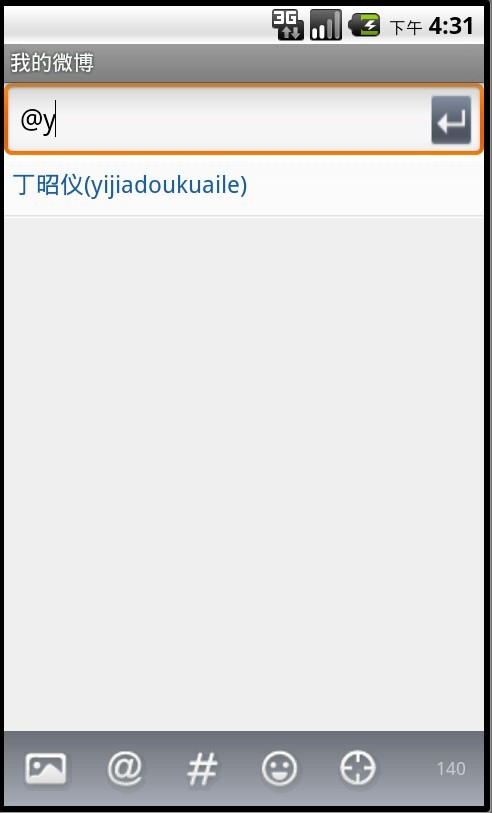

在上方输入框中可以输入查询 格式为 @你选择的列表值

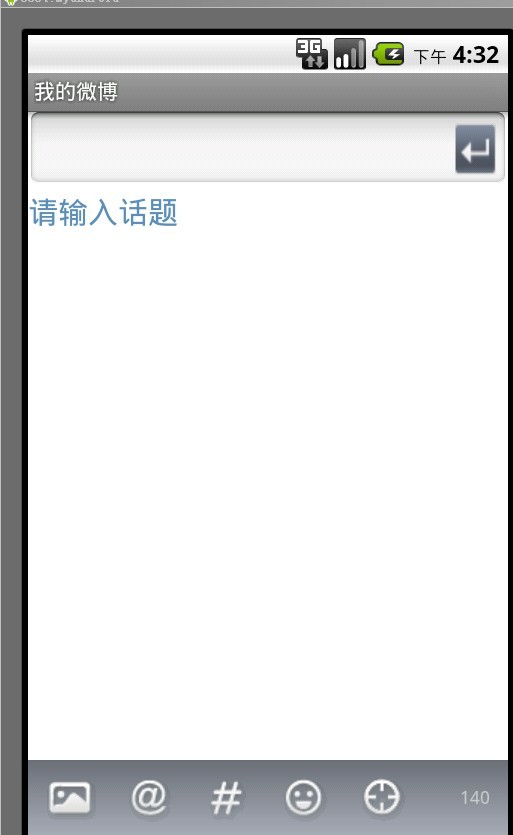

这个是话题输入界面，格式为#话题#

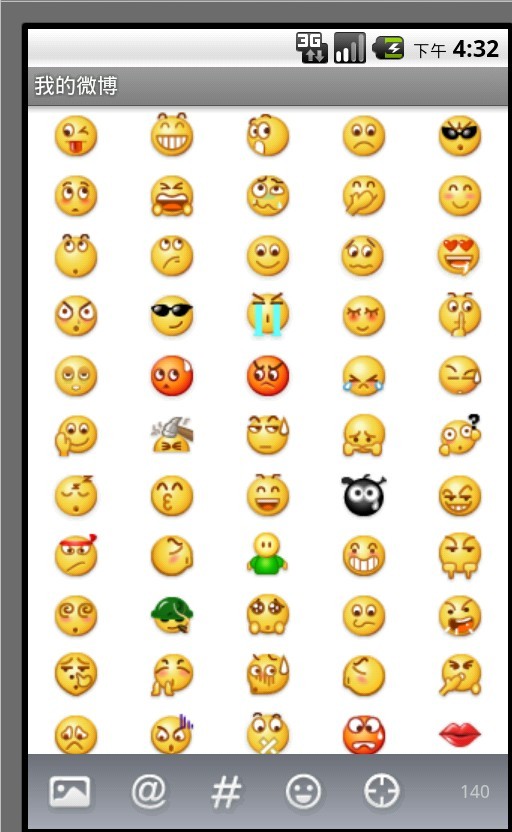

表情选择页面，这个其实是一个每行5列的GridView


此界面可看到你写的微博的内容，点击发送，发送成功

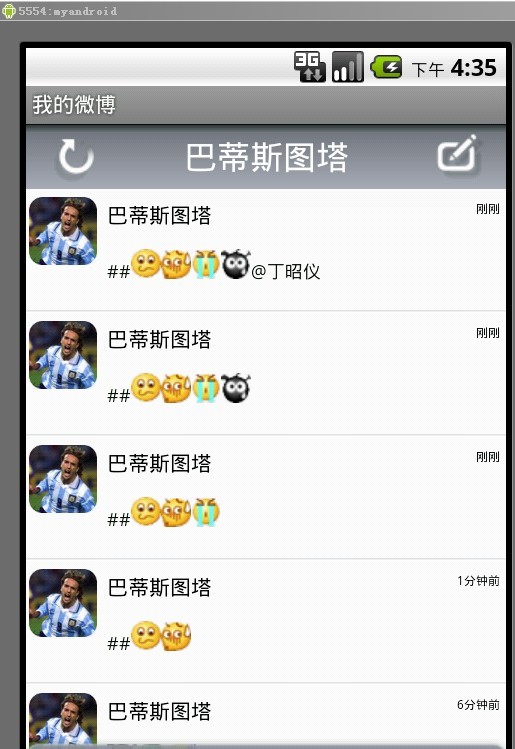

哈哈，看到了吧，[email protected]erson和表情的微博了。

接下来，上代码。

public class AddWeiboActivity extends Activity implements OnClickListener{		private DataHelper dataHelper;	private UserInfo user;	private String user_default_name;	private MyWeiboSync weibo;	private ListView listView;	private EditText weibo_content;	private Button send_btn;	private Button add_cmamera_btn;	private Button add_at_btn;	private Button add_topic_btn;	private Button add_expression_btn;	private Button add_location_btn;	private GridView expressionGrid;	private List<Map<String,Object>> expressionList;	private ExpressionAdapter expressionAdapter;	private FrameLayout operation_layout;	private RelativeLayout add_top_bar;		private ListView atListView;	private RelativeLayout atRootLayout;	private EditText atEditText;	private Button atEnterBtn;	private TextView topic_tip;		private RelativeLayout.LayoutParams atEdiLayoutParams,atEnterBtnLayoutParams,atListViewLayoutParams,topicTipViewLayoutParams;		private JSONArray array;	private Handler handler;	private ArrayAdapter atAdapter;	private List<String> atList;	private AtThread thread;	private List<String> matchStrList;//选择atList匹配的字符串	private int flag;	private static int FLAG_1 = 1;	private static int FLAG_2 = 2;//1和2代表atEnterBtn的父亲控件不同	@Override	protected void onCreate(Bundle savedInstanceState) {		super.onCreate(savedInstanceState);		setContentView(R.layout.add_weibo);				setUpViews();		setUpListeners();				dataHelper = DataBaseContext.getInstance(getApplicationContext());		weibo = WeiboContext.getInstance();				SharedPreferences preferences = getSharedPreferences("default_user",Activity.MODE_PRIVATE);		user_default_name = preferences.getString("user_default_name", "");//取得微博默认登录账号信息				handler = new AtHandler();		thread = new AtThread();		thread.start();//开启一个线程获取数据	}		private void setUpViews(){		weibo_content = (EditText)findViewById(R.id.weibo_content);		send_btn = (Button)findViewById(R.id.send_btn);		add_cmamera_btn = (Button)findViewById(R.id.add_cmamera_btn);		add_at_btn = (Button)findViewById(R.id.add_at_btn);		add_topic_btn = (Button)findViewById(R.id.add_topic_btn);		add_expression_btn = (Button)findViewById(R.id.add_expression_btn);		add_location_btn = (Button)findViewById(R.id.add_location_btn);				add_top_bar = (RelativeLayout)findViewById(R.id.add_top_bar);		operation_layout = (FrameLayout)findViewById(R.id.operation_layout);		expressionGrid = new GridView(this);		expressionGrid.setNumColumns(5);		expressionList = buildExpressionsList();		expressionAdapter = new ExpressionAdapter(AddWeiboActivity.this, expressionList);		expressionGrid.setAdapter(expressionAdapter);				//以下代码至本方法setUpViews结束，是个人纯粹蛋疼联系纯代码布局，各位老大可以改成xml布局，淡定				atRootLayout = new RelativeLayout(AddWeiboActivity.this);				atEditText = new EditText(AddWeiboActivity.this);		atEditText.setId(10000);				atEnterBtn = new Button(AddWeiboActivity.this);		atEnterBtn.setBackgroundDrawable(getResources().getDrawable(R.drawable.btn_enter_selector));				atListView = new ListView(AddWeiboActivity.this);		atListView.setCacheColorHint(Color.TRANSPARENT);//防止滑屏时出现黑快，不信可以注释掉此句试一试		atListView.setDivider(getResources().getDrawable(R.drawable.list_divider));//设置分割线		atListView.setBackgroundColor(Color.argb(255, 239, 239, 239));//alpha通道一定不要设置成透明的了，要不然textView什么也看不见,因为这个我找了很久，以为代码错了,最后才发现是透明的				topic_tip = new TextView(AddWeiboActivity.this);		topic_tip.setText("请输入话题");		topic_tip.setTextSize(20);		topic_tip.setTextColor(Color.argb(255, 90, 142, 189));//alpha通道一定不要设置成透明的了，要不然textView什么也看不见,因为这个我找了很久，以为代码错了,最后才发现是透明的				atRootLayout.setLayoutParams(new LayoutParams(LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT));		atEdiLayoutParams = new RelativeLayout.LayoutParams(ViewGroup.LayoutParams.FILL_PARENT,80);		atEnterBtnLayoutParams = new RelativeLayout.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT,ViewGroup.LayoutParams.WRAP_CONTENT);		atListViewLayoutParams = new RelativeLayout.LayoutParams(ViewGroup.LayoutParams.FILL_PARENT,ViewGroup.LayoutParams.WRAP_CONTENT);		topicTipViewLayoutParams = new RelativeLayout.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT,ViewGroup.LayoutParams.WRAP_CONTENT);						//添加布局约束		atEdiLayoutParams.addRule(RelativeLayout.ALIGN_PARENT_TOP);				atEnterBtnLayoutParams.addRule(RelativeLayout.ALIGN_PARENT_TOP,RelativeLayout.TRUE);		atEnterBtnLayoutParams.addRule(RelativeLayout.ALIGN_PARENT_RIGHT,RelativeLayout.TRUE);		atEnterBtnLayoutParams.setMargins(0, 10, 10, 0);//设置边距，分别代表左，上，右，下				atListViewLayoutParams.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM,RelativeLayout.TRUE);		atListViewLayoutParams.addRule(RelativeLayout.BELOW, atEditText.getId());				topicTipViewLayoutParams.addRule(RelativeLayout.BELOW, atEditText.getId());			}		private void setUpListeners(){		send_btn.setOnClickListener(this);		add_cmamera_btn.setOnClickListener(this);		add_at_btn.setOnClickListener(this);		add_topic_btn.setOnClickListener(this);		add_expression_btn.setOnClickListener(this);		add_location_btn.setOnClickListener(this);		expressionGrid.setOnItemClickListener(new GridItemClickListener());		atListView.setOnItemClickListener(new AtListViewItemListener());		atEditText.addTextChangedListener(new MyTextWatcher());		atEnterBtn.setOnClickListener(new OnClickListener() {			@Override			public void onClick(View v) {				add_top_bar.setVisibility(View.VISIBLE);				weibo_content.setVisibility(View.VISIBLE);				operation_layout.setVisibility(View.GONE);				operation_layout.removeAllViews();//别忘记要移除掉				if(flag==FLAG_1){					weibo_content.setText(weibo_content.getText()+"@");				}else if(flag==FLAG_2){					weibo_content.setText(weibo_content.getText()+"#"+atEditText.getText()+"#");				}											}		});	}		class AtThread extends Thread {		@Override		public void run() {			String jsonStr = weibo.getFans(weibo.getAccessTokenKey(), weibo.getAccessTokenSecrect(), 20, 0, user_default_name);			try {				JSONObject dataObj = new JSONObject(jsonStr).getJSONObject("data");				array = dataObj.getJSONArray("info");			} catch (JSONException e) {				e.printStackTrace();			}			//通知handler处理数据			Message msg = handler.obtainMessage();			handler.sendMessage(msg);		}	}		class AtHandler extends Handler { 		@Override		public void handleMessage(Message msg){			int size = array.length();			atList = new ArrayList<String>();			for(int i = 0;i<size;i++){				JSONObject data = array.optJSONObject(i);				try {					atList.add(data.getString("nick")+"("+data.getString("name")+")");				} catch (JSONException e) {					e.printStackTrace();				}			}			matchStrList = new ArrayList<String>();			matchStrList.addAll(atList);			atAdapter = new ArrayAdapter<String>(AddWeiboActivity.this,R.layout.at_list_item,R.id.at_nick_name,atList);			atListView.setAdapter(atAdapter);		}	}		class ExpressionAdapter extends BaseAdapter {		private Context context;		private LayoutInflater inflater;		private List<Map<String,Object>> list;				public ExpressionAdapter(Context context, List<Map<String,Object>> list) {			super();			this.context = context;			this.list = list;			this.inflater = LayoutInflater.from(context);		}		@Override		public int getCount() {			return list.size();		}		@Override		public Object getItem(int position) {			return list.get(position);		}		@Override		public long getItemId(int position) {			return position;		}		@Override		public View getView(final int position, View convertView, ViewGroup parent){			Map<String,Object> map = list.get(position);			ImageView image = new ImageView(context);			image.setImageDrawable((Drawable)map.get("drawable"));			return image;		}	}	@Override	public void onClick(View v) {		if(operation_layout.getChildCount()>0){			add_top_bar.setVisibility(View.VISIBLE);			weibo_content.setVisibility(View.VISIBLE);			operation_layout.setVisibility(View.GONE);			operation_layout.removeAllViews();//别忘记要移除掉			return;		}		switch (v.getId()) {				case R.id.send_btn:{			String returnStr = weibo.publishMsg(weibo.getAccessTokenKey(), weibo.getAccessTokenSecrect(), weibo_content.getText().toString());			try {				JSONObject dataObj = new JSONObject(returnStr);				if("ok".equals(dataObj.getString("msg"))){					Toast.makeText(AddWeiboActivity.this, "发送成功", Toast.LENGTH_SHORT).show();//我日，记得要show,每次都搞忘记				}			} catch (JSONException e) {				e.printStackTrace();			}		}			break;		case R.id.add_cmamera_btn:{					}			break;		case R.id.add_at_btn:{			// 动态的组装view			atRootLayout.removeAllViews();// 组装前先把所有的孩子拿掉			atEditText.setText("@");			flag = FLAG_1;//区分atEnterBtn是在哪个界面按的			atRootLayout.addView(atEditText, atEdiLayoutParams);			atRootLayout.addView(atEnterBtn, atEnterBtnLayoutParams);			atRootLayout.addView(atListView, atListViewLayoutParams);			operation_layout.addView(atRootLayout);			add_top_bar.setVisibility(View.GONE);// 隐藏上面的bar和文本编辑框，不让之与at选择相互影响			weibo_content.setVisibility(View.GONE);			operation_layout.setVisibility(View.VISIBLE);		}			break;		case R.id.add_topic_btn:{			//动态的组装view			atRootLayout.removeAllViews();//组装前先把所有的孩子拿掉			atEditText.setText("");			flag = FLAG_2;//区分atEnterBtn是在哪个界面按的			atRootLayout.addView(atEditText,atEdiLayoutParams);			atRootLayout.addView(atEnterBtn,atEnterBtnLayoutParams);			atRootLayout.addView(topic_tip,topicTipViewLayoutParams);			operation_layout.addView(atRootLayout);						add_top_bar.setVisibility(View.GONE);// 隐藏上面的bar和文本编辑框，不让之与at选择相互影响			weibo_content.setVisibility(View.GONE);			operation_layout.setVisibility(View.VISIBLE);		}			break;		case R.id.add_expression_btn:{			add_top_bar.setVisibility(View.GONE);//隐藏上面的bar和文本编辑框，不让之与表情选择的gridView相互影响			weibo_content.setVisibility(View.GONE);			operation_layout.addView(expressionGrid);			operation_layout.setVisibility(View.VISIBLE);		}			break;		case R.id.add_location_btn:{					}			break;		default:			break;		}	}	private List<Map<String,Object>> buildExpressionsList(){		List<Map<String,Object>> list = new ArrayList<Map<String, Object>>();		DecimalFormat df = new DecimalFormat("000");//格式化数字		for(int i = 0;i<105;i++){			Map<String,Object> map = new HashMap<String, Object>();			String formatStr = "h"+df.format(i);			int drawableId = 0 ;			try {				drawableId = R.drawable.class.getDeclaredField(formatStr).getInt(this);//反射取得id，这个地方循环套反射，是不是很耗性能啊，我没测试过，麻烦有好办法的兄弟姐妹分享一下			} catch (IllegalArgumentException e) {				e.printStackTrace();			} catch (SecurityException e) {				e.printStackTrace();			} catch (IllegalAccessException e) {				e.printStackTrace();			} catch (NoSuchFieldException e) {				e.printStackTrace();			}			Drawable drawable = getResources().getDrawable(drawableId);			map.put("drawableId", formatStr);			map.put("drawable",drawable);			list.add(map);		}		return list;	}		class GridItemClickListener implements OnItemClickListener {		@Override		public void onItemClick(AdapterView<?> adapterView, View view, int position,long arg3) {			Map<String, Object> map = expressionList.get(position);			String drawableId = (String)map.get("drawableId");						add_top_bar.setVisibility(View.VISIBLE);			weibo_content.setVisibility(View.VISIBLE);			operation_layout.setVisibility(View.GONE);			operation_layout.removeAllViews();//别忘记要移除掉						String expressionStr=null;			expressionStr = TextUtil.drawableIdToFaceName.get(drawableId);			expressionStr="/"+expressionStr;			weibo_content.setText(weibo_content.getText().toString()+expressionStr);		}	}		class MyTextWatcher implements TextWatcher{		@Override		public void afterTextChanged(Editable s){			String changingStr = atEditText.getText().toString();			if(changingStr.indexOf("@")!=-1){				changingStr = changingStr.substring(1);			}						int size = atList.size();			matchStrList.clear();			for(int i = 0;i<size;i++){				String currentStr = atList.get(i);				if(currentStr.indexOf(changingStr)!=-1){					matchStrList.add(currentStr);				}			}			atAdapter = new ArrayAdapter<String>(AddWeiboActivity.this,R.layout.at_list_item,R.id.at_nick_name,matchStrList);			atAdapter.notifyDataSetChanged();			atListView.setAdapter(atAdapter);		}		@Override		public void beforeTextChanged(CharSequence s, int start, int count,				int after) {					}		@Override		public void onTextChanged(CharSequence s, int start, int before,int count) {					}	}		class AtListViewItemListener implements OnItemClickListener{		@Override		public void onItemClick(AdapterView<?> arg0, View arg1, int position,long arg3){			add_top_bar.setVisibility(View.VISIBLE);			weibo_content.setVisibility(View.VISIBLE);			operation_layout.setVisibility(View.GONE);			operation_layout.removeAllViews();//别忘记要移除掉						String str = matchStrList.get(position);			String nickStr = str.substring(0,str.indexOf("("));			weibo_content.setText(weibo_content.getText()+"@"+nickStr);		}	}}

add_weibo.xml:

<?xml version="1.0" encoding="UTF-8"?><RelativeLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:background="#ffffffff" xmlns:android="http://schemas.android.com/apk/res/android">   <RelativeLayout android:id="@+id/add_top_bar" android:background="@drawable/header" android:layout_width="fill_parent" android:layout_height="wrap_content">	    <Button android:text="发送" android:id="@+id/send_btn"  android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginTop="5.0dip" android:layout_alignParentRight="true"/>	    <TextView android:text="写广播" android:textSize="16.0sp" android:textColor="#ffffffff" android:ellipsize="middle" android:gravity="center_horizontal" android:layout_width="wrap_content" android:layout_height="wrap_content" android:singleLine="true" android:layout_alignParentLeft="true" android:layout_marginLeft="10.0dip" android:layout_centerVertical="true"/>	</RelativeLayout>   <EditText android:id="@+id/weibo_content" android:gravity="top" android:layout_below="@id/add_top_bar" android:background="@null" android:textColor="@null" android:layout_weight="1" android:layout_width="fill_parent" android:layout_height="fill_parent"/>   <RelativeLayout android:id="@+id/add_bottom_bar" android:background="@drawable/header" android:layout_width="fill_parent" android:layout_height="50.0dip" android:layout_alignParentBottom="true" android:layout_marginTop="5.0dip">        <Button android:id="@+id/add_cmamera_btn" android:background="@drawable/add_pic_selector" android:focusable="false" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginLeft="8.0dip" android:layout_marginRight="12.0dip" android:layout_alignParentLeft="true" android:layout_centerVertical="true" />        <Button android:id="@+id/add_at_btn" android:background="@drawable/add_at_selector" android:focusable="false" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginRight="12.0dip" android:layout_toRightOf="@id/add_cmamera_btn" android:layout_centerVertical="true" />        <Button android:id="@+id/add_topic_btn" android:background="@drawable/add_topic_selector" android:focusable="false" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginRight="12.0dip" android:layout_toRightOf="@id/add_at_btn" android:layout_centerVertical="true" />        <Button android:id="@+id/add_expression_btn" android:background="@drawable/add_emo_selector" android:focusable="false" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginRight="12.0dip" android:layout_toRightOf="@id/add_topic_btn" android:layout_centerVertical="true" />        <Button android:id="@+id/add_location_btn" android:background="@drawable/add_location_selector" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_toRightOf="@id/add_expression_btn" android:layout_centerVertical="true" />        <TextView android:textSize="12.0sp" android:text="140" android:textColor="#c6cbce" android:id="@+id/remain_count" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginRight="12.0dip" android:layout_alignParentRight="true" android:layout_centerVertical="true" />    </RelativeLayout>    <FrameLayout android:layout_gravity="bottom" android:id="@+id/operation_layout" android:background="@android:color/transparent" android:paddingBottom="50.0dip" android:visibility="gone" android:layout_width="fill_parent" android:layout_height="fill_parent" /></RelativeLayout>

表情解析先关 :下图是drawable文件下的表情文件

http://helloandroid.iteye.com/blog/1131942
