暑假第五十三天，好多天没有更新博客了，貌似这十多天都在一直在关注这奥运会的赛事，现在奥运会结束了，自己也该学习了，看看最近实现的通讯录吧，能实现简单的增加联系人、删除联系人、设置私密账号、点击item可以对该联系人进行通话、调用系统的拨号界面、备份数据、恢复数据简单的功能！然后呢，接着咱就可以看看实现的过程
首先先看一下布局
1。欢迎界面的布局startimage.xml
<?xml version="1.0" encoding="utf-8"?><ImageView xmlns:android="http://schemas.android.com/apk/res/android" android:id="@+id/startimage" android:layout_width="fill_parent" android:layout_height="fill_parent" android:clickable="true" android:src="@drawable/welcome" ></ImageView>
2.接着是主界面main.xml
<?xml version="1.0" encoding="utf-8"?><RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent" android:background="@drawable/bg" > <FrameLayout android:id="@+id/list_ll" android:layout_width="fill_parent" android:layout_height="fill_parent" > <ListView android:id="@+id/lv_userlist" android:layout_above="@+id/gv_buttom_menu" android:layout_width="fill_parent" android:layout_height="wrap_content"/> <!-- <TextView android:id="@+id/tvLetter" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="center" android:background="@drawable/textviewbg" android:gravity="center" android:maxWidth="50dp" android:minWidth="50dp" android:textColor="#FF6100" android:textSize="50sp" /> <com.wang.A_Z.ListA_Z android:id="@+id/myView" android:layout_width="30dip" android:layout_height="fill_parent" android:layout_gravity="right" /> --> </FrameLayout> <GridView android:id="@+id/gv_buttom_menu" android:layout_height="80dp" android:layout_width="fill_parent" android:layout_alignParentBottom="true" android:visibility="gone"> </GridView> <LinearLayout android:id="@+id/ll_search" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_centerVertical="true" android:layout_alignParentLeft="true" android:layout_above="@+id/gv_buttom_menu" android:visibility="gone"> <EditText android:id="@+id/et_search" android:layout_width="fill_parent" android:layout_height="wrap_content" android:hint="请输入查询的号码或姓名" android:textSize="18dp"> </EditText> </LinearLayout></RelativeLayout>3.接着呢，就是增加联系人的界面布局addnewcontacts.xml
<?xml version="1.0" encoding="UTF-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="fill_parent" android:layout_height="fill_parent" android:orientation="vertical"> <ScrollView android:layout_weight="4" android:id="@+id/ScrollView1" android:layout_width="fill_parent" android:layout_height="wrap_content" android:scrollbars="vertical"> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical"> <LinearLayout android:id="@+id/widget205" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_marginLeft="10dp" android:layout_marginRight="10dp" > <ImageButton android:id="@+id/image_button" android:layout_width="60px" android:layout_height="60px" android:src="@drawable/icon" android:scaleType="centerCrop" > </ImageButton> <EditText android:id="@+id/username" android:layout_width="fill_parent" android:layout_height="wrap_content" android:scrollbars="vertical" android:hint="姓名" android:gravity="top" android:layout_gravity="center_vertical" /> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" android:layout_marginRight="10dp" android:layout_marginLeft="10dp"> <TextView android:layout_height="wrap_content" android:layout_width="wrap_content" android:text="手机：" android:textSize="20dp" /> <EditText android:id="@+id/mobilephone" android:layout_width="fill_parent" android:layout_height="wrap_content" android:scrollbars="vertical" android:gravity="top" android:hint="手机" android:phoneNumber="true" /> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" android:layout_marginLeft="10dp" android:layout_marginRight="10dp"> <TextView android:layout_height="wrap_content" android:layout_width="wrap_content" android:text="办公室电话：" android:textSize="20dp" /> <EditText android:id="@+id/officephone" android:layout_width="fill_parent" android:layout_height="wrap_content" android:scrollbars="vertical" android:phoneNumber="true" android:hint="办公室电话" android:gravity="top" /> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" android:layout_marginLeft="10dp" android:layout_marginRight="10dp"> <TextView android:layout_height="wrap_content" android:layout_width="wrap_content" android:text="家庭电话：" android:textSize="20dp" /> <EditText android:id="@+id/familyphone" android:layout_width="fill_parent" android:layout_height="wrap_content" android:scrollbars="vertical" android:phoneNumber="true" android:hint="家庭电话" android:gravity="top" /> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" android:layout_marginLeft="10dp" android:layout_marginRight="10dp"> <TextView android:layout_height="wrap_content" android:layout_width="wrap_content" android:text="职务职称：" android:textSize="20dp" /> <EditText android:id="@+id/position" android:layout_width="fill_parent" android:layout_height="wrap_content" android:scrollbars="vertical" android:hint="职务职称" android:gravity="top" /> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" android:layout_marginLeft="10dp" android:layout_marginRight="10dp"> <TextView android:layout_height="wrap_content" android:layout_width="wrap_content" android:text="单位名称：" android:textSize="20dp" /> <EditText android:id="@+id/company" android:layout_width="fill_parent" android:layout_height="wrap_content" android:scrollbars="vertical" android:hint="单位名称" android:gravity="top" /> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" android:layout_marginLeft="10dp" android:layout_marginRight="10dp"> <TextView android:layout_height="wrap_content" android:layout_width="wrap_content" android:text="地址：" android:textSize="20dp" /> <EditText android:id="@+id/address" android:layout_width="fill_parent" android:layout_height="wrap_content" android:scrollbars="vertical" android:hint="地址" android:gravity="top" /> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" android:layout_marginLeft="10dp" android:layout_marginRight="10dp"> <TextView android:layout_height="wrap_content" android:layout_width="wrap_content" android:text="邮政编码：" android:textSize="20dp" /> <EditText android:id="@+id/zipcode" android:layout_width="fill_parent" android:layout_height="wrap_content" android:scrollbars="vertical" android:hint="邮政编码" android:gravity="top" /> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" android:layout_marginLeft="10dp" android:layout_marginRight="10dp"> <TextView android:layout_height="wrap_content" android:layout_width="wrap_content" android:text="E-mail：" android:textSize="20dp" /> <EditText android:id="@+id/email" android:layout_width="fill_parent" android:layout_height="wrap_content" android:scrollbars="vertical" android:hint="E-mail" android:gravity="top" /> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" android:layout_marginLeft="10dp" android:layout_marginRight="10dp"> <TextView android:layout_height="wrap_content" android:layout_width="wrap_content" android:text="其他联系方式：" android:textSize="20dp" /> <EditText android:id="@+id/othercontact" android:layout_width="fill_parent" android:layout_height="wrap_content" android:scrollbars="vertical" android:hint="其他联系方式" android:gravity="top" /> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" android:layout_marginLeft="10dp" android:layout_marginRight="10dp"> <TextView android:layout_height="wrap_content" android:layout_width="wrap_content" android:text="备注：" android:textSize="20dp" /> <EditText android:id="@+id/remark" android:layout_width="fill_parent" android:layout_height="wrap_content" android:scrollbars="vertical" android:hint="备注" android:gravity="top" /> </LinearLayout> </LinearLayout> </ScrollView> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="horizontal" android:layout_marginLeft="10dp" android:layout_marginRight="10dp"> <Button android:id="@+id/save" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_weight="1" android:text="保存"/> <Button android:id="@+id/btn_return" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_weight="1" android:text="返回"/> </LinearLayout></LinearLayout>
4.接着是图片选择的对话框界面的imageswitch.xml的布局
<?xml version="1.0" encoding="utf-8"?><RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:id="@+id/widget34" android:layout_width="fill_parent" android:layout_height="fill_parent" > <Gallery android:id="@+id/gallery" android:layout_width="fill_parent" android:layout_height="110px" android:layout_alignParentLeft="true" android:layout_marginTop="10px" > </Gallery> <ImageSwitcher android:id="@+id/imageswitch" android:layout_width="90px" android:layout_height="90px" android:layout_alignBottom="@+id/gallery" android:layout_alignParentTop="true" android:layout_centerHorizontal="true" > </ImageSwitcher></RelativeLayout>5.接着是list列表的界面listitem.xml的布局
<?xml version="1.0" encoding="utf-8"?><RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:id="@+id/widget33" android:layout_width="fill_parent" android:layout_height="wrap_content" > <ImageView android:id="@+id/user_image" android:layout_width="50px" android:layout_height="53px" android:layout_alignParentLeft="true" android:layout_alignParentTop="true" > </ImageView> <LinearLayout android:id="@+id/linerlayout" android:layout_width="fill_parent" android:layout_height="53px" android:layout_alignParentRight="true" android:layout_alignParentTop="true" android:layout_toRightOf="@+id/user_image" android:orientation="vertical" > <LinearLayout android:layout_width="fill_parent" android:layout_height="25px" android:orientation="horizontal" > <TextView android:id="@+id/tv_showname" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_weight="1" android:gravity="top" android:text="姓名:" android:textColor="#000000" android:textSize="17sp" /> <TextView android:id="@+id/tv_name" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_weight="7" android:gravity="left" android:textColor="#000000" android:textSize="17sp" /> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="25px" android:orientation="horizontal" > <TextView android:id="@+id/tv_showmobilephone" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_weight="1" android:gravity="left" android:text="手机:" android:textColor="#000000" android:textSize="17sp" /> <TextView android:id="@+id/tv_mobilephone" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_weight="7" android:gravity="left" android:textColor="#000000" android:textSize="20sp" /> </LinearLayout> </LinearLayout> <ImageView android:id="@+id/user_mark" android:layout_width="60px" android:layout_height="15px" android:layout_alignParentRight="true" android:layout_alignParentTop="true" android:src="@drawable/checkmark" android:visibility="gone" /></RelativeLayout>6.接下来是点击menu键的item_menu.xml的布局
<?xml version="1.0" encoding="utf-8"?><RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:id="@+id/RelativeLayout_Item" android:layout_width="fill_parent" android:layout_height="wrap_content" android:paddingBottom="5dip" > <ImageView android:id="@+id/item_image" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_centerHorizontal="true" > </ImageView> <TextView android:id="@+id/item_text" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_below="@id/item_image" android:layout_centerHorizontal="true" > </TextView></RelativeLayout>
7.然后是在点击menu键后，点击item_menu上的监听事件查找电话号码的numchoose.xml 的布局
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:id="@+id/widget28" android:layout_width="fill_parent" android:layout_height="fill_parent" android:orientation="vertical" > <TextView android:id="@+id/tv_numchoose" android:layout_width="fill_parent" android:layout_height="wrap_content" android:gravity="center" android:text="请选择一个号码" android:textSize="17sp" android:typeface="serif" > </TextView> <ListView android:id="@+id/num_list" android:layout_width="fill_parent" android:layout_height="wrap_content" > </ListView></LinearLayout>
8.接着是在点击menu键后，点击item_menu上的监听事件管理通讯录的监听事件main_menu_grid.xml的布局
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent" ><GridView android:id="@+id/gridview" android:layout_width="fill_parent" android:layout_height="fill_parent" android:numColumns="2" android:verticalSpacing="10dip" android:horizontalSpacing="10dip" android:stretchMode="columnWidth" android:gravity="center" /> </LinearLayout>9.接着是在点击menu键后，点击item_menu上的监听事件管理备份文件夹的名称enterfilename.xml的布局
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:id="@+id/widget29" android:layout_width="fill_parent" android:layout_height="fill_parent" android:orientation="vertical" > <TextView android:id="@+id/tv_enter_file_name" android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="请输入备份文件的文件名\n该文件该置于SD卡的根目录zpContact文件夹下" > </TextView> <EditText android:id="@+id/et_enter_file_name" android:layout_width="fill_parent" android:layout_height="wrap_content" > </EditText></LinearLayout>
10.接着是一个备份时候进度条的布局backup_progress.xml的布局
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:id="@+id/widget29" android:layout_width="fill_parent" android:layout_height="fill_parent" android:orientation="vertical" > <ProgressBar android:id="@+id/pb_backup" style="?android:attr/progressBarStyleHorizontal" android:layout_width="fill_parent" android:layout_height="wrap_content" > </ProgressBar> <Button android:id="@+id/btn_backuup_ok" android:layout_width="fill_parent" android:layout_height="wrap_content" android:gravity="center_horizontal" android:text="OK" android:visibility="gone" > </Button></LinearLayout>
11.接着呢就是5s钟的欢迎界面 startAnimation.java
package com.wang.Activity;import android.app.Activity;import android.content.Intent;import android.os.Bundle;import android.view.View;import android.view.Window;import android.view.WindowManager;import android.view.View.OnClickListener;import android.view.animation.AlphaAnimation;import android.view.animation.Animation;import android.view.animation.Animation.AnimationListener;import android.widget.ImageView;public class startAnimation extends Activity { ImageView startimage; AlphaAnimation startAnimation; protected void onCreate(Bundle savedInstanceState) { // 去除标题 this.requestWindowFeature(Window.FEATURE_NO_TITLE); // 取消状态栏，充满全屏 this.getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN, WindowManager.LayoutParams.FLAG_FULLSCREEN); super.onCreate(savedInstanceState); setContentView(R.layout.startimage); startimage = (ImageView) findViewById(R.id.startimage); // 设置动画的渐变效果逐渐增强 startAnimation = new AlphaAnimation(0.0f, 1.0f); // 设置动画显示的时间为3s startAnimation.setDuration(5000); // 开始动画效果 startimage.startAnimation(startAnimation); // 为动画效果设置监听事件 startAnimation.setAnimationListener(new AnimationListener() { // ka开始 @Override public void onAnimationStart(Animation animation) { // TODO Auto-generated method stub } // 重复 @Override public void onAnimationRepeat(Animation animation) { // TODO Auto-generated method stub } // 动画结束 @Override public void onAnimationEnd(Animation animation) { // 声明一个意图，启动一个新的Activity Intent intent = new Intent(startAnimation.this, AddressPhoneBookDemoActivity.class); // 启动新的Activity startActivity(intent); } }); // 当点击图片的时候也可以进行跳转 startimage.setOnClickListener(new OnClickListener() { @Override public void onClick(View v) { // TODO Auto-generated method stub Intent intent = new Intent(startAnimation.this, AddressPhoneBookDemoActivity.class); // 启动新的Activity startActivity(intent); } }); }}12.然后就是跳转到主界面实现过程AddressPhoneBookDemoActivity.java
package com.wang.Activity;import java.util.ArrayList;import java.util.HashMap;import com.wang.Db.DBHelper;import com.wang.UserInfo.UserInfo;import android.app.Activity;import android.app.AlertDialog;import android.content.DialogInterface;import android.content.Intent;import android.graphics.Color;import android.graphics.drawable.Drawable;import android.net.Uri;import android.os.Bundle;import android.view.Gravity;import android.view.KeyEvent;import android.view.LayoutInflater;import android.view.View;import android.view.Window;import android.view.WindowManager;import android.view.View.OnClickListener;import android.view.View.OnKeyListener;import android.widget.AdapterView;import android.widget.Button;import android.widget.EditText;import android.widget.FrameLayout;import android.widget.GridView;import android.widget.ImageView;import android.widget.LinearLayout;import android.widget.ListView;import android.widget.ProgressBar;import android.widget.RelativeLayout;import android.widget.SimpleAdapter;import android.widget.Toast;import android.widget.AdapterView.OnItemClickListener;import android.widget.AdapterView.OnItemLongClickListener;public class AddressPhoneBookDemoActivity extends Activity { // 显示所有数据的ListView ListView lv; ArrayList list; // 拥有所有数据的Adapter SimpleAdapter adapter; // 屏幕下方的工具栏 GridView bottomMenuGrid; // 主菜单的布局 GridView mainMenuGrid; // 主菜单的视图 View mainMenuView; // 装搜索框的linearlayout,默认情况下visibility=gone LinearLayout searchLinearout; FrameLayout mainLinearLayout; // 搜索框 EditText et_search; EditText et_enter_file_name; // 主菜单的对话框 AlertDialog mainMenuDialog; // 确认对话框 AlertDialog confirmDialog; // 进度条对话框 AlertDialog progressDialog; // 输入文件名的对话框 AlertDialog enterFileNameDialog; // 表示保密状态 boolean privacy = false; // 存储标记的数目 int markedNum; // 存储标记条目的_id号 ArrayList<Integer> deleteId; // 关键界面的文字 String[] main_menu_itemName = { "显示所有", "删除所有", "备份数据", "还原数据", }; // 管理界面的图片资源 int[] main_menu_itemSource = { R.drawable.showall, R.drawable.delete, R.drawable.menu_backup, R.drawable.menu_restore, }; String[] bottom_menu_itemName = { "增加", "查找", "删除", "管理", "拨号" }; String fileName; // menu 的图片资源 int[] bottom_menu_itemSource = { R.drawable.addphone, R.drawable.search, R.drawable.delete, R.drawable.manager, R.drawable.callphone }; public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); // 去除标题 this.requestWindowFeature(Window.FEATURE_NO_TITLE); // 取消状态栏，充满全屏 this.getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN, WindowManager.LayoutParams.FLAG_FULLSCREEN); setContentView(R.layout.main); // 实例化组件 mainLinearLayout = (FrameLayout) findViewById(R.id.list_ll); DBHelper helper = new DBHelper(this); // 打开数据库，就打开这一次，因为Helper中的SQLiteDatabase是静态的。 helper.openDatabase(); // 拿到所有保密状态为privacy的用户的list list = helper.getAllUser(privacy); lv = (ListView) findViewById(R.id.lv_userlist); // 当通讯录中没有信息的时候 if (list.size() == 0) { Drawable nodata_bg = getResources().getDrawable( R.drawable.nodata_bg); mainLinearLayout.setBackgroundDrawable(nodata_bg); setTitle("没有查到任何数据"); } // 将数据与adapter集合起来 adapter = new SimpleAdapter(this, list, R.layout.listitem, new String[] { "imageid", "name", "mobilephone" }, new int[] { R.id.user_image, R.id.tv_name, R.id.tv_mobilephone }); // 将整合好的adapter交给listview，显示给用户看 lv.setAdapter(adapter); // 当点击item时候，调用系统进行拨号 lv.setOnItemClickListener(new OnItemClickListener() { public void onItemClick(AdapterView<?> arg0, View arg1, int arg2, long arg3) { // 得到item位置 HashMap item = (HashMap) arg0.getItemAtPosition(arg2); // 得到item上的手机号 String number = String.valueOf(item.get("mobilephone")) .toString(); // 声明一个意图，调用系统的打电话程序 Intent intent = new Intent(); intent.setAction("android.intent.action.CALL"); // 调用系统打电话必须+tel： intent.setData(Uri.parse("tel:" + number)); startActivity(intent); } }); // 设置ListView的背景为透明 lv.setCacheColorHint(Color.TRANSPARENT); // 长按时间处理可以选中这样才可以删除联系人 lv.setOnItemLongClickListener(new OnItemLongClickListener() { @Override public boolean onItemLongClick(AdapterView<?> arg0, View arg1, int arg2, long arg3) { if (deleteId == null) { deleteId = new ArrayList<Integer>(); } // 得到item的位置 _id HashMap item = (HashMap) arg0.getItemAtPosition(arg2); Integer _id = Integer.parseInt(String.valueOf(item.get("_id"))); RelativeLayout r = (RelativeLayout) arg1; ImageView markedView = (ImageView) r.getChildAt(2); if (markedView.getVisibility() == View.VISIBLE) { markedView.setVisibility(View.GONE); deleteId.remove(_id); } else { markedView.setVisibility(View.VISIBLE); deleteId.add(_id); } return true; } }); // 为list添加item设置背景颜色 Drawable itembg = getResources().getDrawable(R.drawable.itembg); lv.setSelector(itembg); } /***** * 点击menu键的处理事件 * * * **/ @Override public boolean onKeyDown(int keyCode, KeyEvent event) { if (keyCode == KeyEvent.KEYCODE_MENU) { loadBottomMenu(); if (bottomMenuGrid.getVisibility() == View.VISIBLE) { if (searchLinearout != null && searchLinearout.getVisibility() == View.VISIBLE) { searchLinearout.setVisibility(View.GONE); } bottomMenuGrid.setVisibility(View.GONE); } else { bottomMenuGrid.setVisibility(View.VISIBLE); } } return super.onKeyDown(keyCode, event); } /***** * 底部menu的item的处理 * * * **/ private void loadBottomMenu() { if (bottomMenuGrid == null) { // 设置menuitem的布局，实力化组件 bottomMenuGrid = (GridView) findViewById(R.id.gv_buttom_menu); // 设置背景 bottomMenuGrid.setBackgroundResource(R.drawable.item); // 设置每行列数 bottomMenuGrid.setNumColumns(5); // 位置居中 bottomMenuGrid.setGravity(Gravity.CENTER); // 垂直间隔 bottomMenuGrid.setVerticalSpacing(10); // 水平间隔 bottomMenuGrid.setHorizontalSpacing(10); // 设置菜单Adapter bottomMenuGrid.setAdapter(getMenuAdapter(bottom_menu_itemName, bottom_menu_itemSource)); // / 监听底部菜单menu选项 的时间 bottomMenuGrid.setOnItemClickListener(new OnItemClickListener() { public void onItemClick(AdapterView<?> arg0, View arg1, int id, long arg3) { switch (id) { case 0: { // 如果查找框不为空，并且查找框可见，则设置为不可见 if (searchLinearout != null && searchLinearout.getVisibility() == View.VISIBLE) { searchLinearout.setVisibility(View.GONE); } if (bottomMenuGrid.getVisibility() == View.VISIBLE) { bottomMenuGrid.setVisibility(View.GONE); } // 跳转到添加联系人的界面 Intent intent = new Intent( AddressPhoneBookDemoActivity.this, AddNewContacts.class); startActivityForResult(intent, 3); break; } case 1: // 调用处理查找联系人的方法 loadSearchLinearout(); // ，并且查找框可见，则设置为不可见 if (searchLinearout.getVisibility() == View.VISIBLE) { searchLinearout.setVisibility(View.GONE); } else { searchLinearout.setVisibility(View.VISIBLE); // 把后面的查找按钮做焦点 et_search.requestFocus(); et_search.selectAll(); } break; case 2: // 删除联系人的方法 // 如果查找框不为空，并且查找框可见，则设置为不可见 if (searchLinearout != null && searchLinearout.getVisibility() == View.VISIBLE) { searchLinearout.setVisibility(View.GONE); } if (deleteId == null || deleteId.size() == 0) { Toast.makeText(AddressPhoneBookDemoActivity.this, "亲，没有标记任何记录\n长按一条记录即可标记！！", Toast.LENGTH_LONG).show(); } else { // 新建一个警告的对话框 new AlertDialog.Builder( AddressPhoneBookDemoActivity.this) .setTitle( "确定要删除标记的" + deleteId.size() + "条记录吗?") .setPositiveButton( "确定", // 确定按钮设置监听事件 new DialogInterface.OnClickListener() { public void onClick( DialogInterface dialog, int which) { DBHelper helper = new DBHelper( AddressPhoneBookDemoActivity.this); // 调用数据库的删除函数进行删除记录 helper .deleteMarked(deleteId); // 重置视图 list = helper .getAllUser(privacy); // 声明一个适配器对象 adapter = new SimpleAdapter( AddressPhoneBookDemoActivity.this, list, R.layout.listitem, new String[] { "imageid", "name", "mobilephone" }, new int[] { R.id.user_image, R.id.tv_name, R.id.tv_mobilephone }); lv.setAdapter(adapter); deleteId.clear(); } }).setNegativeButton("取消", null) .create().show(); } break; case 3: // 管理的界面 // 如果查找框不为空，并且查找框可见，则设置为不可见 if (searchLinearout != null && searchLinearout.getVisibility() == View.VISIBLE) { searchLinearout.setVisibility(View.GONE); } // 调用loadMainMenuDialog的方法实现 loadMainMenuDialog(); mainMenuDialog.show(); break; case 4: // 调用系统的打电话的界面 Intent intent = new Intent( "android.intent.action.CALL_BUTTON"); startActivity(intent); break; } } }); } } /***** * 底部管理 功能的实现方法 * * * **/ private void loadMainMenuDialog() { if (mainMenuDialog == null) { // 获得LayoutInflater从给定的上下文 LayoutInflater inflater = LayoutInflater.from(this); mainMenuView = inflater.inflate(R.layout.main_menu_grid, null); // 根据主菜单视图，创建主菜单对话框 mainMenuDialog = new AlertDialog.Builder(this) .setView(mainMenuView).create(); // 实例化组件 mainMenuGrid = (GridView) mainMenuView.findViewById(R.id.gridview); // 根据主菜单视图，获得视图文件中的GridView，然后再往里面放Adapter SimpleAdapter menuAdapter = getMenuAdapter(main_menu_itemName, main_menu_itemSource); mainMenuGrid.setAdapter(menuAdapter); // 设置管理界面的响应点击事件 mainMenuGrid.setOnItemClickListener(new OnItemClickListener() { @Override public void onItemClick(AdapterView<?> arg0, View arg1, int arg2, long arg3) { switch (arg2) { case 0: { // 显示所有数据 DBHelper helper = new DBHelper( AddressPhoneBookDemoActivity.this); list = helper.getAllUser(privacy); adapter = new SimpleAdapter( AddressPhoneBookDemoActivity.this, list, R.layout.listitem, new String[] { "imageid", "name", "mobilephone" }, new int[] { R.id.user_image, R.id.tv_name, R.id.tv_mobilephone }); lv.setAdapter(adapter); mainMenuDialog.dismiss(); break; } case 1: { // 是否删除所有数据 // 创建一个对话框 AlertDialog.Builder builder = new AlertDialog.Builder( AddressPhoneBookDemoActivity.this); confirmDialog = builder.create(); builder.setTitle("是否删除所有！?"); builder.setPositiveButton("确定", // 确定按钮的监听事件 new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { DBHelper helper = new DBHelper( AddressPhoneBookDemoActivity.this); // 调用删除函数删除所有的数据 helper.deleteAll(0); list = helper.getAllUser(privacy); adapter = new SimpleAdapter( AddressPhoneBookDemoActivity.this, list, R.layout.listitem, new String[] { "imageid", "name", "mobilephone" }, new int[] { R.id.user_image, R.id.tv_name, R.id.tv_mobilephone }); lv.setAdapter(adapter); mainMenuDialog.dismiss(); } }); builder.setNegativeButton("取消", // 取消按钮的监听事件 new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { // 对话框消失 confirmDialog.dismiss(); } }); builder.create().show(); break; } case 2: { // 备份通讯录的处理 // 对话框消失，重新新建一个对话框 mainMenuDialog.dismiss(); new AlertDialog.Builder( AddressPhoneBookDemoActivity.this) .setTitle("是否需要备份记录到SD卡？") .setPositiveButton("确定", // 确定按钮的监听事件 new DialogInterface.OnClickListener() { @Override public void onClick( DialogInterface dialog, int which) { LayoutInflater inflater = LayoutInflater .from(AddressPhoneBookDemoActivity.this); // 获得一个新的视图层次从指定的xml资源 View backup_view = inflater .inflate( R.layout.backup_progress, null); // 进度对话框显示 progressDialog = new AlertDialog.Builder( AddressPhoneBookDemoActivity.this) .setTitle("备份正在进行中...") .setView(backup_view) .create(); progressDialog.show(); DBHelper helper = new DBHelper( AddressPhoneBookDemoActivity.this); // 调用数据库进行备份 helper.backupData(privacy); ProgressBar bar = (ProgressBar) backup_view .findViewById(R.id.pb_backup); Button btn_backup_ok = (Button) backup_view .findViewById(R.id.btn_backuup_ok); bar.setMax(list.size()); for (int i = 0; i <= list .size(); i++) { bar.setProgress(i); } // 进度对话框提示一下 progressDialog .setTitle("备份完成！一共 " + list.size() + " 条记录"); btn_backup_ok .setVisibility(View.VISIBLE); // ok按钮 的监听事件 btn_backup_ok .setOnClickListener(new OnClickListener() { @Override public void onClick( View v) { progressDialog .dismiss(); mainMenuDialog .dismiss(); } }); } }).setNegativeButton("取消", null) .create() .show(); break; } case 3: { // 还原数据的处理 LayoutInflater layoutInflater = LayoutInflater .from(AddressPhoneBookDemoActivity.this); View enterFileNameView = layoutInflater.inflate( R.layout.enterfilename, null); // 还原备份的对话框 enterFileNameDialog = new AlertDialog.Builder( AddressPhoneBookDemoActivity.this).setView( enterFileNameView) .setNegativeButton("取消", null) .setPositiveButton("确定", new DialogInterface.OnClickListener() { public void onClick( DialogInterface dialog, int which) { DBHelper helper = new DBHelper( AddressPhoneBookDemoActivity.this); // 得到备份数据的文件夹 fileName = et_enter_file_name .getText().toString(); if (helper.findFile(fileName)) { new AlertDialog.Builder( AddressPhoneBookDemoActivity.this) .setTitle("请选择方式") .setPositiveButton( "覆盖", // 覆盖数据的方法处理 new DialogInterface.OnClickListener() { public void onClick( DialogInterface dialog, int which) { DBHelper helper = new DBHelper( AddressPhoneBookDemoActivity.this); // 删除所有联系人 helper .deleteAll(0); // 恢复备份的联系人方法 helper .restoreData(fileName); // 显示所有联系人的方法 list = helper .getAllUser(privacy); adapter = new SimpleAdapter( AddressPhoneBookDemoActivity.this, list, R.layout.listitem, new String[] { "imageid", "name", "mobilephone" }, new int[] { R.id.user_image, R.id.tv_name, R.id.tv_mobilephone }); LayoutInflater li = LayoutInflater .from(AddressPhoneBookDemoActivity.this); View backup_view = li .inflate( R.layout.backup_progress, null); // 创建备份还原的数据对话框 progressDialog = new AlertDialog.Builder( AddressPhoneBookDemoActivity.this) .setTitle( "正在还原数据...") .setView( backup_view) .create(); progressDialog .show(); ProgressBar bar = (ProgressBar) backup_view .findViewById(R.id.pb_backup); Button btn_backup_ok = (Button) backup_view .findViewById(R.id.btn_backuup_ok); bar .setMax(list .size()); for (int i = 0; i <= list .size(); i++) { bar .setProgress(i); } progressDialog .setTitle("还原完成！一共还原了 " + list .size() + " 条记录"); btn_backup_ok .setVisibility(View.VISIBLE); btn_backup_ok .setOnClickListener(new OnClickListener() { @Override public void onClick( View v) { progressDialog .dismiss(); mainMenuDialog .dismiss(); if (list .size() != 0) { mainLinearLayout .setBackgroundDrawable(null); } lv .setAdapter(adapter); } }); } }) // 添加按钮的监听事件 .setNegativeButton( "添加", new DialogInterface.OnClickListener() { @Override public void onClick( DialogInterface dialog, int which) { DBHelper helper = new DBHelper( AddressPhoneBookDemoActivity.this); int preNum = list .size(); helper .restoreData(fileName); list = helper .getAllUser(privacy); adapter = new SimpleAdapter( AddressPhoneBookDemoActivity.this, list, R.layout.listitem, new String[] { "imageid", "name", "mobilephone" }, new int[] { R.id.user_image, R.id.tv_name, R.id.tv_mobilephone }); LayoutInflater li = LayoutInflater .from(AddressPhoneBookDemoActivity.this); View backup_view = li .inflate( R.layout.backup_progress, null); progressDialog = new AlertDialog.Builder( AddressPhoneBookDemoActivity.this) .setTitle( "正在还原数据...") .setView( backup_view) .create(); progressDialog .show(); ProgressBar bar = (ProgressBar) backup_view .findViewById(R.id.pb_backup); Button btn_backup_ok = (Button) backup_view .findViewById(R.id.btn_backuup_ok); bar .setMax(list .size()); for (int i = 0; i <= list .size(); i++) { bar .setProgress(i); } progressDialog .setTitle("还原完成！一共还原了 " + (list .size() - preNum) + " 条记录"); btn_backup_ok .setVisibility(View.VISIBLE); btn_backup_ok .setOnClickListener(new OnClickListener() { @Override public void onClick( View v) { progressDialog .dismiss(); mainMenuDialog .dismiss(); lv .setAdapter(adapter); } }); } }) // 取消按钮是监听事件 .setNeutralButton( "取消", new DialogInterface.OnClickListener() { @Override public void onClick( DialogInterface dialog, int which) { } }).create() .show(); } else { // 如果文件夹找不到提示一下 Toast .makeText( enterFileNameDialog .getContext(), "找不到备份文件", Toast.LENGTH_LONG) .show(); } } }).create(); et_enter_file_name = (EditText) enterFileNameView .findViewById(R.id.et_enter_file_name); et_enter_file_name.setText("comm_data"); et_enter_file_name.requestFocus(); et_enter_file_name.selectAll(); enterFileNameDialog.show(); adapter = new SimpleAdapter( AddressPhoneBookDemoActivity.this, list, R.layout.listitem, new String[] { "imageid", "name", "mobilephone" }, new int[] { R.id.user_image, R.id.tv_name, R.id.tv_mobilephone }); lv.setAdapter(adapter); // 显示所有数据 mainMenuDialog.dismiss(); break; } } } }); } } /***** * 查找联系人数据的处理函数 * * * **/ private void loadSearchLinearout() { if (searchLinearout == null) { // 实力化组件 searchLinearout = (LinearLayout) findViewById(R.id.ll_search); et_search = (EditText) findViewById(R.id.et_search); // 查找的编辑框设置监听事件 et_search.setOnKeyListener(new OnKeyListener() { public boolean onKey(View arg0, int arg1, KeyEvent arg2) { // 声明一个查找的内容 String condition = et_search.getText().toString(); if (condition.equals("")) { lv.setAdapter(adapter); } DBHelper helper = new DBHelper( AddressPhoneBookDemoActivity.this); // DBHelper 中的getUsers 函数实现查找功能 list = helper.getUsers(condition, privacy); // 为自己查找的数据设置一个新的适配器 SimpleAdapter searchAdapter = new SimpleAdapter( AddressPhoneBookDemoActivity.this, list, R.layout.listitem, new String[] { "imageid", "name", "mobilephone" }, new int[] { R.id.user_image, R.id.tv_name, R.id.tv_mobilephone }); // 将整合好的adapter交给listview，显示给用户看 lv.setAdapter(searchAdapter); if (list.size() == 0) { // 如果没有联系人的时候设置背景为没有数据的图片 Drawable nodata_bg = getResources().getDrawable( R.drawable.nodata_bg); mainLinearLayout.setBackgroundDrawable(nodata_bg); setTitle("没有查到任何数据"); } else { setTitle("共查到 " + list.size() + " 条记录"); // /如果查到后设置背景颜色为空 mainLinearLayout.setBackgroundDrawable(null); } return false; } }); } } /******* * 一个简单的适配器映射到视图中定义的静态数据的XML文件 。您可以指定数据支持列表作为一个ArrayList的地图。 * ArrayList中的每个条目对应于一个排在列表中。 这个地图包含为每一行的数据。您还可以指定一个XML文件, * 该文件定义视图用于显示的行,和一个映射键映射到特定的视图。 数据绑定到视图出现在两个阶段 * * * **/ private SimpleAdapter getMenuAdapter(String[] menuNameArray, int[] imageResourceArray) { ArrayList<HashMap<String, Object>> data = new ArrayList<HashMap<String, Object>>(); for (int i = 0; i < menuNameArray.length; i++) { HashMap<String, Object> map = new HashMap<String, Object>(); map.put("itemImage", imageResourceArray[i]); map.put("itemText", menuNameArray[i]); data.add(map); } SimpleAdapter simperAdapter = new SimpleAdapter(this, data, R.layout.item_menu, new String[] { "itemImage", "itemText" }, new int[] { R.id.item_image, R.id.item_text }); return simperAdapter; } /******* * 当退出的时候，回收资源 * ****/ protected void onDestroy() { if (confirmDialog != null) { confirmDialog = null; } if (mainMenuDialog != null) { mainMenuDialog = null; } if (searchLinearout != null) { searchLinearout = null; } if (mainMenuView != null) { mainMenuView = null; } if (mainMenuGrid != null) { mainMenuGrid = null; } if (bottomMenuGrid != null) { bottomMenuGrid = null; } if (adapter != null) { adapter = null; } if (list != null) { list = null; } if (lv != null) { lv = null; } if (DBHelper.dbInstance != null) { DBHelper.dbInstance.close(); DBHelper.dbInstance = null; } System.out.println("destory!!!"); super.onDestroy(); }}13.接着是添加联系人的活动界面AddNewContacts.java
package com.wang.Activity;import com.wang.Db.DBHelper;import com.wang.UserInfo.UserInfo;import android.app.Activity;import android.app.AlertDialog;import android.content.Context;import android.content.DialogInterface;import android.content.Intent;import android.os.Bundle;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;import android.view.View.OnClickListener;import android.view.animation.AnimationUtils;import android.widget.AdapterView;import android.widget.BaseAdapter;import android.widget.Button;import android.widget.EditText;import android.widget.Gallery;import android.widget.ImageButton;import android.widget.ImageSwitcher;import android.widget.ImageView;import android.widget.Toast;import android.widget.AdapterView.OnItemSelectedListener;import android.widget.ImageView.ScaleType;import android.widget.ViewSwitcher.ViewFactory;public class AddNewContacts extends Activity implements ViewFactory { EditText et_name; EditText et_mobilePhone; EditText et_officePhone; EditText et_familyPhone; EditText et_position; EditText et_company; EditText et_address; EditText et_zipCode; EditText et_otherContact; EditText et_email; EditText et_remark; Button btn_save; Button btn_return; int privacy; // 头像按钮 ImageButton imageButton; // 图像选择的视图 View imageChooseView; // 头像选择对话框 AlertDialog imageChooseDialog; // 头像的Gallery Gallery gallery; // 头像的ImageSwitcher ImageSwitcher is; // 用于记录当前选中图像在图像数组中的位置 int currentImagePosition; // 用于记录上一次图片的位置 int previousImagePosition; // 判断头像有没有变化 boolean imageChanged; /****** * 所有的图像图片 * ****/ private int[] images = new int[] { R.drawable.icon, R.drawable.image1, R.drawable.image2, R.drawable.image3, R.drawable.image4, R.drawable.image5, R.drawable.image6, R.drawable.image7, R.drawable.image8, R.drawable.image9, R.drawable.image10 }; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.addnewcontacts); Intent intent = getIntent(); // 先确定好保密类型 if (intent.getExtras() != null && intent.getExtras().getInt("privacy") == 1) { privacy = 1; } else { privacy = 0; } // 实例化组件 et_name = (EditText) findViewById(R.id.username); et_mobilePhone = (EditText) findViewById(R.id.mobilephone); et_officePhone = (EditText) findViewById(R.id.officephone); et_familyPhone = (EditText) findViewById(R.id.familyphone); et_position = (EditText) findViewById(R.id.position); et_company = (EditText) findViewById(R.id.company); et_address = (EditText) findViewById(R.id.address); et_zipCode = (EditText) findViewById(R.id.zipcode); et_otherContact = (EditText) findViewById(R.id.othercontact); et_email = (EditText) findViewById(R.id.email); et_remark = (EditText) findViewById(R.id.remark); btn_save = (Button) findViewById(R.id.save); btn_return = (Button) findViewById(R.id.btn_return); imageButton = (ImageButton) findViewById(R.id.image_button); /***** * 保存按钮的监听事件 */ btn_save.setOnClickListener(new OnClickListener() { @Override public void onClick(View v) { // 判断姓名是否为空 String name = et_name.getText().toString(); if (name.trim().equals("")) { Toast.makeText(AddNewContacts.this, "姓名不许为空", Toast.LENGTH_LONG).show(); return; } // 从表单上获取数据 UserInfo user = new UserInfo(); user.username = name; user.address = et_address.getText().toString(); user.company = et_company.getText().toString(); user.email = et_email.getText().toString(); user.familyPhone = et_familyPhone.getText().toString(); user.mobilePhone = et_mobilePhone.getText().toString(); user.officePhone = et_officePhone.getText().toString(); user.otherContact = et_otherContact.getText().toString(); user.position = et_position.getText().toString(); user.remark = et_remark.getText().toString(); user.zipCode = et_zipCode.getText().toString(); // 判断头像是否改变，若改变，则用当前的位置，若没有改变，则用前一回的位置 if (imageChanged) { user.imageId = images[currentImagePosition % images.length]; } else { user.imageId = images[previousImagePosition % images.length]; } user.privacy = privacy; // 创建数据库帮助类 DBHelper helper = new DBHelper(AddNewContacts.this); // 打开数据库 helper.openDatabase(); // 把user存储到数据库里 long result = helper.insert(user); // 通过结果来判断是否插入成功，若为1，则表示插入数据失败 if (result == -1) { Toast.makeText(AddNewContacts.this, "添加失败", Toast.LENGTH_LONG); } setTitle("用户添加成功!"); // 返回到上一个Activity，也就是Main.activity setResult(3); // 销毁当前视图 finish(); } }); /** * * f返回按钮的监听事件 * **/ btn_return.setOnClickListener(new OnClickListener() { @Override public void onClick(View v) { finish(); } }); /*** * 图片按钮 的监听事件 * * **/ imageButton.setOnClickListener(new OnClickListener() { @Override public void onClick(View v) { // 为gallery装载图片 调用下面的loadImage的方法 loadImage(); // 初始化imageChooseDialog initImageChooseDialog(); imageChooseDialog.show(); } }); } /***** * 图片按钮的装载方法实现选择图片的功能 * * **/ public void loadImage() { if (imageChooseView == null) { LayoutInflater li = LayoutInflater.from(AddNewContacts.this); imageChooseView = li.inflate(R.layout.imageswitch, null); // 通过渲染xml文件，得到一个视图（View），再拿到这个View里面的Gallery gallery = (Gallery) imageChooseView.findViewById(R.id.gallery); // 为Gallery装载图片 gallery.setAdapter(new ImageAdapter(this)); // 设置选择的位置为图片的中间位置 gallery.setSelection(images.length / 2); is = (ImageSwitcher) imageChooseView.findViewById(R.id.imageswitch); is.setFactory(this); // 设置动画效果淡入淡出 is.setInAnimation(AnimationUtils.loadAnimation(this, android.R.anim.fade_in)); // 卸载图片的动画效果 is.setOutAnimation(AnimationUtils.loadAnimation(this, android.R.anim.fade_out)); // 为画廊图片设置监听事件 gallery.setOnItemSelectedListener(new OnItemSelectedListener() { @Override public void onItemSelected(AdapterView<?> arg0, View arg1, int arg2, long arg3) { // 当前的头像位置为选中的位置 currentImagePosition = arg2; // 为ImageSwitcher设置图像 is.setImageResource(images[arg2 % images.length]); } @Override public void onNothingSelected(AdapterView<?> arg0) { } }); } } /** * 自定义Gallery的适配器 * ***/ class ImageAdapter extends BaseAdapter { private Context context; public ImageAdapter(Context context) { this.context = context; } @Override public int getCount() { return Integer.MAX_VALUE; } @Override public Object getItem(int position) { return position; } @Override public long getItemId(int position) { return position; } /** * gallery从这个方法中拿到image */ @Override public View getView(int position, View convertView, ViewGroup parent) { ImageView iv = new ImageView(context); iv.setImageResource(images[position % images.length]); iv.setAdjustViewBounds(true); iv.setLayoutParams(new Gallery.LayoutParams(80, 80)); iv.setPadding(15, 10, 15, 10); return iv; } } @Override public View makeView() { ImageView view = new ImageView(this); view.setBackgroundColor(0xff000000); // 控制图像应调整大小和移动以匹配这个ImageView的大小 居中 view.setScaleType(ScaleType.FIT_CENTER); // 设置图片的大小为 90 * 90 view.setLayoutParams(new ImageSwitcher.LayoutParams(90, 90)); return view; } public void initImageChooseDialog() { if (imageChooseDialog == null) { // 选择图片的对话框 AlertDialog.Builder builder = new AlertDialog.Builder(this); builder.setTitle("请选择图像") .setView(imageChooseView).setPositiveButton("确定", new DialogInterface.OnClickListener() { // 确定按钮的监听事件 public void onClick(DialogInterface dialog, int which) { imageChanged = true; previousImagePosition = currentImagePosition; // 设置图片为选择图片的通过位置 imageButton .setImageResource(images[currentImagePosition % images.length]); } }).setNegativeButton("取消", new DialogInterface.OnClickListener() { // 取消按钮的监听事件 @Override public void onClick(DialogInterface dialog, int which) { currentImagePosition = previousImagePosition; } }); imageChooseDialog = builder.create(); } } /** * 当退出的时候，回收资源 */ @Override protected void onDestroy() { if (is != null) { is = null; } if (gallery != null) { gallery = null; } if (imageChooseDialog != null) { imageChooseDialog = null; } if (imageChooseView != null) { imageChooseView = null; } if (imageButton != null) { imageButton = null; } super.onDestroy(); }}package com.wang.Db;import java.io.BufferedReader;import java.io.File;import java.io.FileOutputStream;import java.io.FileReader;import java.io.IOException;import java.util.ArrayList;import java.util.HashMap;import com.wang.UserInfo.UserInfo;import android.content.ContentValues;import android.content.Context;import android.database.Cursor;import android.database.sqlite.SQLiteDatabase;import android.database.sqlite.SQLiteOpenHelper;import android.os.Environment;public class DBHelper { public static final String DB_DBNAME = "Addressphone"; public static final String DB_TABLENAME = "addressphone"; public static final int VERSION = 4; public static SQLiteDatabase dbInstance; private MyDBHelper myDBHelper; private StringBuffer tableCreate; private Context context; public DBHelper(Context context) { this.context = context; } // 打开数据库 public void openDatabase() { if (dbInstance == null) { myDBHelper = new MyDBHelper(context, DB_DBNAME, VERSION); dbInstance = myDBHelper.getWritableDatabase(); } } /** * 往数据库里面的user表插入一条数据，若失败返回-1 */ public long insert(UserInfo user) { ContentValues values = new ContentValues(); values.put("name", user.username); values.put("mobilephone", user.mobilePhone); values.put("officephone", user.officePhone); values.put("familyphone", user.familyPhone); values.put("address", user.address); values.put("othercontact", user.otherContact); values.put("email", user.email); values.put("position", user.position); values.put("company", user.company); values.put("zipcode", user.zipCode); values.put("remark", user.remark); values.put("imageid", user.imageId); values.put("privacy", user.privacy); return dbInstance.insert(DB_TABLENAME, null, values); } /** * 获得数据库中所有的用户，将每一个用户放到一个map中去，然后再将map放到list里面去返回 */ public ArrayList getAllUser(boolean privacy) { ArrayList list = new ArrayList(); Cursor cursor = null; if (privacy) { cursor = dbInstance.query(DB_TABLENAME, new String[] { "_id", "name", "mobilephone", "officephone", "familyphone", "address", "othercontact", "email", "position", "company", "zipcode", "remark", "imageid" }, "privacy=1", null, null, null, null); } else { cursor = dbInstance.query(DB_TABLENAME, new String[] { "_id", "name", "mobilephone", "officephone", "familyphone", "address", "othercontact", "email", "position", "company", "zipcode", "remark", "imageid" }, "privacy=0", null, null, null, null); } while (cursor.moveToNext()) { HashMap item = new HashMap(); item.put("_id", cursor.getInt(cursor.getColumnIndex("_id"))); item.put("name", cursor.getString(cursor.getColumnIndex("name"))); item.put("mobilephone", cursor.getString(cursor .getColumnIndex("mobilephone"))); item.put("officephone", cursor.getString(cursor .getColumnIndex("officephone"))); item.put("familyphone", cursor.getString(cursor .getColumnIndex("familyphone"))); item.put("address", cursor.getString(cursor .getColumnIndex("address"))); item.put("othercontact", cursor.getString(cursor .getColumnIndex("othercontact"))); item.put("email", cursor.getString(cursor.getColumnIndex("email"))); item.put("position", cursor.getString(cursor .getColumnIndex("position"))); item.put("company", cursor.getString(cursor .getColumnIndex("company"))); item.put("zipcode", cursor.getString(cursor .getColumnIndex("zipcode"))); item.put("remark", cursor .getString(cursor.getColumnIndex("remark"))); item .put("imageid", cursor.getInt(cursor .getColumnIndex("imageid"))); list.add(item); } return list; } /** * 删除数据库表中的某条信息 * **/ public void delete(int _id) { dbInstance.delete(DB_TABLENAME, "_id=?", new String[] { String .valueOf(_id) }); } /** * 删除数据库表中的所有信息 * **/ public void deleteAll(int privacy) { dbInstance.delete(DB_TABLENAME, "privacy=?", new String[] { String .valueOf(privacy) }); } /** * 得到数据库表中的总的条目数 * **/ public int getTotalCount() { Cursor cursor = dbInstance.query(DB_TABLENAME, new String[] { "count(*)" }, null, null, null, null, null); cursor.moveToNext(); return cursor.getInt(0); } /** * 得到联系人的信息 * **/ // public ArrayList getUsers(String condition, boolean privacy) { ArrayList list = new ArrayList(); String strSelection = ""; if (privacy) { strSelection = "and privacy = 1"; } else { strSelection = "and privacy = 0"; } // 模糊查询 String sql = "select * from " + DB_TABLENAME + " where 1=1 and (name like '%" + condition + "%' " + "or mobilephone like '%" + condition + "%' or familyphone like '%" + condition + "%' " + "or officephone like '%" + condition + "%')" + strSelection; Cursor cursor = dbInstance.rawQuery(sql, null); while (cursor.moveToNext()) { HashMap item = new HashMap(); item.put("_id", cursor.getInt(cursor.getColumnIndex("_id"))); item.put("name", cursor.getString(cursor.getColumnIndex("name"))); item.put("mobilephone", cursor.getString(cursor .getColumnIndex("mobilephone"))); item.put("officephone", cursor.getString(cursor .getColumnIndex("officephone"))); item.put("familyphone", cursor.getString(cursor .getColumnIndex("familyphone"))); item.put("address", cursor.getString(cursor .getColumnIndex("address"))); item.put("othercontact", cursor.getString(cursor .getColumnIndex("othercontact"))); item.put("email", cursor.getString(cursor.getColumnIndex("email"))); item.put("position", cursor.getString(cursor .getColumnIndex("position"))); item.put("company", cursor.getString(cursor .getColumnIndex("company"))); item.put("zipcode", cursor.getString(cursor .getColumnIndex("zipcode"))); item.put("remark", cursor .getString(cursor.getColumnIndex("remark"))); item .put("imageid", cursor.getInt(cursor .getColumnIndex("imageid"))); list.add(item); } return list; } /** * 删除标记 * **/ public void deleteMarked(ArrayList<Integer> deleteId) { StringBuffer strDeleteId = new StringBuffer(); strDeleteId.append("_id="); for (int i = 0; i < deleteId.size(); i++) { if (i != deleteId.size() - 1) { strDeleteId.append(deleteId.get(i) + " or _id="); } else { strDeleteId.append(deleteId.get(i)); } } dbInstance.delete(DB_TABLENAME, strDeleteId.toString(), null); System.out.println(strDeleteId.toString()); } /** * 备份数据 * **/ // public void backupData(boolean privacy) { StringBuffer sqlBackup = new StringBuffer(); Cursor cursor = null; if (privacy) { cursor = dbInstance.query(DB_TABLENAME, new String[] { "_id", "name", "mobilephone", "officephone", "familyphone", "address", "othercontact", "email", "position", "company", "zipcode", "remark", "imageid,privacy" }, "privacy=1", null, null, null, null); } else { cursor = dbInstance.query(DB_TABLENAME, new String[] { "_id", "name", "mobilephone", "officephone", "familyphone", "address", "othercontact", "email", "position", "company", "zipcode", "remark", "imageid,privacy" }, "privacy=0", null, null, null, null); } while (cursor.moveToNext()) { sqlBackup .append( "insert into " + DB_TABLENAME + "(name,mobilephone,officephone,familyphone,address,othercontact,email,position,company,zipcode,remark,imageid,privacy)") .append(" values ('") .append(cursor.getString(cursor.getColumnIndex("name"))) .append("','") .append( cursor.getString(cursor .getColumnIndex("mobilephone"))) .append("','") .append( cursor.getString(cursor .getColumnIndex("officephone"))) .append("','") .append( cursor.getString(cursor .getColumnIndex("familyphone"))) .append("','") .append(cursor.getString(cursor.getColumnIndex("address"))) .append("','") .append( cursor.getString(cursor .getColumnIndex("othercontact"))) .append("','") .append(cursor.getString(cursor.getColumnIndex("email"))) .append("','") .append(cursor.getString(cursor.getColumnIndex("position"))) .append("','").append( cursor.getString(cursor.getColumnIndex("company"))) .append("','").append( cursor.getString(cursor.getColumnIndex("zipcode"))) .append("','").append( cursor.getString(cursor.getColumnIndex("remark"))) .append("',").append( cursor.getInt(cursor.getColumnIndex("imageid"))) .append(",").append( cursor.getInt(cursor.getColumnIndex("privacy"))) .append(");").append("\n"); } saveDataToFile(sqlBackup.toString(), privacy); } /** * 保存数据到文件中 * **/ private void saveDataToFile(String strData, boolean privacy) { String fileName = ""; if (privacy) { fileName = "priv_data.bk"; } else { fileName = "comm_data.bk"; } try { String SDPATH = Environment.getExternalStorageDirectory() + "/"; File fileParentPath = new File(SDPATH + "zpContactData/"); fileParentPath.mkdirs(); File file = new File(SDPATH + "zpContactData/" + fileName); System.out.println("the file previous path = " + file.getAbsolutePath()); file.createNewFile(); System.out .println("the file next path = " + file.getAbsolutePath()); FileOutputStream fos = new FileOutputStream(file); fos.write(strData.getBytes()); fos.flush(); } catch (IOException e) { e.printStackTrace(); } } /** * 恢复备份数据方法 * **/ // public void restoreData(String fileName) { try { String SDPATH = Environment.getExternalStorageDirectory() + "/"; File file = null; if (fileName.endsWith(".bk")) { file = new File(SDPATH + "zpContactData/" + fileName); } else { file = new File(SDPATH + "zpContactData/" + fileName + ".bk"); } BufferedReader br = new BufferedReader(new FileReader(file)); String str = ""; while ((str = br.readLine()) != null) { System.out.println(str); dbInstance.execSQL(str); } } catch (Exception e) { e.printStackTrace(); } } /** * 查找备份的文件 * **/ public boolean findFile(String fileName) { String SDPATH = Environment.getExternalStorageDirectory() + "/"; File file = null; if (fileName.endsWith(".bk")) { file = new File(SDPATH + "zpContact/" + fileName); } else { file = new File(SDPATH + "zpContact/" + fileName + ".bk"); } if (file.exists()) { return true; } else { return false; } } /** * 创建一个打开数据库的方法 * **/ class MyDBHelper extends SQLiteOpenHelper { public MyDBHelper(Context context, String name, int version) { super(context, name, null, version); } // 创建数据库 public void onCreate(SQLiteDatabase db) { tableCreate = new StringBuffer(); // 创建表 tableCreate.append("create table ").append(DB_TABLENAME).append( " (").append("_id integer primary key autoincrement,") .append("name text,").append("mobilephone text,").append( "officephone text,").append("familyphone text,") .append("address text,").append("othercontact text,") .append("email text,").append("position text,").append( "company text,").append("zipcode text,").append( "remark text,").append("imageid int,").append( "privacy int ").append(")"); System.out.println(tableCreate.toString()); // 执行创建语句 db.execSQL(tableCreate.toString()); } // 数据库时需要升级删除表，在重新创建 public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) { String sql = "drop table if exists " + DB_TABLENAME; db.execSQL(sql); myDBHelper.onCreate(db); } }}15.然后呢，就是用户信息的类UserInfo.java
package com.wang.UserInfo;import java.io.Serializable;public class UserInfo implements Serializable{ public int _id; public String username; public String mobilePhone; public String officePhone; public String familyPhone; public String position; public String company; public String address; public String zipCode; public String email; public String otherContact; public String remark; public int imageId; public int privacy;//1代表隐私用户 0代表普通用户 }16.亲，最后别忘了添加权限和注册Activity哦！！
<?xml version="1.0" encoding="utf-8"?><manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.wang.Activity" android:versionCode="1" android:versionName="1.0" > <uses-sdk android:minSdkVersion="10" /> <application android:icon="@drawable/ic_launcher" android:label="@string/app_name" > <activity android:name=".startAnimation" android:label="@string/app_name" > <intent-filter> <action android:name="android.intent.action.MAIN" /> <category android:name="android.intent.category.LAUNCHER" /> </intent-filter> </activity> <activity android:name=".AddressPhoneBookDemoActivity" /> <activity android:name=".AddNewContacts" /> </application> <uses-permission android:name="android.permission.CALL_PHONE" /> <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" /></manifest>17.然后就可以看到运行结果喽！！运行结果如下：

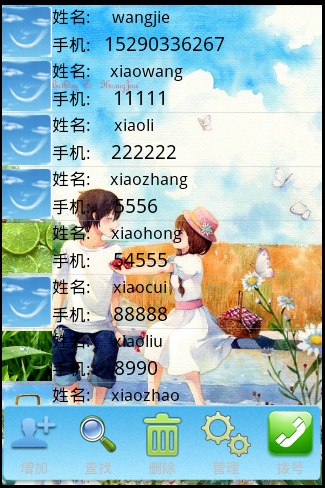

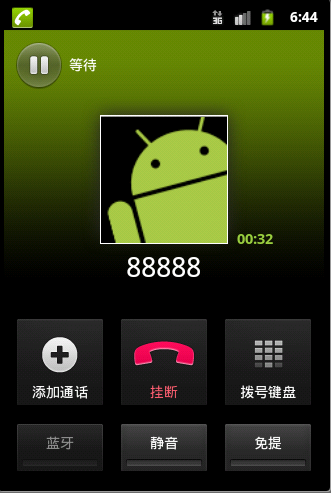

解释一下，第一张的欢迎界面， 第二张是跳转的的主界面 第三张的点击item拨打联系人电话的界面

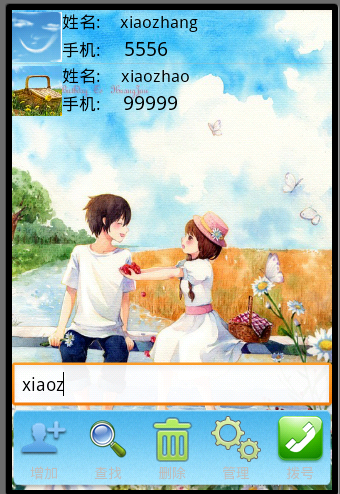

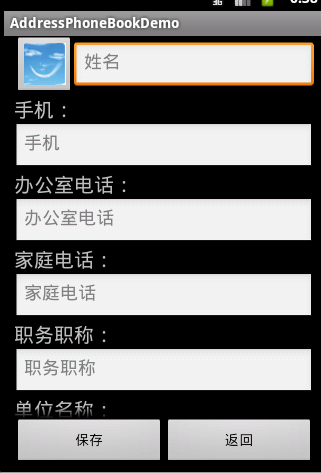

第四张的增加联系人的界面 第五张的选择联系人头像的界面 第六张是查找联系人的界面

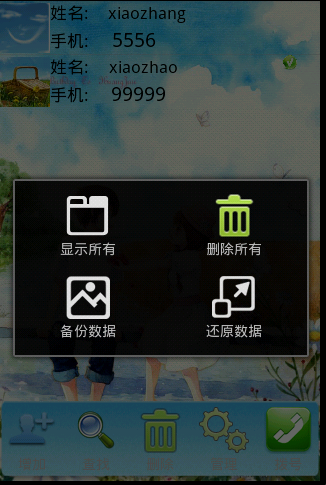

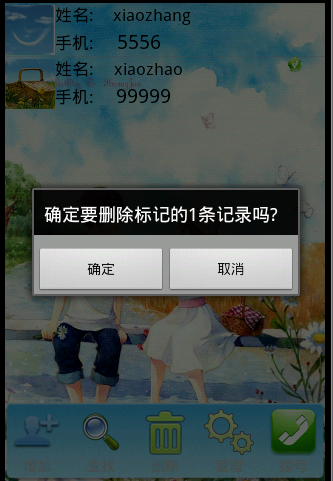

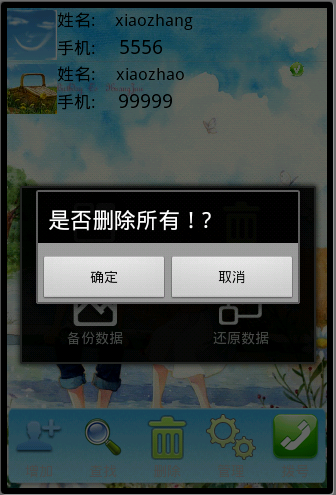

第七张是删除一条已标记的联系人的界面 第八张是管理联系人的界面 第九张的删除所有联系人的界面

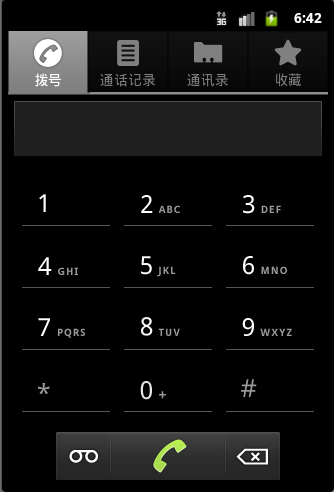

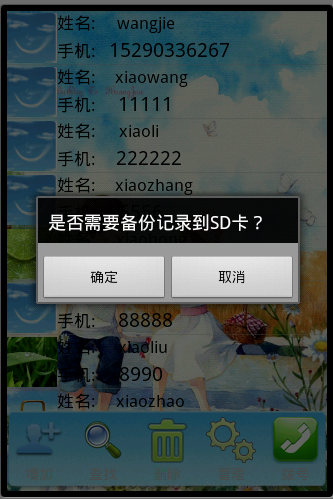

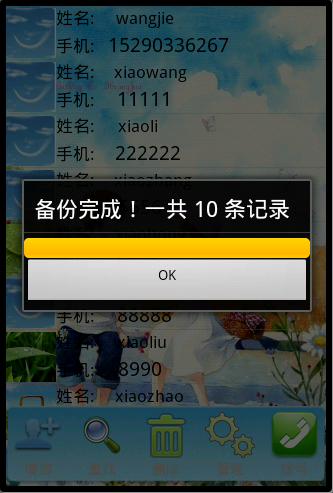

第十张是调用系统拨号功能的界面 第十一张是备份数据的界面 第十二章是备份完成的界面
