当在某个网站注册账号的时候,网站会让我们提供性别,生日,城市等信息,为了方便,就提供了一个下拉列表供我们选择,在Android也同样有这样的功能,这就是Spinner下拉列表
?
在编码的同时,首先需要在布局中定时Spinner组件,然后将可选内容通过ArrayAdapter和下拉列表连接起来,最后要获得用户选择的选项,我们需要设计事件监听器setOnItemSelectedListener并实现onItemSelected,从而获得用户所选择的内容,最后通过setVisibility方法设置当前的显示项
?
SpinnerTest.java
?
package org.hualang.Spinner;import android.app.Activity;import android.os.Bundle;import android.view.View;import android.widget.AdapterView;import android.widget.ArrayAdapter;import android.widget.Spinner;import android.widget.TextView;public class SpinnerTest extends Activity { /** Called when the activity is first created. */ private static final String[] citys={"杭州","北京","成都","大连","深圳","南京"}; private TextView text; private Spinner spinner; private ArrayAdapter<String> adapter; @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); text=(TextView)findViewById(R.id.text); spinner=(Spinner)findViewById(R.id.spinner); //将可选内容与ArrayAdapter连接 adapter=new ArrayAdapter<String>(this,android.R.layout.simple_spinner_item,citys); //设置下拉列表风格 adapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item); //将adapter添加到spinner中 spinner.setAdapter(adapter); //添加Spinner事件监听 spinner.setOnItemSelectedListener(new Spinner.OnItemSelectedListener() { @Override public void onItemSelected(AdapterView<?> arg0, View arg1, int arg2, long arg3) { // TODO Auto-generated method stub text.setText("你所在的城市是:"+citys[arg2]); //设置显示当前选择的项 arg0.setVisibility(View.VISIBLE); } @Override public void onNothingSelected(AdapterView<?> arg0) { // TODO Auto-generated method stub } }); }}
?main.xml
?
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent" ><TextView android:id="@+id/text" android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="您所在的城市" /><Spinner android:id="@+id/spinner" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_centerHorizontal="true"/></LinearLayout>

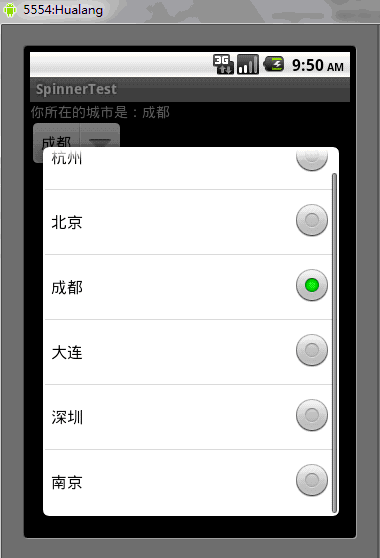

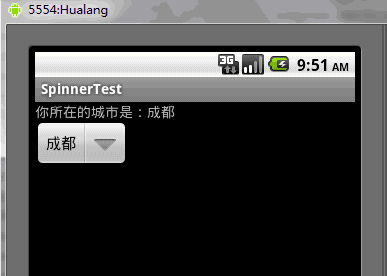

?运行结果:
