Android 自定义ListView + Gallery 结合

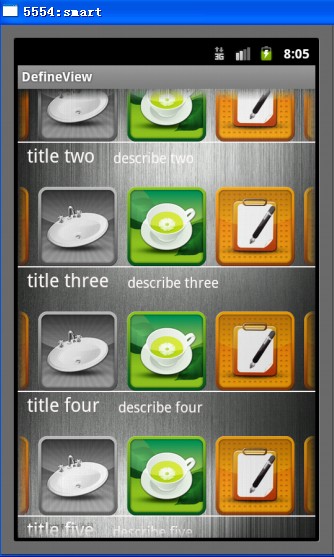

效果如图:  Item项包含标题、描述及一个Gallery.

    主配置文件(main):

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"	android:orientation="vertical" android:layout_width="fill_parent"	android:layout_height="fill_parent">	<!-- 解决ListView拖拽背景图片的bug: ListView中加入android:cacheColorHint="#00000000" -->	<!-- 给ListView每一项添加分隔线:android:divider="@color/snow" android:dividerHeight="1dip" -->	<ListView android:id="@+id/my_lst" android:layout_width="fill_parent"		android:layout_height="fill_parent" android:background="@drawable/bac"		android:divider="@color/snow" android:dividerHeight="1dip"		android:cacheColorHint="#00000000">	</ListView></LinearLayout>

    ListView 的Item配置文件(items):

<?xml version="1.0" encoding="utf-8"?><RelativeLayout android:id="@+id/items"	xmlns:android="http://schemas.android.com/apk/res/android"	android:orientation="vertical" android:layout_width="fill_parent"	android:layout_height="fill_parent">	<TextView android:id="@+id/item_title" android:layout_width="wrap_content"		android:textSize="20dip" android:layout_height="wrap_content"		android:textColor="@color/snow" android:layout_marginLeft="10dip"		android:layout_alignParentLeft="true" android:gravity="bottom" />	<TextView android:id="@+id/item_describe" android:textColor="@color/snow"		android:layout_width="wrap_content" android:textSize="15dip"		android:layout_marginTop="5dip" android:layout_height="wrap_content"		android:layout_marginLeft="20dip" android:layout_toRightOf="@+id/item_title"		android:gravity="bottom" />	<!-- 设置Gallery每一项的间距:android:spacing="10dip" -->	<Gallery android:id="@+id/item_gallery" android:layout_width="fill_parent"		android:layout_height="wrap_content" android:spacing="10dip"		android:layout_below="@+id/item_title" android:layout_marginTop="20dip"		android:layout_marginBottom="20dip" /></RelativeLayout>

values文件夹下colors.xml:

<?xml version="1.0" encoding="utf-8"?><resources>	<color name="white">#ffffff</color><!--白色 -->	<color name="snow">#fffafa</color><!--雪白色 -->	<color name="silver">#c0c0c0</color><!--银色 -->	<color name="blue">#0000FF</color><!-- 蓝色 -->	<color name="skyblue">#87ceeb</color><!--天蓝色 -->  	<color name="darkgrey">#a9a9a9</color><!--暗灰色 -->  </resources>

JavaBean(ListItem),对应到每一项ListView的item项:

package com.march.view;import java.io.InputStream;import android.content.Context;import android.graphics.Bitmap;import android.graphics.BitmapFactory;import android.graphics.BitmapFactory.Options;import android.view.View;import android.view.ViewGroup;import android.widget.BaseAdapter;import android.widget.ImageView;public class ListItem {	public String title, describe;	public int[] itemImages;	public ImageAdapter adapter;	public void initAdapter(Context context) {		this.adapter = new ImageAdapter(context);	}	public class ImageAdapter extends BaseAdapter {		private Context mContext;		public ImageAdapter(Context context) {			this.mContext = context;		}		@Override		public int getCount() {			// TODO Auto-generated method stub			return Integer.MAX_VALUE;		}		@Override		public Object getItem(int i) {			// TODO Auto-generated method stub			return i;		}		@Override		public long getItemId(int i) {			// TODO Auto-generated method stub			return i;		}		@Override		public View getView(int i, View view, ViewGroup viewgroup) {			view = new ImageView(mContext);			((ImageView) view).setImageBitmap(ListItem.readBitmap(mContext,					itemImages[i % itemImages.length]));			return view;		}	}	/***	 * 以最省内存的方式读取本地资源的图片	 * 	 * @param context	 * @param resId	 * @return	 */	public static Bitmap readBitmap(Context context, int rid) {		BitmapFactory.Options options = new BitmapFactory.Options();		options.inPreferredConfig = Bitmap.Config.RGB_565;		options.inPurgeable = true;		options.inInputShareable = true;		// 获取资源图片		InputStream is = context.getResources().openRawResource(rid);		return BitmapFactory.decodeStream(is, null, options);	}}

package com.march.view;import java.util.ArrayList;import java.util.List;import android.app.Activity;import android.content.Context;import android.os.Bundle;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;import android.widget.BaseAdapter;import android.widget.Gallery;import android.widget.ListView;import android.widget.TextView;import com.march.define.R;public class MainActivity extends Activity {	/** Called when the activity is first created. */	private ListView myLst;	private List<ListItem> items = new ArrayList<ListItem>();	@Override	public void onCreate(Bundle savedInstanceState) {		super.onCreate(savedInstanceState);		setContentView(R.layout.main);		myLst = (ListView) findViewById(R.id.my_lst);		initItems();		myLst.setAdapter(new CustomSimpleAdapter(this, items));	}	//默认数据,可修改	private static final String[] titles = new String[] { "title one",			"title two", "title three", "title four", "title five", "title six" };	private static final String[] describes = new String[] { "describe one",			"describe two", "describe three", "describe four", "describe five",			"describe six" };	private static final int[] images = new int[] { R.drawable.first,			R.drawable.second, R.drawable.three, R.drawable.four,			R.drawable.five, R.drawable.six };	private void initItems() {		// 初始化6个ListItem项		ListItem item = null;		for (int i = 0; i < 6; i++) {			item = new ListItem();			item.title = titles[i];			item.describe = describes[i];			item.itemImages = images;			item.initAdapter(this);			items.add(item);		}	}	public class CustomSimpleAdapter extends BaseAdapter {		private List<ListItem> items;		private LayoutInflater layoutInflater;		public CustomSimpleAdapter(Context context, List<ListItem> items) {			// TODO Auto-generated constructor stub			this.items = items;			layoutInflater = (LayoutInflater) ((Activity) context)					.getSystemService(LAYOUT_INFLATER_SERVICE);		}		@Override		public int getCount() {			return items.size();		}		@Override		public Object getItem(int position) {			return position;		}		@Override		public long getItemId(int position) {			return position;		}		@Override		public View getView(int position, View convertView, ViewGroup parent) {			//if (null == convertView) {				convertView = layoutInflater.inflate(R.layout.items, null);				ListItem item = this.items.get(position);				TextView title = (TextView) convertView						.findViewById(R.id.item_title);				title.setText(item.title);				TextView describe = (TextView) convertView						.findViewById(R.id.item_describe);				describe.setText(item.describe);				Gallery gallery = (Gallery) convertView						.findViewById(R.id.item_gallery);				gallery.setAdapter(item.adapter);				gallery.setSelection(Integer.MAX_VALUE / 2);				convertView.setTag(convertView);			/*} else {				convertView = (View) convertView.getTag();				Log.i("test", "go here convertView");			}*/			return convertView;		}	}}

源码下载链接:http://download.csdn.net/download/libei_march/4523293
