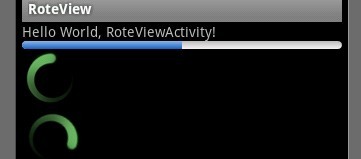

先看效果图：
老是提些各种需求问题，我觉得系统默认的颜色挺好的，但是Pk不过，谁叫我们不是需求人员呢，改吧！
这个没法了只能看源码了，还好下载了源码， sources\base\core\res\res\ 下应有尽有，修改进度条颜色只能找progress ，因为是改变样式，首先找styles.xml
找到xml后，进去找到：
1 2 3 4 5 6 7 8 9 10 | <style?name="Widget.ProgressBar">????<item?name="android:indeterminateOnly">true</item>????<itemname="android:indeterminateDrawable">@android:drawable/progress_medium_white</item>????<item?name="android:indeterminateBehavior">repeat</item>????<item?name="android:indeterminateDuration">3500</item>????<item?name="android:minWidth">48dip</item>????<item?name="android:maxWidth">48dip</item>????<item?name="android:minHeight">48dip</item>????<item?name="android:maxHeight">48dip</item></style> |
这是那个默认转圈的，但今天我们不修改这个，我们是要改变水平进度条颜色，所以找到：
1 2 3 4 5 6 7 | <style?name="Widget.ProgressBar.Horizontal">????<item?name="android:indeterminateOnly">false</item>????<item?name="android:progressDrawable">@android:drawable/progress_horizontal</item>????<itemname="android:indeterminateDrawable">@android:drawable/progress_indeterminate_horizontal</item>????<item?name="android:minHeight">20dip</item>????<item?name="android:maxHeight">20dip</item></style> |
你看系统一步一步关联的，扩展性很性，低耦合，所以我们现在只要改变进度条是怎么样画出来的就行了 ，但是负责画进度条的是 <item name="android:progressDrawable">? 所以我们可以找到"drawable下的 progress_horizontal 文件，改变他就可以改变进度条颜色。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 | <?xml?version="1.0"?encoding="utf-8"?><!--?????Copyright (C) 2008 The Android Open Source Project? ?????Licensed under the Apache License, Version 2.0 (the "License");?????you may not use this file except in compliance with the License.?????You may obtain a copy of the License at? ??????????http://www.apache.org/licenses/LICENSE-2.0? ?????Unless required by applicable law or agreed to in writing, software?????distributed under the License is distributed on an "AS IS" BASIS,?????WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.?????See the License for the specific language governing permissions and?????limitations under the License.? -->? <layer-list?xmlns:android="http://schemas.android.com/apk/res/android"?>????<item?android:id="@android:id/background">????????<shape>????????????<corners?android:radius="5dip"?/>????????????<gradient????????????????android:angle="270"????????????????android:centerColor="#ff5a5d5a"????????????????android:centerY="0.75"????????????????android:endColor="#ff747674"????????????????android:startColor="#ff9d9e9d"?/>????????</shape>????</item>? ????<item?android:id="@android:id/secondaryProgress">????????<clip>????????????<shape>????????????????<corners?android:radius="5dip"?/>????????????????<gradient????????????????????android:angle="270"????????????????????android:centerColor="#80ffb600"????????????????????android:centerY="0.75"????????????????????android:endColor="#a0ffcb00"????????????????????android:startColor="#80ffd300"?/>????????????</shape>????????</clip>????</item>? ????<item?android:id="@android:id/progress">????????<clip>????????????<shape>????????????????<corners?android:radius="5dip"?/>????????????????<gradient????????????????????android:angle="270"????????????????????android:centerColor="#ffffb600"????????????????????android:centerY="0.75"????????????????????android:endColor="#ffffcb00"????????????????????android:startColor="#ffffd300"?/>????????????</shape>????????</clip>????</item></layer-list> |
看到没有，这是系统的进度条画出的布局条件
1 2 3 | android:startColor="#80ffd300"android:centerColor="#80ffb600"android:endColor="#ff747674" |
我们只要改变这个色值就能改变他的颜色，主要改变的是<item android:id="@android:id/progress">下的色值就行了。
说了这么多，到底怎么做呢，很简单：
在我们的项目下新建一个 style.xml 文件
创建一个style 标签，集成系统默认样式，然后自定义一个新的progressDrawable 文件，随后面在layout 中的progress 中引用这个文件就行。
1 2 3 4 5 6 7 | <style?name="ProgressBar_Mini"?parent="@android:style/Widget.ProgressBar.Horizontal">????<item?name="android:maxHeight">50dip</item>????<item?name="android:minHeight">8dip</item>????<item?name="android:indeterminateOnly">false</item>????<itemname="android:indeterminateDrawable">@android:drawable/progress_indeterminate_horizontal</item>????<item?name="android:progressDrawable">@drawable/progressbar_mini</item></style> |
下面是我的 progressbar_mini 文件，改变了下android:endColor="#F5F5F5" android:startColor="#BEBEBE" 的色值
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 | <layer-list?xmlns:android="http://schemas.android.com/apk/res/android"?>????<item?android:id="@android:id/background">????????<shape>????????????<corners?android:radius="5dip"?/>????????????<gradient????????????????android:angle="270"????????????????android:centerY="0.75"????????????????android:endColor="#F5F5F5"????????????????android:startColor="#BEBEBE"?/>????????</shape>????</item>? ????<item?android:id="@android:id/secondaryProgress">????????<clip>????????????<shape>????????????????<corners?android:radius="0dip"?/>????????????????<gradient????????????????????android:angle="270"????????????????????android:centerY="0.75"????????????????????android:endColor="#165CBC"????????????????????android:startColor="#85B0E9"?/>????????????</shape>????????</clip>????</item>? ????<item?android:id="@android:id/progress">????????<clip>????????????<shape>????????????????<corners?android:radius="5dip"?/>????????????????<gradient????????????????????android:angle="270"????????????????????android:centerY="0.75"????????????????????android:endColor="#165CBC"????????????????????android:startColor="#85B0E9"?/>????????????</shape>????????</clip>????</item></layer-list> |
最后引用其就可以了。
1 2 3 4 5 6 | <ProgressBar????android:id="@+id/progress"????style="@style/ProgressBar_Mini"????android:layout_width="fill_parent"????android:layout_height="wrap_content"????android:progress="50"?/> |
