android 信手记 popwindow从下方弹出_Android

android 随手记 popwindow从下方弹出

在开发中PopupWindow的弹出效果是必不可少的。许多应用的App都喜欢用到PopupWindow。如：新浪微博客户端、微信客户端、大众点评客户端等等。今天给大家

介绍的是微信客户端里用PopupWindow实现的一种从底部滑出选择菜单的效果。

本实例弹出窗口主要是继承PopupWindow类来实现的弹出窗体，布局可以根据自己定义设计。弹出效果主要使用了translate和alpha样式实现，具体实例如下：

第一步：设计弹出窗口xml：

[java] view plaincopyprint?

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:gravity="center_horizontal"
android:orientation="vertical"
>
<LinearLayout
android:id="@+id/pop_layout"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:gravity="center_horizontal"
android:orientation="vertical"
android:layout_alignParentBottom="true"
android:background="@drawable/btn_style_alert_dialog_background"
>
<Button
android:id="@+id/btn_take_photo"
android:layout_marginLeft="20dip"
android:layout_marginRight="20dip"
android:layout_marginTop="20dip"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="拍照"
android:background="@drawable/btn_style_alert_dialog_button"
android:textStyle="bold"
/>
<Button
android:id="@+id/btn_pick_photo"
android:layout_marginLeft="20dip"
android:layout_marginRight="20dip"
android:layout_marginTop="5dip"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="从相册选择"
android:background="@drawable/btn_style_alert_dialog_button"
android:textStyle="bold"
/>
<Button
android:id="@+id/btn_cancel"
android:layout_marginLeft="20dip"
android:layout_marginRight="20dip"
android:layout_marginTop="15dip"
android:layout_marginBottom="15dip"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="取消"
android:background="@drawable/btn_style_alert_dialog_cancel"
android:textColor="#ffffff"
android:textStyle="bold"
/>
</LinearLayout>
</RelativeLayout>

第二步：创建SelectPicPopupWindow类继承PopupWindow：

[java] view plaincopyprint?

import android.app.Activity;
import android.content.Context;
import android.graphics.drawable.ColorDrawable;
import android.view.LayoutInflater;
import android.view.MotionEvent;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.View.OnTouchListener;
import android.view.ViewGroup.LayoutParams;
import android.widget.Button;
import android.widget.PopupWindow;
public class SelectPicPopupWindow extends PopupWindow {
private Button btn_take_photo, btn_pick_photo, btn_cancel;
private View mMenuView;
public SelectPicPopupWindow(Activity context,OnClickListener itemsOnClick) {
super(context);
LayoutInflater inflater = (LayoutInflater) context
.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
mMenuView = inflater.inflate(R.layout.alert_dialog, null);
btn_take_photo = (Button) mMenuView.findViewById(R.id.btn_take_photo);
btn_pick_photo = (Button) mMenuView.findViewById(R.id.btn_pick_photo);
btn_cancel = (Button) mMenuView.findViewById(R.id.btn_cancel);
//取消按钮
btn_cancel.setOnClickListener(new OnClickListener() {
public void onClick(View v) {
//销毁弹出框
dismiss();
}
});
//设置按钮监听
btn_pick_photo.setOnClickListener(itemsOnClick);
btn_take_photo.setOnClickListener(itemsOnClick);
//设置SelectPicPopupWindow的View
this.setContentView(mMenuView);
//设置SelectPicPopupWindow弹出窗体的宽
this.setWidth(LayoutParams.FILL_PARENT);
//设置SelectPicPopupWindow弹出窗体的高
this.setHeight(LayoutParams.WRAP_CONTENT);
//设置SelectPicPopupWindow弹出窗体可点击
this.setFocusable(true);
//设置SelectPicPopupWindow弹出窗体动画效果
this.setAnimationStyle(R.style.AnimBottom);
//实例化一个ColorDrawable颜色为半透明
ColorDrawable dw = new ColorDrawable(0xb0000000);
//设置SelectPicPopupWindow弹出窗体的背景
this.setBackgroundDrawable(dw);
//mMenuView添加OnTouchListener监听判断获取触屏位置如果在选择框外面则销毁弹出框
mMenuView.setOnTouchListener(new OnTouchListener() {
public boolean onTouch(View v, MotionEvent event) {
int height = mMenuView.findViewById(R.id.pop_layout).getTop();
int y=(int) event.getY();
if(event.getAction()==MotionEvent.ACTION_UP){
if(y<height){
dismiss();
}
}
return true;
}
});
}
}

第三步：编写MainActivity类实现测试：

[java] view plaincopyprint?

import android.app.Activity;
import android.os.Bundle;
import android.view.Gravity;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.TextView;
public class MainActivity extends Activity {
//自定义的弹出框类
SelectPicPopupWindow menuWindow;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
TextView tv = (TextView) this.findViewById(R.id.text);
//把文字控件添加监听，点击弹出自定义窗口
tv.setOnClickListener(new OnClickListener() {
public void onClick(View v) {
//实例化SelectPicPopupWindow
menuWindow = new SelectPicPopupWindow(MainActivity.this, itemsOnClick);
//显示窗口
menuWindow.showAtLocation(MainActivity.this.findViewById(R.id.main), Gravity.BOTTOM|Gravity.CENTER_HORIZONTAL, 0, 0); //设置layout在PopupWindow中显示的位置
}
});
}
//为弹出窗口实现监听类
private OnClickListener itemsOnClick = new OnClickListener(){
public void onClick(View v) {
menuWindow.dismiss();
switch (v.getId()) {
case R.id.btn_take_photo:
break;
case R.id.btn_pick_photo:
break;
default:
break;
}
}
};
}

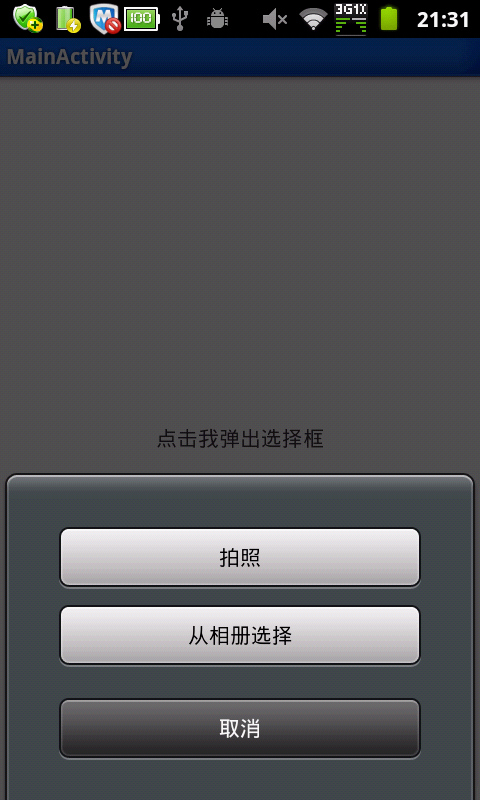

第四：运行效果如下：
