2013.12.05（6）——— android ViewPagerIndicator之SampleTitlesDefault
package com.viewpagerindicator.sample;import android.os.Bundle;import android.support.v4.view.ViewPager;import com.viewpagerindicator.TitlePageIndicator;public class SampleTitlesDefault extends BaseSampleActivity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.simple_titles); mAdapter = new TestFragmentAdapter(getSupportFragmentManager()); mPager = (ViewPager)findViewById(R.id.pager); mPager.setAdapter(mAdapter); mIndicator = (TitlePageIndicator)findViewById(R.id.indicator); mIndicator.setViewPager(mPager); }}<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent"> <com.viewpagerindicator.TitlePageIndicator android:id="@+id/indicator" android:padding="10dip" android:layout_height="wrap_content" android:layout_width="fill_parent" /> <android.support.v4.view.ViewPager android:id="@+id/pager" android:layout_width="fill_parent" android:layout_height="0dp" android:layout_weight="1" /></LinearLayout>
1、layout里面用的是
com.viewpagerindicator.TitlePageIndicator
2、title显示的名字会调用adapter的
getPageTitle
3、修改样式
xml
app:footerColor="#FFAA2222" app:footerLineHeight="1dp" app:footerIndicatorHeight="3dp" app:footerIndicatorStyle="underline" app:selectedColor="#FF000000" app:selectedBold="true"
java
final float density = getResources().getDisplayMetrics().density; indicator.setBackgroundColor(0x18FF0000); indicator.setFooterColor(0xFFAA2222); indicator.setFooterLineHeight(1 * density); //1dp indicator.setFooterIndicatorHeight(3 * density); //3dp indicator.setFooterIndicatorStyle(IndicatorStyle.Underline); indicator.setTextColor(0xAA000000); indicator.setSelectedColor(0xFF000000); indicator.setSelectedBold(true);

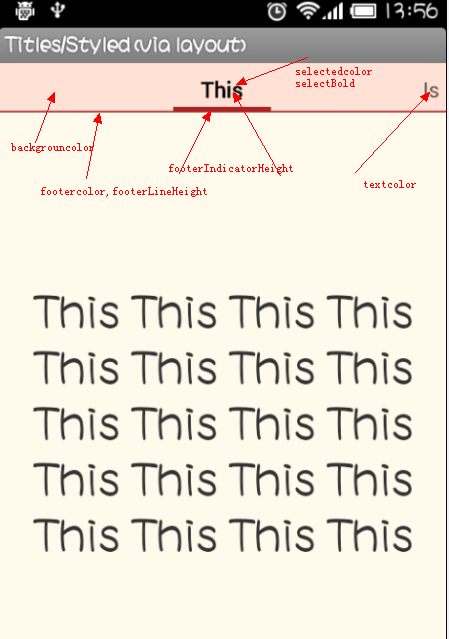

BackgroundColor：tab的背景颜色FooterColor：tab最下面线的颜色FooterLineHeight：线的宽度FooterIndicatorHeight：处于选中状态时，线的宽度FooterIndicatorStyle：有三种样式 None(0) 无， Triangle(1)三角形, Underline(2) 下划线TextColor：tab上文字的颜色SelectedColor：处于选中状态时，文字的颜色SelectedBold：选中时，文字是否加粗

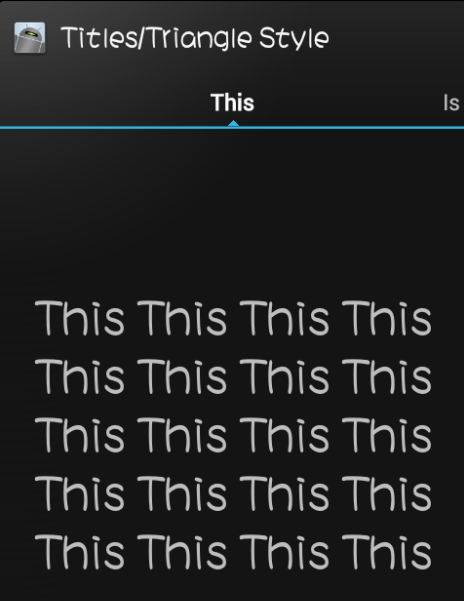

三角形的样式如下：
4、可以监听点击了正在显示的title 实现OnCenterItemClickListener
@Override public void onCenterItemClick(int position) { Toast.makeText(this, "You clicked the center title!", Toast.LENGTH_SHORT).show(); }5、监听活动和SampleCircles是一样的
//We set this on the indicator, NOT the pager mIndicator.setOnPageChangeListener(new ViewPager.OnPageChangeListener() { @Override public void onPageSelected(int position) { Toast.makeText(SampleTitlesWithListener.this, "Changed to page " + position, Toast.LENGTH_SHORT).show(); } @Override public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) { } @Override public void onPageScrollStateChanged(int state) { } });
