在Android中，彩信的接收分为两部分。彩信通知通过短信的方式接收。彩信数据的下载在应用层中处理。
接收短信(!前提是发送彩信而不是短信)：

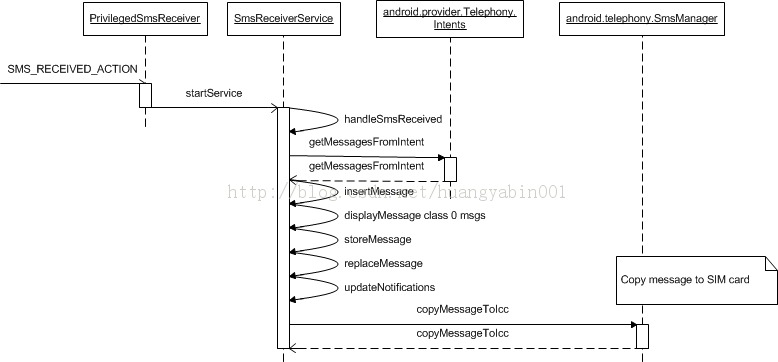

分析代码之前，首先分享一张在网络上很流行的顺序图。
调用 Ril.java类中内部类RILReceiver的run（）方法，代码如下《TAG 1-1》：
public void
run() {
int retryCount = 0;
String rilSocket = "rild";
try {for (;;) {
LocalSocket s = null;
LocalSocketAddress l;
if (mInstanceId == null || mInstanceId == 0 ) {
rilSocket = SOCKET_NAME_RIL[0];
} else {
rilSocket = SOCKET_NAME_RIL[mInstanceId];
}
try {
s = new LocalSocket();
l = new LocalSocketAddress(rilSocket,
LocalSocketAddress.Namespace.RESERVED);
s.connect(l);
} catch (IOException ex){
try {
if (s != null) {
s.close();
}
} catch (IOException ex2) {
//ignore failure to close after failure to connect
}
// don't print an error message after the the first time
// or after the 8th time
if (retryCount == 8) {
Rlog.e (RILJ_LOG_TAG,
"Couldn't find '" + rilSocket
+ "' socket after " + retryCount
+ " times, continuing to retry silently");
} else if (retryCount > 0 && retryCount < 8) {
Rlog.i (RILJ_LOG_TAG,
"Couldn't find '" + rilSocket
+ "' socket; retrying after timeout");
}
try {
Thread.sleep(SOCKET_OPEN_RETRY_MILLIS);
} catch (InterruptedException er) {
}
retryCount++;
continue;
}
retryCount = 0;
mSocket = s;
Rlog.i(RILJ_LOG_TAG, "Connected to '" + rilSocket + "' socket");
int length = 0;
try {
InputStream is = mSocket.getInputStream();
for (;;) {
Parcel p;
length = readRilMessage(is, buffer);
if (length < 0) {
// End-of-stream reached
break;
}
p = Parcel.obtain();
p.unmarshall(buffer, 0, length);
p.setDataPosition(0);
//Rlog.v(RILJ_LOG_TAG, "Read packet: " + length + " bytes");
processResponse(p);
p.recycle();
}
} catch (java.io.IOException ex) {
Rlog.i(RILJ_LOG_TAG, "'" + rilSocket + "' socket closed",
ex);
} catch (Throwable tr) {
Rlog.e(RILJ_LOG_TAG, "Uncaught exception read length=" + length +
"Exception:" + tr.toString());
}
Rlog.i(RILJ_LOG_TAG, "Disconnected from '" + rilSocket
+ "' socket");
setRadioState (RadioState.RADIO_UNAVAILABLE);
try {
mSocket.close();
} catch (IOException ex) {
}
mSocket = null;
RILRequest.resetSerial();
// Clear request list on close
clearRequestList(RADIO_NOT_AVAILABLE, false);
}} catch (Throwable tr) {
Rlog.e(RILJ_LOG_TAG,"Uncaught exception", tr);
}
/* We're disconnected so we don't know the ril version */
notifyRegistrantsRilConnectionChanged(-1);
}
从上述代码《TAG 1-1》中，RILReceiver接收到短信后，会转到processResponse()--> processUnsolicited()进行处理.其事件类型为RIL_UNSOL_RESPONSE_NEW_SMS/RIL_UNSOL_RESPONSE_CDMA_NEW_SMS ，先调用responseString()从Parcel中获取数据，再使用newFromCMT()方法获取SmsMessage对象《TAG1-2》；
private void
processResponse (Parcel p) {
int type;
type = p.readInt();
if (type == RESPONSE_UNSOLICITED) {
processUnsolicited (p);
} else if (type == RESPONSE_SOLICITED) {
processSolicited (p);
}
releaseWakeLockIfDone();
}private void
processUnsolicited (Parcel p) {
int response;
Object ret;
response = p.readInt();
try {switch(response) {
/*
cat libs/telephony/ril_unsol_commands.h \
| egrep "^ *{RIL_" \
| sed -re 's/\{([^,]+),[^,]+,([^}]+).+/case \1: \2(rr, p); break;/'
*/
case RIL_UNSOL_RESPONSE_RADIO_STATE_CHANGED: ret = responseVoid(p); break;
case RIL_UNSOL_RESPONSE_CALL_STATE_CHANGED: ret = responseVoid(p); break;
case RIL_UNSOL_RESPONSE_VOICE_NETWORK_STATE_CHANGED: ret = responseVoid(p); break;
case RIL_UNSOL_RESPONSE_NEW_SMS: ret = responseString(p); break;
case RIL_UNSOL_RESPONSE_NEW_SMS_STATUS_REPORT: ret = responseString(p); break;
case RIL_UNSOL_RESPONSE_NEW_SMS_ON_SIM: ret = responseInts(p); break;
case RIL_UNSOL_ON_USSD: ret = responseStrings(p); break;
case RIL_UNSOL_NITZ_TIME_RECEIVED: ret = responseString(p); break;
case RIL_UNSOL_SIGNAL_STRENGTH: ret = responseSignalStrength(p); break;
case RIL_UNSOL_DATA_CALL_LIST_CHANGED: ret = responseDataCallList(p);break;
case RIL_UNSOL_SUPP_SVC_NOTIFICATION: ret = responseSuppServiceNotification(p); break;
case RIL_UNSOL_STK_SESSION_END: ret = responseVoid(p); break;
case RIL_UNSOL_STK_PROACTIVE_COMMAND: ret = responseString(p); break;
case RIL_UNSOL_STK_EVENT_NOTIFY: ret = responseString(p); break;
case RIL_UNSOL_STK_CALL_SETUP: ret = responseInts(p); break;
case RIL_UNSOL_SIM_SMS_STORAGE_FULL: ret = responseVoid(p); break;
case RIL_UNSOL_SIM_REFRESH: ret = responseSimRefresh(p); break;
case RIL_UNSOL_CALL_RING: ret = responseCallRing(p); break;
case RIL_UNSOL_RESTRICTED_STATE_CHANGED: ret = responseInts(p); break;
case RIL_UNSOL_RESPONSE_SIM_STATUS_CHANGED: ret = responseVoid(p); break;
case RIL_UNSOL_RESPONSE_CDMA_NEW_SMS: ret = responseCdmaSms(p); break;
case RIL_UNSOL_RESPONSE_NEW_BROADCAST_SMS: ret = responseRaw(p); break;
case RIL_UNSOL_CDMA_RUIM_SMS_STORAGE_FULL: ret = responseVoid(p); break;
case RIL_UNSOL_ENTER_EMERGENCY_CALLBACK_MODE: ret = responseVoid(p); break;
case RIL_UNSOL_CDMA_CALL_WAITING: ret = responseCdmaCallWaiting(p); break;
case RIL_UNSOL_CDMA_OTA_PROVISION_STATUS: ret = responseInts(p); break;
case RIL_UNSOL_CDMA_INFO_REC: ret = responseCdmaInformationRecord(p); break;
case RIL_UNSOL_OEM_HOOK_RAW: ret = responseRaw(p); break;
case RIL_UNSOL_RINGBACK_TONE: ret = responseInts(p); break;
case RIL_UNSOL_RESEND_INCALL_MUTE: ret = responseVoid(p); break;
case RIL_UNSOL_CDMA_SUBSCRIPTION_SOURCE_CHANGED: ret = responseInts(p); break;
case RIL_UNSOl_CDMA_PRL_CHANGED: ret = responseInts(p); break;
case RIL_UNSOL_EXIT_EMERGENCY_CALLBACK_MODE: ret = responseVoid(p); break;
case RIL_UNSOL_RIL_CONNECTED: ret = responseInts(p); break;
case RIL_UNSOL_VOICE_RADIO_TECH_CHANGED: ret = responseInts(p); break;
case RIL_UNSOL_CELL_INFO_LIST: ret = responseCellInfoList(p); break;
case RIL_UNSOL_RESPONSE_IMS_NETWORK_STATE_CHANGED: ret = responseVoid(p); break;
case RIL_UNSOL_UICC_SUBSCRIPTION_STATUS_CHANGED: ret = responseInts(p); break;
case RIL_UNSOL_ON_SS: ret = responseSsData(p); break;
case RIL_UNSOL_STK_CC_ALPHA_NOTIFY: ret = responseString(p); break;
[email protected] add hongxing add
case RIL_UNSOL_FACTORY_AT_TEST: ret = responseRaw(p); break;
default:
throw new RuntimeException("Unrecognized unsol response: " + response);
//break; (implied)
}} catch (Throwable tr) {
Rlog.e(RILJ_LOG_TAG, "Exception processing unsol response: " + response +
"Exception:" + tr.toString());
return;
}
switch(response) {
case RIL_UNSOL_RESPONSE_RADIO_STATE_CHANGED:
/* has bonus radio state int */
RadioState newState = getRadioStateFromInt(p.readInt());
if (RILJ_LOGD) unsljLogMore(response, newState.toString());
switchToRadioState(newState);
break;
case RIL_UNSOL_RESPONSE_IMS_NETWORK_STATE_CHANGED:
if (RILJ_LOGD) unsljLog(response);
mImsNetworkStateChangedRegistrants
.notifyRegistrants(new AsyncResult(null, null, null));
break;
case RIL_UNSOL_RESPONSE_CALL_STATE_CHANGED:
if (RILJ_LOGD) unsljLog(response);
mCallStateRegistrants
.notifyRegistrants(new AsyncResult(null, null, null));
break;
case RIL_UNSOL_RESPONSE_VOICE_NETWORK_STATE_CHANGED:
if (RILJ_LOGD) unsljLog(response);
mVoiceNetworkStateRegistrants
.notifyRegistrants(new AsyncResult(null, null, null));
break;
case RIL_UNSOL_RESPONSE_NEW_SMS: {
if (RILJ_LOGD) unsljLog(response);
// FIXME this should move up a layer
String a[] = new String[2];
a[1] = (String)ret;
SmsMessage sms;
sms = SmsMessage.newFromCMT(a);
if (mGsmSmsRegistrant != null) {
mGsmSmsRegistrant
.notifyRegistrant(new AsyncResult(null, sms, null));
}
break;
}
case RIL_UNSOL_RESPONSE_NEW_SMS_STATUS_REPORT:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mSmsStatusRegistrant != null) {
mSmsStatusRegistrant.notifyRegistrant(
new AsyncResult(null, ret, null));
}
break;
case RIL_UNSOL_RESPONSE_NEW_SMS_ON_SIM:
if (RILJ_LOGD) unsljLogRet(response, ret);
int[] smsIndex = (int[])ret;
if(smsIndex.length == 1) {
if (mSmsOnSimRegistrant != null) {
mSmsOnSimRegistrant.
notifyRegistrant(new AsyncResult(null, smsIndex, null));
}
} else {
if (RILJ_LOGD) riljLog(" NEW_SMS_ON_SIM ERROR with wrong length "
+ smsIndex.length);
}
break;
case RIL_UNSOL_ON_USSD:
String[] resp = (String[])ret;
if (resp.length < 2) {
resp = new String[2];
resp[0] = ((String[])ret)[0];
resp[1] = null;
}
if (RILJ_LOGD) unsljLogMore(response, resp[0]);
if (mUSSDRegistrant != null) {
mUSSDRegistrant.notifyRegistrant(
new AsyncResult (null, resp, null));
}
break;
case RIL_UNSOL_NITZ_TIME_RECEIVED:
if (RILJ_LOGD) unsljLogRet(response, ret);
// has bonus long containing milliseconds since boot that the NITZ
// time was received
long nitzReceiveTime = p.readLong();
Object[] result = new Object[2];
result[0] = ret;
result[1] = Long.valueOf(nitzReceiveTime);
boolean ignoreNitz = SystemProperties.getBoolean(
TelephonyProperties.PROPERTY_IGNORE_NITZ, false);
if (ignoreNitz) {
if (RILJ_LOGD) riljLog("ignoring UNSOL_NITZ_TIME_RECEIVED");
} else {
if (mNITZTimeRegistrant != null) {
mNITZTimeRegistrant
.notifyRegistrant(new AsyncResult (null, result, null));
} else {
// in case NITZ time registrant isnt registered yet
mLastNITZTimeInfo = result;
}
}
break;
case RIL_UNSOL_SIGNAL_STRENGTH:
// Note this is set to "verbose" because it happens
// frequently
if (RILJ_LOGV) unsljLogvRet(response, ret);
if (mSignalStrengthRegistrant != null) {
mSignalStrengthRegistrant.notifyRegistrant(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_DATA_CALL_LIST_CHANGED:
if (RILJ_LOGD) unsljLogRet(response, ret);
mDataNetworkStateRegistrants.notifyRegistrants(new AsyncResult(null, ret, null));
break;
case RIL_UNSOL_SUPP_SVC_NOTIFICATION:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mSsnRegistrant != null) {
mSsnRegistrant.notifyRegistrant(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_STK_SESSION_END:
if (RILJ_LOGD) unsljLog(response);
if (mCatSessionEndRegistrant != null) {
mCatSessionEndRegistrant.notifyRegistrant(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_STK_PROACTIVE_COMMAND:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mCatProCmdRegistrant != null) {
mCatProCmdRegistrant.notifyRegistrant(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_STK_EVENT_NOTIFY:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mCatEventRegistrant != null) {
mCatEventRegistrant.notifyRegistrant(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_STK_CALL_SETUP:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mCatCallSetUpRegistrant != null) {
mCatCallSetUpRegistrant.notifyRegistrant(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_SIM_SMS_STORAGE_FULL:
if (RILJ_LOGD) unsljLog(response);
if (mIccSmsFullRegistrant != null) {
mIccSmsFullRegistrant.notifyRegistrant();
}
break;
case RIL_UNSOL_SIM_REFRESH:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mIccRefreshRegistrants != null) {
mIccRefreshRegistrants.notifyRegistrants(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_CALL_RING:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mRingRegistrant != null) {
mRingRegistrant.notifyRegistrant(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_RESTRICTED_STATE_CHANGED:
if (RILJ_LOGD) unsljLogvRet(response, ret);
if (mRestrictedStateRegistrant != null) {
mRestrictedStateRegistrant.notifyRegistrant(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_RESPONSE_SIM_STATUS_CHANGED:
if (RILJ_LOGD) unsljLog(response);
if (mIccStatusChangedRegistrants != null) {
mIccStatusChangedRegistrants.notifyRegistrants();
}
break;
case RIL_UNSOL_RESPONSE_CDMA_NEW_SMS:
if (RILJ_LOGD) unsljLog(response);
SmsMessage sms = (SmsMessage) ret;
if (mCdmaSmsRegistrant != null) {
mCdmaSmsRegistrant
.notifyRegistrant(new AsyncResult(null, sms, null));
}
break;
case RIL_UNSOL_RESPONSE_NEW_BROADCAST_SMS:
if (RILJ_LOGD) unsljLog(response);
if (mGsmBroadcastSmsRegistrant != null) {
mGsmBroadcastSmsRegistrant
.notifyRegistrant(new AsyncResult(null, ret, null));
}
break;
case RIL_UNSOL_CDMA_RUIM_SMS_STORAGE_FULL:
if (RILJ_LOGD) unsljLog(response);
if (mIccSmsFullRegistrant != null) {
mIccSmsFullRegistrant.notifyRegistrant();
}
break;
case RIL_UNSOL_ENTER_EMERGENCY_CALLBACK_MODE:
if (RILJ_LOGD) unsljLog(response);
if (mEmergencyCallbackModeRegistrant != null) {
mEmergencyCallbackModeRegistrant.notifyRegistrant();
}
break;
case RIL_UNSOL_CDMA_CALL_WAITING:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mCallWaitingInfoRegistrants != null) {
mCallWaitingInfoRegistrants.notifyRegistrants(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_CDMA_OTA_PROVISION_STATUS:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mOtaProvisionRegistrants != null) {
mOtaProvisionRegistrants.notifyRegistrants(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_CDMA_INFO_REC:
ArrayList<CdmaInformationRecords> listInfoRecs;
try {
listInfoRecs = (ArrayList<CdmaInformationRecords>)ret;
} catch (ClassCastException e) {
Rlog.e(RILJ_LOG_TAG, "Unexpected exception casting to listInfoRecs", e);
break;
}
for (CdmaInformationRecords rec : listInfoRecs) {
if (RILJ_LOGD) unsljLogRet(response, rec);
notifyRegistrantsCdmaInfoRec(rec);
}
break;
case RIL_UNSOL_OEM_HOOK_RAW:
if (RILJ_LOGD) unsljLogvRet(response, IccUtils.bytesToHexString((byte[]) ret));
ByteBuffer oemHookResponse = ByteBuffer.wrap((byte[]) ret);
oemHookResponse.order(ByteOrder.nativeOrder());
if (isQcUnsolOemHookResp(oemHookResponse)) {
Rlog.d(RILJ_LOG_TAG, "OEM ID check Passed");
processUnsolOemhookResponse(oemHookResponse);
} else if (mUnsolOemHookRawRegistrant != null) {
Rlog.d(RILJ_LOG_TAG, "External OEM message, to be notified");
mUnsolOemHookRawRegistrant.notifyRegistrant(new AsyncResult(null, ret, null));
}
break;
//dewen.feng @20140426 add hongxing add
case RIL_UNSOL_FACTORY_AT_TEST:
Rlog.d(RILJ_LOG_TAG, "##########RIL_UNSOL_FACTORY_AT_TEST################");
if (RILJ_LOGD) unsljLogvRet(response, IccUtils.bytesToHexString((byte[])ret));
ByteBuffer factoryAtResponse = ByteBuffer.wrap((byte[])ret);
factoryAtResponse.order(ByteOrder.nativeOrder());
processFactoryAtResponse(factoryAtResponse);
break;
//end
case RIL_UNSOL_RINGBACK_TONE:
if (RILJ_LOGD) unsljLogvRet(response, ret);
if (mRingbackToneRegistrants != null) {
boolean playtone = (((int[])ret)[0] == 1);
mRingbackToneRegistrants.notifyRegistrants(
new AsyncResult (null, playtone, null));
}
break;
case RIL_UNSOL_RESEND_INCALL_MUTE:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mResendIncallMuteRegistrants != null) {
mResendIncallMuteRegistrants.notifyRegistrants(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_VOICE_RADIO_TECH_CHANGED:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mVoiceRadioTechChangedRegistrants != null) {
mVoiceRadioTechChangedRegistrants.notifyRegistrants(
new AsyncResult(null, ret, null));
}
break;
case RIL_UNSOL_CDMA_SUBSCRIPTION_SOURCE_CHANGED:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mCdmaSubscriptionChangedRegistrants != null) {
mCdmaSubscriptionChangedRegistrants.notifyRegistrants(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_ON_SS:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mSsRegistrant != null) {
mSsRegistrant.notifyRegistrant(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_STK_CC_ALPHA_NOTIFY:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mCatCcAlphaRegistrant != null) {
mCatCcAlphaRegistrant.notifyRegistrant(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOl_CDMA_PRL_CHANGED:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mCdmaPrlChangedRegistrants != null) {
mCdmaPrlChangedRegistrants.notifyRegistrants(
new AsyncResult (null, ret, null));
}
break;
case RIL_UNSOL_EXIT_EMERGENCY_CALLBACK_MODE:
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mExitEmergencyCallbackModeRegistrants != null) {
mExitEmergencyCallbackModeRegistrants.notifyRegistrants(
new AsyncResult (null, null, null));
}
break;
case RIL_UNSOL_RIL_CONNECTED: {
if (RILJ_LOGD) unsljLogRet(response, ret);
// Initial conditions
setRadioPower(false, null);
setPreferredNetworkType(mPreferredNetworkType, null);
setCdmaSubscriptionSource(mCdmaSubscription, null);
setCellInfoListRate(Integer.MAX_VALUE, null);
notifyRegistrantsRilConnectionChanged(((int[])ret)[0]);
break;
}
case RIL_UNSOL_CELL_INFO_LIST: {
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mRilCellInfoListRegistrants != null) {
mRilCellInfoListRegistrants.notifyRegistrants(
new AsyncResult (null, ret, null));
}
break;
}
case RIL_UNSOL_UICC_SUBSCRIPTION_STATUS_CHANGED: {
if (RILJ_LOGD) unsljLogRet(response, ret);
if (mSubscriptionStatusRegistrants != null) {
mSubscriptionStatusRegistrants.notifyRegistrants(
new AsyncResult (null, ret, null));
}
break;
}
}
}
上述代码《TAG1-2》中，调用Registrant.java类中的mSMSRegistrant的notifyRegistrant()方法设置消息类型（what属性为EVENT_NEW_SMS），internalNotifyRegistrant（）-->h.sendMessage(msg)，并转到SMSDispatcher进行处理。代码如下：
internalNotifyRegistrant (Object result, Throwable exception){
Handler h = getHandler();
if (h == null) {
clear();
} else {
Message msg = Message.obtain();
msg.what = what;
msg.obj = new AsyncResult(userObj, result, exception);
h.sendMessage(msg);
}
}
调用SMSDispatcher类中的<！ GSM><EVENT_NEW_SMS>handlerMessage() -->得到AsyncResult的对象ar
public void handleMessage(Message msg) {
AsyncResult ar;
switch (msg.what) {
case EVENT_NEW_SMS:
// A new SMS has been received by the device
if (DBG) Rlog.d(TAG, "New SMS Message Received");
SmsMessage sms;
ar = (AsyncResult) msg.obj;
if (ar.exception != null) {
Rlog.e(TAG, "Exception processing incoming SMS. Exception:" + ar.exception);
return;
}
sms = (SmsMessage) ar.result;
try {
int result = dispatchMessage(sms.mWrappedSmsMessage);
if (result != Activity.RESULT_OK) {
// RESULT_OK means that message was broadcast for app(s) to handle.
// Any other result, we should ack here.
boolean handled = (result == Intents.RESULT_SMS_HANDLED);
notifyAndAcknowledgeLastIncomingSms(handled, result, null);
}
} catch (RuntimeException ex) {
Rlog.e(TAG, "Exception dispatching message", ex);
notifyAndAcknowledgeLastIncomingSms(false, Intents.RESULT_SMS_GENERIC_ERROR, null);
}
break;
调用GSMSmsDispatcher.java类中的dispatchMessage() 方法再调用SMSDispatcher.javadispatchNormalMessage（）方法，， 首先获取<SmsHeader smsHeader = sms.getUserDataHeader();>。如果 if ((smsHeader == null) || (smsHeader.concatRef == null))成立，而且 if (smsHeader != null && smsHeader.portAddrs != null) 成立，则调用<WapPushOverSms.java> dispatchWapPdu（），再调用<SMSDispatcher.java> mSmsDispatcher.dispatch(intent, permission, appOp)<其中permission为android.permission.RECEIVE_MMS> ------>sendOrderedBroadcast();这里的Action为Intents.WAP_PUSH_RECEIVED_ACTION。接下来进入彩信的接收，由PushReceiver开始。
public int dispatchWapPdu(byte[] pdu, String address) {
if (DBG) Rlog.d(LOG_TAG, "Rx: " + IccUtils.bytesToHexString(pdu));
int index = 0;
int transactionId = pdu[index++] & 0xFF;
int pduType = pdu[index++] & 0xFF;
int headerLength = 0;
if ((pduType != WspTypeDecoder.PDU_TYPE_PUSH) &&
(pduType != WspTypeDecoder.PDU_TYPE_CONFIRMED_PUSH)) {
if (DBG) Rlog.w(LOG_TAG, "Received non-PUSH WAP PDU. Type = " + pduType);
return Intents.RESULT_SMS_HANDLED;
}
pduDecoder = new WspTypeDecoder(pdu);
/**
* Parse HeaderLen(unsigned integer).
* From wap-230-wsp-20010705-a section 8.1.2
* The maximum size of a uintvar is 32 bits.
* So it will be encoded in no more than 5 octets.
*/
if (pduDecoder.decodeUintvarInteger(index) == false) {
if (DBG) Rlog.w(LOG_TAG, "Received PDU. Header Length error.");
return Intents.RESULT_SMS_GENERIC_ERROR;
}
headerLength = (int)pduDecoder.getValue32();
index += pduDecoder.getDecodedDataLength();
int headerStartIndex = index;
/**
* Parse Content-Type.
* From wap-230-wsp-20010705-a section 8.4.2.24
*
* Content-type-value = Constrained-media | Content-general-form
* Content-general-form = Value-length Media-type
* Media-type = (Well-known-media | Extension-Media) *(Parameter)
* Value-length = Short-length | (Length-quote Length)
* Short-length = <Any octet 0-30> (octet <= WAP_PDU_SHORT_LENGTH_MAX)
* Length-quote = <Octet 31> (WAP_PDU_LENGTH_QUOTE)
* Length = Uintvar-integer
*/
if (pduDecoder.decodeContentType(index) == false) {
if (DBG) Rlog.w(LOG_TAG, "Received PDU. Header Content-Type error.");
return Intents.RESULT_SMS_GENERIC_ERROR;
}
String mimeType = pduDecoder.getValueString();
long binaryContentType = pduDecoder.getValue32();
index += pduDecoder.getDecodedDataLength();
byte[] header = new byte[headerLength];
System.arraycopy(pdu, headerStartIndex, header, 0, header.length);
byte[] intentData;
if (mimeType != null && mimeType.equals(WspTypeDecoder.CONTENT_TYPE_B_PUSH_CO)) {
intentData = pdu;
} else {
int dataIndex = headerStartIndex + headerLength;
intentData = new byte[pdu.length - dataIndex];
System.arraycopy(pdu, dataIndex, intentData, 0, intentData.length);
}
/**
* Seek for application ID field in WSP header.
* If application ID is found, WapPushManager substitute the message
* processing. Since WapPushManager is optional module, if WapPushManager
* is not found, legacy message processing will be continued.
*/
if (pduDecoder.seekXWapApplicationId(index, index + headerLength - 1)) {
index = (int) pduDecoder.getValue32();
pduDecoder.decodeXWapApplicationId(index);
String wapAppId = pduDecoder.getValueString();
if (wapAppId == null) {
wapAppId = Integer.toString((int) pduDecoder.getValue32());
}
String contentType = ((mimeType == null) ?
Long.toString(binaryContentType) : mimeType);
if (DBG) Rlog.v(LOG_TAG, "appid found: " + wapAppId + ":" + contentType);
try {
boolean processFurther = true;
IWapPushManager wapPushMan = mWapConn.getWapPushManager();
if (wapPushMan == null) {
if (DBG) Rlog.w(LOG_TAG, "wap push manager not found!");
} else {
Intent intent = new Intent();
intent.putExtra("transactionId", transactionId);
intent.putExtra("pduType", pduType);
intent.putExtra("header", header);
intent.putExtra("data", intentData);
intent.putExtra("contentTypeParameters",
pduDecoder.getContentParameters());
intent.putExtra(MSimConstants.SUBSCRIPTION_KEY,
mSmsDispatcher.mPhone.getSubscription());
if (!TextUtils.isEmpty(address)){
intent.putExtra("address", address);
}
int procRet = wapPushMan.processMessage(wapAppId, contentType, intent);
if (DBG) Rlog.v(LOG_TAG, "procRet:" + procRet);
if ((procRet & WapPushManagerParams.MESSAGE_HANDLED) > 0
&& (procRet & WapPushManagerParams.FURTHER_PROCESSING) == 0) {
processFurther = false;
}
}
if (!processFurther) {
return Intents.RESULT_SMS_HANDLED;
}
} catch (RemoteException e) {
if (DBG) Rlog.w(LOG_TAG, "remote func failed...");
}
}
if (DBG) Rlog.v(LOG_TAG, "fall back to existing handler");
if (mimeType == null) {
if (DBG) Rlog.w(LOG_TAG, "Header Content-Type error.");
return Intents.RESULT_SMS_GENERIC_ERROR;
}
String permission;
int appOp;
if (mimeType.equals(WspTypeDecoder.CONTENT_TYPE_B_MMS)) {
permission = android.Manifest.permission.RECEIVE_MMS;
appOp = AppOpsManager.OP_RECEIVE_MMS;
} else {
permission = android.Manifest.permission.RECEIVE_WAP_PUSH;
appOp = AppOpsManager.OP_RECEIVE_WAP_PUSH;
}
Intent intent = new Intent(Intents.WAP_PUSH_RECEIVED_ACTION);
intent.setType(mimeType);
intent.putExtra("transactionId", transactionId);
intent.putExtra("pduType", pduType);
intent.putExtra("header", header);
intent.putExtra("data", intentData);
intent.putExtra("contentTypeParameters", pduDecoder.getContentParameters());
intent.putExtra(MSimConstants.SUBSCRIPTION_KEY, mSmsDispatcher.mPhone.getSubscription());
if (!TextUtils.isEmpty(address)){
intent.putExtra("address", address);
}
mSmsDispatcher.dispatch(intent, permission, appOp);
return Activity.RESULT_OK;
}
public void dispatch(Intent intent, String permission, int appOp) {
// Hold a wake lock for WAKE_LOCK_TIMEOUT seconds, enough to give any
// receivers time to take their own wake locks.
mWakeLock.acquire(WAKE_LOCK_TIMEOUT);
mContext.sendOrderedBroadcast(intent, permission, appOp, mResultReceiver,
this, Activity.RESULT_OK, null, null);
}
