本文参考Android应用程序绑定服务（bindService）的过程源代码分析http://blog.csdn.net/luoshengyang/article/details/6745181和《Android系统源代码情景分析》，作者罗升阳
一、Android Service组件在进程内绑定(bindService)过程

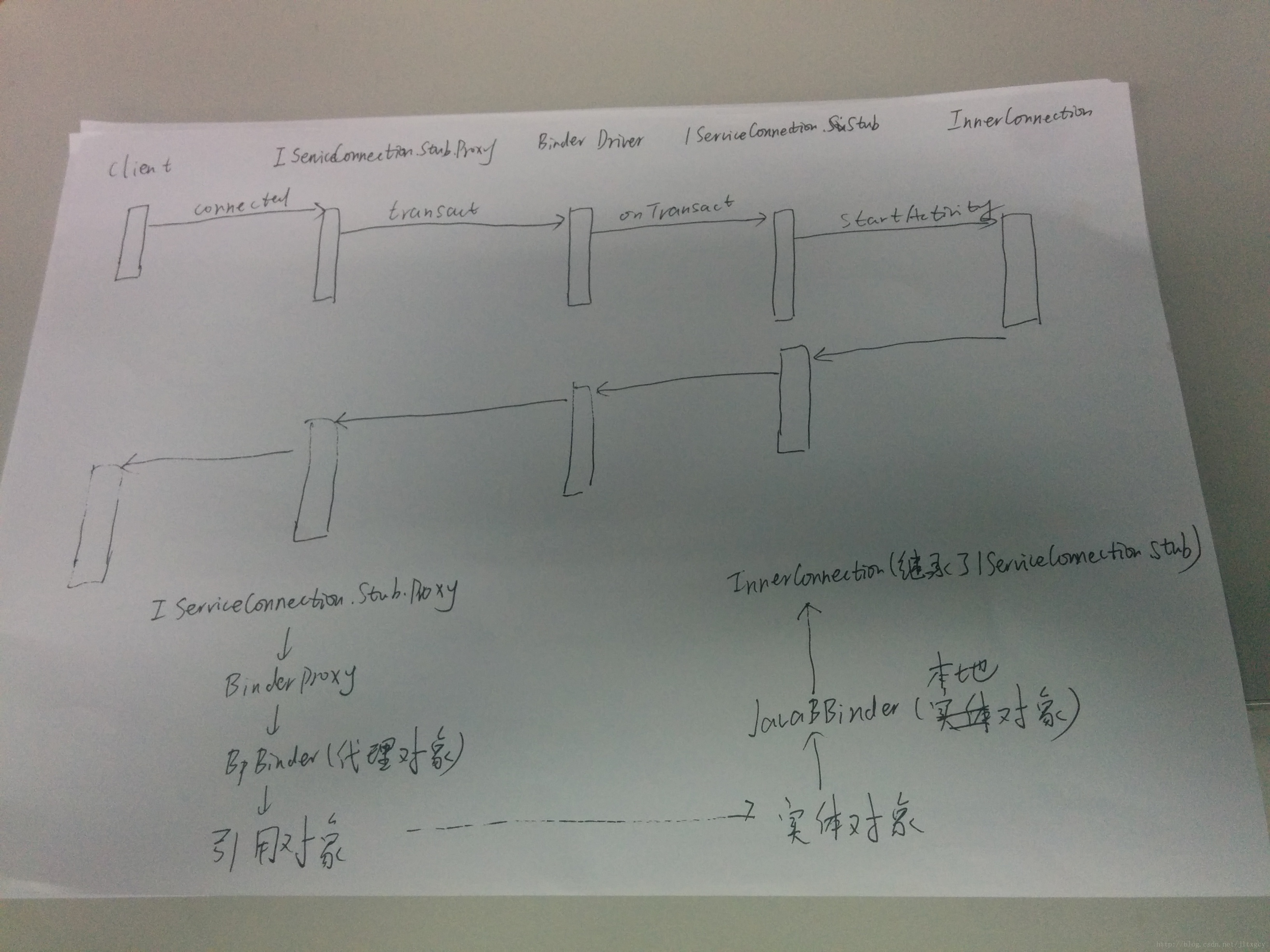

0、总图流程图如下：
1、Counter和CounterService所在应用程序主线程向ActivityManagerService进程发送BIND_SERVICE_TARNSATION
如下图：
如图：第一步
~/Android/frameworks/base/core/java/android/app
----ActivityManagerNative.java
class ActivityManagerProxy implements IActivityManager{ ...... public int bindService(IApplicationThread caller, IBinder token, Intent service, String resolvedType, IServiceConnection connection, int flags) throws RemoteException { Parcel data = Parcel.obtain(); Parcel reply = Parcel.obtain(); data.writeInterfaceToken(IActivityManager.descriptor); data.writeStrongBinder(caller != null ? caller.asBinder() : null); data.writeStrongBinder(token); service.writeToParcel(data, 0); data.writeString(resolvedType); data.writeStrongBinder(connection.asBinder()); data.writeInt(flags); mRemote.transact(BIND_SERVICE_TRANSACTION, data, reply, 0); reply.readException(); int res = reply.readInt(); data.recycle(); reply.recycle(); return res; } ......}其中connection.asBinder()为InnerConnection对象。还有intent，主要关注这两个参数。
如图：第二步，省略binder_transaction传输过程，因为上面已经分析过了。
如图：第二步，省略binder_transaction传输过程，因为上面已经分析过了。
如图：第三步
~/Android/frameworks/base/core/java/android/app
----ActivityManagerNative.java

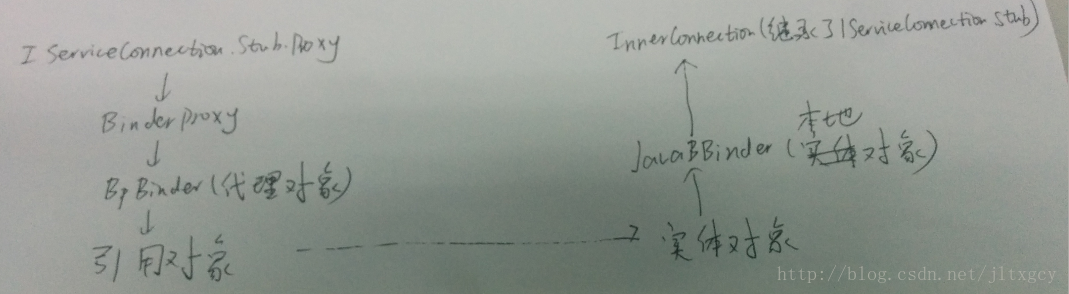

public abstract class ActivityManagerNative extends Binder implements IActivityManager{ ...... public boolean onTransact(int code, Parcel data, Parcel reply, int flags) throws RemoteException { switch (code) { case BIND_SERVICE_TRANSACTION: { data.enforceInterface(IActivityManager.descriptor); IBinder b = data.readStrongBinder(); IApplicationThread app = ApplicationThreadNative.asInterface(b); IBinder token = data.readStrongBinder(); Intent service = Intent.CREATOR.createFromParcel(data); String resolvedType = data.readString(); b = data.readStrongBinder(); int fl = data.readInt(); IServiceConnection conn = IServiceConnection.Stub.asInterface(b); int res = bindService(app, token, service, resolvedType, conn, fl); reply.writeNoException(); reply.writeInt(res); return true; } .......} 其中conn为上图中IServiceConnection.Stub.Proxy对象，引用了InnerConnection对象。还有intent，主要关注这两个参数。如图：第四步
～/Android/frameworks/base/services/java/com/android/server/am
----ActivityManagerService.java
public final class ActivityManagerService extends ActivityManagerNative implements Watchdog.Monitor, BatteryStatsImpl.BatteryCallback { ...... public int bindService(IApplicationThread caller, IBinder token, Intent service, String resolvedType, IServiceConnection connection, int flags) { ...... synchronized(this) { ...... final ProcessRecord callerApp = getRecordForAppLocked(caller); ...... ActivityRecord activity = null; if (token != null) { int aindex = mMainStack.indexOfTokenLocked(token); ...... activity = (ActivityRecord)mMainStack.mHistory.get(aindex); } ...... ServiceLookupResult res = retrieveServiceLocked(service, resolvedType, Binder.getCallingPid(), Binder.getCallingUid()); ...... ServiceRecord s = res.record; final long origId = Binder.clearCallingIdentity(); ...... AppBindRecord b = s.retrieveAppBindingLocked(service, callerApp); ConnectionRecord c = new ConnectionRecord(b, activity, connection, flags, clientLabel, clientIntent); IBinder binder = connection.asBinder(); ArrayList<ConnectionRecord> clist = s.connections.get(binder); if (clist == null) { clist = new ArrayList<ConnectionRecord>(); s.connections.put(binder, clist); } clist.add(c); ....... if ((flags&Context.BIND_AUTO_CREATE) != 0) { ...... if (!bringUpServiceLocked(s, service.getFlags(), false)) { return 0; } } ...... } return 1; } ......}主要做了以下几件事：
（1）创建ServiceRecord对象，并初始化它bindings变量，这个变量主要用来描述传递过来的intent。
（2）初始化它connections变量，这个变量主要用来描述传递过来的IServiceConnection.Stub.Proxy对象。
（3）ActivityManagerService进程向Counter和CounterService子线程发送SCHEDULE_CREATE_SERVICE_TRANSACTION。
2、ActivityManagerService进程向Counter和CounterService子线程发送SCHEDULE_CREATE_SERVICE_TRANSACTION
如总图中的第2步，过程可参考Android Activity组件的启动过程http://blog.csdn.net/jltxgcy/article/details/35984557中的第2步。
3、在Counter和CounterService主线程创建CounterService，并调用了它的onCreate方法
需要说明的一点是：
mServices.put(data.token, service);把刚创建的CounterService加入到mServices中了。
4、返回到ActivityManagerService进程
5、ActivityManagerService进程向Counter和CounterService子线程发送SCHEDULE_BIND_SERVICE_TRANSACTION
如图：第一步
~/Android/frameworks/base/core/java/android/app
----ApplicationThreadNative.java，ApplicationThreadProxy类
class ApplicationThreadProxy implements IApplicationThread { ...... public final void scheduleBindService(IBinder token, Intent intent, boolean rebind) throws RemoteException { Parcel data = Parcel.obtain(); data.writeInterfaceToken(IApplicationThread.descriptor); data.writeStrongBinder(token); intent.writeToParcel(data, 0); data.writeInt(rebind ? 1 : 0); mRemote.transact(SCHEDULE_BIND_SERVICE_TRANSACTION, data, null, IBinder.FLAG_ONEWAY); data.recycle(); } ......}其中token为ServiceRecord对象，如下图，还有intent，主要关注这两个参数。
如图：第二步，省略binder_transaction传输过程，因为上面已经分析过了。
如图：第三步
~/Android/frameworks/base/core/java/android/app
----ApplicationThreadNative.java
public abstract class ApplicationThreadNative extends Binder implements IApplicationThread { ........ public boolean onTransact(int code, Parcel data, Parcel reply, int flags) throws RemoteException { switch (code) { case SCHEDULE_BIND_SERVICE_TRANSACTION: { data.enforceInterface(IApplicationThread.descriptor); IBinder token = data.readStrongBinder(); Intent intent = Intent.CREATOR.createFromParcel(data); boolean rebind = data.readInt() != 0; scheduleBindService(token, intent, rebind); return true; } .......} 其中token为上图中的BinderProxy对象，引用了ServiceRecord。还有intent，主要关注这两个参数。如图：第四步
~/Android/frameworks/base/core/java/android/app
----ActivityThread.java
public final class ActivityThread { ...... public final void scheduleBindService(IBinder token, Intent intent, boolean rebind) { BindServiceData s = new BindServiceData(); s.token = token; s.intent = intent; s.rebind = rebind; queueOrSendMessage(H.BIND_SERVICE, s); } ......}6、在Counter和CounterService主线程绑定CounterService，并调用了它的onBind方法
主要做了以下几件事：

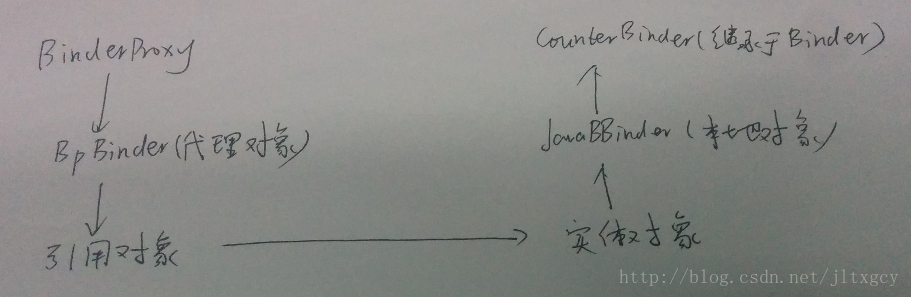

（1）获取了刚刚创建的service，并且调用onBind获取了CounterBinder对象，如下图：
图2
（2）Counter和CounterService主线程向ServiceManager进程发送PUBLISH_SERVICE_TRANSACTION
代码如下：
~/Android/frameworks/base/core/java/android/app
----ActivityThread.java
public final class ActivityThread { ...... private final void handleBindService(BindServiceData data) { Service s = mServices.get(data.token); if (s != null) { try { data.intent.setExtrasClassLoader(s.getClassLoader()); try { if (!data.rebind) { IBinder binder = s.onBind(data.intent); ActivityManagerNative.getDefault().publishService( data.token, data.intent, binder); } else { ...... } ...... } catch (RemoteException ex) { } } catch (Exception e) { ...... } } } ......}public class CounterService extends Service implements ICounterService { ...... private final IBinder binder = new CounterBinder(); public class CounterBinder extends Binder { public CounterService getService() { return CounterService.this; } } @Override public IBinder onBind(Intent intent) { return binder; } ......}7、Counter和CounterService主线程向ServiceManager进程发送PUBLISH_SERVICE_TRANSACTION
如图：第一步
~/Android/frameworks/base/core/java/android/app
----ActivityManagerNative.java
class ActivityManagerProxy implements IActivityManager{ ...... public void publishService(IBinder token, Intent intent, IBinder service) throws RemoteException { Parcel data = Parcel.obtain(); Parcel reply = Parcel.obtain(); data.writeInterfaceToken(IActivityManager.descriptor); data.writeStrongBinder(token); intent.writeToParcel(data, 0); data.writeStrongBinder(service); mRemote.transact(PUBLISH_SERVICE_TRANSACTION, data, reply, 0); reply.readException(); data.recycle(); reply.recycle(); } ......}其中service为刚刚创建的CounterBinder对象，如图2。其中token为其中token为上图中的BinderProxy对象，引用了ServiceRecord对象。如图1。
如图：第二步，省略binder_transaction传输过程，因为上面已经分析过了。
如图：第三步
~/Android/frameworks/base/core/java/android/app
----ActivityManagerNative.java
public abstract class ActivityManagerNative extends Binder implements IActivityManager{ ...... public boolean onTransact(int code, Parcel data, Parcel reply, int flags) throws RemoteException { switch (code) { case PUBLISH_SERVICE_TRANSACTION: { data.enforceInterface(IActivityManager.descriptor); IBinder token = data.readStrongBinder(); Intent intent = Intent.CREATOR.createFromParcel(data); IBinder service = data.readStrongBinder(); publishService(token, intent, service); reply.writeNoException(); return true; } .......} 其中service为BinderProxy对象，引用了CounterBinder对象，如图2。token为ServiceRecord对象，如图1。如图：第四步
～/Android/frameworks/base/services/java/com/android/server/am
----ActivityManagerService.java
public final class ActivityManagerService extends ActivityManagerNative implements Watchdog.Monitor, BatteryStatsImpl.BatteryCallback { ...... public void publishService(IBinder token, Intent intent, IBinder service) { ...... synchronized(this) { ...... ServiceRecord r = (ServiceRecord)token; ...... ...... if (r != null) { Intent.FilterComparison filter = new Intent.FilterComparison(intent); IntentBindRecord b = r.bindings.get(filter); if (b != null && !b.received) { b.binder = service; b.requested = true; b.received = true; if (r.connections.size() > 0) { Iterator<ArrayList<ConnectionRecord>> it = r.connections.values().iterator(); while (it.hasNext()) { ArrayList<ConnectionRecord> clist = it.next(); for (int i=0; i<clist.size(); i++) { ConnectionRecord c = clist.get(i); ...... try { c.conn.connected(r.name, service); } catch (Exception e) { ...... } } } } } ...... } } } ......}主要是获取ServiceRecord里面的ConnectionRecord对象，它的成员变量conn为IServiceConnection.Stub.Proxy对象，引用了InnerConnection对象。调用connected函数。
8、ActivityManagerService进程向Counter和CounterService主线程发送connected命令
经过一系列的传递，最终执行：
～/Android/frameworks/base/core/java/android/app
----LoadedApk.java
final class LoadedApk { ...... static final class ServiceDispatcher { ...... private static class InnerConnection extends IServiceConnection.Stub { ...... public void connected(ComponentName name, IBinder service) throws RemoteException { LoadedApk.ServiceDispatcher sd = mDispatcher.get(); if (sd != null) { sd.connected(name, service); } } ...... } ...... } ......}由于执行了进程间通信，此时service为CounterBinder对象，如图2。所以可以向下转型。
public class MainActivity extends Activity implements OnClickListener { ...... private ServiceConnection serviceConnection = new ServiceConnection() { public void onServiceConnected(ComponentName className, IBinder service) { counterService = ((CounterService.CounterBinder)service).getService(); Log.i(LOG_TAG, "Counter Service Connected"); } ...... }; ......}
