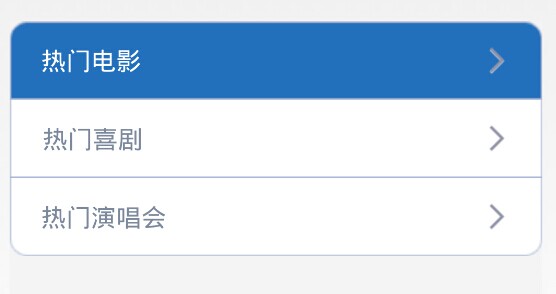

效果图:
这样来写:
@Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.test); ListView list = (ListView)findViewById(R.id.lvLinks); SquareItemAdapter adapter = new SquareItemAdapter(this); list.setDivider(null); list.setAdapter(adapter); } private class SquareItemAdapter extends BaseAdapter { Context context; TextView tvName; public int getCount() { // TODO Auto-generated method stub return 3; } public Object getItem(int position) { // TODO Auto-generated method stub return position; } public long getItemId(int position) { // TODO Auto-generated method stub return position; } public View getView(int position, View convertView, ViewGroup parent) { // TODO Auto-generated method stub final LayoutInflater inflater = (LayoutInflater) context .getSystemService(Context.LAYOUT_INFLATER_SERVICE); final View v = inflater.inflate(R.layout.square_item_view, null); tvName = (TextView) v.findViewById(R.id.tvItemName); if (position == 0) { tvName.setText(getString(R.string.link_lookaround)); v.setBackgroundResource(R.drawable.circle_list_top); } else if (position == 1) { tvName.setText(getString(R.string.link_recommend)); v.setBackgroundResource(R.drawable.circle_list_middle); } else { tvName.setText(getString(R.string.link_hot)); v.setBackgroundResource(R.drawable.circle_list_bottom); } return v; } public SquareItemAdapter(Context ct) { context = ct; } }<?xml version="1.0" encoding="utf-8"?><RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="fill_parent" android:layout_height="10dp"> <TextView android:id="@+id/tvItemName" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignParentLeft="true" android:layout_centerVertical="true" android:layout_marginLeft="18dp" style="@style/userinfo_panel_textview_title"/> <ImageView android:layout_width="wrap_content" android:layout_height="wrap_content" android:src="@drawable/triangle" android:layout_alignParentRight="true" android:layout_marginRight="18dp" android:layout_centerVertical="true"/> </RelativeLayout>
<style name="userinfo_panel_textview_title"> <item name="android:textSize">16sp</item> <item name="android:textColor">@color/user_info_name_text</item> <item name="android:duplicateParentState">true</item> </style>

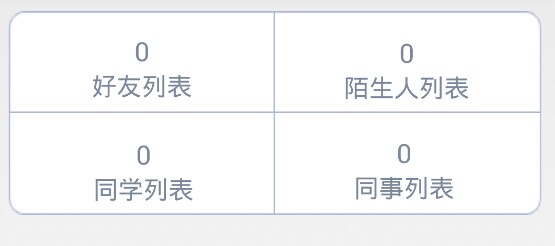

如果做一下效果的图:
可以这样来写Layout:
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="fill_parent" android:layout_height="fill_parent" > <RelativeLayout android:layout_width="fill_parent" android:layout_height="130dp" android:layout_marginLeft="10dp" android:layout_marginRight="10dp" android:layout_marginTop="14dp" > <View android:id="@+id/vVDivider1" android:layout_width="0dp" android:layout_height="fill_parent" android:layout_centerHorizontal="true" /> <View android:id="@+id/vHDivider2" android:layout_width="fill_parent" android:layout_height="0dp" android:layout_centerVertical="true" /> <RelativeLayout android:id="@+id/llAttention" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_above="@id/vHDivider2" android:layout_alignParentLeft="true" android:layout_alignParentTop="true" android:layout_toLeftOf="@id/vVDivider1" android:background="@drawable/bg_panel_above_left" android:clickable="true" > <TextView android:id="@+id/tvAttention_count" style="@style/userinfo_panel_textview_count" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_centerHorizontal="true" android:layout_marginTop="10dp" android:gravity="center" android:text="0" /> <TextView android:id="@+id/tvAttention" style="@style/userinfo_panel_textview_title" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_below="@id/tvAttention_count" android:layout_centerHorizontal="true" android:gravity="center" android:text="好友列表" /> </RelativeLayout> <LinearLayout android:id="@+id/rlWeibo" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_above="@id/vHDivider2" android:layout_alignParentRight="true" android:layout_alignParentTop="true" android:layout_toRightOf="@id/vVDivider1" android:background="@drawable/bg_panel_above_right" android:clickable="true" android:orientation="vertical" > <TextView android:id="@+id/tvWeibo_count" style="@style/userinfo_panel_textview_count" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_gravity="center_horizontal" android:layout_marginTop="10dp" android:gravity="center" android:text="0" /> <TextView android:id="@+id/tvTopic" style="@style/userinfo_panel_textview_title" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_gravity="center_horizontal" android:gravity="center" android:text="陌生人列表" /> </LinearLayout> <LinearLayout android:id="@+id/llFans" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignParentBottom="true" android:layout_alignParentLeft="true" android:layout_below="@id/vHDivider2" android:layout_toLeftOf="@id/vVDivider1" android:background="@drawable/bg_panel_below_left" android:clickable="true" android:orientation="vertical" > <TextView android:id="@+id/tvFans_count" style="@style/userinfo_panel_textview_count" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_gravity="center_horizontal" android:layout_marginTop="10dp" android:gravity="center" android:text="0" /> <TextView android:id="@+id/tvFans" style="@style/userinfo_panel_textview_title" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_gravity="center_horizontal" android:gravity="center" android:text="同学列表" /> </LinearLayout> <LinearLayout android:id="@+id/llTopic" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignParentBottom="true" android:layout_alignParentRight="true" android:layout_below="@id/vHDivider2" android:layout_toRightOf="@id/vVDivider1" android:background="@drawable/bg_panel_below_right" android:clickable="true" android:orientation="vertical" > <TextView android:id="@+id/tvTopic_count" style="@style/userinfo_panel_textview_count" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_gravity="center_horizontal" android:layout_marginTop="10dp" android:gravity="center" android:text="0" /> <TextView android:id="@+id/tvTopic" style="@style/userinfo_panel_textview_title" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_gravity="center_horizontal" android:gravity="center" android:text="同事列表" /> </LinearLayout> </RelativeLayout></LinearLayout>
代码:http://download.csdn.net/detail/baidu_nod/7705011
