Android 蓝牙4.0 BLE 了解

热度：719   发布时间：2016-04-28 02:28:23.0
Android 蓝牙4.0 BLE 理解

本文简单结合两篇文章

http://blog.csdn.net/hellogv/article/details/24267685

http://blog.csdn.net/jimoduwu/article/details/21604215

在BLE协议中，有两个角色，周边（Periphery）和中央（Central），一个中央可以同时连接多个周边，但是一个周边某一时刻只能连接一个中央。但是不管是Periphery还是Central都是可以实现 GATT server 和 GATT client去传输数据，但是无法同时都是。

大概了解了概念后，看看Android BLE SDK的四个关键类（class）：

a) BluetoothGattServer作为周边来提供数据；BluetoothGattServerCallback返回周边的状态。

b) BluetoothGatt作为中央来使用和处理数据；BluetoothGattCallback返回中央的状态和周边提供的数据。

因为我们讨论的是Android的BLE SDK，下面所有的BluetoothGattServer代表周边，BluetoothGatt代表中央。



一.创建一个周边（虽然目前周边API在Android手机上不工作，但还是看看）

 a）先看看周边用到的class，蓝色椭圆


b）说明：

每一个周边BluetoothGattServer，包含多个服务Service，每一个Service包含多个特征Characteristic。

1.new一个特征：character = new BluetoothGattCharacteristic(
UUID.fromString(characteristicUUID),
BluetoothGattCharacteristic.PROPERTY_NOTIFY,
BluetoothGattCharacteristic.PERMISSION_READ);

2.new一个服务：service = new BluetoothGattService(UUID.fromString(serviceUUID),
BluetoothGattService.SERVICE_TYPE_PRIMARY);

3.把特征添加到服务：service.addCharacteristic(character);

4.获取BluetoothManager：manager = (BluetoothManager) getSystemService(Context.BLUETOOTH_SERVICE);

5.获取/打开周边：BluetoothGattServer server = manager.openGattServer(this,
new BluetoothGattServerCallback(){...});

6.把service添加到周边：server.addService(service);

7.开始广播service：Google还没有广播Service的API，等吧！！！！！所以目前我们还不能让一个Android手机作为周边来提供数据。


二.创建一个中央（这次不会让你失望，可以成功创建并且连接到周边的）

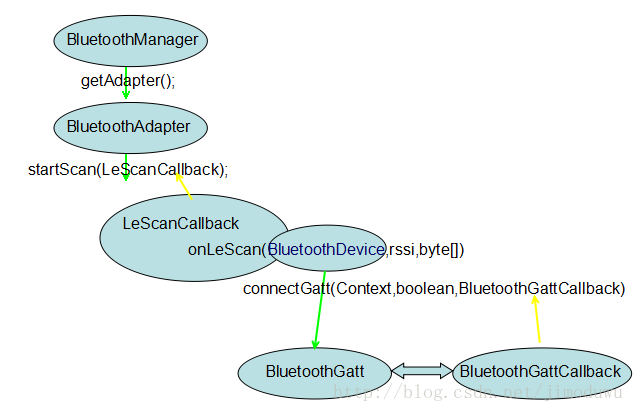

a）先看看中央用到的class，蓝色椭圆



b）说明：

为了拿到中央BluetoothGatt，可要爬山涉水十八弯：

1.先拿到BluetoothManager：bluetoothManager = (BluetoothManager) getSystemService(Context.BLUETOOTH_SERVICE);

2.再拿到BluetoothAdapt：btAdapter = bluetoothManager.getAdapter();

3.开始扫描：btAdapter.startLeScan( BluetoothAdapter.LeScanCallback);

4.从LeScanCallback中得到BluetoothDevice：public void onLeScan(BluetoothDevice device, int rssi, byte[] scanRecord) {.....}

5.用BluetoothDevice得到BluetoothGatt：gatt = device.connectGatt(this, true, gattCallback);

终于拿到中央BluetoothGatt了，它有一堆方法（查API吧），调用这些方法，你就可以通过BluetoothGattCallback和周边BluetoothGattServer交互了。

官方有给出BLE 通信的sample ，下面是牛人简化了代码，简化得简单明了

本文来自http://blog.csdn.net/hellogv/ ，引用必须注明出处！

最近穿戴设备发展得很火，把相关技术也带旺了，其中一项是BLE（Bluetooth Low Energy）。BLE是蓝牙4.0的核心Profile，主打功能是快速搜索，快速连接，超低功耗保持连接和传输数据，弱点是数据传输速率低，由于BLE的低功耗特点，因此普遍用于穿戴设备。Android 4.3才开始支持BLE API，所以请各位客官把本文代码运行在蓝牙4.0和Android 4.3及其以上的系统，另外本文所用的BLE终端是一个蓝牙4.0的串口蓝牙模块。

PS：我的i9100刷了4.4系统后，竟然也能跟BLE蓝牙模块通信。


BLE分为三部分Service、Characteristic、Descriptor，这三部分都由UUID作为唯一标示符。一个蓝牙4.0的终端可以包含多个Service，一个Service可以包含多个Characteristic，一个Characteristic包含一个Value和多个Descriptor，一个Descriptor包含一个Value。一般来说，Characteristic是手机与BLE终端交换数据的关键，Characteristic有较多的跟权限相关的字段，例如PERMISSION和PROPERTY，而其中最常用的是PROPERTY，本文所用的BLE蓝牙模块竟然没有标准的Characteristic的PERMISSION。Characteristic的PROPERTY可以通过位运算符组合来设置读写属性，例如READ|WRITE、READ|WRITE_NO_RESPONSE|NOTIFY，因此读取PROPERTY后要分解成所用的组合（本文代码已含此分解方法）。


本文代码改自Android 4.3 Sample的BluetoothLeGatt，把冗余代码去掉，获取的BLE设备信息都通过Log，还有一些必要的读写蓝牙方法，应该算是简化到大家一看就可以懂了。本文代码可以到http://download.csdn.net/detail/hellogv/7228819下载。接下来贴出本文运行的结果，首先是连接BLE设备后，枚举出设备所有Service、Characteristic、Descriptor，并且手机会往Characteristic uuid=0000ffe1-0000-1000-8000-00805f9b34fb写入“send data->”字符串，BLE终端收到数据通过串口传到PC串口助手（见PC串口助手的截图）：

04-21 18:28:25.465: E/DeviceScanActivity(12254): -->service type:PRIMARY
04-21 18:28:25.465: E/DeviceScanActivity(12254): -->includedServices size:0
04-21 18:28:25.465: E/DeviceScanActivity(12254): -->service uuid:00001800-0000-1000-8000-00805f9b34fb
04-21 18:28:25.465: E/DeviceScanActivity(12254): ---->char uuid:00002a00-0000-1000-8000-00805f9b34fb
04-21 18:28:25.465: E/DeviceScanActivity(12254): ---->char permission:UNKNOW
04-21 18:28:25.465: E/DeviceScanActivity(12254): ---->char property:READ
04-21 18:28:25.465: E/DeviceScanActivity(12254): ---->char uuid:00002a01-0000-1000-8000-00805f9b34fb
04-21 18:28:25.470: E/DeviceScanActivity(12254): ---->char permission:UNKNOW
04-21 18:28:25.470: E/DeviceScanActivity(12254): ---->char property:READ
04-21 18:28:25.470: E/DeviceScanActivity(12254): ---->char uuid:00002a02-0000-1000-8000-00805f9b34fb
04-21 18:28:25.470: E/DeviceScanActivity(12254): ---->char permission:UNKNOW
04-21 18:28:25.470: E/DeviceScanActivity(12254): ---->char property:READ|WRITE|
04-21 18:28:25.470: E/DeviceScanActivity(12254): ---->char uuid:00002a03-0000-1000-8000-00805f9b34fb
04-21 18:28:25.470: E/DeviceScanActivity(12254): ---->char permission:UNKNOW
04-21 18:28:25.475: E/DeviceScanActivity(12254): ---->char property:READ|WRITE|
04-21 18:28:25.475: E/DeviceScanActivity(12254): ---->char uuid:00002a04-0000-1000-8000-00805f9b34fb
04-21 18:28:25.475: E/DeviceScanActivity(12254): ---->char permission:UNKNOW
04-21 18:28:25.475: E/DeviceScanActivity(12254): ---->char property:READ
04-21 18:28:25.475: E/DeviceScanActivity(12254): -->service type:PRIMARY
04-21 18:28:25.475: E/DeviceScanActivity(12254): -->includedServices size:0
04-21 18:28:25.475: E/DeviceScanActivity(12254): -->service uuid:00001801-0000-1000-8000-00805f9b34fb
04-21 18:28:25.480: E/DeviceScanActivity(12254): ---->char uuid:00002a05-0000-1000-8000-00805f9b34fb
04-21 18:28:25.480: E/DeviceScanActivity(12254): ---->char permission:UNKNOW
04-21 18:28:25.480: E/DeviceScanActivity(12254): ---->char property:INDICATE
04-21 18:28:25.480: E/DeviceScanActivity(12254): -------->desc uuid:00002902-0000-1000-8000-00805f9b34fb
04-21 18:28:25.480: E/DeviceScanActivity(12254): -------->desc permission:UNKNOW
04-21 18:28:25.480: E/DeviceScanActivity(12254): -->service type:PRIMARY
04-21 18:28:25.480: E/DeviceScanActivity(12254): -->includedServices size:0
04-21 18:28:25.480: E/DeviceScanActivity(12254): -->service uuid:0000ffe0-0000-1000-8000-00805f9b34fb
04-21 18:28:25.480: E/DeviceScanActivity(12254): ---->char uuid:0000ffe1-0000-1000-8000-00805f9b34fb
04-21 18:28:25.480: E/DeviceScanActivity(12254): ---->char permission:UNKNOW
04-21 18:28:25.480: E/DeviceScanActivity(12254): ---->char property:READ|WRITE_NO_RESPONSE|NOTIFY|
04-21 18:28:25.490: E/DeviceScanActivity(12254): -------->desc uuid:00002902-0000-1000-8000-00805f9b34fb
04-21 18:28:25.490: E/DeviceScanActivity(12254): -------->desc permission:UNKNOW
04-21 18:28:25.490: E/DeviceScanActivity(12254): -------->desc uuid:00002901-0000-1000-8000-00805f9b34fb
04-21 18:28:25.490: E/DeviceScanActivity(12254): -------->desc permission:UNKNOW
04-21 18:28:26.025: E/DeviceScanActivity(12254): onCharRead BLE DEVICE read 0000ffe1-0000-1000-8000-00805f9b34fb -> 00

这里红字是由BluetoothGattCallback的onCharacteristicRead()回调而打出Log

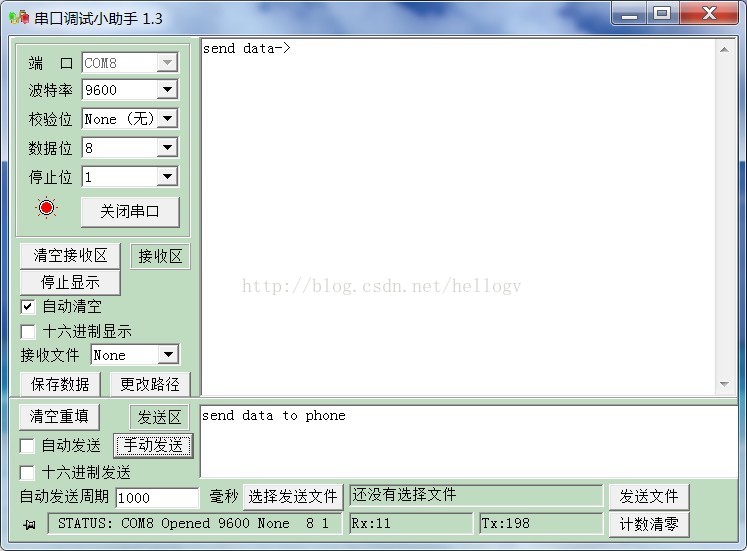

以下Log是PC上的串口工具通过BLE模块发送过来，由BluetoothGattCallback的 onCharacteristicChanged（）打出Log
04-21 18:30:18.260: E/DeviceScanActivity(12254): onCharWrite BLE DEVICE write 0000ffe1-0000-1000-8000-00805f9b34fb -> send data to phone
04-21 18:30:18.745: E/DeviceScanActivity(12254): onCharWrite BLE DEVICE write 0000ffe1-0000-1000-8000-00805f9b34fb -> send data to phone
04-21 18:30:19.085: E/DeviceScanActivity(12254): onCharWrite BLE DEVICE write 0000ffe1-0000-1000-8000-00805f9b34fb -> send data to phone
04-21 18:30:19.350: E/DeviceScanActivity(12254): onCharWrite BLE DEVICE write 0000ffe1-0000-1000-8000-00805f9b34fb -> send data to phone
04-21 18:30:19.605: E/DeviceScanActivity(12254): onCharWrite BLE DEVICE write 0000ffe1-0000-1000-8000-00805f9b34fb -> send data to phone
04-21 18:30:19.835: E/DeviceScanActivity(12254): onCharWrite BLE DEVICE write 0000ffe1-0000-1000-8000-00805f9b34fb -> send data to phone
04-21 18:30:20.055: E/DeviceScanActivity(12254): onCharWrite BLE DEVICE write 0000ffe1-0000-1000-8000-00805f9b34fb -> send data to phone
04-21 18:30:20.320: E/DeviceScanActivity(12254): onCharWrite BLE DEVICE write 0000ffe1-0000-1000-8000-00805f9b34fb -> send data to phone
04-21 18:30:20.510: E/DeviceScanActivity(12254): onCharWrite BLE DEVICE write 0000ffe1-0000-1000-8000-00805f9b34fb -> send data to phone
04-21 18:30:20.735: E/DeviceScanActivity(12254): onCharWrite BLE DEVICE write 0000ffe1-0000-1000-8000-00805f9b34fb -> send data to phone
04-21 18:30:21.000: E/DeviceScanActivity(12254): onCharWrite BLE DEVICE write 0000ffe1-0000-1000-8000-00805f9b34fb -> send data to phone

接下来贴出本文核心代码：

[java] view plaincopyprint?在CODE上查看代码片派生到我的代码片
  1. public class DeviceScanActivity extends ListActivity {
  2.     private final static String TAG = DeviceScanActivity.class.getSimpleName();
  3.     private final static String UUID_KEY_DATA = "0000ffe1-0000-1000-8000-00805f9b34fb";
  4.
  5.     private LeDeviceListAdapter mLeDeviceListAdapter;
  6.     /**搜索BLE终端*/
  7.     private BluetoothAdapter mBluetoothAdapter;
  8.     /**读写BLE终端*/
  9.     private BluetoothLeClass mBLE;
  10.     private boolean mScanning;
  11.     private Handler mHandler;
  12.
  13.     // Stops scanning after 10 seconds.
  14.     private static final long SCAN_PERIOD = 10000;
  15.
  16.     @Override
  17.     public void onCreate(Bundle savedInstanceState) {
  18.         super.onCreate(savedInstanceState);
  19.         getActionBar().setTitle(R.string.title_devices);
  20.         mHandler = new Handler();
  21.
  22.         // Use this check to determine whether BLE is supported on the device.  Then you can
  23.         // selectively disable BLE-related features.
  24.         if (!getPackageManager().hasSystemFeature(PackageManager.FEATURE_BLUETOOTH_LE)) {
  25.             Toast.makeText(this, R.string.ble_not_supported, Toast.LENGTH_SHORT).show();
  26.             finish();
  27.         }
  28.
  29.         // Initializes a Bluetooth adapter.  For API level 18 and above, get a reference to
  30.         // BluetoothAdapter through BluetoothManager.
  31.         final BluetoothManager bluetoothManager =
  32.                 (BluetoothManager) getSystemService(Context.BLUETOOTH_SERVICE);
  33.         mBluetoothAdapter = bluetoothManager.getAdapter();
  34.
  35.         // Checks if Bluetooth is supported on the device.
  36.         if (mBluetoothAdapter == null) {
  37.             Toast.makeText(this, R.string.error_bluetooth_not_supported, Toast.LENGTH_SHORT).show();
  38.             finish();
  39.             return;
  40.         }
  41.         //开启蓝牙
  42.         mBluetoothAdapter.enable();
  43.
  44.         mBLE = new BluetoothLeClass(this);
  45.         if (!mBLE.initialize()) {
  46.             Log.e(TAG, "Unable to initialize Bluetooth");
  47.             finish();
  48.         }
  49.         //发现BLE终端的Service时回调
  50.         mBLE.setOnServiceDiscoverListener(mOnServiceDiscover);
  51.         //收到BLE终端数据交互的事件
  52.         mBLE.setOnDataAvailableListener(mOnDataAvailable);
  53.     }
  54.
  55.
  56.     @Override
  57.     protected void onResume() {
  58.         super.onResume();
  59.
  60.         // Initializes list view adapter.
  61.         mLeDeviceListAdapter = new LeDeviceListAdapter(this);
  62.         setListAdapter(mLeDeviceListAdapter);
  63.         scanLeDevice(true);
  64.     }
  65.
  66.     @Override
  67.     protected void onPause() {
  68.         super.onPause();
  69.         scanLeDevice(false);
  70.         mLeDeviceListAdapter.clear();
  71.         mBLE.disconnect();
  72.     }
  73.
  74.     @Override
  75.     protected void onStop() {
  76.         super.onStop();
  77.         mBLE.close();
  78.     }
  79.
  80.     @Override
  81.     protected void onListItemClick(ListView l, View v, int position, long id) {
  82.         final BluetoothDevice device = mLeDeviceListAdapter.getDevice(position);
  83.         if (device == null) return;
  84.         if (mScanning) {
  85.             mBluetoothAdapter.stopLeScan(mLeScanCallback);
  86.             mScanning = false;
  87.         }
  88.
  89.         mBLE.connect(device.getAddress());
  90.     }
  91.
  92.     private void scanLeDevice(final boolean enable) {
  93.         if (enable) {
  94.             // Stops scanning after a pre-defined scan period.
  95.             mHandler.postDelayed(new Runnable() {
  96.                 @Override
  97.                 public void run() {
  98.                     mScanning = false;
  99.                     mBluetoothAdapter.stopLeScan(mLeScanCallback);
  100.                     invalidateOptionsMenu();
  101.                 }
  102.             }, SCAN_PERIOD);
  103.
  104.             mScanning = true;
  105.             mBluetoothAdapter.startLeScan(mLeScanCallback);
  106.         } else {
  107.             mScanning = false;
  108.             mBluetoothAdapter.stopLeScan(mLeScanCallback);
  109.         }
  110.         invalidateOptionsMenu();
  111.     }
  112.
  113.     /**
  114.      * 搜索到BLE终端服务的事件
  115.      */
  116.     private BluetoothLeClass.OnServiceDiscoverListener mOnServiceDiscover = new OnServiceDiscoverListener(){
  117.
  118.         @Override
  119.         public void onServiceDiscover(BluetoothGatt gatt) {
  120.             displayGattServices(mBLE.getSupportedGattServices());
  121.         }
  122.
  123.     };
  124.
  125.     /**
  126.      * 收到BLE终端数据交互的事件
  127.      */
  128.     private BluetoothLeClass.OnDataAvailableListener mOnDataAvailable = new OnDataAvailableListener(){
  129.
  130.         /**
  131.          * BLE终端数据被读的事件
  132.          */
  133.         @Override
  134.         public void onCharacteristicRead(BluetoothGatt gatt,
  135.                 BluetoothGattCharacteristic characteristic, int status) {
  136.             if (status == BluetoothGatt.GATT_SUCCESS)
  137.                 Log.e(TAG,"onCharRead "+gatt.getDevice().getName()
  138.                         +" read "
  139.                         +characteristic.getUuid().toString()
  140.                         +" -> "
  141.                         +Utils.bytesToHexString(characteristic.getValue()));
  142.         }
  143.
  144.         /**
  145.          * 收到BLE终端写入数据回调
  146.          */
  147.         @Override
  148.         public void onCharacteristicWrite(BluetoothGatt gatt,
  149.                 BluetoothGattCharacteristic characteristic) {
  150.             Log.e(TAG,"onCharWrite "+gatt.getDevice().getName()
  151.                     +" write "
  152.                     +characteristic.getUuid().toString()
  153.                     +" -> "
  154.                     +new String(characteristic.getValue()));
  155.         }
  156.     };
  157.
  158.     // Device scan callback.
  159.     private BluetoothAdapter.LeScanCallback mLeScanCallback =
  160.             new BluetoothAdapter.LeScanCallback() {
  161.
  162.         @Override
  163.         public void onLeScan(final BluetoothDevice device, int rssi, byte[] scanRecord) {
  164.             runOnUiThread(new Runnable() {
  165.                 @Override
  166.                 public void run() {
  167.                     mLeDeviceListAdapter.addDevice(device);
  168.                     mLeDeviceListAdapter.notifyDataSetChanged();
  169.                 }
  170.             });
  171.         }
  172.     };
  173.
  174.     private void displayGattServices(List<BluetoothGattService> gattServices) {
  175.         if (gattServices == null) return;
  176.
  177.         for (BluetoothGattService gattService : gattServices) {
  178.             //-----Service的字段信息-----//
  179.             int type = gattService.getType();
  180.             Log.e(TAG,"-->service type:"+Utils.getServiceType(type));
  181.             Log.e(TAG,"-->includedServices size:"+gattService.getIncludedServices().size());
  182.             Log.e(TAG,"-->service uuid:"+gattService.getUuid());
  183.
  184.             //-----Characteristics的字段信息-----//
  185.             List<BluetoothGattCharacteristic> gattCharacteristics =gattService.getCharacteristics();
  186.             for (final BluetoothGattCharacteristic  gattCharacteristic: gattCharacteristics) {
  187.                 Log.e(TAG,"---->char uuid:"+gattCharacteristic.getUuid());
  188.
  189.                 int permission = gattCharacteristic.getPermissions();
  190.                 Log.e(TAG,"---->char permission:"+Utils.getCharPermission(permission));
  191.
  192.                 int property = gattCharacteristic.getProperties();
  193.                 Log.e(TAG,"---->char property:"+Utils.getCharPropertie(property));
  194.
  195.                 byte[] data = gattCharacteristic.getValue();
  196.                 if (data != null && data.length > 0) {
  197.                     Log.e(TAG,"---->char value:"+new String(data));
  198.                 }
  199.
  200.                 //UUID_KEY_DATA是可以跟蓝牙模块串口通信的Characteristic
  201.                 if(gattCharacteristic.getUuid().toString().equals(UUID_KEY_DATA)){
  202.                     //测试读取当前Characteristic数据，会触发mOnDataAvailable.onCharacteristicRead()
  203.                     mHandler.postDelayed(new Runnable() {
  204.                         @Override
  205.                         public void run() {
  206.                             mBLE.readCharacteristic(gattCharacteristic);
  207.                         }
  208.                     }, 500);
  209.
  210.                     //接受Characteristic被写的通知,收到蓝牙模块的数据后会触发mOnDataAvailable.onCharacteristicWrite()
  211.                     mBLE.setCharacteristicNotification(gattCharacteristic, true);
  212.                     //设置数据内容
  213.                     gattCharacteristic.setValue("send data->");
  214.                     //往蓝牙模块写入数据
  215.                     mBLE.writeCharacteristic(gattCharacteristic);
  216.                 }
  217.
  218.                 //-----Descriptors的字段信息-----//
  219.                 List<BluetoothGattDescriptor> gattDescriptors = gattCharacteristic.getDescriptors();
  220.                 for (BluetoothGattDescriptor gattDescriptor : gattDescriptors) {
  221.                     Log.e(TAG, "-------->desc uuid:" + gattDescriptor.getUuid());
  222.                     int descPermission = gattDescriptor.getPermissions();
  223.                     Log.e(TAG,"-------->desc permission:"+ Utils.getDescPermission(descPermission));
  224.
  225.                     byte[] desData = gattDescriptor.getValue();
  226.                     if (desData != null && desData.length > 0) {
  227.                         Log.e(TAG, "-------->desc value:"+ new String(desData));
  228.                     }
  229.                  }
  230.             }
  231.         }//
  232.
  233.     }
  234. }



  相关解决方案

代码迷 - 您身边的软件异常，代码异常，编程异常助手（发现，解决，分享）
Copyright © 2009-2013 DAIMAMI.COM. All rights reserved.
