队列特性：先进先出（FIFO)——先进队列的元素先出队列。

来源于我们生活中的队列（先排队的先办完事）。

下面以一个简单的例子实现循环队列的操作。

1.新建Android应用程序

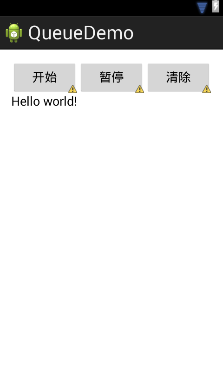

2.界面上添加按钮

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:tools="http://schemas.android.com/tools"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:paddingBottom="@dimen/activity_vertical_margin"    android:paddingLeft="@dimen/activity_horizontal_margin"    android:paddingRight="@dimen/activity_horizontal_margin"    android:paddingTop="@dimen/activity_vertical_margin"    tools:context=".MainActivity"    android:orientation="vertical" >        <LinearLayout         android:layout_width="match_parent"        android:layout_height="wrap_content"        android:orientation="horizontal">        <Button             android:id="@+id/start"            android:layout_weight="1"            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:text="开始"/>        <Button             android:id="@+id/pause"            android:layout_weight="1"            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:text="暂停"/>        <Button             android:id="@+id/clear"            android:layout_weight="1"            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:text="清除"/>    </LinearLayout>    <ScrollView		android:layout_width="match_parent"		android:layout_height="match_parent">	    <TextView 	        android:id="@+id/MonitorData"	        android:layout_width="match_parent"	        android:layout_height="wrap_content"	        android:scrollbars="vertical"	        android:singleLine="false"	        android:textSize="18sp"	        android:textStyle="normal"	        android:textColor="#000"			android:text="@string/hello_world"/>	</ScrollView></LinearLayout>

3.处理效果

package com.sl.queuedemo;import java.util.Calendar;import java.util.Timer;import java.util.TimerTask;import android.os.Bundle;import android.os.Handler;import android.os.Message;import android.os.SystemClock;import android.annotation.SuppressLint;import android.app.Activity;import android.util.Log;import android.view.View;import android.view.View.OnClickListener;import android.widget.Button;import android.widget.TextView;//线程发送数据入队，定时器定时处理数据public class MainActivity extends Activity{	private static final String TAG = "QueueDemo";		static final int REFRESH = 0;	private TextView mTextView;			public Button m_btnStart = null;	public Button m_btnPause = null;	public Button m_btnClear = null;	private boolean m_bIsReading = false;	//控制线程运行	private boolean m_bIsRunning = false;		//队列操作    public int m_nWt = 0;	public int m_nRd = 0;	public int m_nCnt=0;	private final byte MAX_QUEUE_SIZE	=	20;	private final byte MAX_ELEMENT_SIZE	=	6;	public byte m_ucMonitorData[][] = new byte[MAX_QUEUE_SIZE][MAX_ELEMENT_SIZE];		private int nLength = 6;	private byte TxBuffer[] = new byte[nLength];	private byte RxBuffer[] = new byte[nLength];		//时间操作	private int mYear;	private int mMonth;	private int mDay;	private int mHour;	private int mMinute;	private int mSecond;	public String m_sMonitorTime[] = new String[MAX_QUEUE_SIZE];		//同步设置	private Object Mutex = new Object();		//定时器设置	Timer timer = new Timer();	TimerTask task = new TimerTask()	{		@Override		public void run()		{			Message message = new Message();			message.what = REFRESH;			handler.sendMessage(message);		}	};		//线程处理	@SuppressLint("HandlerLeak")	Handler handler = new Handler()	{		public void handleMessage(Message msg)		{			switch (msg.what)			{			case REFRESH:				RefreshData();				break;			default:				break;			}		}	};		//线程	public Thread myThread = new Thread(new Runnable()	{		@Override		public void run()		{			while(m_bIsRunning)			{				TxBuffer[0]++;				TxBuffer[1]++;TxBuffer[1]++;				TxBuffer[2]++;				TxBuffer[3]++;				TxBuffer[4]++;TxBuffer[4]++;				TxBuffer[5]++;TxBuffer[5]++;TxBuffer[5]++;				InQueue(TxBuffer, nLength);								SystemClock.sleep(1000);			}		}	});		@Override	protected void onCreate(Bundle savedInstanceState) {		super.onCreate(savedInstanceState);		setContentView(R.layout.activity_main);				mTextView = (TextView)findViewById(R.id.MonitorData);				m_btnStart = (Button)findViewById(R.id.start);		m_btnPause = (Button)findViewById(R.id.pause);		m_btnClear = (Button)findViewById(R.id.clear);		m_btnStart.setOnClickListener(listener);		m_btnPause.setOnClickListener(listener);		m_btnClear.setOnClickListener(listener);		        m_bIsRunning = true;        myThread.start();		timer.schedule(task,1000,1000);	}		@Override	protected void onDestroy() {		super.onDestroy();				m_bIsRunning = false;		timer.cancel();		timer.purge();	}		public void RefreshData()	{				if(m_bIsReading)		{			String str = GetOutQueueString();			mTextView.setText(str);		}	}		OnClickListener listener = new View.OnClickListener() 	{				@Override		public void onClick(View v) 		{			switch(v.getId())			{			case R.id.start:				m_bIsReading = true;				RefreshData();				break;			case R.id.pause:				m_bIsReading = false;				break;			case R.id.clear:				ResetQueue();				RefreshData();				break;			default:				break;			}		}	};		public void InQueue(final byte TxBuffer[],final int nLength)	{		synchronized (Mutex) 		{			if(nLength<=0)			{				return;			}						//入队时间			final Calendar c = Calendar.getInstance();			mYear = c.get(Calendar.YEAR);			mMonth = c.get(Calendar.MONTH) + 1;//获取的月份比实际月份小1，所以需要+1			mDay = c.get(Calendar.DAY_OF_MONTH);			mHour = c.get(Calendar.HOUR_OF_DAY);			mMinute = c.get(Calendar.MINUTE);			mSecond = c.get(Calendar.SECOND);			String year = "0" + mYear;			year = year.substring(year.length()-2, year.length());			String month = "0" + mMonth;			month = month.substring(month.length()-2, month.length());			String day = "0" + mDay;			day = day.substring(day.length()-2, day.length());			String hour = "0" + mHour;			hour = hour.substring(hour.length()-2, hour.length());			String minute = "0" + mMinute;			minute = minute.substring(minute.length()-2, minute.length());			String second = "0" + mSecond;			second = second.substring(second.length()-2, second.length());						String str = year + "." + month + "." + day + " " + hour + ":" + minute + ":" + second + " -- ";			m_sMonitorTime[m_nWt] = str;						//入队数据			for(int i =0;i<nLength;i++)			{				m_ucMonitorData[m_nWt][i] = TxBuffer[i];			}			m_nWt++;			if(m_nWt >= MAX_QUEUE_SIZE)			{				m_nWt = 0;			}			m_nCnt++;			if(m_nCnt > MAX_QUEUE_SIZE)			{				m_nCnt = MAX_QUEUE_SIZE;				m_nRd++;				if(m_nRd >= MAX_QUEUE_SIZE)				{					m_nRd = 0;				}			}		}	}		public boolean OutQueue(byte RxBuffer[])	{		synchronized (Mutex) 		{			if(m_nCnt <= 0)			{				return false;			}			for(int i=0;i<MAX_ELEMENT_SIZE;i++)			{				RxBuffer[i] = m_ucMonitorData[m_nRd][i];			}			m_nRd++;			if(m_nRd >= MAX_QUEUE_SIZE)			{				m_nRd = 0;			}			m_nCnt--;			return true;		}	}		public String GetOutQueueString()	{		synchronized (Mutex) 		{			String strline = "";			String str = "";			int index = m_nRd;			for(int i=0;i<m_nCnt;i++)			{				strline = strline + m_sMonitorTime[index];//时间				for(int j=0;j<MAX_ELEMENT_SIZE;j++)				{					strline = strline + str.format("%02X ",m_ucMonitorData[index][j]);//数据				}				strline = strline + "\n";//换行				index++;				if(index >= MAX_QUEUE_SIZE)				{					index = 0;				}			}			return strline;		}	}		public void ResetQueue()	{		synchronized (Mutex) 		{			m_nCnt = 0;			m_nWt = 0;			m_nRd = 0;			Log.d(TAG, "重置队列");		}	}}

4.运行效果

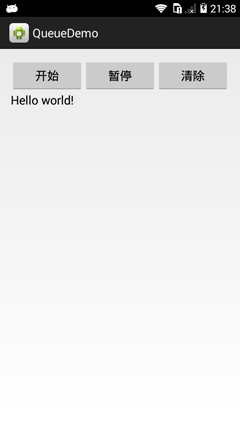

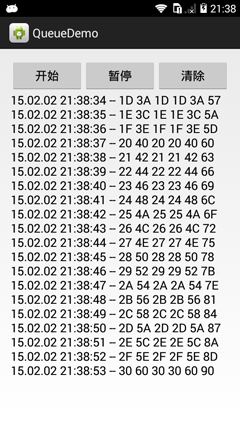

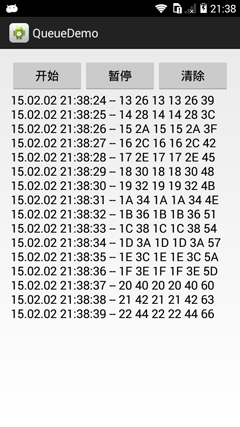

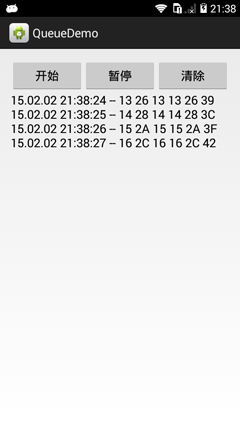

开始运行

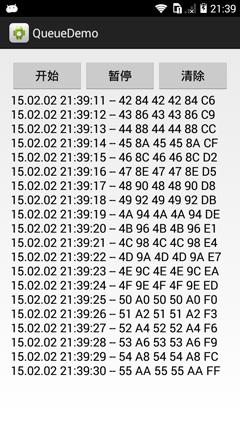

暂停运行

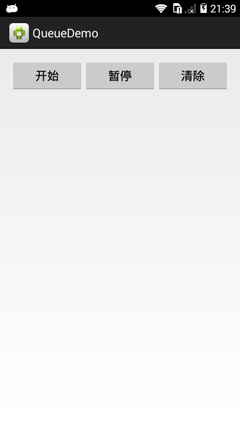

清除

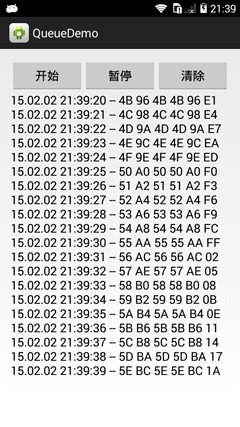

重新开始

源码下载
