经过多方寻找，现在找到了一个比较理想的兼容android4.4+的沉浸式布局类库；
类库地址：https://github.com/jgilfelt/SystemBarTint

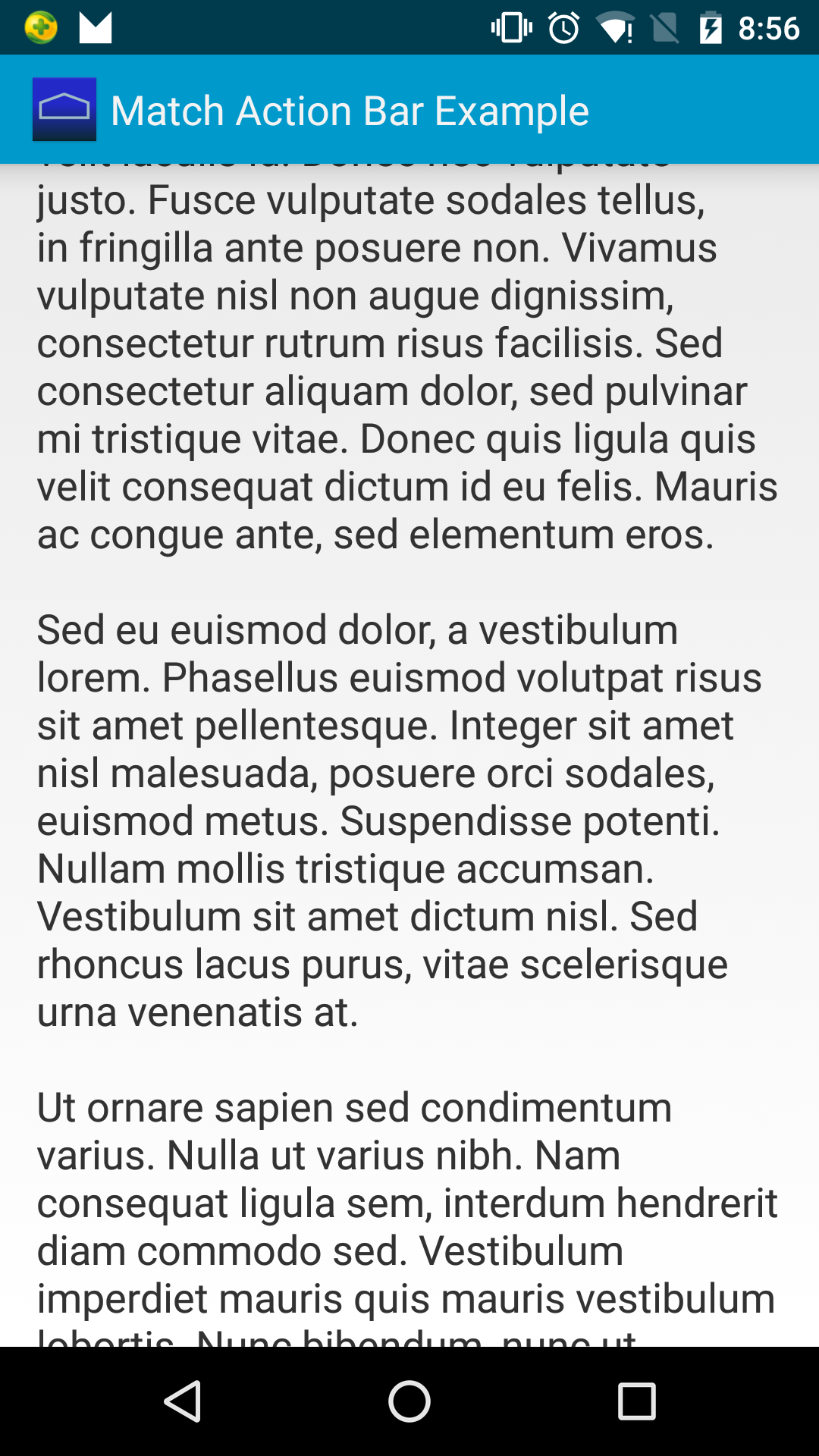

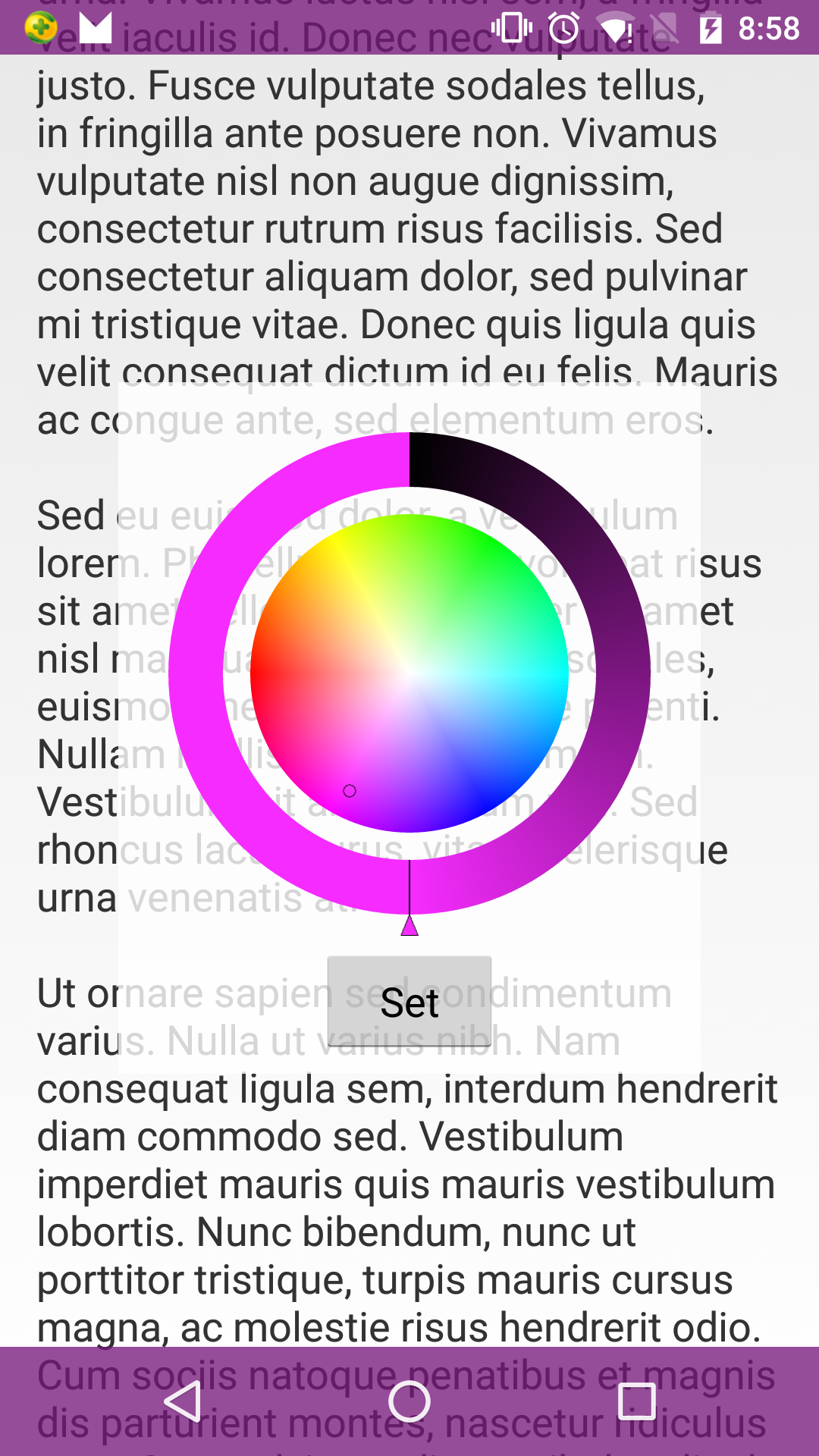

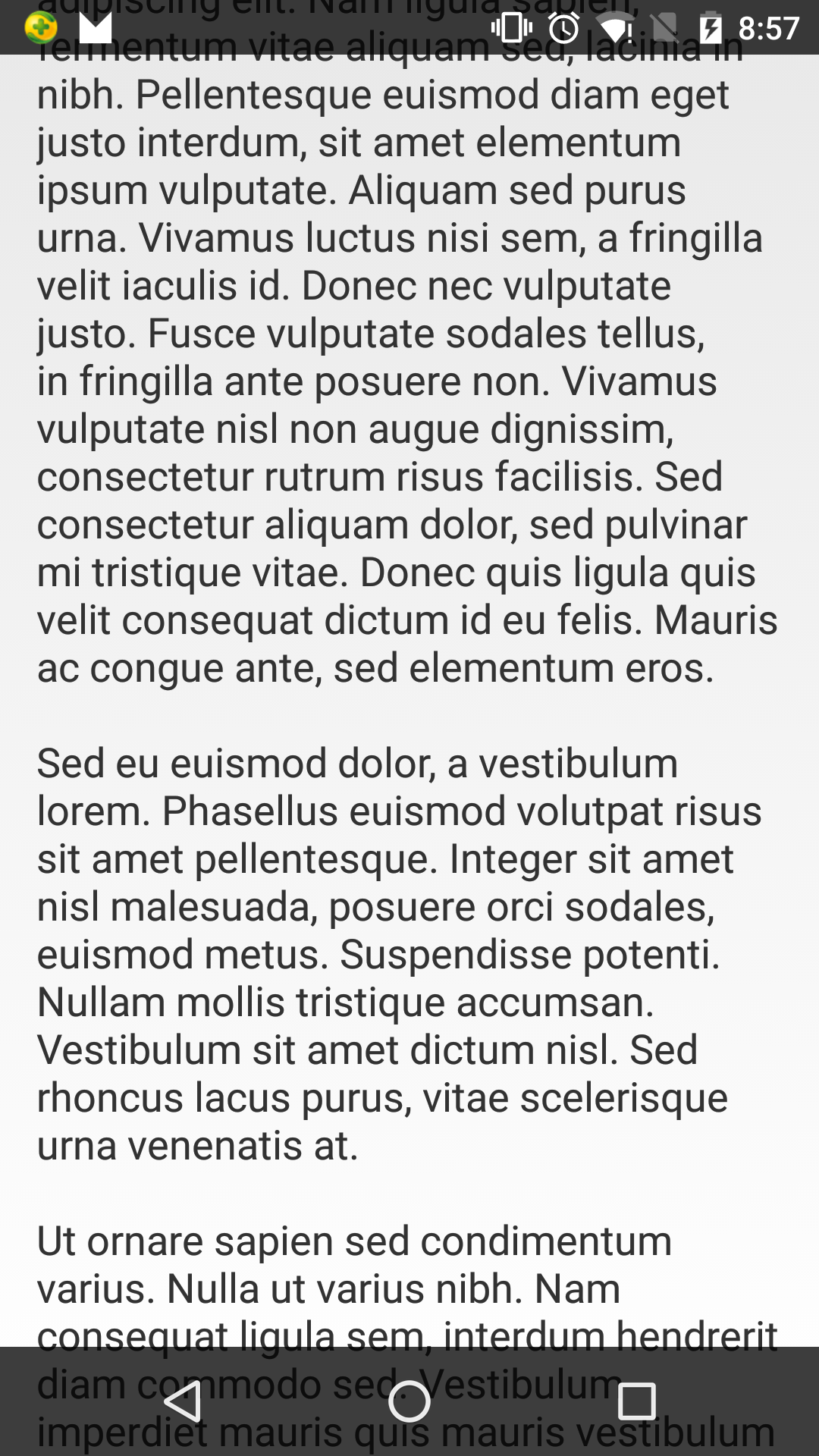

效果图：
看到以上三种图，就可以看出该类库完全符合我们的需求；
先附上代码：
/* * Copyright (C) 2013 readyState Software Ltd * * Licensed under the Apache License, Version 2.0 (the "License"); * you may not use this file except in compliance with the License. * You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */package com.readystatesoftware.systembartint;import android.annotation.SuppressLint;import android.annotation.TargetApi;import android.app.Activity;import android.content.Context;import android.content.res.Configuration;import android.content.res.Resources;import android.content.res.TypedArray;import android.graphics.drawable.Drawable;import android.os.Build;import android.util.DisplayMetrics;import android.util.TypedValue;import android.view.Gravity;import android.view.View;import android.view.ViewConfiguration;import android.view.ViewGroup;import android.view.Window;import android.view.WindowManager;import android.widget.FrameLayout.LayoutParams;import java.lang.reflect.Method;/** * Class to manage status and navigation bar tint effects when using KitKat * translucent system UI modes. * */public class SystemBarTintManager { static { // Android allows a system property to override the presence of the navigation bar. // Used by the emulator. // See https://github.com/android/platform_frameworks_base/blob/master/policy/src/com/android/internal/policy/impl/PhoneWindowManager.java#L1076 if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.KITKAT) { try { Class c = Class.forName("android.os.SystemProperties"); Method m = c.getDeclaredMethod("get", String.class); m.setAccessible(true); sNavBarOverride = (String) m.invoke(null, "qemu.hw.mainkeys"); } catch (Throwable e) { sNavBarOverride = null; } } } /** * The default system bar tint color value. */ public static final int DEFAULT_TINT_COLOR = 0x99000000; private static String sNavBarOverride; private final SystemBarConfig mConfig; private boolean mStatusBarAvailable; private boolean mNavBarAvailable; private boolean mStatusBarTintEnabled; private boolean mNavBarTintEnabled; private View mStatusBarTintView; private View mNavBarTintView; /** * Constructor. Call this in the host activity onCreate method after its * content view has been set. You should always create new instances when * the host activity is recreated. * * @param activity The host activity. */ @TargetApi(19) public SystemBarTintManager(Activity activity) { Window win = activity.getWindow(); ViewGroup decorViewGroup = (ViewGroup) win.getDecorView(); if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.KITKAT) { // check theme attrs int[] attrs = {android.R.attr.windowTranslucentStatus, android.R.attr.windowTranslucentNavigation}; TypedArray a = activity.obtainStyledAttributes(attrs); try { mStatusBarAvailable = a.getBoolean(0, false); mNavBarAvailable = a.getBoolean(1, false); } finally { a.recycle(); } // check window flags WindowManager.LayoutParams winParams = win.getAttributes(); int bits = WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS; if ((winParams.flags & bits) != 0) { mStatusBarAvailable = true; } bits = WindowManager.LayoutParams.FLAG_TRANSLUCENT_NAVIGATION; if ((winParams.flags & bits) != 0) { mNavBarAvailable = true; } } mConfig = new SystemBarConfig(activity, mStatusBarAvailable, mNavBarAvailable); // device might not have virtual navigation keys if (!mConfig.hasNavigtionBar()) { mNavBarAvailable = false; } if (mStatusBarAvailable) { setupStatusBarView(activity, decorViewGroup); } if (mNavBarAvailable) { setupNavBarView(activity, decorViewGroup); } } /** * Enable tinting of the system status bar. * * If the platform is running Jelly Bean or earlier, or translucent system * UI modes have not been enabled in either the theme or via window flags, * then this method does nothing. * * @param enabled True to enable tinting, false to disable it (default). */ public void setStatusBarTintEnabled(boolean enabled) { mStatusBarTintEnabled = enabled; if (mStatusBarAvailable) { mStatusBarTintView.setVisibility(enabled ? View.VISIBLE : View.GONE); } } /** * Enable tinting of the system navigation bar. * * If the platform does not have soft navigation keys, is running Jelly Bean * or earlier, or translucent system UI modes have not been enabled in either * the theme or via window flags, then this method does nothing. * * @param enabled True to enable tinting, false to disable it (default). */ public void setNavigationBarTintEnabled(boolean enabled) { mNavBarTintEnabled = enabled; if (mNavBarAvailable) { mNavBarTintView.setVisibility(enabled ? View.VISIBLE : View.GONE); } } /** * Apply the specified color tint to all system UI bars. * * @param color The color of the background tint. */ public void setTintColor(int color) { setStatusBarTintColor(color); setNavigationBarTintColor(color); } /** * Apply the specified drawable or color resource to all system UI bars. * * @param res The identifier of the resource. */ public void setTintResource(int res) { setStatusBarTintResource(res); setNavigationBarTintResource(res); } /** * Apply the specified drawable to all system UI bars. * * @param drawable The drawable to use as the background, or null to remove it. */ public void setTintDrawable(Drawable drawable) { setStatusBarTintDrawable(drawable); setNavigationBarTintDrawable(drawable); } /** * Apply the specified alpha to all system UI bars. * * @param alpha The alpha to use */ public void setTintAlpha(float alpha) { setStatusBarAlpha(alpha); setNavigationBarAlpha(alpha); } /** * Apply the specified color tint to the system status bar. * * @param color The color of the background tint. */ public void setStatusBarTintColor(int color) { if (mStatusBarAvailable) { mStatusBarTintView.setBackgroundColor(color); } } /** * Apply the specified drawable or color resource to the system status bar. * * @param res The identifier of the resource. */ public void setStatusBarTintResource(int res) { if (mStatusBarAvailable) { mStatusBarTintView.setBackgroundResource(res); } } /** * Apply the specified drawable to the system status bar. * * @param drawable The drawable to use as the background, or null to remove it. */ @SuppressWarnings("deprecation") public void setStatusBarTintDrawable(Drawable drawable) { if (mStatusBarAvailable) { mStatusBarTintView.setBackgroundDrawable(drawable); } } /** * Apply the specified alpha to the system status bar. * * @param alpha The alpha to use */ @TargetApi(11) public void setStatusBarAlpha(float alpha) { if (mStatusBarAvailable && Build.VERSION.SDK_INT >= Build.VERSION_CODES.HONEYCOMB) { mStatusBarTintView.setAlpha(alpha); } } /** * Apply the specified color tint to the system navigation bar. * * @param color The color of the background tint. */ public void setNavigationBarTintColor(int color) { if (mNavBarAvailable) { mNavBarTintView.setBackgroundColor(color); } } /** * Apply the specified drawable or color resource to the system navigation bar. * * @param res The identifier of the resource. */ public void setNavigationBarTintResource(int res) { if (mNavBarAvailable) { mNavBarTintView.setBackgroundResource(res); } } /** * Apply the specified drawable to the system navigation bar. * * @param drawable The drawable to use as the background, or null to remove it. */ @SuppressWarnings("deprecation") public void setNavigationBarTintDrawable(Drawable drawable) { if (mNavBarAvailable) { mNavBarTintView.setBackgroundDrawable(drawable); } } /** * Apply the specified alpha to the system navigation bar. * * @param alpha The alpha to use */ @TargetApi(11) public void setNavigationBarAlpha(float alpha) { if (mNavBarAvailable && Build.VERSION.SDK_INT >= Build.VERSION_CODES.HONEYCOMB) { mNavBarTintView.setAlpha(alpha); } } /** * Get the system bar configuration. * * @return The system bar configuration for the current device configuration. */ public SystemBarConfig getConfig() { return mConfig; } /** * Is tinting enabled for the system status bar? * * @return True if enabled, False otherwise. */ public boolean isStatusBarTintEnabled() { return mStatusBarTintEnabled; } /** * Is tinting enabled for the system navigation bar? * * @return True if enabled, False otherwise. */ public boolean isNavBarTintEnabled() { return mNavBarTintEnabled; } private void setupStatusBarView(Context context, ViewGroup decorViewGroup) { mStatusBarTintView = new View(context); LayoutParams params = new LayoutParams(LayoutParams.MATCH_PARENT, mConfig.getStatusBarHeight()); params.gravity = Gravity.TOP; if (mNavBarAvailable && !mConfig.isNavigationAtBottom()) { params.rightMargin = mConfig.getNavigationBarWidth(); } mStatusBarTintView.setLayoutParams(params); mStatusBarTintView.setBackgroundColor(DEFAULT_TINT_COLOR); mStatusBarTintView.setVisibility(View.GONE); decorViewGroup.addView(mStatusBarTintView); } private void setupNavBarView(Context context, ViewGroup decorViewGroup) { mNavBarTintView = new View(context); LayoutParams params; if (mConfig.isNavigationAtBottom()) { params = new LayoutParams(LayoutParams.MATCH_PARENT, mConfig.getNavigationBarHeight()); params.gravity = Gravity.BOTTOM; } else { params = new LayoutParams(mConfig.getNavigationBarWidth(), LayoutParams.MATCH_PARENT); params.gravity = Gravity.RIGHT; } mNavBarTintView.setLayoutParams(params); mNavBarTintView.setBackgroundColor(DEFAULT_TINT_COLOR); mNavBarTintView.setVisibility(View.GONE); decorViewGroup.addView(mNavBarTintView); } /** * Class which describes system bar sizing and other characteristics for the current * device configuration. * */ public static class SystemBarConfig { private static final String STATUS_BAR_HEIGHT_RES_NAME = "status_bar_height"; private static final String NAV_BAR_HEIGHT_RES_NAME = "navigation_bar_height"; private static final String NAV_BAR_HEIGHT_LANDSCAPE_RES_NAME = "navigation_bar_height_landscape"; private static final String NAV_BAR_WIDTH_RES_NAME = "navigation_bar_width"; private static final String SHOW_NAV_BAR_RES_NAME = "config_showNavigationBar"; private final boolean mTranslucentStatusBar; private final boolean mTranslucentNavBar; private final int mStatusBarHeight; private final int mActionBarHeight; private final boolean mHasNavigationBar; private final int mNavigationBarHeight; private final int mNavigationBarWidth; private final boolean mInPortrait; private final float mSmallestWidthDp; private SystemBarConfig(Activity activity, boolean translucentStatusBar, boolean traslucentNavBar) { Resources res = activity.getResources(); mInPortrait = (res.getConfiguration().orientation == Configuration.ORIENTATION_PORTRAIT); mSmallestWidthDp = getSmallestWidthDp(activity); mStatusBarHeight = getInternalDimensionSize(res, STATUS_BAR_HEIGHT_RES_NAME); mActionBarHeight = getActionBarHeight(activity); mNavigationBarHeight = getNavigationBarHeight(activity); mNavigationBarWidth = getNavigationBarWidth(activity); mHasNavigationBar = (mNavigationBarHeight > 0); mTranslucentStatusBar = translucentStatusBar; mTranslucentNavBar = traslucentNavBar; } @TargetApi(14) private int getActionBarHeight(Context context) { int result = 0; if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.ICE_CREAM_SANDWICH) { TypedValue tv = new TypedValue(); context.getTheme().resolveAttribute(android.R.attr.actionBarSize, tv, true); result = TypedValue.complexToDimensionPixelSize(tv.data, context.getResources().getDisplayMetrics()); } return result; } @TargetApi(14) private int getNavigationBarHeight(Context context) { Resources res = context.getResources(); int result = 0; if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.ICE_CREAM_SANDWICH) { if (hasNavBar(context)) { String key; if (mInPortrait) { key = NAV_BAR_HEIGHT_RES_NAME; } else { key = NAV_BAR_HEIGHT_LANDSCAPE_RES_NAME; } return getInternalDimensionSize(res, key); } } return result; } @TargetApi(14) private int getNavigationBarWidth(Context context) { Resources res = context.getResources(); int result = 0; if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.ICE_CREAM_SANDWICH) { if (hasNavBar(context)) { return getInternalDimensionSize(res, NAV_BAR_WIDTH_RES_NAME); } } return result; } @TargetApi(14) private boolean hasNavBar(Context context) { Resources res = context.getResources(); int resourceId = res.getIdentifier(SHOW_NAV_BAR_RES_NAME, "bool", "android"); if (resourceId != 0) { boolean hasNav = res.getBoolean(resourceId); // check override flag (see static block) if ("1".equals(sNavBarOverride)) { hasNav = false; } else if ("0".equals(sNavBarOverride)) { hasNav = true; } return hasNav; } else { // fallback return !ViewConfiguration.get(context).hasPermanentMenuKey(); } } private int getInternalDimensionSize(Resources res, String key) { int result = 0; int resourceId = res.getIdentifier(key, "dimen", "android"); if (resourceId > 0) { result = res.getDimensionPixelSize(resourceId); } return result; } @SuppressLint("NewApi") private float getSmallestWidthDp(Activity activity) { DisplayMetrics metrics = new DisplayMetrics(); if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.JELLY_BEAN) { activity.getWindowManager().getDefaultDisplay().getRealMetrics(metrics); } else { // TODO this is not correct, but we don't really care pre-kitkat activity.getWindowManager().getDefaultDisplay().getMetrics(metrics); } float widthDp = metrics.widthPixels / metrics.density; float heightDp = metrics.heightPixels / metrics.density; return Math.min(widthDp, heightDp); } /** * Should a navigation bar appear at the bottom of the screen in the current * device configuration? A navigation bar may appear on the right side of * the screen in certain configurations. * * @return True if navigation should appear at the bottom of the screen, False otherwise. */ public boolean isNavigationAtBottom() { return (mSmallestWidthDp >= 600 || mInPortrait); } /** * Get the height of the system status bar. * * @return The height of the status bar (in pixels). */ public int getStatusBarHeight() { return mStatusBarHeight; } /** * Get the height of the action bar. * * @return The height of the action bar (in pixels). */ public int getActionBarHeight() { return mActionBarHeight; } /** * Does this device have a system navigation bar? * * @return True if this device uses soft key navigation, False otherwise. */ public boolean hasNavigtionBar() { return mHasNavigationBar; } /** * Get the height of the system navigation bar. * * @return The height of the navigation bar (in pixels). If the device does not have * soft navigation keys, this will always return 0. */ public int getNavigationBarHeight() { return mNavigationBarHeight; } /** * Get the width of the system navigation bar when it is placed vertically on the screen. * * @return The width of the navigation bar (in pixels). If the device does not have * soft navigation keys, this will always return 0. */ public int getNavigationBarWidth() { return mNavigationBarWidth; } /** * Get the layout inset for any system UI that appears at the top of the screen. * * @param withActionBar True to include the height of the action bar, False otherwise. * @return The layout inset (in pixels). */ public int getPixelInsetTop(boolean withActionBar) { return (mTranslucentStatusBar ? mStatusBarHeight : 0) + (withActionBar ? mActionBarHeight : 0); } /** * Get the layout inset for any system UI that appears at the bottom of the screen. * * @return The layout inset (in pixels). */ public int getPixelInsetBottom() { if (mTranslucentNavBar && isNavigationAtBottom()) { return mNavigationBarHeight; } else { return 0; } } /** * Get the layout inset for any system UI that appears at the right of the screen. * * @return The layout inset (in pixels). */ public int getPixelInsetRight() { if (mTranslucentNavBar && !isNavigationAtBottom()) { return mNavigationBarWidth; } else { return 0; } } }}使用方法见Demo
