安卓第三天笔记--通知-进度条-时期

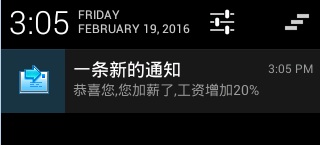

1.通知Notification

通知就是在是上方的状态栏弹出通知消息

 <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:tools="http://schemas.android.com/tools"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:paddingBottom="@dimen/activity_vertical_margin"    android:paddingLeft="@dimen/activity_horizontal_margin"    android:paddingRight="@dimen/activity_horizontal_margin"    android:paddingTop="@dimen/activity_vertical_margin"    tools:context=".MainActivity" >     <Button        android:onClick="send"        android:layout_width="wrap_content"        android:layout_height="wrap_content"        android:text="发送通知" /> </RelativeLayout>

 <?xml version="1.0" encoding="utf-8"?><LinearLayoutxmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:orientation="vertical" >       <TextView        android:id="@+id/tv"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:text="这是通知的跳转页面"/>     <ImageView        android:id="@+id/iv"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:src="@drawable/swift"/>   </LinearLayout>

/** * 收到通知时,点击通知打开的Activity     * @author 刘楠 * * 2016-2-19下午11:03:44 */public class OtherActivity extends Activity {      @Override     protected void onCreate(Bundle savedInstanceState) {                 super.onCreate(savedInstanceState);         setContentView(R.layout.other);     }     }  ManiActivity /** * 发送通知     * @author 刘楠 * * 2016-2-19下午7:20:05 */public class MainActivity extends Activity {      private NotificationManager manager;     @Override     protected void onCreate(Bundle savedInstanceState) {         super.onCreate(savedInstanceState);         setContentView(R.layout.activity_main);         //获取通知管理器         manager = (NotificationManager) getSystemService(Context.NOTIFICATION_SERVICE);             }       /**      * 发送通知      * @param v      */     @SuppressLint("NewApi")     public void send(View v){         //创建一个启动的Intent意图         Intent intent = new Intent();         intent.setClass(this, OtherActivity.class);         //打开A description of an Intent and target action to perform with it         PendingIntent pendingIntent =PendingIntent.getActivity(this, 0, intent, 0);                 //建立通知         Notification notification = new Notification.Builder(this)         //设置打开通知         .setAutoCancel(true)         //状态栏显示的信息         .setTicker("状态栏显示的信息")         //设置通知的图标         .setSmallIcon(R.drawable.notify)         //设置内容标题         .setContentTitle("一条新的通知")         //设置通知的内容         .setContentText("恭喜您,您加薪了,工资增加20%")         .setContentIntent(pendingIntent)         //设置通知的声音         .build();         //发送一个通知         manager.notify(0, notification);             } }

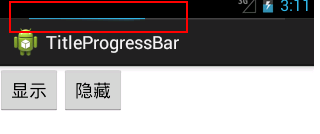

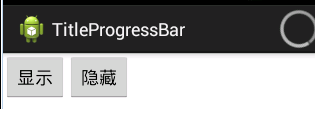

2.TitleProgressBar

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"     android:orientation="horizontal"     android:layout_width="match_parent"     android:layout_height="match_parent">     <Button         android:id="@+id/btn1"         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:layout_gravity="center_horizontal"         android:text="显示"         />     <Button         android:id="@+id/btn2"         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:layout_gravity="center_horizontal"         android:text="隐藏"         /></LinearLayout>

/** * 标题栏上方显示进度条     * @author 刘楠 * * 2016-2-19下午11:12:21 */public class MainActivity extends Activity {      private Button btn1;     private Button btn2;      @Override     protected void onCreate(Bundle savedInstanceState) {         super.onCreate(savedInstanceState);                 requestWindowFeature(Window.FEATURE_PROGRESS);                 //requestWindowFeature(Window.FEATURE_INDETERMINATE_PROGRESS);         setContentView(R.layout.activity_main);                         btn1 = (Button) findViewById(R.id.btn1);         btn2 = (Button) findViewById(R.id.btn2);                 btn1.setOnClickListener(new OnClickListener()         {              @Override              public void onClick(View source)              {                   //显示不带进度的进度条                   setProgressBarIndeterminateVisibility(true);                   //显示带进度的进度条                   setProgressBarVisibility(true);                   //设置进度条的进度                   setProgress(4500);              }         });         btn2.setOnClickListener(new OnClickListener()         {              @Override              public void onClick(View source)              {                   //隐藏不带进度的进度条                   setProgressBarIndeterminateVisibility(false);                   //隐藏带进度的进度条                   setProgressBarVisibility(false);              }         });     }}

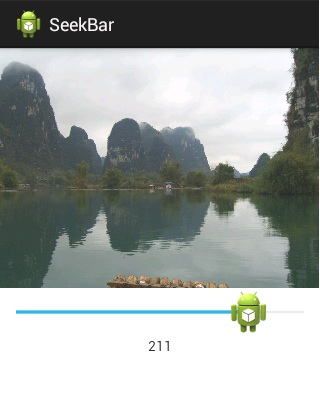

3.SeekBar--拖动改变图片的透明度

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:tools="http://schemas.android.com/tools"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:orientation="vertical"    tools:context=".MainActivity" >     <ImageView        android:id="@+id/iv"        android:layout_width="match_parent"        android:layout_height="240dp"        android:src="@drawable/lijiang"        android:alpha="1"/>     <SeekBar        android:id="@+id/seekbar"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:max="255"        android:progress="255"        android:thumb="@drawable/ic_launcher"        />          <TextView        android:gravity="center_horizontal"        android:id="@+id/tv"        android:layout_width="match_parent"        android:layout_height="wrap_content"/></LinearLayout>

 /** * SeekBar * 拖动SeekBar来改变图片的透明度     * @author 刘楠 * * 2016-2-19下午11:09:43 */public class MainActivity extends Activity {         private ImageView iv;         private SeekBar seekbar;         private TextView tv;          @Override     protected void onCreate(Bundle savedInstanceState) {         super.onCreate(savedInstanceState);         setContentView(R.layout.activity_main);                 iv = (ImageView) findViewById(R.id.iv);         seekbar = (SeekBar) findViewById(R.id.seekbar);         tv = (TextView) findViewById(R.id.tv);                         seekbar.setOnSeekBarChangeListener(new OnSeekBarChangeListener() {                           @Override              public void onStopTrackingTouch(SeekBar seekBar) {                   tv.setText(seekBar.getProgress()+"");                                }                           @Override              public void onStartTrackingTouch(SeekBar seekBar) {                   tv.setText(seekBar.getProgress()+"");                                }                           @Override              public void onProgressChanged(SeekBar seekBar, int progress,                       boolean fromUser) {                   tv.setText(seekBar.getProgress()+"");                                     iv.setImageAlpha(progress);                                }         });     } }

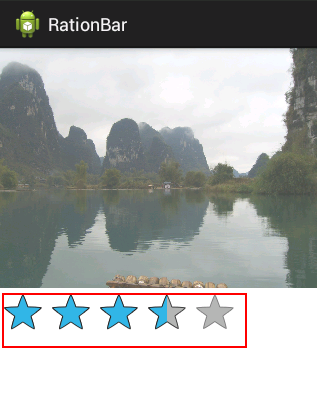

4.RationBar---使用星星做为进度条,评价是常用

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:tools="http://schemas.android.com/tools"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:orientation="vertical"    tools:context=".MainActivity" >     <ImageView        android:id="@+id/iv"        android:layout_width="match_parent"        android:layout_height="240dp"        android:src="@drawable/lijiang"        android:alpha="1"/>     <RatingBar        android:id="@+id/ratingbar"        android:layout_width="wrap_content"        android:layout_height="wrap_content"        android:max="255"        android:progress="255"         android:numStars="5"         android:stepSize="0.5"/>          <TextView        android:gravity="center_horizontal"        android:id="@+id/tv"        android:layout_width="match_parent"        android:layout_height="wrap_content"/></LinearLayout>

/** * 使用星星做为进度条     * @author 刘楠 * * 2016-2-19下午11:14:00 */public class MainActivity extends Activity {     private ImageView iv;      private RatingBar ratingbar;      private TextView tv;      @Override     protected void onCreate(Bundle savedInstanceState) {         super.onCreate(savedInstanceState);         setContentView(R.layout.activity_main);         iv = (ImageView) findViewById(R.id.iv);         ratingbar = (RatingBar) findViewById(R.id.ratingbar);                 ratingbar.setOnRatingBarChangeListener(new OnRatingBarChangeListener() {                           @SuppressLint("NewApi")              @Override              public void onRatingChanged(RatingBar ratingBar, float rating,                       boolean fromUser) {                                     iv.setImageAlpha((int) (rating*255/5));                                }         });     } }

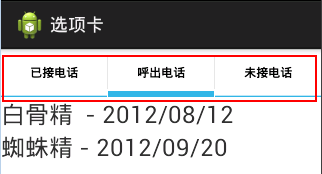

5.选项卡

<?xml version="1.0" encoding="utf-8"?><TabHost     xmlns:android="http://schemas.android.com/apk/res/android"     android:id="@android:id/tabhost"     android:layout_width="match_parent"     android:layout_height="match_parent"     android:layout_weight="1">     <LinearLayout         android:layout_width="match_parent"         android:layout_height="match_parent"         android:orientation="vertical">         <TabWidget              android:id="@android:id/tabs"              android:layout_width="match_parent"              android:layout_height="wrap_content"/>         <FrameLayout              android:id="@android:id/tabcontent"              android:layout_width="match_parent"              android:layout_height="match_parent">              <!-- 定义第一个标签页的内容 -->              <LinearLayout                   android:id="@+id/tab01"                   android:orientation="vertical"                   android:layout_width="match_parent"                   android:layout_height="match_parent">                   <TextView                       android:layout_width="wrap_content"                       android:layout_height="wrap_content"                       android:text="女儿国国王 - 2012/12/12"                       android:textSize="11pt" />                   <TextView                       android:layout_width="wrap_content"                       android:layout_height="wrap_content"                       android:text="东海龙女 - 2012/12/18"                       android:textSize="11pt" />              </LinearLayout>              <!-- 定义第二个标签页的内容 -->              <LinearLayout                   android:id="@+id/tab02"                   android:orientation="vertical"                   android:layout_width="match_parent"                   android:layout_height="match_parent">                   <TextView                       android:layout_width="wrap_content"                       android:layout_height="wrap_content"                       android:text="白骨精  - 2012/08/12"                       android:textSize="11pt" />                   <TextView                       android:layout_width="wrap_content"                       android:layout_height="wrap_content"                       android:text="蜘蛛精 - 2012/09/20"                       android:textSize="11pt" />              </LinearLayout>              <!-- 定义第三个标签页的内容 -->              <LinearLayout                   android:id="@+id/tab03"                   android:orientation="vertical"                   android:layout_width="match_parent"                   android:layout_height="match_parent"                   android:textSize="11pt">                   <TextView                       android:layout_width="wrap_content"                       android:layout_height="wrap_content"                       android:text="孙悟空 - 2012/09/19"                       android:textSize="11pt" />                   <TextView                       android:layout_width="wrap_content"                       android:layout_height="wrap_content"                       android:text="猪八戒  - 2012/10/12"                       android:textSize="11pt" />              </LinearLayout>         </FrameLayout>     </LinearLayout></TabHost>

 /** * 使用选项卡, * Activity要继承TabActivity *     * @author 刘楠 * * 2016-2-19下午11:16:12 */public class MainActivity extends TabActivity{     @Override     public void onCreate(Bundle savedInstanceState)     {         super.onCreate(savedInstanceState);         setContentView(R.layout.activity_main);         // 获取该Activity里面的TabHost组件         TabHost tabHost = getTabHost();         // 创建第一个Tab页         TabHost.TabSpec tab1 = tabHost.newTabSpec("tab1")                   .setIndicator("已接电话") // 设置标题                   .setContent(R.id.tab01); //设置内容         // 添加第一个标签页         tabHost.addTab(tab1);         TabHost.TabSpec tab2 = tabHost.newTabSpec("tab2")                   // 在标签标题上放置图标                   .setIndicator("呼出电话", getResources()                            .getDrawable(R.drawable.ic_launcher))                   .setContent(R.id.tab02);         // 添加第二个标签页         tabHost.addTab(tab2);         TabHost.TabSpec tab3 = tabHost.newTabSpec("tab3")                   .setIndicator("未接电话")                   .setContent(R.id.tab03);         // 添加第三个标签页         tabHost.addTab(tab3);     }}

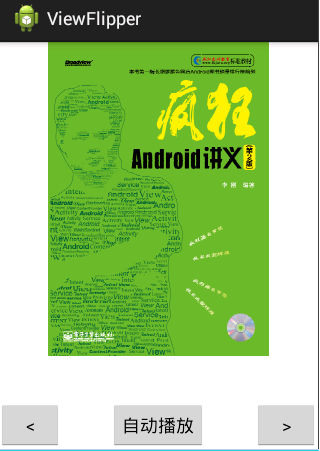

7.ViewFlipper

 使用ViewFlipper来播放图片 这个控件继承了ViewAnimator  调用showPrevious显示上一张  showNext();显示下一张     startFlipping();开始自动播放     stopFlipping();停止播放     设置进入的动画效果与方向     viewFlipper.setInAnimation(this, android.R.anim.slide_out_right);     设置切换下一张时的动画效果与方向         viewFlipper.setOutAnimation(this, android.R.anim.slide_in_left);  <?xml version="1.0" encoding="utf-8"?><RelativeLayout     xmlns:android="http://schemas.android.com/apk/res/android"     android:layout_width="match_parent"     android:layout_height="match_parent">     <ViewFlipper         android:id="@+id/details"         android:layout_width="match_parent"         android:layout_height="match_parent"         android:flipInterval="2000"         >         <ImageView              android:src="@drawable/android"              android:layout_width="match_parent"              android:layout_height="wrap_content">         </ImageView>                 <ImageView              android:src="@drawable/java"              android:layout_width="match_parent"              android:layout_height="wrap_content">         </ImageView>                 <ImageView              android:src="@drawable/javaee"              android:layout_width="match_parent"              android:layout_height="wrap_content">         </ImageView>     </ViewFlipper>     <Button         android:text="&lt;"         android:onClick="prev"         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:layout_alignParentBottom="true"         android:layout_alignParentLeft="true"/>     <Button         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:layout_alignParentBottom="true"         android:layout_centerInParent="true"         android:onClick="auto"         android:text="自动播放"/>     <Button         android:text="&gt;"         android:onClick="next"         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:layout_alignParentBottom="true"         android:layout_alignParentRight="true"/></RelativeLayout>

/** * 使用ViewFlipper来播放图片 这个控件继承了ViewAnimator * * 调用showPrevious显示上一张 * showNext();显示下一张     startFlipping();开始自动播放     stopFlipping();停止播放     设置进入的动画效果与方向     viewFlipper.setInAnimation(this, android.R.anim.slide_out_right);     设置切换下一张时的动画效果与方向         viewFlipper.setOutAnimation(this, android.R.anim.slide_in_left); * @author 刘楠 * * 2016-2-19下午11:19:40 */ public class MainActivity extends Activity {          private ViewFlipper viewFlipper;     @Override     protected void onCreate(Bundle savedInstanceState) {         super.onCreate(savedInstanceState);         setContentView(R.layout.activity_main);         viewFlipper = (ViewFlipper) findViewById(R.id.details);     }           /*      * 上一个      */     public void prev(View v){                 viewFlipper.setInAnimation(this, android.R.anim.slide_out_right);         viewFlipper.setOutAnimation(this, android.R.anim.slide_in_left);         viewFlipper.showPrevious();         viewFlipper.stopFlipping();                     }         /*      * 下一个      */     public void next(View v){         viewFlipper.setInAnimation(this, android.R.anim.slide_in_left);         viewFlipper.setOutAnimation(this, android.R.anim.slide_out_right);         viewFlipper.showNext();         viewFlipper.stopFlipping();     }         /*      * 自动播放      */     public void auto(View v){         viewFlipper.setInAnimation(this, android.R.anim.slide_in_left);         viewFlipper.setOutAnimation(this, android.R.anim.slide_out_right);         viewFlipper.startFlipping();     }}

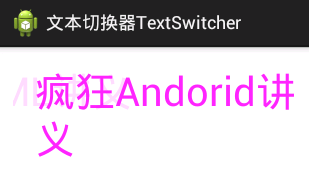

8.TextSwitch

使用时要建立一个工厂,返回必须为TextView

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:tools="http://schemas.android.com/tools"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:paddingBottom="@dimen/activity_vertical_margin"    android:paddingLeft="@dimen/activity_horizontal_margin"    android:paddingRight="@dimen/activity_horizontal_margin"    android:paddingTop="@dimen/activity_vertical_margin"    tools:context=".MainActivity" >     <TextSwitcher        android:id="@+id/textSwicher"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:inAnimation="@android:anim/slide_in_left"        android:outAnimation="@android:anim/slide_out_right"        android:onClick="next"/> </LinearLayout>

/** * TextSwitcher继承 ViewSwitcher继承ViewAnimator * 使用时要建立一个工厂 *     * @author 刘楠 * * 2016-2-19下午11:23:23 */ public class MainActivity extends Activity {          private TextSwitcher textSwicher;     private String [] strs = {              "疯狂JAVA讲义",              "疯狂Andorid讲义",              "疯狂XML讲义",              "疯狂Ajax讲义",              "疯狂JAVA EE讲义"     };     private int cusStr=0;     @Override     protected void onCreate(Bundle savedInstanceState) {         super.onCreate(savedInstanceState);         setContentView(R.layout.activity_main);                 textSwicher = (TextSwitcher) findViewById(R.id.textSwicher);                 //设置工厂         textSwicher.setFactory(new ViewFactory() {                           @Override              public View makeView() {                   TextView tv= new TextView(MainActivity.this);                   tv.setTextSize(40);                   tv.setTextColor(Color.MAGENTA);                   return tv;              }         });     }          public void next(View view){                 textSwicher.setText(strs[cusStr++%strs.length]);             }  }

9.Data类控件

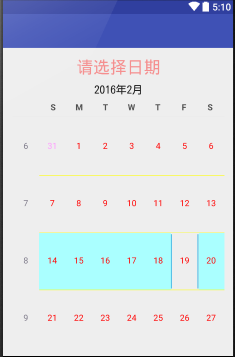

CalendarView

<?xml version="1.0" encoding="utf-8"?><LinearLayout    xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:tools="http://schemas.android.com/tools"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:paddingBottom="@dimen/activity_vertical_margin"    android:paddingLeft="@dimen/activity_horizontal_margin"    android:paddingRight="@dimen/activity_horizontal_margin"    android:paddingTop="@dimen/activity_vertical_margin"    android:orientation="vertical"    tools:context="com.itheima.calendarview.MainActivity">    <TextView        android:gravity="center_horizontal"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:textSize="28sp"        android:textColor="#66ff0000"        android:text="请选择日期"/>    <CalendarView        android:id="@+id/cv"        android:layout_width="match_parent"        android:layout_height="match_parent"        android:firstDayOfWeek="1"        android:shownWeekCount="4"        android:selectedWeekBackgroundColor="#aff"        android:focusedMonthDateColor="#f00"        android:weekSeparatorLineColor="#ff0"        android:unfocusedMonthDateColor="#f9f">    </CalendarView>    <TextView        android:id="@+id/tv"        android:gravity="center_horizontal"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:textSize="28sp"        android:textColor="#66ff0000"/></LinearLayout>

public class MainActivity extends AppCompatActivity {    private CalendarView cv;    private TextView tv;    @Override    protected void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        setContentView(R.layout.activity_main);        cv = (CalendarView) findViewById(R.id.cv);        tv = (TextView) findViewById(R.id.tv);        //设置监听器        cv.setOnDateChangeListener(new CalendarView.OnDateChangeListener() {            @Override            public void onSelectedDayChange(CalendarView view, int year, int month, int dayOfMonth) {                //显示用户选择日期                Toast.makeText(MainActivity.this,year+"年"+month+"月"+dayOfMonth+"日",Toast.LENGTH_SHORT).show();            }        });    }}

DatePicker与TimePicker

  <?xml version="1.0" encoding="utf-8"?><LinearLayout    xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:tools="http://schemas.android.com/tools"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:paddingBottom="@dimen/activity_vertical_margin"    android:paddingLeft="@dimen/activity_horizontal_margin"    android:paddingRight="@dimen/activity_horizontal_margin"    android:paddingTop="@dimen/activity_vertical_margin"    android:orientation="vertical"    tools:context="com.itheima.datetimepicker.MainActivity">    <TextView        android:gravity="center_horizontal"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:textSize="28sp"        android:text="请选择日期"/>    <DatePicker        android:id="@+id/dataPicker"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:calendarViewShown="true"        android:calendarTextColor="@color/colorAccent"        android:layout_gravity="center_horizontal"        android:startYear="2000"        android:endYear="2020"        android:spinnersShown="true">    </DatePicker>    <TimePicker        android:id="@+id/timePicker"        android:layout_width="match_parent"        android:layout_height="wrap_content"        >    </TimePicker>    <EditText        android:id="@+id/et_show"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:editable="false"        android:cursorVisible="false"/></LinearLayout>

public class MainActivity extends AppCompatActivity {    private DatePicker dataPicker;    private TimePicker timePicker;    private EditText et_show;    private int year;    private int month;    private int day;    private int hour;    private int minute;    @Override    protected void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        setContentView(R.layout.activity_main);        dataPicker = (DatePicker) findViewById(R.id.dataPicker);        timePicker = (TimePicker) findViewById(R.id.timePicker);        et_show = (EditText) findViewById(R.id.et_show);        /*        获取当前时间         */        Calendar calendar = Calendar.getInstance();        year =calendar.get(Calendar.YEAR);        month =calendar.get(Calendar.MONTH);        day =calendar.get(Calendar.DAY_OF_MONTH);        hour =calendar.get(Calendar.HOUR_OF_DAY);        minute =calendar.get(Calendar.MINUTE);        /*        初始化日期DataPicker组件         */        dataPicker.init(year, month, day, new DatePicker.OnDateChangedListener() {            @Override            public void onDateChanged(DatePicker view, int year, int monthOfYear, int dayOfMonth) {                MainActivity.this.year=year;                MainActivity.this.month = monthOfYear;                MainActivity.this.day = dayOfMonth;                showDate(year,month,day,hour,minute);            }        });        /*        设置监听器         */        timePicker.setOnTimeChangedListener(new TimePicker.OnTimeChangedListener() {            @Override            public void onTimeChanged(TimePicker view, int hourOfDay, int minute) {                MainActivity.this.hour=hourOfDay;                MainActivity.this.minute = minute;                showDate(year,month,day,hour,minute);            }        });    }    private void showDate(int year,int month,int day,int hour,int minute){        et_show.setText("日期:"+year+"年"+month+"月"+day+"月"+hour+"时"+minute+"分");    }}

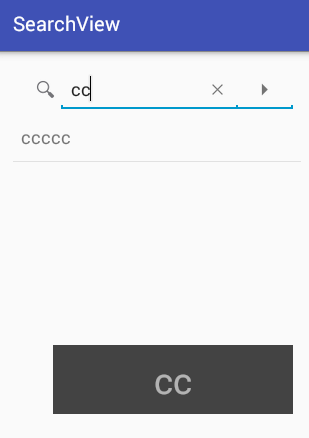

10.SearchView

<?xml version="1.0" encoding="utf-8"?><LinearLayout    xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:tools="http://schemas.android.com/tools"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:paddingBottom="@dimen/activity_vertical_margin"    android:paddingLeft="@dimen/activity_horizontal_margin"    android:paddingRight="@dimen/activity_horizontal_margin"    android:paddingTop="@dimen/activity_vertical_margin"    android:orientation="vertical"    tools:context="com.itheima.searchview.MainActivity">    <SearchView        android:id="@+id/sv"        android:layout_width="wrap_content"        android:layout_height="wrap_content"/>    <ListView        android:id="@+id/lv"        android:layout_width="match_parent"        android:layout_height="0dp"        android:layout_weight="1">    </ListView></LinearLayout>

/** * 搜索框的使用 */public class MainActivity extends AppCompatActivity {    private SearchView sv;    private ListView lv;    private String [] mStrings = {            "aaa",            "bbbb",            "ccccc",            "dddddd",            "eeeeeee"    };    @Override    protected void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        setContentView(R.layout.activity_main);        sv = (SearchView) findViewById(R.id.sv);        lv = (ListView) findViewById(R.id.lv);        //适配器        lv.setAdapter(new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1, mStrings));        //启用过滤        lv.setTextFilterEnabled(true);        //是否自动缩小为图标        sv.setIconifiedByDefault(false);        //显示搜索按键        sv.setSubmitButtonEnabled(true);        //设置搜索框内显示的文件        sv.setQueryHint("查找");        sv.setOnQueryTextListener(new SearchView.OnQueryTextListener() {            @Override            public boolean onQueryTextSubmit(String query) {                Toast.makeText(MainActivity.this,"选择是:"+query,Toast.LENGTH_SHORT).show();                return false;            }            /**             * 单击搜索按键时激发的事件             * @param newText             * @return             */            @Override            public boolean onQueryTextChange(String newText) {                if(TextUtils.isEmpty(newText)){                    //清除listview中的内容                    lv.clearTextFilter();                }else{                    lv.setFilterText(newText);                }                return true;            }        });    }}

11自动完成AutoCompleteTextView

AutoCompleteTextView 单个完成

MultiAutoCompleteTextView可以有多个值,用,号分隔

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:tools="http://schemas.android.com/tools"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:paddingBottom="@dimen/activity_vertical_margin"    android:paddingLeft="@dimen/activity_horizontal_margin"    android:paddingRight="@dimen/activity_horizontal_margin"    android:paddingTop="@dimen/activity_vertical_margin"    android:orientation="vertical"    tools:context=".MainActivity" >    <AutoCompleteTextView         android:id="@+id/auto"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:completionHint="请选择喜欢的图书"        android:dropDownHorizontalOffset="10dp"        android:completionThreshold="1"/>    <MultiAutoCompleteTextView         android:id="@+id/mauto"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:completionThreshold="1"/></LinearLayout>

/** * 自动完成文件框     * @author 刘楠 * * 2016-2-19下午11:55:16 */public class MainActivity extends Activity {    private AutoCompleteTextView auto;    private MultiAutoCompleteTextView mauto;    String[] books = { "疯狂JAVA讲义", "疯狂Android讲义", "疯狂Ajax讲义", "疯狂XML讲义",            "疯狂workflow讲义" };    @Override    protected void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        setContentView(R.layout.activity_main);        auto = (AutoCompleteTextView) findViewById(R.id.auto);        mauto = (MultiAutoCompleteTextView) findViewById(R.id.mauto);        ArrayAdapter<String> adapter = new ArrayAdapter<String>(                MainActivity.this, android.R.layout.simple_dropdown_item_1line,                books);                auto.setAdapter(adapter);                mauto.setAdapter(adapter);        //设置分隔符        mauto.setTokenizer(new MultiAutoCompleteTextView.CommaTokenizer());    }}

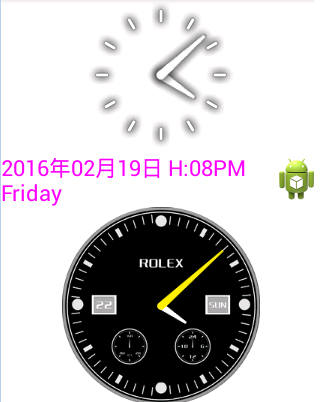

12.时钟

AnalogClock与TextClock

format12Hour:设置时钟12小时制字符串

format24Hour:设置时钟24小时制字符串

timeZone:设置时区

dial:设置模拟时钟表盘使用的图片

hand_hour:时针使用的图片

hand_minuties:分针使用的图片

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:orientation="vertical"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:gravity="center_horizontal">    <!-- 定义模拟时钟 -->    <AnalogClock        android:layout_width="wrap_content"        android:layout_height="wrap_content"/>    <!-- 定义数字时钟 -->    <TextClock        android:layout_width="wrap_content"        android:layout_height="wrap_content"        android:textSize="10pt"        android:textColor="#f0f"        android:format12Hour="yyyy年MM月dd日 H:mma EEEE"        android:drawableEnd="@drawable/ic_launcher"/>    <!-- 定义模拟时钟，并使用自定义表盘、时针图片 -->    <AnalogClock        android:layout_width="wrap_content"        android:layout_height="wrap_content"        android:dial="@drawable/watch"        android:hand_minute="@drawable/hand"/></LinearLayout>

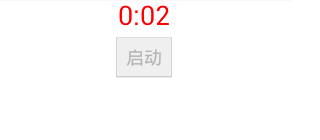

13计时器Chronometer

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:orientation="vertical"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:gravity="center_horizontal">    <Chronometer        android:id="@+id/test"        android:layout_width="wrap_content"        android:layout_height="wrap_content"        android:textSize="12pt"        android:textColor="#ffff0000"/>    <Button        android:id="@+id/start"        android:layout_width="wrap_content"        android:layout_height="wrap_content"        android:text="启动"/></LinearLayout>

/** * 计时器     * @author 刘楠 * * 2016-2-20上午12:15:09 */public class MainActivity extends Activity {    Chronometer ch;    Button start;    @Override    public void onCreate(Bundle savedInstanceState)    {        super.onCreate(savedInstanceState);        setContentView(R.layout.activity_main);        // 获取计时器组件        ch = (Chronometer) findViewById(R.id.test);        // 获取“开始”按钮        start = (Button) findViewById(R.id.start);        start.setOnClickListener(new View.OnClickListener()        {            @Override            public void onClick(View source)            {                // 设置开始计时时间                ch.setBase(SystemClock.elapsedRealtime());                // 启动计时器                ch.start();                start.setEnabled(false);            }        });        // 为Chronometer绑定事件监听器        ch.setOnChronometerTickListener(new OnChronometerTickListener()        {            @Override            public void onChronometerTick(Chronometer ch)            {                // 如果从开始计时到现在超过了20s                if (SystemClock.elapsedRealtime() - ch.getBase() > 20 * 1000)                {                    ch.stop();                    start.setEnabled(true);                }            }        });    }}
