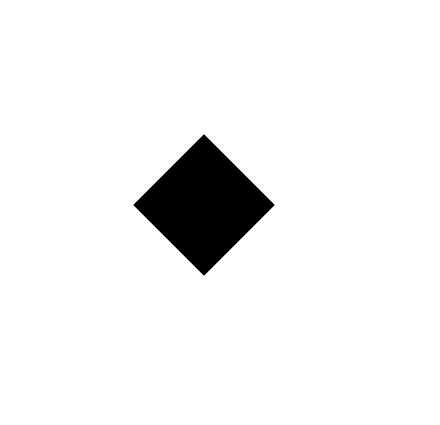

context.setTransform(1, 0, 0, 1, 0, 0);
var xScale = Math.cos(Math.PI/4);
var ySkew = -Math.sin(Math.PI/4);
var xSkew = Math.sin(Math.PI/4);
var yScale = Math.cos(Math.PI/4);
var xTrans = 200;
var yTrans = 200;
context.transform(xScale, ySkew, xSkew, yScale, xTrans, yTrans);
context.fillRect(-50, -50, 100, 100)
------解决方案--------------------
x’=x*cosθ-y*sinθ
y’=x*sinθ+y*cosθ
矩阵变换 由x,y绕转θ得到x'和y'
Math.PI/4即为45度角
//初始化为正立
context.setTransform(1, 0, 0, 1, 0, 0);
//下面四个参数说明旋转45度
var xScale = Math.cos(Math.PI/4);
var ySkew = -Math.sin(Math.PI/4);
var xSkew = Math.sin(Math.PI/4);
var yScale = Math.cos(Math.PI/4);
//绕行坐标点
var xTrans = 200;
var yTrans = 200;
//进行旋转
context.transform(xScale, ySkew, xSkew, yScale, xTrans, yTrans);
//填充颜色 参数分别为 x坐标 y坐标 长 宽
context.fillRect(-50, -50, 100, 100)
